FCC ID ATH2425M80

DUAL BAND VHF AND 700/800 MHz MOBILE TRANSCEIVER

by E F Johnson Company

Grantee Code: ATH Product Code: 2425M80

Latest application date: 2015-11-20

Device Images

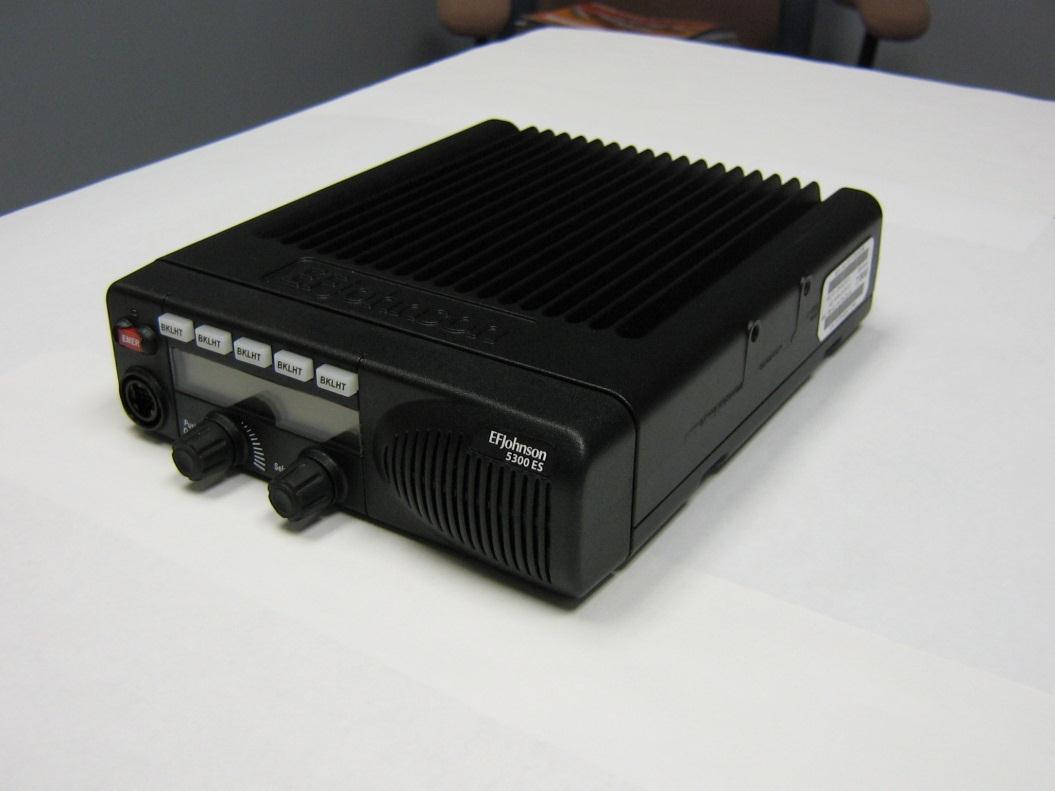

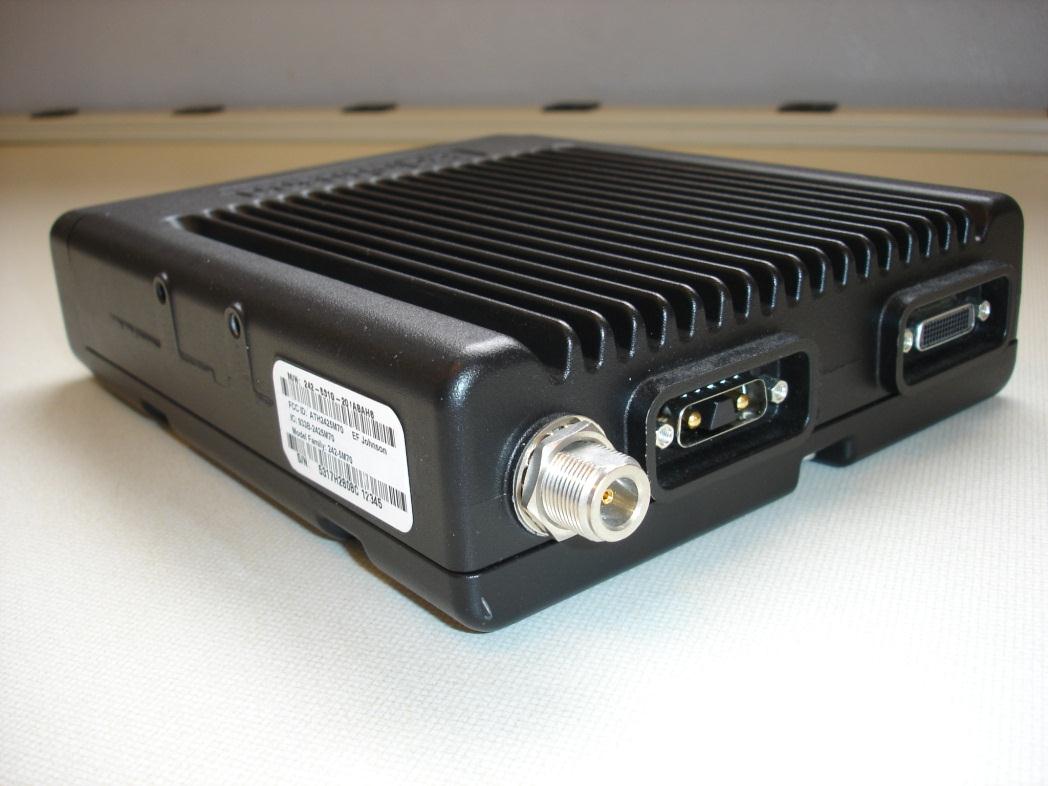

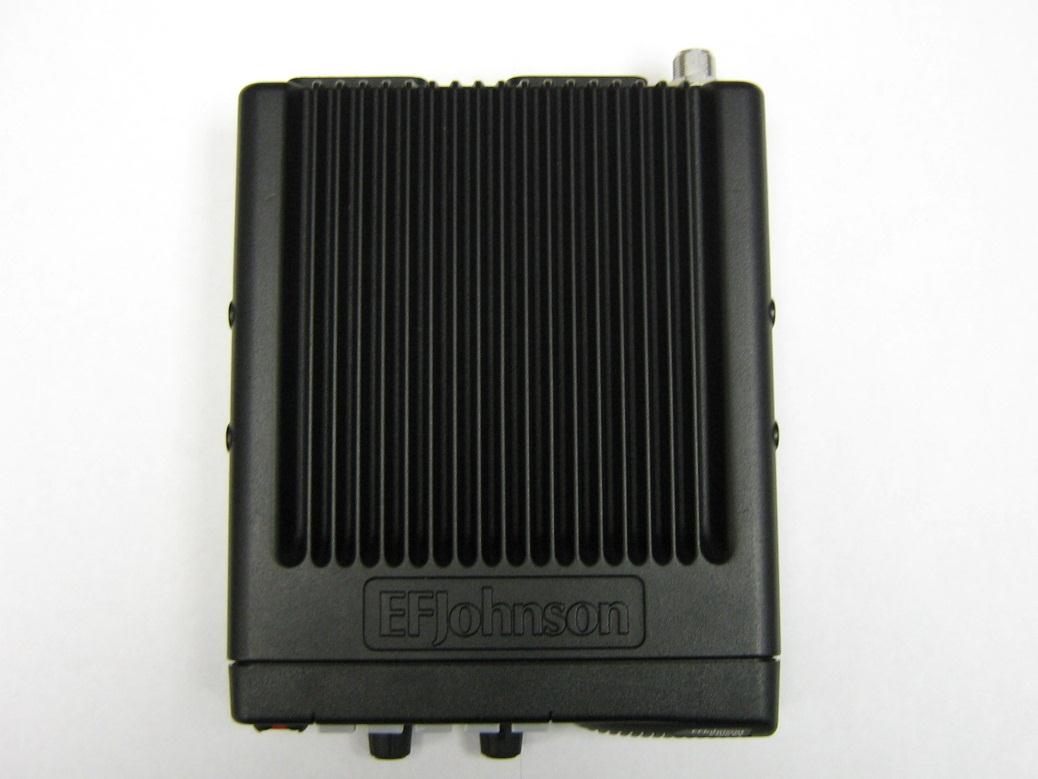

FCC ID ATH2425M80 External Photos — External Photos

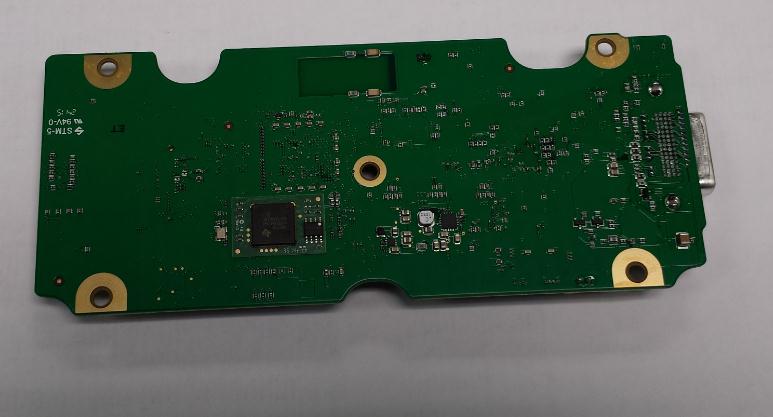

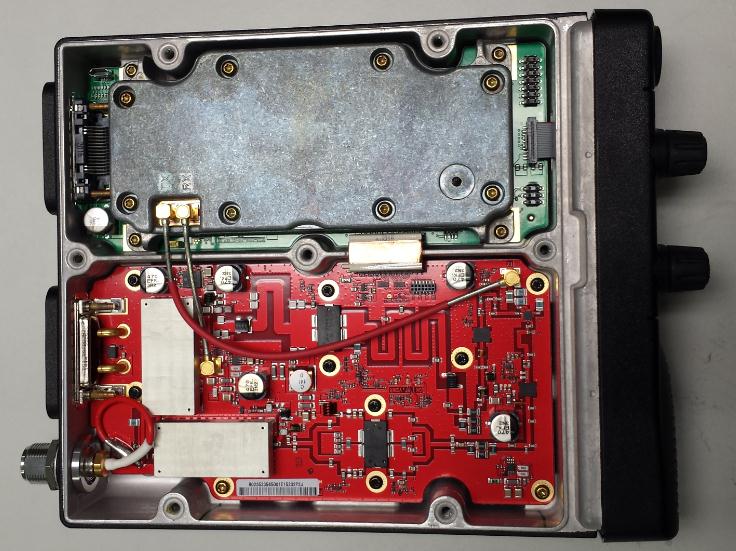

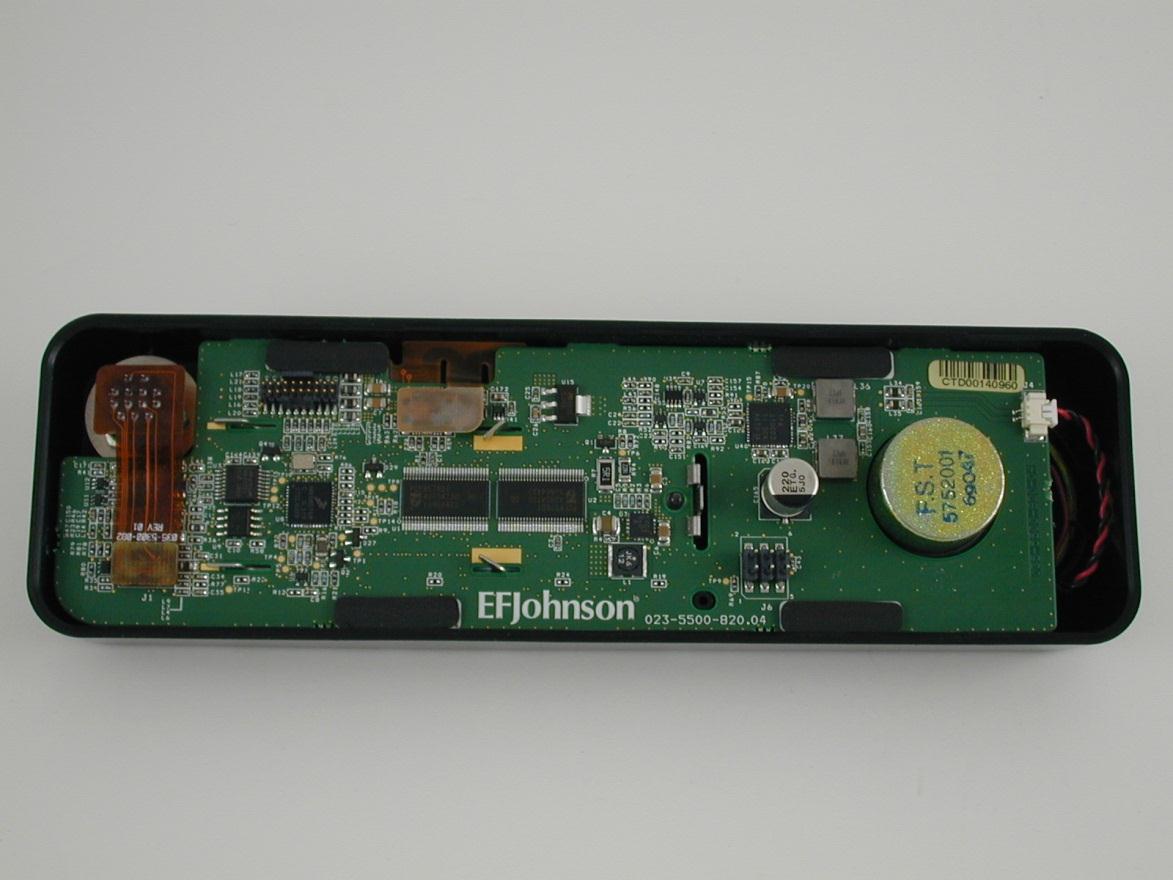

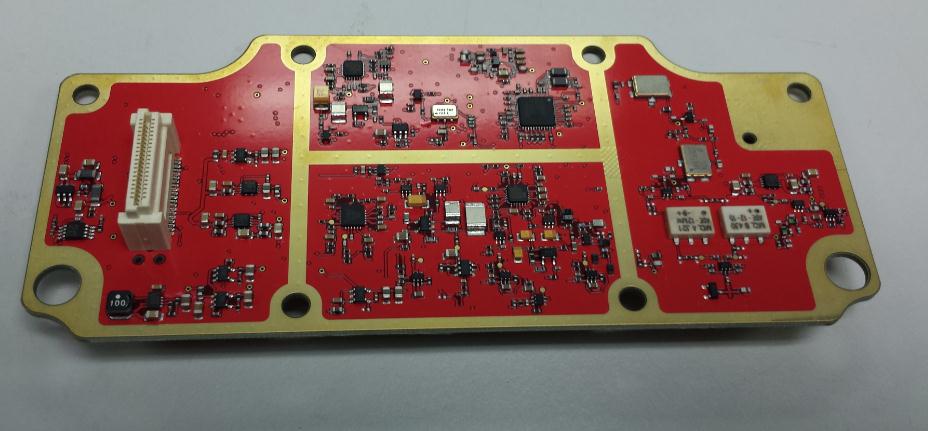

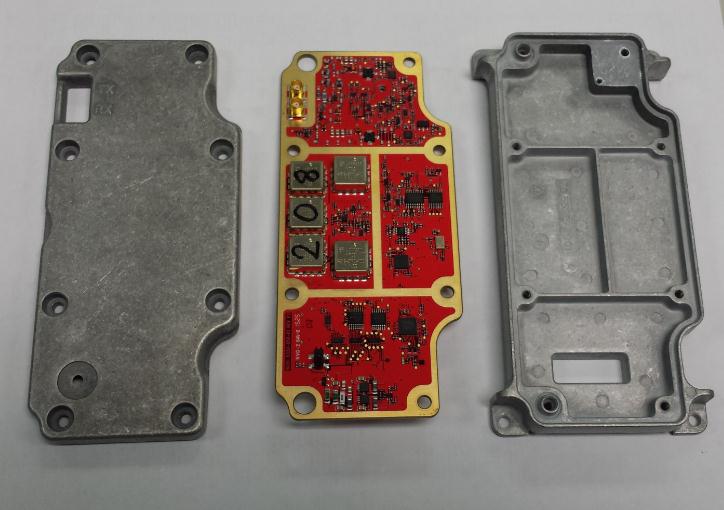

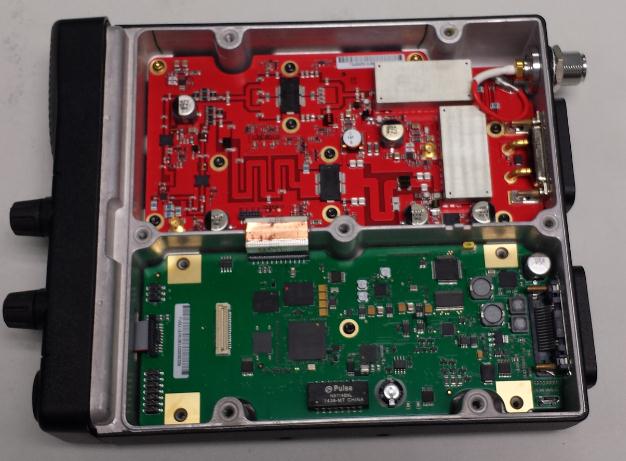

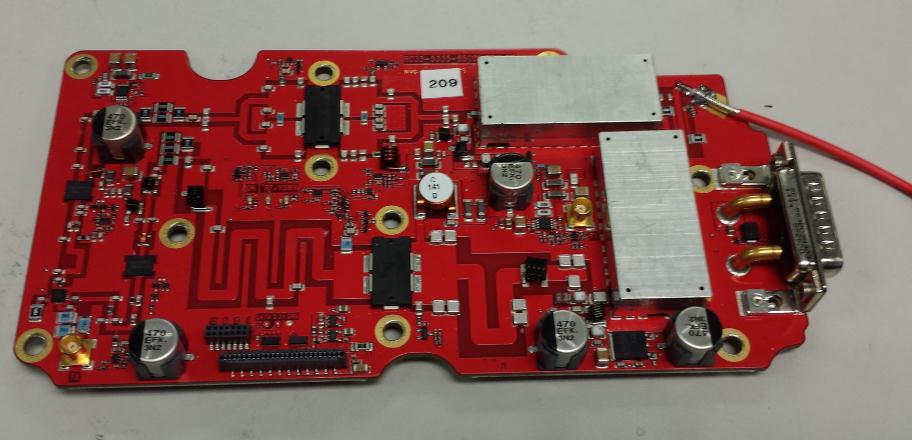

FCC ID ATH2425M80 Internal Photos — Internal Photos

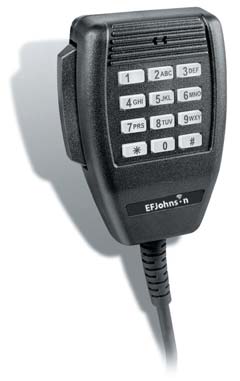

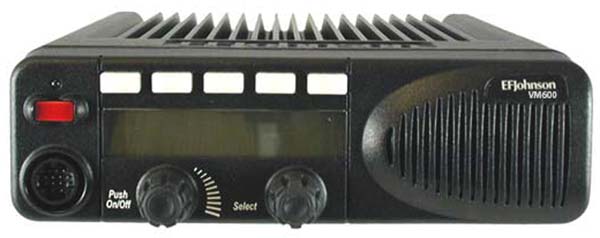

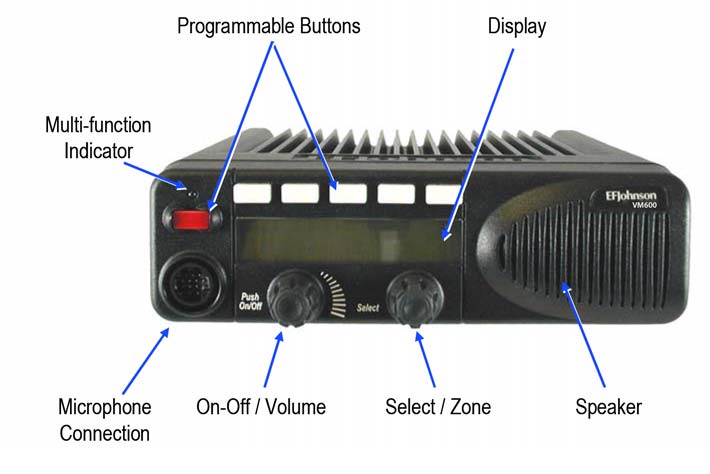

FCC ID ATH2425M80 Users Manual — Users Manual

FCC ID Device Details

FCC ID	ATH2425M80
Mirrors	fcc.id \| gov \| fccid.ai
Grantee Code	ATH
Product Code	2425M80
Applicant Business	E F Johnson Company 🇺🇸
Related Domains	efji.com timcoengr.com
Equipment Class	DUAL BAND VHF AND 700/800 MHz MOBILE TRANSCEIVER
Test Firm	Timco Engineering, Inc.

Operating Frequencies

Frequency Range	Application Purpose	Final Action Date
136-174 MHz	Original Equipment	2015-11-20

Exhibits

Document	Type	Available	File
User Manual	Users Manual	2015-11-20	PDF 2.8 MB
Internal Photos	Internal Photos	2015-11-20	PDF 866.1 KB
External photos	External Photos	2015-11-20	PDF 558.8 KB

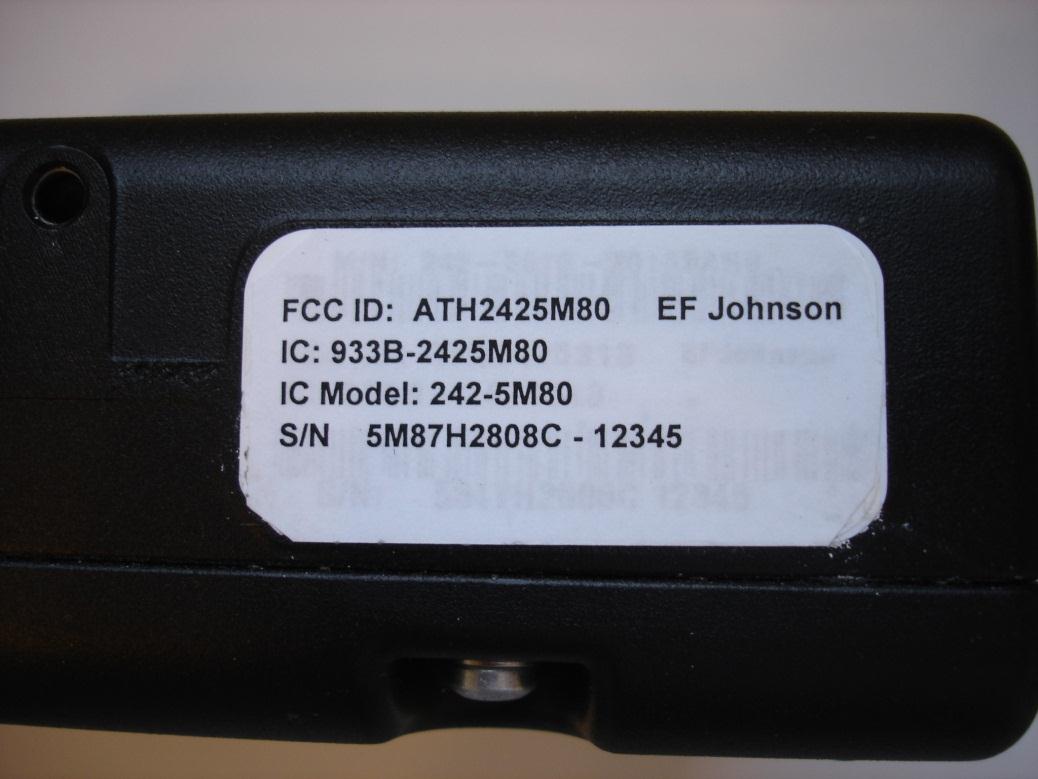

Label sample and location	ID Label/Location Info	2015-11-20	PDF 186.2 KB
Test Report 2	Test Setup Photos	2015-11-20	PDF 886.8 KB
Test set up photos	Test Setup Photos	2015-11-20	PDF 1.9 MB
Test report - Part 1	Test Report	2015-11-20	PDF 5.3 MB
Tuning Attestation per 90 203	Attestation Statements	2015-11-20	PDF 151.5 KB
Confidentiality request letter	Cover Letter(s)	2015-11-20	PDF 177.1 KB
Frequency Justification Letter	Cover Letter(s)	2015-11-20	PDF 144.3 KB
RF Exposure Information	RF Exposure Info	2015-11-20	PDF 177.3 KB
Tuning Procedure	Parts List/Tune Up Info	2015-11-20	PDF 76 KB
Block Diagram Metadata only	Block Diagram		PDF 232.8 KB
Schematics Metadata only	Schematics		PDF 1.6 MB
Operational Description Metadata only	Operational Description		PDF 359.5 KB

Application Information

Application ID	id+iifD4cJHJ4COwQwi1fA==
Final Action Date	2015-11-20
Application Purpose	Original Equipment
Applicant FRN	0004201521
Model	2425M80
Frequency Range	136-174 MHz
Equipment Class	TNB - Licensed Non-Broadcast Station Transmitter
Device Description	DUAL BAND VHF AND 700/800 MHz MOBILE TRANSCEIVER
Responsible Party	Karthik Rangarajan, SR VP Engineering, krangarajan@efji.com , 972-819-0734
Technical Contact	Cory Leverett, Timco Engineering, Inc., tei@timcoengr.com , 888-472-2424
Non-Technical Contact	Sharon Hoffman, Timco Engineering, Inc., tei@timcoengr.com , 8884272424
Test Firm	Bruno Clavier, Timco Engineering, Inc., bruno@timcoengr.com , 352-472-5500
TCB Email	tei@timcoengr.com
TCB Scope	B2: General Mobile Radio And Broadcast Services equipment in the following 47 CFR Parts 22 (non-cellular) 73, 74, 90, 95, 97, & 101 (all below 3 GHz)
Short-Term Confidentiality	No
Long-Term Confidentiality	Yes
Grant Deferral	No
Modular Equipment	Does not apply
Composite Device	No
Composite Part	No
Cognitive Radio	No
Authorization Waiver	No
Authorization Waiver Approved	No
Section 5301 Certification	Yes
Related OET Knowledge DataBase Inquiry	No
Grant Comments	Output power listed is conducted. This transmitter must be restricted to work related operations in an Occupational / Controlled RF exposure environment. All qualified end-users of this device must have the knowledge to control their exposure conditions and/or duration, and the exposure conditions and/or duration of their passengers and bystanders, to comply with the General Population / Uncontrolled MPE limit and requirements. Users must be provided with the training information, antenna installation and transmitter operating conditions for satisfying RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide configurations and separation distances as described in this filing.
