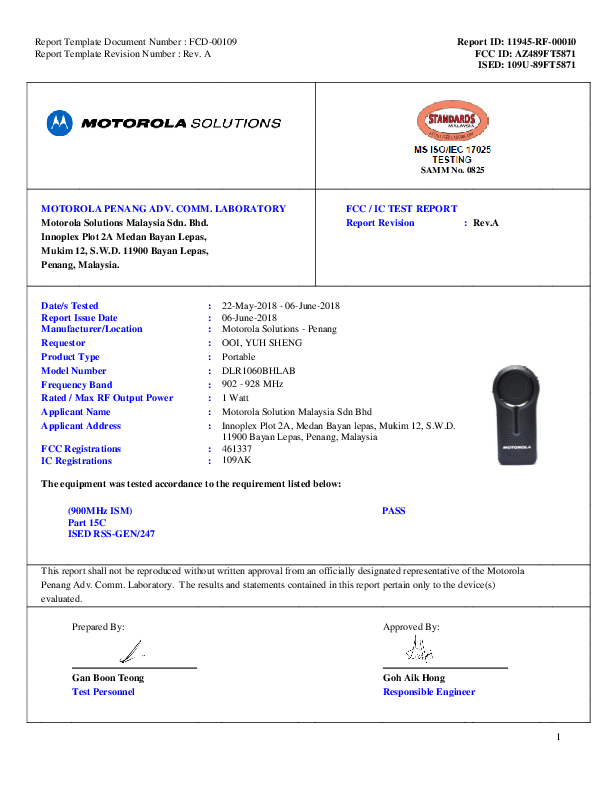

Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
SAMM No. 0825
MOTOROLA PENANG ADV. COMM. LABORATORY
Motorola Solutions Malaysia Sdn. Bhd.
Innoplex Plot 2A Medan Bayan Lepas,
Mukim 12, S.W.D. 11900 Bayan Lepas,
Penang, Malaysia.
Date/s Tested
Report Issue Date
Manufacturer/Location
Requestor
Product Type
Model Number
Frequency Band
Rated / Max RF Output Power
Applicant Name
Applicant Address
FCC Registrations
IC Registrations
FCC / IC TEST REPORT
Report Revision
: Rev.A
22-May-2018 - 06-June-2018
06-June-2018
Motorola Solutions - Penang
OOI, YUH SHENG
Portable
DLR1060BHLAB
902 - 928 MHz
1 Watt
Motorola Solution Malaysia Sdn Bhd
Innoplex Plot 2A, Medan Bayan lepas, Mukim 12, S.W.D.
11900 Bayan Lepas, Penang, Malaysia
461337
109AK
The equipment was tested accordance to the requirement listed below:
(900MHz ISM)
Part 15C
ISED RSS-GEN/247
PASS
This report shall not be reproduced without written approval from an officially designated representative of the Motorola
Penang Adv. Comm. Laboratory. The results and statements contained in this report pertain only to the device(s)
evaluated.
Prepared By:
Approved By:
_________________________
Gan Boon Teong
Test Personnel
_________________________
Goh Aik Hong
Responsible Engineer
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Table of Contents
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
1.0. General Information ................................................................................................................................. 4
2.0. Summary of Test Results ......................................................................................................................... 5
3.0. Measurement Uncertainty ........................................................................................................................ 5
4.0. Equipment List ......................................................................................................................................... 6
5.0. Test Mode Applicability and Test Channel Detail .................................................................................. 7
6.0. Transmitter Test Parameters .................................................................................................................... 8
6.1. Conducted RF Output Power (Peak) and E.I.R.P Measurement ...................................................... 8
6.1.1. Test Setup ................................................................................................................................. 8
6.1.2. Test Limits: .............................................................................................................................. 8
6.1.3. Test Data: ................................................................................................................................. 8
6.2. 20dB Channel Bandwidth ............................................................................................................... 10
6.2.1. Test Setup ............................................................................................................................... 10
6.2.2. Test Limits: ............................................................................................................................ 10
6.2.3. Test Data: ............................................................................................................................... 10
6.3. Band-edge Conducted Spurious Emission ...................................................................................... 12
6.3.1. Test Setup ............................................................................................................................... 12
6.3.2. Test Limits.............................................................................................................................. 12
6.3.3. Test Result .............................................................................................................................. 12
6.4. Dwell time ...................................................................................................................................... 14
6.4.1. Test Setup ............................................................................................................................... 14
6.4.2. Test Limits.............................................................................................................................. 14
6.4.3. Test Result .............................................................................................................................. 15
6.5. Number of hopping Frequency ....................................................................................................... 16
6.5.1. Test Setup ............................................................................................................................... 16
6.5.2. Test Limits.............................................................................................................................. 16
6.5.3. Test Result .............................................................................................................................. 16
6.6. Channel Separation ......................................................................................................................... 18
6.6.1. Test Setup ............................................................................................................................... 18
6.6.2. Test Limits.............................................................................................................................. 18
6.6.3. Test Result .............................................................................................................................. 18
6.7. Conducted Spurious Emission ........................................................................................................ 20
6.7.1. Test Setup ............................................................................................................................... 20
6.7.2. Test Limits.............................................................................................................................. 20
6.7.3. Test Data ................................................................................................................................ 20
6.8. Radiated Spurious Emission ........................................................................................................... 23
6.8.1. Test Setup ............................................................................................................................... 23
6.8.2. Test Limits.............................................................................................................................. 24
6.8.3. Test Data: ............................................................................................................................... 25
6.9. AC Powerline Conducted Emission................................................................................................ 37
6.9.1. Test Setup ............................................................................................................................... 37
6.9.2. Test Limits.............................................................................................................................. 38
6.9.3. Test Result .............................................................................................................................. 38
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
REVISION HISTORY
Revision History
Rev. A
Description
Initial Report
Date
06-June-2018
Originator
Gan Boon Teong
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
1.0. General Information
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
EUT Description:
Technologies
TX Frequency range
Modulation Type
No of Hopset
No of Channel Per Hopset
Input/Output
Connector type
Antenna type
Antenna Gain
900MHz ISM
902MHz – 928MHz
8FSK
10
50
RF port
PROGRAMMING
Helix Fixed Antenna
2.5 dBi
The EUT contains following accessory devices and data cable:
Item
Brand
Model or P/N
IMPRES 1800 mAH, LI-ION BATTERY
MOTOROLA HKNN4013A
PROGRAMMING, TEST & ALIGNMENT CABLE MOTOROLA HKNN4027A
General Description of Applied Standards
The EUT is a RF Product. According to the specifications of the manufacturer, the EUT is to comply with the
requirements of the following standards:
ANSI C63.10-2013
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
2.0. Summary of Test Results
FCC Clause
IC Clause
15.247 (b)(2)
RSS-247 5.4(1)
15.247 (a)(1)
RSS-247 5.1(3)
RSS-247 5.1(2)
15.247(a)(1)(i)
RSS-247 5.1(3)
15.247(a)(1)(i)
RSS-247 5.1(3)
15.247 (d)
RSS-247 5.5
15.247 (d)
15.205, 15.209,
15.247 (d)
RSS-247 5.5
15.207
RSS-Gen 8.8
RSS-247 5.5
Test Item
Conducted RF Output Power
(Peak) & EIRP Measurement
(1) 20dB Channel Bandwidth
(2) Channel Separation
Number of hopping Frequency
used
Dwell time on each channel
Band Edge Conducted Spurious
Emission
Conducted Spurious Emission
Radiated Emission within
Restricted Bands
AC Powerline Conducted
Emission
Result
Remark
Pass
NA
Pass
NA
Pass
NA
Pass
NA
Pass
NA
Pass
NA
Pass
NA
NA
Testing is not required,
radio shall turn off during
charging mode
3.0. Measurement Uncertainty
Measurement
AC Power Line Conducted Spurious
Emission
Radiated Emissions up to 1 GHz
Radiated Emissions above 1 GHz
Frequency
Expended Uncertainty (k=1.96) (±)
150KHz ~ 30MHz
3.43
30MHz ~ 200MHz
200MHz ~
1000MHz
1GHz ~ 18GHz
18GHz ~ 25GHz
5.01
5.01
5.01
5.01
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
4.0. Equipment List
Bluetooth ATE # 1 (SW Version: Not Applicable)
Description
SIGNAL GENERATOR
POWER SUPPLY
SPECTRUM ANALYZER
WIDEBAND RADIO
COMMUNICATION TESTER
SPECTRUM ANALYZER
CHAMBER
SIGNAL GENERATOR
Model
Serial Number
Calibration Date
2042
6652A
FSEK30
203002/742
MY40001437
838495/014
8-Jun-17
11-Aug-16
13-Jul-17
Calibration Due
Date
8-Jun-18
11-Aug-18
13-Jul-18
CMW500
163061
6-Jun-17
6-Jun-19
E4445A
SH-641
2042
MY46181597
92002859
203002/742
21-Dec-16
3-Jan-18
8-Jun-17
21-Dec-18
3-Jan-19
8-Jun-18
Radiated Emission Station (SW Version: EMC FCC RE v1.5.1)
Description
DRG HORN FREQ.
DRG HORN FREQ.
POWER SUPPLY
MICROWAVE SIGNAL
GENERATOR
EMI TEST RECEIVER
SIGNAL ANALYZER
5m Semi-anechoic Chamber
BILOG ANTENNA
BILOG ANTENNA
BROAD-BAND HORN ANTENNA
DATA LOGGER
LOOP ANTENNA
SYSTEM CONTROLLER
TURNTABLE FLUSH MOUNT 2M
ANTENNA POSITIONING TOWER
18 - 40GHz PREAMPLIFIER
PREAMPLIFIER
Model
Serial Number
Calibration Date
SAS-571
SAS-571
6032A
719
720
2615A01178
18-Jul-17
2-Mar-17
6-Jun-17
Calibration Due
Date
18-Jul-19
2-Mar-19
6-Jun-18
SMP04
100127
19-Jul-17
18-Jul-18
ESIB26
FSV40
S800-HX
CBL6112
CBL6112
BBHA917
SDL500
6502
SC104V
FM2011
TLT2
Miteq Hi
Gain
Sucoflex
PAM0118P
100336
101103
J2308
13-Jul-17
18-Jul-17
Not Required
12-Jul-18
17-Jul-18
Not Required
25224
22-Jul-17
22-Jul-18
2964
16-Feb-18
16-Feb-20
BBHA9170255
7-Nov-17
7-Nov-18
A.016776
208416
050806-1
NA
NA
18-Mar-17
27-Jul-17
Not Required
Not Required
Not Required
18-Mar-19
27-Jul-18
Not Required
Not Required
Not Required
002
Not Required
Not Required
361
Not Required
Not Required
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
5.0. Test Mode Applicability and Test Channel Detail
Radiated Emission Test (Above 1GHz)
Pre-Scan has been conducted to determine the worst-case mode from all possible combinations between
available modulations, data rates and antenna ports (if EUT with antenna diversity architecture).
Following channel(s) was (were) selected for the final test as listed below.
Radiated Emission Test (Below 1GHz)
Pre-Scan has been conducted to determine the worst-case mode from all possible combinations between
available modulations, data rates and antenna ports (if EUT with antenna diversity architecture).
Following channel(s) was (were) selected for the final test as listed below.
EUT Configure
Mode
Test Mode
Total Channel
Tested Channel
1 to 500
Hopset 1: 1, 26
Hopset 10: 50
Modulation
Technology
FHSS
Modulation
Type
8FSK
Power Line Conducted Emission Test
Pre-Scan has been conducted to determine the worst-case mode from all possible combinations between
available modulations, data rates and antenna ports (if EUT with antenna diversity architecture).
Following channel(s) was (were) selected for the final test as listed below.
EUT Configure
Mode
Application
Mode
Available
Channel
Tested
Channel
Modulation
Technology
Modulation
Type
1 to 500
AUTO
FHSS
AUTO
Antenna Port Conducted Measurement:
This item includes all test value of each mode, but only includes spectrum plot of worst value of each mode.
Pre-Scan has been conducted to determine the worst-case mode from all possible combinations between
available modulations, data rates and antenna ports (if EUT with antenna diversity architecture).
Following channel(s) was (were) selected for the final test as listed below.
EUT Configure
Mode
Test Mode
Total Channel
Tested Channel
1 to 500
Hopset 1: 1, 26
Hopset 10: 50
Modulation
Technology
FHSS
Modulation
Type
8FSK
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
6.0. Transmitter Test Parameters
6.1. Conducted RF Output Power (Peak) and E.I.R.P Measurement
6.1.1. Test Setup
Spectrum
Analyzer
EUT
a)
b)
c)
d)
Check and ensure the spectrum analyzer well calibrate.
Turn on the EUT and set EUT to transmit in hopping disable mode.
Connect EUT’s antenna terminal to spectrum analyzer with a low loss cable.
Setting of Spectrum analyzer :
a.
b.
c.
d.
e.
f.
RBW = > 20 dB bandwidth
VBW = RBW
Detector mode = Peak
AMPLITUDE  Scale/Div = 10 dB
Trace = Max hold
Sweep = auto
e) Measure the captured power within the band and recording the plot.
f) Repeat above procedure with different channel frequency of operation.
6.1.2. Test Limits
Normal Condition (25 º C)
Peak Output Power : < 1W ( or 30dBm);
E.I.R.P: < 4W
6.1.3. Test Data
Antenna Gain: 2.5dBi
Test Conditions
Modulation
Voltage(V)
8FSK
3.80
Test
Frequency
(MHz)
902.525
915.025
927.475
Peak Output Power
E.I.R.P.
dBm
Watt
Status
dBm
Watt
Status
29.40
29.45
29.03
0.87
0.88
0.80
Pass
Pass
Pass
31.90
31.95
31.53
1.55
1.57
1.42
Pass
Pass
Pass
**Note: EIRP = PT +GT – LC, PT = Transmit Output Power, dBm
GT = Antenna Gain, dBi
LC = signal attenuation, dB1
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
i.
The Conducted RF Output Power test with result at low
frequency, 902.525MHz
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
ii.
The Conducted RF Output Power test with result at mid
frequency, 915.025MHz.
iii. The Conducted RF Output Power test with result at high
frequency, 927.475MHz.
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
6.2. 20dB Channel Bandwidth
6.2.1. Test Setup
Spectrum
Analyzer
EUT
a)
b)
c)
d)
Check and ensure the spectrum analyzer well calibrate.
Turn on the EUT and set EUT to transmit in hopping disable mode.
Connect EUT’s antenna terminal to spectrum analyzer with a low loss cable.
Setting of Spectrum analyzer :
a.
b.
c.
d.
e.
f.
g.
RBW = 1 kHz
VBW = 3 kHz
SPAN = 130kHz, center on test frequency
AMPLITUDE  Scale/Div = 10 dB
Detector mode = Peak
Trace = Max hold
Sweep = auto
e) Measure 20dB & 99% Bandwidth and record as the emission bandwidth.
f) Save the plot result from spectrum analyzer screen.
g) Repeat above procedure with different channel frequency of operation.
6.2.2. Test Limits
Normal Condition (25 º C)
For frequency hopping systems operating in the 902-928 MHz band: if the 20 dB
bandwidth of the hopping channel is less than 250 kHz, the system shall use at least
50 hopping frequencies
6.2.3. Test Data
Test Conditions
Modulation
Voltage(V)
Type
8FSK
3.80
Test Frequency
TX (GHz)
902.525
915.025
927.475
Results (MHz)
20dB Bandwidth
99% Occupied
(kHz)
Bandwidth (kHz)
28.960
29.936
30.085
26.4470
26.8363
26.9711
Status
Pass
Pass
Pass
10
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
iv. The 20 dB BW & occupied bandwidth test with result at
low frequency, 902.525MHz.
v.
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
The 20 dB BW & occupied bandwidth test with result at
mid frequency, 915.025MHz.
vi. The 20 dB BW & occupied bandwidth test with result at
high frequency, 927.475MHz.
11
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
6.3. Band-edge Conducted Spurious Emission
6.3.1. Test Setup
Spectrum
Analyzer
EUT
a)
b)
c)
d)
Check and ensure the spectrum analyzer well calibrate.
Turn on the EUT and keep the EUT in hopping mode.
Connect EUT’s antenna terminal to spectrum analyzer with a low loss cable.
Setting of Spectrum analyzer :
a.
b.
c.
d.
e.
f.
RBW = 100 kHz
VBW = 300 kHz
SPAN = 4 MHz (Low channel) or 6MHz(High Channel)
Detector mode = Peak
Trace = Max hold
Sweep = auto
e) Measure the captured band edge emission result and recording the plot.
f) Repeat above on EUT with hopping disable.
g) Repeat above procedure with other different test frequency.
6.3.2. Test Limits
Normal Condition (25 º C)
Shall be at least 20 dB below the peak power.
6.3.3. Test Result
Test Conditions
Modulation
Voltage(V)
8FSK
3.80
Hopping
Method
Enabled
(continuously)
Disabled
(constantly)
Test Frequency(MHz)
902.525
927.475
902.525
927.475
Results
dB
Status
-43.11
-41.58
-42.64
-42.54
Pass
Pass
Pass
Pass
12
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
i.
The lowest band edge emission at low carrier frequency
with hopping function enabled, 902.525MHz
iii. The lowest band edge emission at low carrier frequency
with hopping function disabled, 902.525MHz
ii.
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
The highest band edge emission at high carrier
frequency with hopping function enabled, 927.475MHz
iv. The highest band edge emission at high carrier
frequency with hopping function disabled, 927.475MHz
13
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
6.4. Dwell time on each channel
6.4.1. Test Setup
EUT
a)
b)
c)
d)
Spectrum Analyzer
Check and ensure the spectrum analyzer well calibrate.
Turn on the EUT and keep the EUT in hopping mode.
Connect EUT’s antenna terminal to spectrum analyzer with a low loss cable.
Setting of Spectrum analyzer :
a.
b.
c.
d.
e.
f.
g.
RBW = 10 kHz
VBW = 30 kHz
SPAN = Zero SPAN, center on hopping frequency
Detector mode = Peak
Trace = Max hold
Sweep time = 10 second
Sweep = Single
e) Measure total numbers of transmissions occur in 10 second and save the plot.
f) Change the setting of spectrum analyzer :
a.
b.
c.
d.
RBW = 10 kHz
VBW = 30 kHz
Sweep time = sufficient to capture dwell time for 1 transmission
Sweep = Single
g) Measure dwell time for 1 transmission and save the plot.
h) Calculate accumulate dwell time in a given period equal to number of hopping frequencies.
i) Repeat above procedure with different channel frequency of operation
6.4.2. Test Limits
Normal Condition (25 º C)
≤ 0.4sec
14
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
6.4.3. Test Result
Test Conditions
Results
Modulation
Volt
(V)
Test
Frequency
(MHz)
8FSK
3.80
915.025
No. of
transmiss
ion in
10s (a)
Dwell time
in one
transmission
(msec) (b)
85.39
Total
accumulate
dwell time in
20s.
(msec) (c)
170.78
Status
Pass
**Note: Total dwell time in 20s, (c) = (a) x (b) x 2
Dwell Time
15
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
6.5. Number of hopping Frequency
6.5.1. Test Setup
Spectrum
Analyzer
EUT
a)
b)
c)
d)
Check and ensure the spectrum analyzer well calibrate.
Turn on the EUT and keep the EUT in hopping mode.
Connect EUT’s antenna terminal to spectrum analyzer with a low loss cable.
Setting of Spectrum analyzer :
a.
b.
c.
d.
RBW = 10 kHz
VBW = 10 kHz
Detector mode = Peak
Trace = Max hold
e) Allow the trace to stabilized & save the plot result from spectrum analyzer screen.
f) Count number of channel frequency in the operating.
g) Repeat above procedure for other test frequency.
6.5.2. Test Limits
Normal Condition (25 º C)
≥ 50
6.5.3. Test Result
Voltage = 3.80V
Results
HOPSET
Sweep Range
(MHz)
902 - 928
Start Freq
(MHz)
Last Freq
(MHz)
902.525
927.025
No. of
Hopping
Frequencies
50
Status
Pass
16
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
i. Number of Hopping Frequencies per HOPSET
17
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
6.6. Channel Separation
6.6.1. Test Setup
Spectrum
Analyzer
EUT
a)
b)
c)
d)
Check and ensure the spectrum analyzer well calibrate.
Turn on the EUT and keep the EUT in hopping mode.
Connect EUT’s antenna terminal to spectrum analyzer with a low loss cable.
Setting of Spectrum analyzer :
a.
b.
c.
d.
e.
f.
RBW = 10 kHz
VBW = 30 kHz
SPAN = 1 MHz, center on test frequency
Detector mode = Peak
Trace = Max hold
Sweep = auto
e) Measure the frequency different of these two adjacent channels with marker delta function & record the
measurement results.
f) Repeat above procedure with different channel frequency of operation
6.6.2. Test Limits
Normal Condition (25 º C)
At least 25kHz or the 20 dB bandwidth of the hopping channel, whichever is greater.
6.6.3. Test Result
Modulation
Voltage(V)
Test
Frequency
(MHz)
Test Data
Adjacent Channel
Separation (MHz)
Status
8FSK
3.80
902.525
915.025
927.475
0.503
0.505
0.502
Pass
Pass
Pass
18
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
i.
The Channel Separation test with result at low
frequency, 902.525MHz.
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
ii.
The Channel Separation test with result at mid
frequency, 915.025MHz.
iii. The Channel Separation test with result at high
frequency, 927.475MHz.
19
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
6.7. Conducted Spurious Emission
6.7.1. Test Setup
Spectrum
Analyzer
EUT
a)
b)
c)
d)
Check and ensure the spectrum analyzer well calibrate.
Turn on the EUT and set EUT to transmit maximum data rate with hopping disable.
Connect EUT’s antenna terminal to spectrum analyzer with a low loss cable.
Setting of Spectrum analyzer :
a.
b.
c.
d.
e.
f.
g.
RBW = 100 kHz
VBW = 300 kHz
th
SPAN = Cover until 10 harmonic
Detector mode = Peak
AMPLITUDE  Scale/Div = 10 dB
Trace = Max hold
Sweep = auto
e) Measure the captured spurious emission result and recording the plot.
f) Repeat above procedure with different channel frequency of operation.
6.7.2. Test Limits
Normal Condition (25 º C)
Shall be at least 20 dB below for peak power.
6.7.3. Test Data
Test Conditions
Modulation
Voltage(V)
8FSK
3.80
Test
Frequency
(MHz)
902.525
915.025
927.475
Results
Spurious
Status
Level
-26.82
-28.72
-31.25
Pass
Pass
Pass
20
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
8FSK Modulation:

The high emission level within the assigned band at low
carrier frequency.

Spurious emission measurement in 30MHz – 10GHz at low
carrier frequency.

The high emission level within the assigned band at mid
carrier frequency.

Spurious emission measurement in 30MHz – 10GHz at mid
carrier frequency.
21
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A

The high emission level within the assigned band at high
carrier frequency.

Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
Spurious emission measurement in 30MHz – 10GHz at high
carrier frequency.
22
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
6.8. Radiated Spurious Emission
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
6.8.1. Test Setup
a. The EUT is placed on the top of a rotating table 0.8m above the ground at a 3m semi-anechoic
chamber. The table is rotated 360 degrees to determine the position of the highest radiation.
b. The EUT is set 3m away from the interference-receiving antenna, which is mounted on the top
of a variable-height antenna tower.
c. The antenna is Bilog/Horn antenna depend on which frequency range uses, and its height is
varied from one meter to four meters above the ground to determine the maximum value of
the field strength. Both horizontal and vertical polarizations of the antenna are set to make the
measurement.
d. For each suspected emission, the EUT is arranged to its worst case and then the antenna is
tuned to heights from 1m to 4m and the rotatable table is turned from 0 degrees to 360
degrees to find the maximum reading.
e. The test-receiver system is set to Peak Detect Function and Specified Bandwidth with
Maximum Hold Mode.
f. If the emission level of the EUT in peak mode is fall within the range of 10dB from the limit
specified, the emissions would be re-tested one by one using peak, quasi-peak or average
method as specified and then reported in a data sheet. Otherwise, the testing could be stopped
and the peak values of the EUT would be reported.
NOTE:
a. The resolution bandwidth and video bandwidth of test receiver/spectrum analyzer is 120 kHz for
Quasi-peak detection at frequency below 1GHz.
b. The resolution bandwidth of test receiver/spectrum analyzer is 1 MHz and video bandwidth is 3 MHz
for Peak detection at frequency above 1 GHz.
c. All modes of operation were investigated and the worst-case emissions are reported.
23
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
6.8.2. Test Limits
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
Radiated emissions which fall in the restricted bands must comply with the radiated emission limits
specified as below table. Other emissions shall be at least 20dB below the highest level of the desired
power.
NOTE:
a. The lower limit shall apply at the transition frequencies.
b. Emission level (dBuV/m) = 20 log Emission level (uV/m).
c. For frequencies above 1000 MHz, the field strength limits are based on average detector, however, the peak
field strength of any emission shall not exceed the maximum permitted average limits, specified above by
more than 20dB under any condition of modulation.
24
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
6.8.3. Test Data
Model#: DLR1060BHLAB
Test Channel: Low
Test: Bluetooth SAC Transmitter Radiated Emission
S/N: 550PUE3829
EMC SR ID#: 11945-EMC-00007
Battery: HKNN4013A
Accessory: NA
Test Frequency: 902.5250 MHz
Test Standard: ANSI C63.10-2013
Worst Case Plane: X-Plane
Radiated Emission (Low Channel) tabular data
Spur Freq
(MHz)
Spur level
QPK
(dBµV/m)
Spur level
PK
(dBµV/m)
960.2063
979.3447
1805.0500
2707.5051
3610.0650
4513.0046
6317.6650
8122.2205
9025.5647
25.9393
28.6742
44.7927
53.7435
55.6871
53.0165
53.1503
58.9567
60.2221
960.2063
979.4048
1805.0500
2707.5650
3609.9951
4512.5351
6317.6650
8122.9098
9025.0552
41.5935
44.2116
47.7917
53.2437
56.4731
53.2649
53.8785
59.6206
59.4841
Vertical Radiated Emission Result
Limit
Spur level
QPK
Limit PK
Limit AV
AV
(dBµV/
(dBµV/m) (dBµV/m)
(dBµV/m)
m)
54.0000
54.0000
106.6502
34.3435
74.0000
54.0000
36.2871
74.0000
54.0000
33.6165
74.0000
54.0000
106.6502
39.5567
74.0000
54.0000
40.8221
74.0000
54.0000
33.8437
37.0731
33.8649
40.2206
40.0841
Remarks:
Pass Result
Temperature (degC): 22.3
Test Performed by: Nazrin&Qawiman
System MU: 5.01dB
Horizontal Radiated Emission Result
54.0000
54.0000
106.6502
74.0000
54.0000
74.0000
54.0000
74.0000
54.0000
106.6502
74.0000
54.0000
74.0000
54.0000
Marginal Result
28.0607
25.3258
Margin
PK
(dBµV/
m)
61.8575
20.2565
18.3129
20.9835
53.4999
15.0433
13.7779
Margin
AV
(dBµV/
m)
19.6565
17.7129
20.3835
14.4433
13.1779
12.4065
9.7884
58.8585
20.7563
17.5269
20.7351
52.7717
14.3794
14.5159
20.1563
16.9269
20.1351
13.7794
13.9159
Margin
QPK
(dBµV/m)
Carrier
PK Power
(dBµV/m)
126.6502
126.6502
126.6502
126.6502
Fail Result
Humidity (%): 71.2
Test Date: Tue, May 22, 2018
Remarks: ** Indicates the spurious emission could not be detected due to noise limitations or ambient.
*Pursuant to CFR 47 Part 2.1057 ( c ), emissions attenuated more than 20 dB below the permissible limit are not reported.
Duty cycle correction factor is determined using the formula 20 log (dwell time/100 ms), and for the MOTOtalk emission, this
factor is:
Dwell time = (274 symbols)/(3200 symbols/sec)/(8 frequencies) = 10.70 ms
Correction factor 20 Log (10.70 ms/100 ms) = -19.41 dB
25
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
VERTICAL, QPK
100
Spur Level (dBuV/m)
90
80
70
60
Spur Level
50
Limit
40
30
20
10
960.2063
979.3447
Spur Freq (MHz)
HORIZONTAL, QPK
100
Spur Level (dBuV/m)
90
80
70
60
50
Spur Level
40
Limit
30
20
10
960.2063
979.4048
Spur Freq (MHz)
26
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
VERTICAL, PK
100
Spur Level (dBuV/m)
90
80
70
60
Spur Level
50
Limit
40
30
20
10
1805.05
2707.5051
3610.065
4513.0046
6317.665
8122.2205
9025.5647
Spur Freq (MHz)
HORIZONTAL, PK
100
Spur Level (dBuV/m)
90
80
70
60
Spur Level
50
Limit
40
30
20
10
1805.05
2707.565
3609.9951
4512.5351
Spur Freq (MHz)
6317.665
8122.9098
9025.0552
27
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
VERTICAL, AV
100
Spur level (dBuV/m)
90
80
70
60
50
Spur Level
40
Limit
30
20
10
1805.05
2707.5051
3610.065
4513.0046
6317.665
8122.2205
9025.5647
Spur Freq (MHz)
HORIZONTAL, AV
100
90
Spur level (dBuV/m)
80
70
60
Spur Level
50
Limit
40
30
20
10
1805.05
2707.565
3609.9951
4512.5351
6317.665
8122.9098
9025.0552
Spur Freq (MHz)
28
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Model#: DLR1060BHLAB
Test Channel: Mid
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
Test: Bluetooth SAC Transmitter Radiated Emission
S/N: 550PUE3829
EMC SR ID#: 11945-EMC-00007
Battery: HKNN4013A
Accessory: NA
Test Frequency: 915.0250 MHz
Test Standard: ANSI C63.10-2013
Worst Case Plane: X-Plane
Radiated Emission (Mid Channel) tabular data
Spur Freq
(MHz)
Spur level
QPK
(dBµV/m)
Spur level
PK
(dBµV/m)
Spur level
AV
(dBµV/m)
972.6392
991.8787
1830.0500
2745.0550
3660.1150
4575.2249
5490.1450
6405.1750
8235.2450
27.7439
33.8095
47.8021
54.8180
52.5784
58.5248
54.7617
53.5309
59.8041
35.4180
33.1784
39.1248
40.4041
Vertical Radiated Emission Result
Limit
QPK
Limit PK
Limit AV
(dBµV/
(dBµV/m) (dBµV/m)
m)
54.0000
54.0000
106.6502
74.0000
54.0000
74.0000
54.0000
74.0000
54.0000
106.6502
106.6502
74.0000
54.0000
972.6793
991.8186
1830.0500
2745.0700
3660.1200
4575.1799
5490.1450
6405.1700
8235.4148
42.9828
43.9168
49.3284
53.1924
56.0856
60.3112
56.9548
52.8538
61.7674
33.7924
36.6856
40.9112
42.3674
Horizontal Radiated Emission Result
54.0000
54.0000
106.6502
74.0000
54.0000
74.0000
54.0000
74.0000
54.0000
106.6502
106.6502
74.0000
54.0000
Remarks:
Pass Result
Temperature (degC): 22.3
Test Performed by: Nazrin&Qawiman
System MU: 5.01dB
Marginal Result
26.2561
20.1905
Margin
PK
(dBµV/
m)
58.8481
19.1820
21.4216
15.4752
51.8885
53.1193
14.1959
Margin
AV
(dBµV/
m)
18.5820
20.8216
14.8752
13.5959
11.0172
10.0832
57.3218
20.8076
17.9144
13.6888
49.6954
53.7964
12.2326
20.2076
17.3144
13.0888
11.6326
Margin
QPK
(dBµV/m)
Carrier
PK Power
(dBµV/m)
126.6502
126.6502
126.6502
126.6502
126.6502
126.6502
Fail Result
Humidity (%): 71.2
Test Date: Tue, May 22, 2018
Remarks: ** Indicates the spurious emission could not be detected due to noise limitations or ambient.
*Pursuant to CFR 47 Part 2.1057 ( c ), emissions attenuated more than 20 dB below the permissible limit are not reported.
Duty cycle correction factor is determined using the formula 20 log (dwell time/100 ms), and for the MOTOtalk emission, this
factor is:
Dwell time = (274 symbols)/(3200 symbols/sec)/(8 frequencies) = 10.70 ms
Correction factor 20 Log (10.70 ms/100 ms) = -19.41 dB
29
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
VERTICAL, QPK
100
Spur Level (dBuV/m)
90
80
70
60
Spur Level
50
Limit
40
30
20
10
972.6392
991.8787
Spur Freq (MHz)
HORIZONTAL, QPK
100
Spur Level (dBuV/m)
90
80
70
60
50
Spur Level
40
Limit
30
20
10
972.6793
991.8186
Spur Freq (MHz)
30
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
VERTICAL, PK
100
Spur Level (dBuV/m)
90
80
70
60
Spur Level
50
Limit
40
30
20
10
1830.05
2745.055
3660.115
4575.2249
5490.145
6405.175
8235.245
Spur Freq (MHz)
HORIZONTAL, PK
100
Spur Level (dBuV/m)
90
80
70
60
Spur Level
50
Limit
40
30
20
10
1830.05
2745.07
3660.12
4575.1799
Spur Freq (MHz)
5490.145
6405.17
8235.4148
31
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
VERTICAL, AV
100
Spur level (dBuV/m)
90
80
70
60
50
Spur Level
40
Limit
30
20
10
1830.05
2745.055
3660.115
4575.2249
5490.145
6405.175
8235.245
Spur Freq (MHz)
HORIZONTAL, AV
100
90
Spur level (dBuV/m)
80
70
60
Spur Level
50
Limit
40
30
20
10
1830.05
2745.07
3660.12
4575.1799
5490.145
6405.17
8235.4148
Spur Freq (MHz)
32
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Model#: DLR1060BHLAB
Test Channel: High
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
Test: Bluetooth SAC Transmitter Radiated Emission
S/N: 550PUE3829
EMC SR ID#: 11945-EMC-00007
Battery: HKNN4013A
Accessory: NA
Test Frequency: 927.0250 MHz
Test Standard: ANSI C63.10-2013
Worst Case Plane: X-Plane
Radiated Emission (High Channel) tabular data
Spur Freq
(MHz)
Spur level
QPK
(dBµV/m)
Spur level
PK
(dBµV/m)
Spur level
AV
(dBµV/m)
970.8350
984.6240
1854.0500
2781.0350
3708.0900
5562.1450
6489.1650
8343.4897
9270.2550
31.4366
31.0682
46.2810
52.7643
52.5282
57.3288
52.5093
60.4642
53.3890
33.3643
33.1282
41.0642
Vertical Radiated Emission Result
Limit
QPK
Limit PK
Limit AV
(dBµV/
(dBµV/m) (dBµV/m)
m)
54.0000
54.0000
106.6502
74.0000
54.0000
74.0000
54.0000
106.6502
106.6502
74.0000
54.0000
106.6502
970.8570
984.6500
1854.0500
2781.2249
3708.0750
5562.1450
6489.1650
8343.1800
9270.2300
38.6493
38.2518
50.3870
52.9576
55.0082
58.0502
53.2931
60.3289
53.4507
33.5576
35.6082
40.9289
Horizontal Radiated Emission Result
54.0000
54.0000
106.6502
74.0000
54.0000
74.0000
54.0000
106.6502
106.6502
74.0000
54.0000
106.6502
Remarks:
Pass Result
Temperature (degC): 22.3
Test Performed by: Nazrin&Qawiman
System MU: 5.01dB
Marginal Result
22.5634
22.9318
Margin
PK
(dBµV/
m)
60.3692
21.2357
21.4718
49.3214
54.1409
13.5358
53.2612
Margin
AV
(dBµV/
m)
20.6357
20.8718
12.9358
15.3507
15.7482
56.2632
21.0424
18.9918
48.6000
53.3571
13.6711
53.1995
20.4424
18.3918
13.0711
Margin
QPK
(dBµV/m)
Carrier
PK Power
(dBµV/m)
126.6502
126.6502
126.6502
126.6502
126.6502
126.6502
126.6502
126.6502
Fail Result
Humidity (%): 71.2
Test Date: Tue, May 22, 2018
Remarks: ** Indicates the spurious emission could not be detected due to noise limitations or ambient.
*Pursuant to CFR 47 Part 2.1057 ( c ), emissions attenuated more than 20 dB below the permissible limit are not reported.
Duty cycle correction factor is determined using the formula 20 log (dwell time/100 ms), and for the MOTOtalk emission, this
factor is:
Dwell time = (274 symbols)/(3200 symbols/sec)/(8 frequencies) = 10.70 ms
Correction factor 20 Log (10.70 ms/100 ms) = -19.41 dB
33
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
VERTICAL, QPK
100
Spur Level (dBuV/m)
90
80
70
60
Spur Level
50
Limit
40
30
20
10
970.835
984.624
Spur Freq (MHz)
HORIZONTAL, QPK
100
Spur Level (dBuV/m)
90
80
70
60
50
Spur Level
40
Limit
30
20
10
970.857
984.65
Spur Freq (MHz)
34
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
VERTICAL, PK
100
Spur Level (dBuV/m)
90
80
70
60
Spur Level
50
Limit
40
30
20
10
1854.05
2781.035
3708.09
5562.145
6489.165
8343.4897
9270.255
Spur Freq (MHz)
HORIZONTAL, PK
100
Spur Level (dBuV/m)
90
80
70
60
Spur Level
50
Limit
40
30
20
10
1854.05
2781.2249
3708.075
5562.145
Spur Freq (MHz)
6489.165
8343.18
9270.23
35
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
VERTICAL, AV
100
Spur level (dBuV/m)
90
80
70
60
50
Spur Level
40
Limit
30
20
10
1854.05
2781.035
3708.09
5562.145
6489.165
8343.4897
9270.255
Spur Freq (MHz)
HORIZONTAL, AV
100
90
Spur level (dBuV/m)
80
70
60
Spur Level
50
Limit
40
30
20
10
1854.05
2781.2249
3708.075
5562.145
6489.165
8343.18
9270.23
Spur Freq (MHz)
36
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
6.9. AC Powerline Conducted Emission
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
6.9.1. Test Setup
1) Tests were conducted for both Receive and Transmit Mode of the EUT.
2) The EUT was placed 0.4 meters from the conducting wall of the shielded room with EUT being connected to the
power mains through a line impedance stabilization network (LISN). Other support units were connected to the
power mains through another LISN. The two LISNs provide 50 ohm/50uH of coupling impedance for the
measuring instrument.
3) Both lines of the power mains connected to the EUT were checked for maximum conducted interference.
4) The frequency range from 150 kHz to 30MHz was measured.
37
Report Template Document Number : FCD-00109
Report Template Revision Number : Rev. A
6.9.2. Test Limits
Report ID: 11945-RF-00010
FCC ID: AZ489FT5871
ISED: 109U-89FT5871
For AC Power Line Conducted Test Limit can be Class A or B depends on product classification.
Table 1: Limits for Conducted Disturbance at the Mains Ports of Class A ITE.
Table 2: Limits for Conducted Disturbance at the Mains Ports of Class B ITE
6.9.3. Test Result
Not Applicable. Testing is not required, radio shall turn off during charging mode
38
Download: 89FT5871 Portable 2-way radio Test Report  Motorola Solutions, Inc.
Mirror Download [FCC.gov]89FT5871 Portable 2-way radio Test Report  Motorola Solutions, Inc.
Document ID3882775
Application IDUpiBjmgysnQo/Zfdx802EQ==
Document DescriptionTest Report
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize119.1kB (1488736 bits)
Date Submitted2018-06-11 00:00:00
Date Available2018-06-13 00:00:00
Creation Date2018-06-08 15:47:53
Producing SoftwareMicrosoft® Office Word 2007
Document Lastmod2018-06-08 15:51:22
Document TitleTest Report
Document CreatorMicrosoft® Office Word 2007
Document Author: cag067

Source Exif Data:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Author                          : cag067
Create Date                     : 2018:06:08 15:47:53+08:00
Modify Date                     : 2018:06:08 15:51:22+08:00
Has XFA                         : No
Language                        : en-US
Tagged PDF                      : Yes
XMP Toolkit                     : Adobe XMP Core 5.6-c015 84.159810, 2016/09/10-02:41:30
Format                          : application/pdf
Creator                         : cag067
Creator Tool                    : Microsoft® Office Word 2007
Metadata Date                   : 2018:06:08 15:51:22+08:00
Producer                        : Microsoft® Office Word 2007
Document ID                     : uuid:5dd03ee3-836a-4518-82f4-974ce9fa8ba3
Instance ID                     : uuid:3e9aaff9-401f-4e41-8329-a186cfc36e6d
Page Count                      : 38
EXIF Metadata provided by EXIF.tools

Facebook Twitter Google+ RSS © FCCID.io 2018
