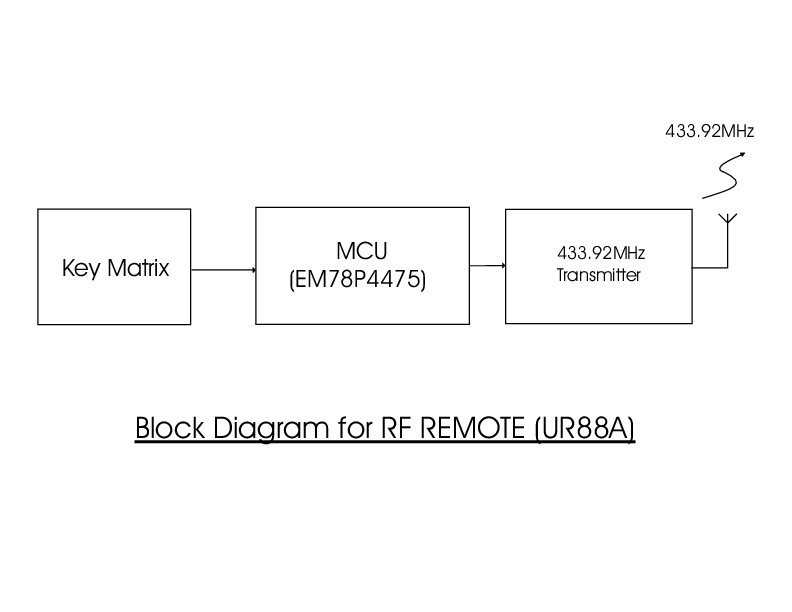

UR88A Remote Control Block Diagram - FCC ID B4SUR88A

FCC ID B4SUR88A

Exhibit B Operational Description per 2 1033 b4

Remote Control

by Authinx Inc.

Document preview loads when visible.

Document Details

FCC IDB4SUR88A
Document ID275104
Document TypeBlock Diagram
DescriptionExhibit B Operational Description per 2 1033 b4
ApplicantAuthinx Inc.
Equipment ClassRemote Control
Product CodeUR88A
Application IDcx7hk82Ct65yJXZCw2GxrA==
Application PurposeOriginal Equipment
Application Date2002-10-07
Frequency Range434 MHz
FRN0024868812
Test FirmRetlif Testing Laboratories
Certified ByDave Rye Vice President
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2002-10-07
Available2002-10-07
Created2002-09-30
Modified2002-09-30
Pages1
File TypeAdobe Acrobat PDF
File Size6888
File SHA-256ddbc70a9676f25bbb530c7e216448a2ea9a5bc089b9ea33ed44ebcb655954768
PDF Metadata ProducerAcrobat Distiller 4.0 for Windows
FCC.gov SourcesFCC.gov 275104
