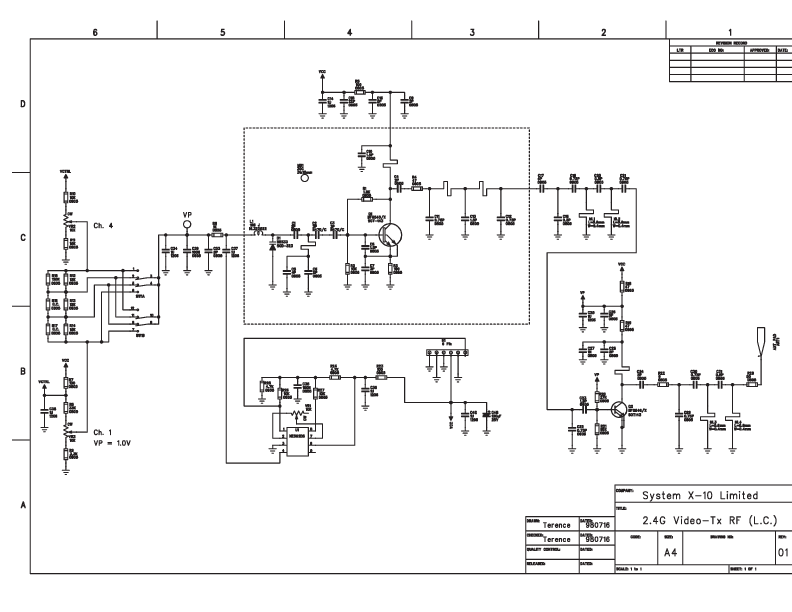

VT30A Video Sender Schematics - FCC ID B4SVT30A

FCC ID B4SVT30A

schematic

Video Sender

by Authinx Inc.

Document preview loads when visible.

Document Details

FCC IDB4SVT30A
Document ID19693
Document TypeSchematics
Descriptionschematic
Document TitleVT30-SCH.CDR:CorelDRAW
ApplicantAuthinx Inc.
Equipment ClassVideo Sender
Product CodeVT30A
Application ID33qR05D4FHuAn00oc0wxUw==
Application PurposeOriginal Equipment
Application Date1999-03-16
Frequency Range2400-2483.5 MHz
FRN0024868812
Test FirmRetlif Testing Laboratories
Certified ByThomas J. Schneider EMC Test Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceYes
Composite PartNo
Submitted1999-01-15
Available1999-03-16
Created1998-12-24
Modified1998-12-24
Pages1
File TypeAdobe Acrobat PDF
File Size96725
File SHA-256deef4fd17905ddead71eeae6617a36b05233ced5fdc97cec85b68ad1b2b0ffbc
PDF Metadata Authordaverye
PDF Metadata ProducerAcrobat Distiller 3.01 for Windows
FCC.gov SourcesFCC.gov 19693
