FCC ID B4SVT38A

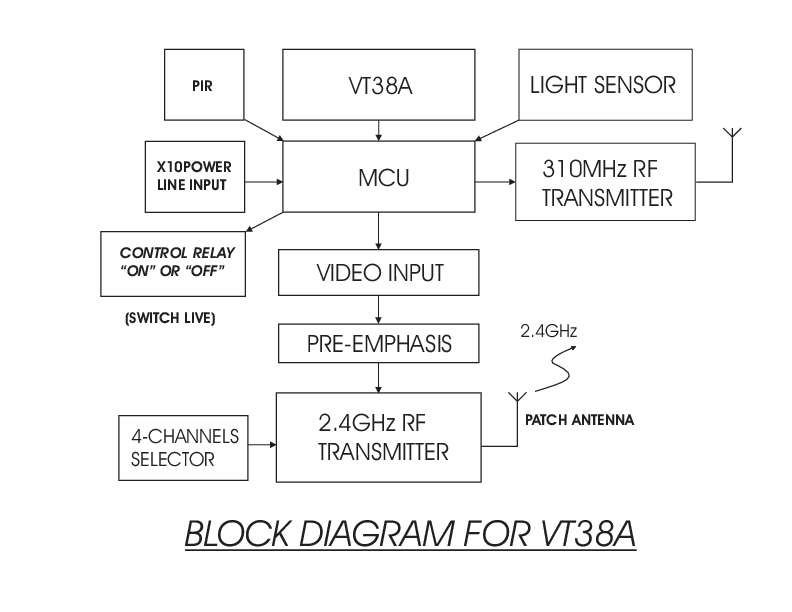

Exhibit B Block Diagram per 2 1033 b5
Indoor/Outdoor Camera w/2.4GHz transmitter.
by Authinx Inc.
Document preview loads when visible.
Document Details
| FCC ID | B4SVT38A |
|---|---|
| Document ID | 171252 |
| Document Type | Block Diagram |
| Description | Exhibit B Block Diagram per 2 1033 b5 |
| Document Title | VT38A-BD.CDR |
| Applicant | Authinx Inc. |
| Equipment Class | Indoor/Outdoor Camera w/2.4GHz transmitter. |
| Product Code | VT38A |
| Application ID | Uf2lh6V8tPg8VB4ka7mbPQ== |
| Application Purpose | Original Equipment |
| Application Date | 2001-09-25 |
| Frequency Range | 2410-2472 MHz |
| FRN | 0024868812 |
| Test Firm | Retlif Testing Laboratories |
| Certified By | Dave Rye Vice President |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Submitted | 2001-09-25 |
| Available | 2001-09-25 |
| Created | 2001-08-31 |
| Modified | 2001-09-01 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 307320 |
| File SHA-256 | c5567e76480d3c7f7d1fdb67eca8d51b3aaf0722c8e611cc3df6e04f8c7d0dff |
| PDF Metadata Author | drye |
| PDF Metadata Producer | Acrobat Distiller 4.0 for Windows |
| FCC.gov Sources | FCC.gov 171252, FCC.gov 171240 |
