ZS940PA Telemetry Medical Transmitter Test... - FCC ID B6BZS-940PA

FCC ID B6BZS-940PA

Test Setup Photos

Telemetry Medical Transmitter

by Nihon Kohden Corporation

Document preview loads when visible.

Document Details

FCC IDB6BZS-940PA
Document ID699635

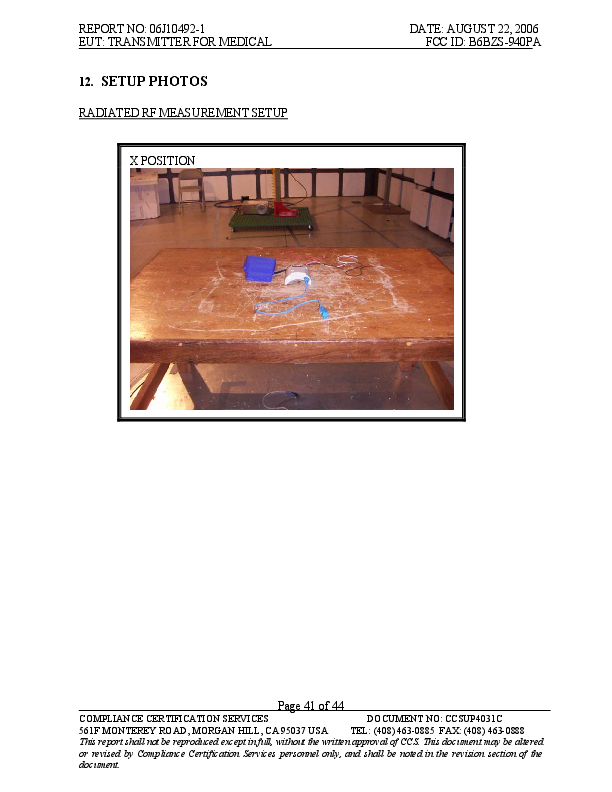

Document TypeTest Setup Photos
DescriptionTest Setup Photos
Document Title06J10492-1 FCC Part 95 Report
ApplicantNihon Kohden Corporation
Equipment ClassTelemetry Medical Transmitter
Product CodeZS940PA
Application IDepv3shmsfSkHPw1nQMtqgw==
Application PurposeClass II Permissive Change
Application Date2006-08-30
Frequency Range608.013-613.988 MHz
FRN0007907645
Test FirmCompliance Certification Services
Certified ByMike Heckrotte Engineering Manager ( AGENT )
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2006-08-30
Available2006-08-30
Created2006-08-23
Modified2006-08-23
Pages4
File TypeAdobe Acrobat PDF
File Size253147
File SHA-25611d6af10bb0979ae444f250bc56ab69413a690746aebd68661df1e400ae5cc8a
PDF Metadata Authordzhan
PDF Metadata ProducerPScript5.dll Version 5.2 Acrobat Distiller 5.0.5 (Windows)
FCC.gov SourcesFCC.gov 699635
