FCC ID BCGA1469

Apple TV Device with WiFi and Bluetooth

by Apple Inc.

Grantee Code: BCG Product Code: A1469

Latest application date: 2015-12-30

Device Images

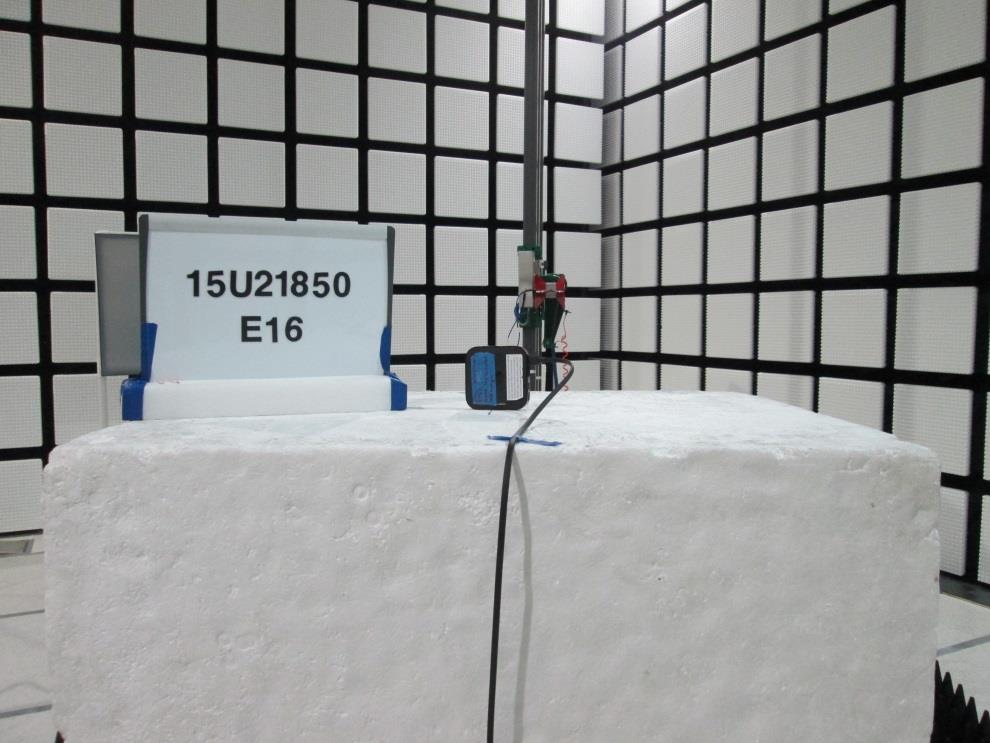

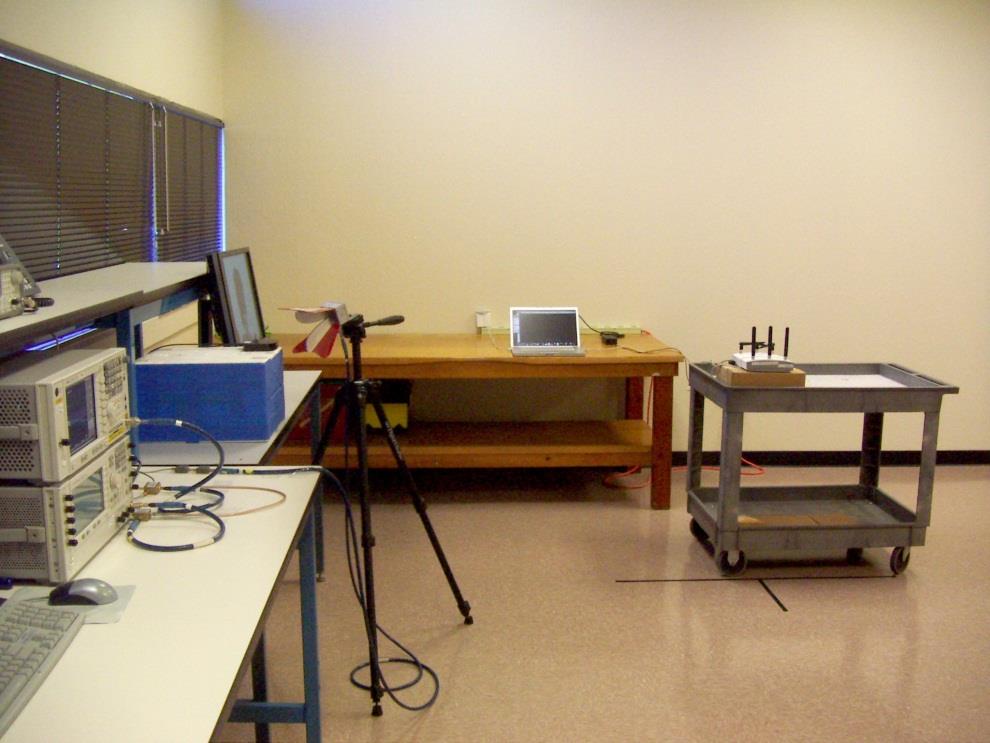

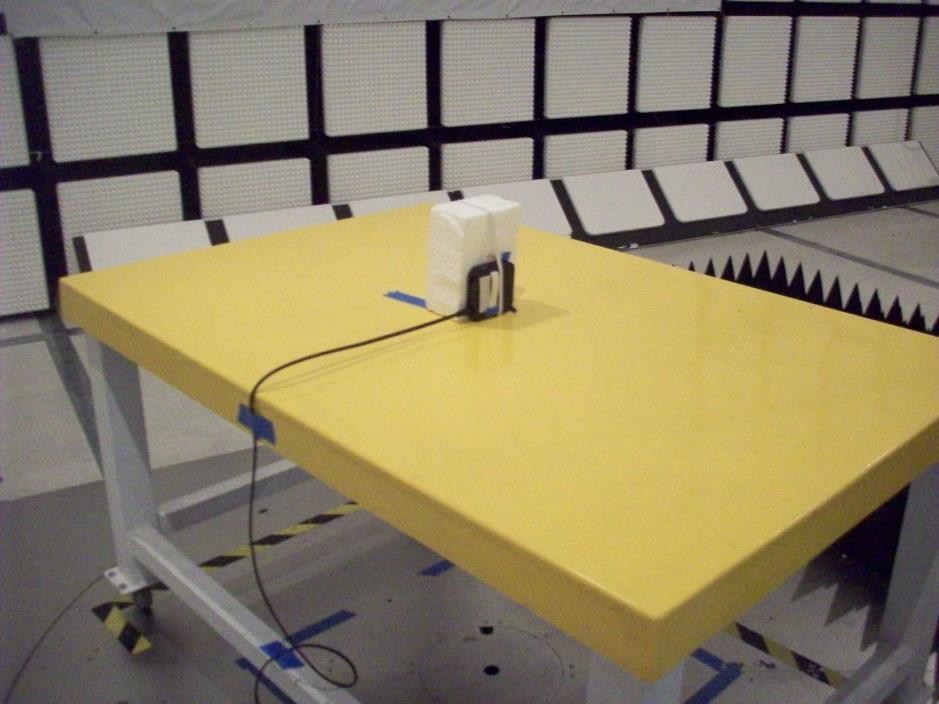

FCC ID BCGA1469 Test Setup Photos — Test Setup Photos

FCC ID Device Details

FCC ID	BCGA1469
Mirrors	fcc.id \| gov \| fccid.ai
Grantee Code	BCG
Product Code	A1469
Applicant Business	Apple Inc. 🇺🇸
Related Domains	apple.com
Equipment Class	Apple TV Device with WiFi and Bluetooth
Test Firm	UL Verification Services Inc. (formerly UL CCS)

Operating Frequencies

Frequency Range	Application Purpose	Final Action Date
5180-5240 MHz	Class II permissive change or modification of presently authorized equipment	2015-12-30
2402-2480 MHz	Original Equipment	2013-01-29
5180-5240 MHz	Original Equipment	2013-01-29
2402-2480 MHz	Original Equipment	2013-01-29

Exhibits

Document	Type	Available	File
user guide 1	Users Manual	2013-07-24	PDF 1.2 MB
user guide 2	Users Manual	2013-07-24	PDF 955.5 KB
User manual declaration	Cover Letter(s)	2013-01-29	PDF 115 KB
manual declaration	Cover Letter(s)	2013-01-29	PDF 115 KB
internal photos	Internal Photos	2013-07-24	PDF 2.5 MB
external photos	External Photos	2013-07-24	PDF 2.1 MB
Label	ID Label/Location Info	2013-01-29	PDF 39.1 KB
Regulatory label	ID Label/Location Info	2013-01-29	PDF 39.1 KB
label	ID Label/Location Info	2013-01-29	PDF 39.1 KB
15U21850-E16V2 FCC SetupPhotos NII	Test Setup Photos	2015-12-30	PDF 865.3 KB
15U21850-E36V1 FCC Setup Photo NII DFS	Test Setup Photos	2015-12-30	PDF 738 KB
BLE report photos only	Test Setup Photos	2013-07-24	PDF 483.5 KB
Bluetooth report photos only	Test Setup Photos	2013-07-24	PDF 293.2 KB
DTS WLAN report photos only	Test Setup Photos	2013-07-24	PDF 370.4 KB
UNII WLAN report photos only	Test Setup Photos	2013-07-24	PDF 522.9 KB
15U21850-E16V2 FCC Report NII	Test Report	2015-12-30	PDF 3.1 MB
15U21850-E36V1 FCC Report NII DFS	Test Report	2015-12-30	PDF 4.2 MB
BLE Report	Test Report	2013-01-29	PDF 943.6 KB
Bluetooth report no photos	Test Report	2013-01-29	PDF 1.1 MB
DTS WLAN report 2	Test Report	2013-01-29	PDF 4.6 MB
DTS WLAN reprt 1	Test Report	2013-01-29	PDF 3.8 MB
Unii WLAN report 1	Test Report	2013-01-29	PDF 3.7 MB
Unii WLAN report 2	Test Report	2013-01-29	PDF 4.2 MB
Unii WLAN report 3	Test Report	2013-01-29	PDF 5.2 MB
A1469_FCC_Request_Confidentiality_Letter_v1.0	Cover Letter(s)	2015-12-30	PDF 80.5 KB
FCC C2PC change letter-Legacy-ATVs-5Ghz-113015-V1.1	Cover Letter(s)	2015-12-30	PDF 112.1 KB
FCC_C2PC_5GHzAuthorization_Application_Letter_All-Legacy ATVs-113015v-1.1	Cover Letter(s)	2015-12-30	PDF 70.6 KB
Signature Auth Letter (AR)	Cover Letter(s)	2015-12-30	PDF 38.5 KB
Authoriztion	Cover Letter(s)	2013-01-29	PDF 126.7 KB
DFS Declaration letter	Cover Letter(s)	2013-01-29	PDF 117.9 KB
DFS declaration	Cover Letter(s)	2013-01-29	PDF 117.9 KB
authorization	Cover Letter(s)	2013-01-29	PDF 126.7 KB
authorization letter	Cover Letter(s)	2013-01-29	PDF 126.7 KB
confidentiality request	Cover Letter(s)	2013-01-29	PDF 143.6 KB
signature authorization	Cover Letter(s)	2013-01-29	PDF 36.8 KB
signature authorization letter	Cover Letter(s)	2013-01-29	PDF 36.8 KB
MPE Report	RF Exposure Info	2013-01-29	PDF 194.8 KB
A1469_Software_Security_Description_v1.0 Metadata only	Operational Description		PDF 112.2 KB

Application Information

Application ID	rhiUj3n/HyVdkiaksT2rIQ==
Final Action Date	2015-12-30
Application Purpose	Class II permissive change or modification of presently authorized equipment
Applicant FRN	0005899216
Model	A1469
Frequency Range	5180-5240 MHz
Equipment Class	NII - Unlicensed National Information Infrastructure TX
Device Description	Apple TV Device with WiFi and Bluetooth
Responsible Party	Abhishek Rala, Regulatory Compliance Manager, arala@apple.com , 408-996-1010
Test Firm	Jay Kogoma, UL Verification Services Inc. (formerly UL CCS), jay.kogoma@ul.com , 510-319-4135
TCB Email	LST.FRE.CertNotice@ul.com
TCB Scope	A4: UNII devices & low power transmitters using spread spectrum techniques
Short-Term Confidentiality	No
Long-Term Confidentiality	Yes
Grant Deferral	No
Modular Equipment	Does not apply
Composite Device	Yes
Composite Part	No
Cognitive Radio	No
Authorization Waiver	No
Authorization Waiver Approved	No
Section 5301 Certification	Yes
Related OET Knowledge DataBase Inquiry	No
Grant Comments	Class II permissive change to show compliance with new UNII rules. Output power listed is conducted. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except as described in this composite filing. This device operates with 20MHz and 40MHz Channel Bandwidths and has Client-to-Client operations as described in the filing.

Applications

Application ID	Date	Purpose
rhiUj3n/HyVdkiaksT2rIQ==	2015-12-30	Class II permissive change or modification of presently authorized equipment
zutHN8j/MvYjk8fSWHteyg==	2013-01-29	Original Equipment
nZ3+hNPmoNGzoAVNPQ3+Wg==	2013-01-29	Original Equipment
ijkq3sKTOdqI1j0ytEJc3A==	2013-01-29	Original Equipment

Equipment Authorization

Frequency	Output	Rules	Grant Notes
2402-2480 MHz	0.0188000	15C	CC
2402-2480 MHz	0.0043	15C	CC
2412-2462 MHz	0.656	15C	CC
5180-5240 MHz	0.036	15E	38, CC
5180-5240 MHz	0.036	15E	CC
5260-5320 MHz	0.094	15E	38, CC, ND
5260-5320 MHz	0.094	15E	CC
5500-5700 MHz	0.111	15E	38, CC, ND
5500-5700 MHz	0.111	15E	CC
5745-5825 MHz	0.689	15C	CC
5745-5825 MHz	0.078	15E	38, CC

Grants

TCB Grant - Application zutHN8j/MvYjk8fSWHteyg==

TCB	GRANT OF EQUIPMENT AUTHORIZATION	TCB
Certification
Issued Under the Authority of the
Federal Communications Commission
By:

UL Verification Services Inc. (formerly UL CCS)
47173 Benicia Street
Fremont, CA 94538

Date of Grant: 01/29/2013

Application Dated: 01/25/2013

Apple Inc.

1 Infinite Loop

Cupertino, CA 95014-2084

Attention: Marc Douat , EMC Engineer

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	BCGA1469

Name of Grantee:	Apple Inc.

Equipment Class:	Digital Transmission System
Notes:	802.11 abgn Device

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
CC	15C	2412.0 - 2462.0	0.656
CC	15C	5745.0 - 5825.0	0.689
CC	15C	2402.0 - 2480.0	0.0043

Output power listed is peak conducted. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except as described in this composite filing. This device operates with 20MHz and 40MHz Channel Bandwidths in the 5.8GHz band.

CC:	This device is certified pursuant to two different Part 15 rules sections.

EAS Grant - Application zutHN8j/MvYjk8fSWHteyg==

COPY	FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION	COPY
Certification

Apple Inc.
1 Infinite Loop
Cupertino, CA 95014-2084
United States

Date of Grant: 01/29/2013

Application Dated: 01/25/2013

Attention: Marc Douat , EMC Engineer

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	BCGA1469

Name of Grantee:	Apple Inc.

Equipment Class:	Digital Transmission System
Notes:	802.11 abgn Device
Modular Type:	Does not apply

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
CC	15C	2412.0 - 2462.0	0.656
CC	15C	5745.0 - 5825.0	0.689
CC	15C	2402.0 - 2480.0	0.0043

CC:	This device is certified pursuant to two different Part 15 rules sections.

TCB Grant - Application rhiUj3n/HyVdkiaksT2rIQ==

Mail To:

TCB	GRANT OF EQUIPMENT AUTHORIZATION	TCB
Certification
Issued Under the Authority of the
Federal Communications Commission
By:

UL Verification Services Inc. (formerly UL CCS)
47173 Benicia Street
Fremont, CA 94538

Date of Grant: 12/30/2015

Application Dated: 12/28/2015

Apple Inc.

One Apple Park Way

Cupertino, CA 95014

Attention: Abhishek Rala , Regulatory Compliance Manager

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	BCGA1469

Name of Grantee:	Apple Inc.

Equipment Class:	Unlicensed National Information Infrastructure TX
Notes:	Apple TV Device with WiFi and Bluetooth

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
38 CC	15E	5180.0 - 5240.0	0.036
38 CC ND	15E	5260.0 - 5320.0	0.094
38 CC ND	15E	5500.0 - 5700.0	0.111
38 CC	15E	5745.0 - 5825.0	0.078

Class II permissive change to show compliance with new UNII rules. Output power listed is conducted. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except as described in this composite filing. This device operates with 20MHz and 40MHz Channel Bandwidths and has Client-to-Client operations as described in the filing.

38:	This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline.
CC:	This device is certified pursuant to two different Part 15 rules sections.
ND:	This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h).

EAS Grant - Application rhiUj3n/HyVdkiaksT2rIQ==

COPY	FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION	COPY
Certification

Apple Inc.
One Apple Park Way
Cupertino, CA 95014
United States

Date of Grant: 12/30/2015

Application Dated: 12/28/2015

Attention: Abhishek Rala , Regulatory Compliance Manager

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	BCGA1469

Name of Grantee:	Apple Inc.

Equipment Class:	Unlicensed National Information Infrastructure TX
Notes:	Apple TV Device with WiFi and Bluetooth
Modular Type:	Does not apply

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
38 CC	15E	5180.0 - 5240.0	0.036
38 CC ND	15E	5260.0 - 5320.0	0.094
38 CC ND	15E	5500.0 - 5700.0	0.111
38 CC	15E	5745.0 - 5825.0	0.078

38:	This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline.
CC:	This device is certified pursuant to two different Part 15 rules sections.
ND:	This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h).

TCB Grant - Application nZ3+hNPmoNGzoAVNPQ3+Wg==

Mail To:

TCB	GRANT OF EQUIPMENT AUTHORIZATION	TCB
Certification
Issued Under the Authority of the
Federal Communications Commission
By:

UL Verification Services Inc. (formerly UL CCS)
47173 Benicia Street
Fremont, CA 94538

Date of Grant: 01/29/2013

Application Dated: 01/25/2013

Apple Inc.

1 Infinite Loop

Cupertino, CA 95014-2084

Attention: Marc Douat , EMC Engineer

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	BCGA1469

Name of Grantee:	Apple Inc.

Equipment Class:	Unlicensed National Information Infrastructure TX
Notes:	Apple TV Device with WiFi and Bluetooth

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
CC	15E	5180.0 - 5240.0	0.036
CC	15E	5260.0 - 5320.0	0.094
CC	15E	5500.0 - 5700.0	0.111

Output power listed is conducted. . Operation in the 5.15 -5.25 GHz band is for indoor use only. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter except as described in this composite filing. This device operates with 20MHz and 40MHz Channel Bandwidths and has Client-to-Client operations as described in the filing.

CC:	This device is certified pursuant to two different Part 15 rules sections.

EAS Grant - Application nZ3+hNPmoNGzoAVNPQ3+Wg==

COPY	FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION	COPY
Certification

Apple Inc.
1 Infinite Loop
Cupertino, CA 95014-2084
United States

Date of Grant: 01/29/2013

Application Dated: 01/25/2013

Attention: Marc Douat , EMC Engineer

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	BCGA1469

Name of Grantee:	Apple Inc.

Equipment Class:	Unlicensed National Information Infrastructure TX
Notes:	Apple TV Device with WiFi and Bluetooth
Modular Type:	Does not apply

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
CC	15E	5180.0 - 5240.0	0.036
CC	15E	5260.0 - 5320.0	0.094
CC	15E	5500.0 - 5700.0	0.111

CC:	This device is certified pursuant to two different Part 15 rules sections.

TCB Grant - Application ijkq3sKTOdqI1j0ytEJc3A==

Mail To:

TCB	GRANT OF EQUIPMENT AUTHORIZATION	TCB
Certification
Issued Under the Authority of the
Federal Communications Commission
By:

UL Verification Services Inc. (formerly UL CCS)
47173 Benicia Street
Fremont, CA 94538

Date of Grant: 01/29/2013

Application Dated: 01/25/2013

Apple Inc.

1 Infinite Loop

Cupertino, CA 95014-2084

Attention: Marc Douat , EMC Engineer

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	BCGA1469

Name of Grantee:	Apple Inc.

Equipment Class:	Part 15 Spread Spectrum Transmitter
Notes:	Apple TV Device with WiFi and Bluetooth

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
CC	15C	2402.0 - 2480.0	0.0188

Output power listed is conducted. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance.

CC:	This device is certified pursuant to two different Part 15 rules sections.

EAS Grant - Application ijkq3sKTOdqI1j0ytEJc3A==

COPY	FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION	COPY
Certification

Apple Inc.
1 Infinite Loop
Cupertino, CA 95014-2084
United States

Date of Grant: 01/29/2013

Application Dated: 01/25/2013

Attention: Marc Douat , EMC Engineer

NOT TRANSFERABLE

EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below.

FCC IDENTIFIER:	BCGA1469

Name of Grantee:	Apple Inc.

Equipment Class:	Part 15 Spread Spectrum Transmitter
Notes:	Apple TV Device with WiFi and Bluetooth
Modular Type:	Does not apply

Grant Notes	FCC Rule Parts	Frequency Range (MHZ)	Output Watts	Frequency Tolerance	Emission Designator
CC	15C	2402.0 - 2480.0	0.0188

Output power listed is conducted. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance.

CC:	This device is certified pursuant to two different Part 15 rules sections.

Mail To:
