FCC ID BCGA1392
802.11 a/b/g/n 2x2 Access Point
by Apple Inc.
Grantee Code: BCG Product Code: A1392
Latest application date: 2016-02-29
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2016-02-29 |
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2013-01-02 |
| 5180-5240 MHz | Original Equipment | 2012-06-11 |
| 2412-2462 MHz | Original Equipment | 2012-06-11 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2012-12-08 | PDF 1.7 MB |
| Internal Photographs | Internal Photos | 2012-12-08 | PDF 3.4 MB |
| External Photos | External Photos | 2012-12-08 | PDF 3 MB |
| External photos | External Photos | 2012-12-08 | PDF 4.3 MB |
| Label and Label Location | ID Label/Location Info | 2012-06-11 | PDF 87.6 KB |

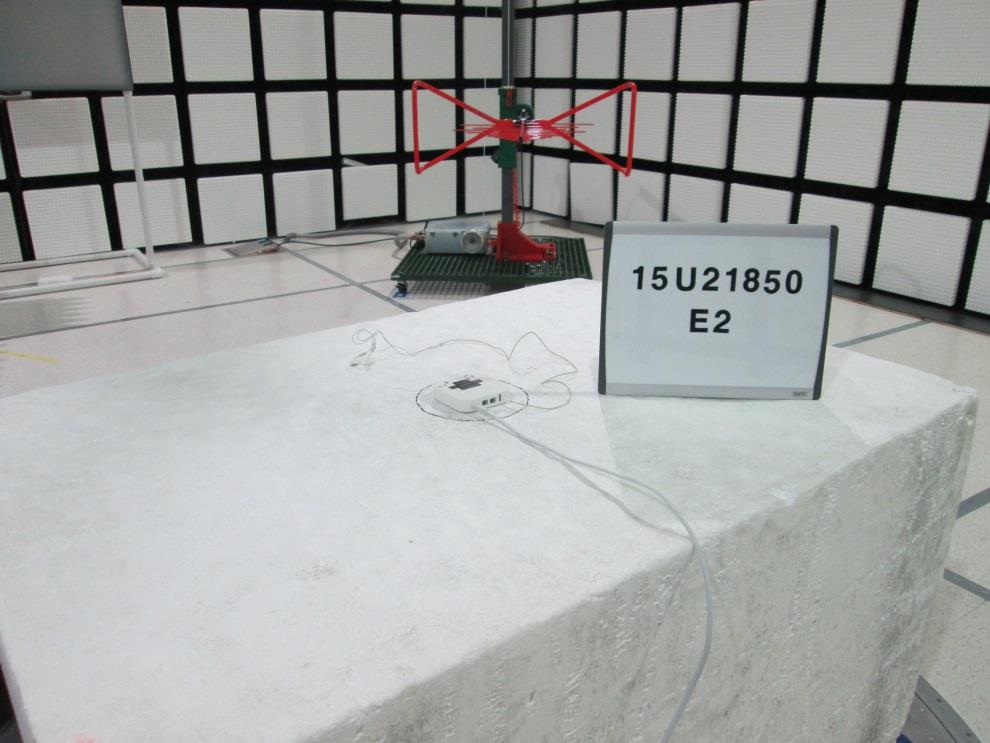

| 15U21850-E22V3 FCC Setup Photos NII | Test Setup Photos | 2016-02-29 | PDF 350.7 KB |
| 15U21850-E2V2 FCC SetupPhotos NII 5.8G and DFS | Test Setup Photos | 2016-02-29 | PDF 719.2 KB |
| NII Setup Photos | Test Setup Photos | 2013-01-02 | PDF 505 KB |
| Test Set Up Photos | Test Setup Photos | 2012-12-08 | PDF 904.7 KB |
| Test Set Up Photos | Test Setup Photos | 2012-12-08 | PDF 155.4 KB |
| 15U21850-E22V3 FCC Report NII | Test Report | 2016-02-29 | PDF 3.1 MB |
| 15U21850-E2V2 FCC Report NII 5.8G and DFS | Test Report | 2016-02-29 | PDF 4.3 MB |
| NII Report | Test Report | 2013-01-02 | PDF 4.7 MB |
| Test Report | Test Report | 2012-06-11 | PDF 1.5 MB |
| Test Report | Test Report | 2012-06-11 | PDF 3.4 MB |
| Attestation re DFS channels not used | Attestation Statements | 2012-06-11 | PDF 115.2 KB |
| A1392_FCC_Request_Confidentiality_Letter_v1.0 | Cover Letter(s) | 2016-02-29 | PDF 83 KB |
| FCC C2PC change letter-LegacyAP-113015 | Cover Letter(s) | 2016-02-29 | PDF 104.6 KB |
| FCC_Authorization_Application_Letter_LgegacyAP-113015v-1.1 | Cover Letter(s) | 2016-02-29 | PDF 64 KB |
| Signature Auth Letter (AR) | Cover Letter(s) | 2016-02-29 | PDF 38.5 KB |
| Agent Authorization Letter | Cover Letter(s) | 2013-01-02 | PDF 787.9 KB |
| Confidentiality Letter | Cover Letter(s) | 2013-01-02 | PDF 125.9 KB |
| Signature Auth Letter | Cover Letter(s) | 2013-01-02 | PDF 36.7 KB |
| Signature Auth Letter v1.0 | Cover Letter(s) | 2013-01-02 | PDF 36.8 KB |
| Agent Authorization | Cover Letter(s) | 2012-06-11 | PDF 125.4 KB |
| Authorization Letter | Cover Letter(s) | 2012-06-11 | PDF 36.7 KB |
| Confidentiality Request | Cover Letter(s) | 2012-06-11 | PDF 144.1 KB |
| MPE Calculation | RF Exposure Info | 2012-06-11 | PDF 50.4 KB |
| MPE Calculation | RF Exposure Info | 2012-06-11 | PDF 360.3 KB |
| A1392 Software_Security_Description_v1.0 Metadata only | SDR Software/Security Inf | PDF 107.8 KB |
Application Information
| Application ID | bCsjw232PzgqXILxNtAFXw== |
|---|---|
| Final Action Date | 2016-02-29 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0005899216 |
| Model | A1392 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | 802.11 a/b/g/n 2x2 Access Point |
| Responsible Party | Abhishek Rala, Regulatory Compliance Manager, arala@apple.com  , 408-996-1010 |
| Test Firm | Jay Kogoma, UL Verification Services Inc. (formerly UL CCS), jay.kogoma@ul.com  , 510-319-4135 |
| TCB Email | claire.hoque@ul.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | Yes |
| Grant Comments | Class II permissive change to show compliance with new UNII rules. Output power is conducted. This device has 20 MHz and 40 MHz BW modes. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| bCsjw232PzgqXILxNtAFXw== | 2016-02-29 | Class II permissive change or modification of presently authorized equipment |
| 8zhDH7K13WpobLqjCO9Unw== | 2013-01-02 | Class II permissive change or modification of presently authorized equipment |
| p6q9HYWPMZY+GdXR1znueA== | 2012-06-11 | Original Equipment |
| OZMf4i4rvhNYBTHGlQ+f7A== | 2012-06-11 | Original Equipment |
Equipment Authorization
| Frequency | Output | Rules | Grant Notes |
|---|---|---|---|
| 2412-2462 MHz | 0.2753 | 15C | CC, MO |
| 5180-5240 MHz | 0.04487 | 15E | 38, CC, MO |
| 5180-5240 MHz | 0.04487 | 15E | |
| 5180-5240 MHz | 0.0448700 | 15E | CC, MO |
| 5260-5320 MHz | 0.16634 | 15E | 38, CC, MO, ND |
| 5260-5320 MHz | 0.12823 | 15E | |
| 5260-5320 MHz | 0.16634 | 15E | |
| 5500-5700 MHz | 0.16144 | 15E | 38, CC, MO, ND |
| 5500-5580 MHz | 0.16144 | 15E | |
| 5660-5700 MHz | 0.16144 | 15E | |
| 5745-5825 MHz | 0.1849 | 15C | CC, MO |
| 5745-5825 MHz | 0.13804 | 15E | 38, CC, MO |
Grants
TCB Grant - Application p6q9HYWPMZY+GdXR1znueA==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 06/11/2012 Application Dated: 06/11/2012 |
| Apple Inc. |
| 1 Infinite Loop |
| Cupertino, CA 95014-2084 |
| Attention: Marc Douat , EMC Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCGA1392 |
| Name of Grantee: | Apple Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11 a/b/g/n 2x2 Access Point |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.04487 |
| Power Output listed is Conducted. This device supports 20 MHz and 40MHz channel bandwidths. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. End users and installers must understand and be provided with the outdoor usage prohibition instructions when using the 5150-5250 MHz Band. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application p6q9HYWPMZY+GdXR1znueA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Apple Inc. 1 Infinite Loop Cupertino, CA 95014-2084 United States |
Date of Grant: 06/11/2012 Application Dated: 06/11/2012 |
| Attention: Marc Douat , EMC Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCGA1392 |
| Name of Grantee: | Apple Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11 a/b/g/n 2x2 Access Point |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15E | 5180.0 - 5240.0 | 0.04487 |
| Power Output listed is Conducted. This device supports 20 MHz and 40MHz channel bandwidths. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. End users and installers must understand and be provided with the outdoor usage prohibition instructions when using the 5150-5250 MHz Band. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 06/11/2012 Application Dated: 06/11/2012 |
| Apple Inc. |
| 1 Infinite Loop |
| Cupertino, CA 95014-2084 |
| Attention: Marc Douat , EMC Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCGA1392 |
| Name of Grantee: | Apple Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11 a/b/g/n 2x2 Access Point |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.2753 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.1849 |
| Power Output listed is Conducted. This device supports a 20MHz channel bandwidth in the 2.4GHz band, 20 MHz and 40MHz channel bandwidths in the 5GHz band. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. End users and installers must understand and be provided with the outdoor usage prohibition instructions when using the 5150-5250 MHz Band. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application OZMf4i4rvhNYBTHGlQ+f7A==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Apple Inc. 1 Infinite Loop Cupertino, CA 95014-2084 United States |
Date of Grant: 06/11/2012 Application Dated: 06/11/2012 |
| Attention: Marc Douat , EMC Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCGA1392 |
| Name of Grantee: | Apple Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | 802.11 a/b/g/n 2x2 Access Point |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| CC MO | 15C | 2412.0 - 2462.0 | 0.2753 | ||
| CC MO | 15C | 5745.0 - 5825.0 | 0.1849 |
| Power Output listed is Conducted. This device supports a 20MHz channel bandwidth in the 2.4GHz band, 20 MHz and 40MHz channel bandwidths in the 5GHz band. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. End users and installers must understand and be provided with the outdoor usage prohibition instructions when using the 5150-5250 MHz Band. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
UL Verification Services Inc. (formerly UL CCS) 47173 Benicia Street Fremont, CA 94538 |
Date of Grant: 02/29/2016 Application Dated: 02/22/2016 |
| Apple Inc. |
| One Apple Park Way |
| Cupertino, CA 95014 |
| Attention: Abhishek Rala , Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCGA1392 |
| Name of Grantee: | Apple Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11 a/b/g/n 2x2 Access Point |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.04487 | ||
| 38 CC MO ND | 15E | 5260.0 - 5320.0 | 0.16634 | ||
| 38 CC MO ND | 15E | 5500.0 - 5700.0 | 0.16144 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.13804 |
| Class II permissive change to show compliance with new UNII rules. Output power is conducted. This device has 20 MHz and 40 MHz BW modes. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
EAS Grant - Application bCsjw232PzgqXILxNtAFXw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Apple Inc. One Apple Park Way Cupertino, CA 95014 United States |
Date of Grant: 02/29/2016 Application Dated: 02/22/2016 |
| Attention: Abhishek Rala , Regulatory Compliance Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCGA1392 |
| Name of Grantee: | Apple Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11 a/b/g/n 2x2 Access Point |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 38 CC MO | 15E | 5180.0 - 5240.0 | 0.04487 | ||
| 38 CC MO ND | 15E | 5260.0 - 5320.0 | 0.16634 | ||
| 38 CC MO ND | 15E | 5500.0 - 5700.0 | 0.16144 | ||
| 38 CC MO | 15E | 5745.0 - 5825.0 | 0.13804 |
| Class II permissive change to show compliance with new UNII rules. Output power is conducted. This device has 20 MHz and 40 MHz BW modes. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| ND: | This UNII device complies with the Transmit Power Control (TPC) and Dynamic Frequency Selection (DFS) requirements in Section 15.407(h). |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Apple Inc. One Apple Park Way Cupertino, CA 95014 United States |
Date of Grant: 01/02/2013 Application Dated: 10/12/2012 |
| Attention: Marc Douat , EMC Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCGA1392 |
| Name of Grantee: | Apple Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | 802.11 a/b/g/n 2x2 Access Point |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15E | 5180.0 - 5240.0 | 0.04487 | |||
| 15E | 5260.0 - 5320.0 | 0.12823 | |||
| 15E | 5260.0 - 5320.0 | 0.16634 | |||
| 15E | 5500.0 - 5580.0 | 0.16144 | |||
| 15E | 5660.0 - 5700.0 | 0.16144 |
| Output power is conducted. Operations in 5.15-5.25 GHz band is for indoor use only. This device has 20 MHz and 40 MHz BW modes. Device operates with specific antennas in MIMO configurations as described in this filing. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
|
| Mail To: |
| Claire Hoque, |
| UL CCS |
| 47173 Benicia Street |
| Fremont, CA 94538 |
