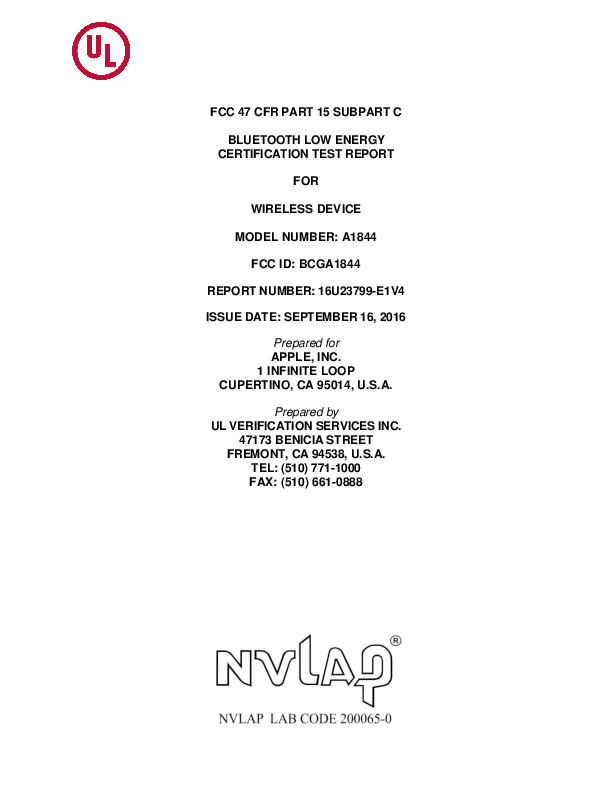

FCC 47 CFR PART 15 SUBPART C
BLUETOOTH LOW ENERGY
CERTIFICATION TEST REPORT
FOR
WIRELESS DEVICE
MODEL NUMBER: A1844
FCC ID: BCGA1844
REPORT NUMBER: 16U23799-E1V4
ISSUE DATE: SEPTEMBER 16, 2016
Prepared for
APPLE, INC.
1 INFINITE LOOP
CUPERTINO, CA 95014, U.S.A.
Prepared by
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET
FREMONT, CA 94538, U.S.A.
TEL: (510) 771-1000
FAX: (510) 661-0888
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
Revision History
Rev.
Issue
Date
Revisions
Revised By
V1
09/08/2016
Initial Issue
Chin Pang
V2
09/12/2016
Address TCB’s Questions
V3
09/12/2016
Address Reviewer Comments
V4
09/16/2016
Address TCB Comments
Chin Pang
Mengistu
Mekuria
Chin Pang
Page 2 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
TABLE OF CONTENTS
1.
ATTESTATION OF TEST RESULTS ................................................................................. 5
2.
TEST METHODOLOGY ..................................................................................................... 6
3.
FACILITIES AND ACCREDITATION ................................................................................. 6
4.
CALIBRATION AND UNCERTAINTY ................................................................................ 7
5.
4.1.
MEASURING INSTRUMENT CALIBRATION .............................................................. 7
4.2.
SAMPLE CALCULATION ............................................................................................ 7
4.3.
MEASUREMENT UNCERTAINTY ............................................................................... 7
EQUIPMENT UNDER TEST ............................................................................................... 8
5.1.
DESCRIPTION OF EUT .............................................................................................. 8
5.2.
MAXIMUM OUTPUT POWER...................................................................................... 8
5.3.
DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 8
5.4.
SOFTWARE AND FIRMWARE .................................................................................... 8
5.5.
WORST-CASE CONFIGURATION AND MODE .......................................................... 8
5.6.
DESCRIPTION OF TEST SETUP ................................................................................ 9
6.
TEST AND MEASUREMENT EQUIPMENT ......................................................................14
7.
ANTENNA PORT TEST RESULTS ...................................................................................15
8.
7.1.
MEASUREMENT METHODS .....................................................................................15
7.2.
ON TIME, DUTY CYCLE ............................................................................................16
7.3.
6 dB BANDWIDTH ......................................................................................................17
7.4.
99% BANDWIDTH ......................................................................................................20
7.5.
AVERAGE POWER ....................................................................................................23
7.6.
OUTPUT POWER.......................................................................................................24
7.7.
POWER SPECTRAL DENSITY ..................................................................................25
7.8.
CONDUCTED SPURIOUS EMISSIONS .....................................................................28
RADIATED TEST RESULTS .............................................................................................32
8.1.
LIMITS AND PROCEDURE ........................................................................................32
8.2. TRANSMITTER ABOVE 1 GHz ..................................................................................33
8.2.1. RESTRICTED BANDEDGE .................................................................................33
8.2.2. HARMONICS AND SPURIOUS EMISSIONS ......................................................37
9.
8.3.
WORST-CASE BELOW 1 GHz ...................................................................................43
8.4.
WORST-CASE 18 to 26 GHz......................................................................................45
AC POWER LINE CONDUCTED EMISSIONS ..................................................................47
Page 3 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
10.
DATE: SEPTEMBER 16, 2016
SETUP PHOTOS ...........................................................................................................51
Page 4 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
1. ATTESTATION OF TEST RESULTS
COMPANY NAME:
APPLE, INC.
1 INFINITE LOOP
CUPERTINO, CA 95014, U.S.A.
EUT DESCRIPTION:
WIRELESS DEVICE
MODEL:
A1844
SERIAL NUMBER:
001 (Conducted), 002 (Radiated)
DATE TESTED:
AUGUST 18, 2016 – SEPTEMBER 02, 2016
APPLICABLE STANDARDS
STANDARD
TEST RESULTS
CFR 47 Part 15 Subpart C
Pass
UL Verification Services Inc. tested the above equipment in accordance with the requirements
set forth in the above standards. All indications of Pass/Fail in this report are opinions
expressed by UL Verification Services Inc. based on interpretations and/or observations of test
results. Measurement Uncertainties were not taken into account and are published for
informational purposes only. The test results show that the equipment tested is capable of
demonstrating compliance with the requirements as documented in this report.
Note: The results documented in this report apply only to the tested sample, under the
conditions and modes of operation as described herein. This document may not be altered or
revised in any way unless done so by UL Verification Services Inc. and all revisions are duly
noted in the revisions section. Any alteration of this document not carried out by UL Verification
Services Inc. will constitute fraud and shall nullify the document. This report must not be used
by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any
agency of the Federal Government, or any agency of any government.
Approved & Released For
UL Verification Services Inc. By:
Prepared By:
MENGISTU MEKURIA
SENIOR ENGINEER
UL VERIFICATION SERVICES INC.
JINGANG LI
EMC ENGINEER
UL VERIFICATION SERVICES INC.
Page 5 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
2. TEST METHODOLOGY
The tests documented in this report were performed in accordance with FCC CFR 47 Part 2,
FCC CFR 47 Part 15, KDB 558074 D01 v03r05, ANSI C63.10-2013.
3. FACILITIES AND ACCREDITATION
The test sites and measurement facilities used to collect data are located at 47173 and 47266
Benicia Street, Fremont, California, USA. Line conducted emissions are measured only at the
47173 address. The following table identifies which facilities were utilized for radiated emission
measurements documented in this report. Specific facilities are also identified in the test results
sections.
47173 Benicia Street
Chamber A
Chamber B
Chamber C
47266 Benicia Street
Chamber D
Chamber E
Chamber F
Chamber G
Chamber H
The above test sites and facilities are covered under FCC Test Firm Registration # 208313.
Chambers A through H are covered under Industry Canada company address code 2324B with
site numbers 2324B -1 through 2324B-8, respectively.
UL Verification Services Inc. is accredited by NVLAP, Laboratory Code 200065-0. The full
scope of accreditation can be viewed at http://ts.nist.gov/standards/scopes/2000650.htm.
Page 6 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
4. CALIBRATION AND UNCERTAINTY
4.1.
MEASURING INSTRUMENT CALIBRATION
The measuring equipment utilized to perform the tests documented in this report has been
calibrated in accordance with the manufacturer's recommendations, and is traceable to
recognized national standards.
4.2.
SAMPLE CALCULATION
Where relevant, the following sample calculation is provided:
Field Strength (dBuV/m) = Measured Voltage (dBuV) + Antenna Factor (dB/m) +
Cable Loss (dB) – Preamp Gain (dB)
36.5 dBuV + 18.7 dB/m + 0.6 dB – 26.9 dB = 28.9 dBuV/m
4.3.
MEASUREMENT UNCERTAINTY
Where relevant, the following measurement uncertainty levels have been estimated for tests
performed on the apparatus:
PARAMETER
UNCERTAINTY
Conducted Disturbance, 9KHz to 0.15 MHz
Conducted Disturbance, 0.15 to 30 MHz
Radiated Disturbance, 9KHz to 30 MHz
Radiated Disturbance, 30 to 1000 MHz
Radiated Disturbance,1000 to 18000 MHz
Radiated Disturbance,18000 to 26000 MHz
Radiated Disturbance,26000 to 40000 MHz
3.84 dB
3.65 dB
3.15 dB
5.36 dB
4.32 dB
4.45 dB
5.24 dB
Uncertainty figures are valid to a confidence level of 95%.
Page 7 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
5. EQUIPMENT UNDER TEST
5.1.
DESCRIPTION OF EUT
The EUT is wireless device with Bluetooth and NFC capability
5.2.
MAXIMUM OUTPUT POWER
The transmitter has a maximum peak conducted output power as follows:
Frequency
Range
(MHz)
2402 - 2480
5.3.
Output Power
(dBm)
Output Power
(mW)
BLE
3.72
2.36
DESCRIPTION OF AVAILABLE ANTENNAS
Frequency Band
(GHz)
2.4
5.4.
Mode
Antenna Gain (dBi)
-2.64
SOFTWARE AND FIRMWARE
The BLE firmware version 10.31 and testing was performed with Nordic BLE python script.
5.5.
WORST-CASE CONFIGURATION AND MODE
Radiated emission below 1GHz, from 18 to 26GHz, and power line conducted emission tests
were performed with the EUT set to transmit at the channel with highest output power as worstcase scenario.
The fundamental of the EUT was investigated under three orthogonal orientations X (Flatbed), Y
(Landscape), and Z (Portrait). The Z (Portrait) orientation was determined to be the worst-case
orientation. Therefore, all final radiated testing was performed with the EUT in Z (Portrait)
orientation.
Worst-case data rates as provided by the client were:
BLE: 1 Mbps.
Page 8 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
5.6.
DATE: SEPTEMBER 16, 2016
DESCRIPTION OF TEST SETUP
SUPPORT EQUIPMENT
Description
Laptop
DC power supply
Support Equipment List
Manufacturer
Model
Serial Number
Apple
MacBook Pro
73043BDQAGU
Sorensen
XT 15-4
1319A02779
FCC ID
N/A
N/A
I/O CABLES (CONDUCTED TEST)
Cable
No
Port
# of identical
ports
DC
Antenna
USB
I/O Cable List
Connector Type
Cable Type
Cable
Length (m)
Remarks
0.1
N/A
N/A
N/A
4 pins connector Un-Shielded
Spectrum Analyzer Un-Shielded
Laptop
Un-Shielded
/O CABLES (RADIATED BELOW AND ABOVE 1 GHZ)
Cable
No
Port
DC
I/O Cable List
# of identical Connector Type Cable Type
ports
Cable
Length (m)
Remarks
N/A
4 pins connector Un-Shielded
I/O CABLES (AC LINE CONDUCTED: AC/DC ADAPTER &LAPTOP CONFIGURATION)
Cable
No
Port
DC
AC
# of
identical
ports
I/O Cable List
Connector
Cable Type
Type
DC
AC
Un-shielded
Un-shielded
Cable
Length (m)
Remarks
N/A
N/A
Page 9 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
TEST SETUP- CONDUCTED PORT
SETUP DIAGRAM
Page 10 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
TEST SETUP- RADIATED-ABOVE 1 GHZ
SETUP DIAGRAM
Page 11 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
TEST SETUP- BELOW 1GHz
SETUP DIAGRAM
Page 12 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
AC LINE SETUP DIAGRAM
Page 13 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
6. TEST AND MEASUREMENT EQUIPMENT
The following test and measurement equipment was utilized for the tests documented in this
report:
Description
Antenna, Horn 1-18GHz
Antenna, Broadband Hybrid,
30MHz to 2000MHz
Amplifier, 1 - 18GHz
Amplifier, 10KHz to 1GHz,
32dB
Spectrum Analyzer, PXA, 3Hz
to 44GHz
Power Meter, P-series single
channel
Power Sensor, P - series,
50MHz to 18GHz, Wideband
Antenna, Horn 18 to 26.5GHz
Amplifier, 1 to 26.5GHz,
23.5dB Gain minimum
Test Equipment List
Manufacturer
Model
ETS Lindgren
3117
Cal Date
2/10/2015
Cal Due
4/5/2017
Sunol Sciences
1/14/2015
1/29/2017
AFS4200101800-25-S- 1/25/2016
42
1/25/2017
Miteq
JB3
Sonoma
310N
6/17/2016
6/17/2017
Keysight
N9030A
10/14/2015
10/14/2016
Keysight
N1911A
3/17/2016
3/17/2017
Keysight
N1921A
9/23/2015
9/23/2016
ARA
MWH-1826
6/6/2016
6/6/2017
Keysight
8449B
7/5/2016
7/5/2016
09/09/15
09/09/16
01/16/15
06/08/17
7/28/2015
9/30/2016
AC Line Conducted
EMI Test Receiver 9Khz-7GHz Rohde & Schwarz
ECSI7
LISN for Conducted Emissions
FCC
50/250-25-2
CISPR-16
Power Cable, Line Conducted
Emissions ANSI 63.4
UL
* Radiated Software
UL
PG1
UL SOFTWARE
UL EMC
Ver 9.5, July 22, 2014
* Conducted Software
UL
UL EMC
Ver 2.2, March 31, 2015
* AC Line Conducted Software
UL
UL EMC
Ver 9.5, April 3, 2015
Note: * indicates automation software version used in the compliance certification testing
Page 14 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
7. ANTENNA PORT TEST RESULTS
7.1.
MEASUREMENT METHODS
6 dB BW: KDB 558074 D01 v03r05, Section 8.1.
Output Power: KDB 558074 D01 v03r05, Section 9.1.2.
Power Spectral Density: KDB 558074 D01 v03r05, Section 10.2.
Out-of-band emissions in non-restricted bands: KDB 558074 D01 v03r05, Section 11.0.
Out-of-band emissions in restricted bands: KDB 558074 D01 v03r05, Section 12.1.
Band-edge: KDB 558074 D01 v03r05, Section 12.1.
Page 15 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
7.2.
DATE: SEPTEMBER 16, 2016
ON TIME, DUTY CYCLE
LIMITS
None; for reporting purposes only.
PROCEDURE
KDB 558074 Zero-Span Spectrum Analyzer Method.
ON TIME AND DUTY CYCLE RESULTS
Mode
ON Time
Period
Duty Cycle
BLE
(msec)
0.393
(msec)
0.625
(linear)
0.629
Duty
Cycle
(%)
62.93%
Duty Cycle
1/B
Correction Factor Minimum VBW
(dB)
(kHz)
2.01
2.543
DUTY CYCLE PLOTS
DUTY CYCLE BLE MODE
Page 16 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
7.3.
DATE: SEPTEMBER 16, 2016
6 dB BANDWIDTH
LIMITS
FCC §15.247 (a) (2)
The minimum 6 dB bandwidth shall be at least 500 kHz.
RESULTS
Channel
Frequency
(MHz)
6 dB Bandwidth
(MHz)
Minimum Limit
(MHz)
Low
Middle
High
2402
2440
2480
0.732
0.738
0.728
0.5
0.5
0.5
Page 17 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
6 dB BANDWIDTH
6 dB BANDWIDTH LOW CH
6 dB BANDWIDTH MID CH
Page 18 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
6 dB BANDWIDTH HIGH CH
Page 19 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
7.4.
DATE: SEPTEMBER 16, 2016
99% BANDWIDTH
LIMITS
None; for reporting purposes only.
TEST PROCEDURE
The transmitter output is connected to the spectrum analyzer. The RBW is set to 1% to 3% of
the 99 % bandwidth and to 1% of the span. The VBW is set to 3 times the RBW. The sweep
time is coupled. The spectrum analyzer internal 99% bandwidth function is utilized.
RESULTS
Channel
Low
Middle
High
Frequency
(MHz)
2402
2440
2480
99% Bandwidth
(MHz)
1.0504
1.0393
1.0514
Page 20 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
99% BANDWIDTH
DATE: SEPTEMBER 16, 2016
99% BANDWIDTH LOW CH
99% BANDWIDTH MID CH
Page 21 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
99% BANDWIDTH HIGH CH
Page 22 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
7.5.
DATE: SEPTEMBER 16, 2016
AVERAGE POWER
LIMITS
None; for reporting purposes only.
TEST PROCEDURE
The transmitter output is connected to a wideband gated power meter.
RESULTS
The cable assembly insertion loss of 11 dB (including 10 dB pad and 1 dB cable) was entered
as an offset in the power meter to allow for direct reading of power.
ID:
39005
Channel
Low
Middle
High
Date:
Frequency
(MHz)
2402
2440
2480
8/17/16
AV power
(dBm)
3.46
3.60
3.49
Page 23 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
7.6.
DATE: SEPTEMBER 16, 2016
OUTPUT POWER
LIMITS
FCC §15.247 (b)
The maximum antenna gain is less than or equal to 6 dBi, therefore the limit is 30 dBm.
TEST PROCEDURE
The transmitter output is connected to a wideband power meter.
RESULTS
ID:
39005
Date:
Channel
Frequency
Low
Middle
High
(MHz)
2402
2440
2480
8/17/16
Peak Power
Reading
(dBm)
3.58
3.72
3.61
Limit
Margin
(dBm)
30
30
30
(dB)
-26.420
-26.280
-26.390
Page 24 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
7.7.
DATE: SEPTEMBER 16, 2016
POWER SPECTRAL DENSITY
LIMITS
FCC §15.247 (e)
The power spectral density conducted from the transmitter to the antenna shall not be greater
than 8 dBm in any 3 kHz band during any time interval of continuous transmission.
RESULTS
Channel
Low
Middle
High
Frequency
(MHz)
2402
2440
2480
PSD
(dBm)
-12.100
-11.930
-11.951
Limit
(dBm)
Margin
(dB)
-20.10
-19.93
-19.95
Page 25 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
POWER SPECTRAL DENSITY
DATE: SEPTEMBER 16, 2016
PSD LOW CH
PSD MID CH
Page 26 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
PSD HIGH CH
Page 27 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
7.8.
DATE: SEPTEMBER 16, 2016
CONDUCTED SPURIOUS EMISSIONS
LIMITS
FCC §15.247 (d)
Output power was measured based on the use of a peak measurement, therefore the required
attenuation is 20 dB.
RESULTS
Page 28 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
SPURIOUS EMISSIONS, LOW CHANNEL
DATE: SEPTEMBER 16, 2016
LOW CH BANDEDGE
LOW CH SPURIOUS
Page 29 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
SPURIOUS EMISSIONS, MID CHANNEL
DATE: SEPTEMBER 16, 2016
MID CH REFERENCE
MID CH SPURIOUS
Page 30 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
SPURIOUS EMISSIONS, HIGH CHANNEL
DATE: SEPTEMBER 16, 2016
HIGH CH BANDEDGE
HIGH CH SPURIOUS
Page 31 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
8. RADIATED TEST RESULTS
8.1.
LIMITS AND PROCEDURE
LIMITS
FCC §15.205 and §15.209
Frequency Range
Field Strength Limit
Measurement distance
(meters)
(MHz)
(microvolts/meter)
0.009-0.490
0.490-1.705
2400/F(kHz)
24000/F(kHz)
300
30
1.705-30.0
30-88
88-216
216-960
Above 960
30
100**
150**
200**
500
30
TEST PROCEDURE
The EUT is placed on a non-conducting table 80 cm above the ground plane for measurement
below 1GHz; 1.5 m above the ground plane for measurement above 1GHz. The antenna to EUT
distance is 3 meters. The EUT is configured in accordance with ANSI C63.10. The EUT is set to
transmit in a continuous mode.
For measurements below 1 GHz the resolution bandwidth is set to 100 kHz for peak detection
measurements or 120 kHz for quasi-peak detection measurements. Peak detection is used
unless otherwise noted as quasi-peak.
For pre-scans above 1 GHz the resolution bandwidth is set to 1 MHz; the video bandwidth is set
to 30 KHz for peak measurements.
For final measurements above 1 GHz the resolution bandwidth is set to 1 MHz; the video
bandwidth is set to 3 MHz for peak measurements and as applicable for average
measurements.
The spectrum from 30 MHz to 26 GHz is investigated with the transmitter set to the lowest,
middle, and highest channels in the 2.4 GHz band.
The frequency range of interest is monitored at a fixed antenna height and EUT azimuth. The
EUT is rotated through 360 degrees to maximize emissions received. The antenna is scanned
from 1 to 4 meters above the ground plane to further maximize the emission. Measurements are
made with the antenna polarized in both the vertical and the horizontal positions.
Page 32 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
8.2.
DATE: SEPTEMBER 16, 2016
TRANSMITTER ABOVE 1 GHz
LOW CHANNEL RESTRICTED, HORIZONTAL
8.2.1. RESTRICTED BANDEDGE
DATA
Ma
rke
Frequen
cy
(GHz)
Meter
Readi
ng
(dBuV
Det
AF
T344
(dB/
m)
Amp/C
bl/Fltr/
Pad
(dB)
DC
Corr
(dB)
* 2.39
* 2.341
* 2.39
* 2.376
41.67
42.4
30.43
30.75
Pk
Pk
RMS
RMS
32.1
31.9
32.1
32.1
-20.9
-20.9
-20.9
-20.9
2.01
2.01
Correct
ed
Readin
(dBuV/
m)
52.87
53.4
43.64
43.96
Averag
e Limit
(dBuV
/m)
Margi
(dB)
Peak
Limit
(dBuV
/m)
PK
Margi
(dB)
Azim
uth
(Deg
s)
Heig
ht
(cm)
Polari
ty
54
54
-10.36
-10.04
74
74
-21.13
-20.6
41
41
41
41
130
130
130
130
* - indicates frequency in CFR47 Pt 15 / Restricted Band
Pk - Peak detector
RMS - RMS detection
Page 33 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
LOW CHANNEL RESTRICTED, VERTICAL
DATA
Ma
rke
Freque
ncy
(GHz)
* 2.39
* 2.388
* 2.39
* 2.385
Meter
Readi
ng
(dBuV
46.35
47.34
30.29
31.19
Det
AF
T344
(dB/
m)
Amp/
Cbl/Fl
tr/Pa
d (dB)
DC
Corr
(dB)
Pk
Pk
RMS
RMS
32.1
32.1
32.1
32.1
-20.9
-20.9
-20.9
-20.9
2.01
2.01
Correcte
Reading
(dBuV/
m)
57.55
58.54
43.50
44.40
Averag
e Limit
(dBuV
/m)
Margi
(dB)
Peak
Limit
(dBuV
/m)
PK
Margi
(dB)
Azim
uth
(Deg
s)
Heig
ht
(cm)
Pola
rity
54
54
-10.50
-9.60
74
74
-16.45
-15.46
99
99
99
99
215
215
215
215
* - indicates frequency in CFR47 Pt 15 Restricted Band
Pk - Peak detector
RMS - RMS detection
Page 34 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
HIGH CHANNEL RESTRICTED, HORIZONTAL
DATA
Ma
rke
Frequen
cy
(GHz)
Meter
Readi
ng
(dBuV
Det
AF
T344
(dB/
m)
Amp/
Cbl/Flt
r/Pad
(dB)
DC
Corr
(dB)
* 2.484
* 2.484
* 2.484
* 2.488
49.05
49.2
30.4
31.01
Pk
Pk
RMS
RMS
32.3
32.3
32.3
32.3
-21
-21
-21
-20.9
2.01
2.01
Correct
ed
Readin
(dBuV/
m)
60.35
60.5
43.71
44.42
Average
Limit
(dBuV/
m)
Margi
(dB)
Peak
Limit
(dBuV
/m)
PK
Margi
(dB)
Azi
mut
(De
gs)
Height
(cm)
Pol
arit
54
54
-10.29
-9.58
74
74
-13.65
-13.5
113
113
113
113
291
291
291
291
* - indicates frequency in CFR47 Pt 15 Restricted Band
Pk - Peak detector
RMS - RMS detection
Page 35 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
HIGH CHANNEL RESTRICTED, VERTICAL
DATA
Ma
rke
Freque
ncy
(GHz)
Meter
Readi
ng
(dBuV
Det
AF
T344
(dB/
m)
Amp/
Cbl/Flt
r/Pad
(dB)
DC
Cor
(dB)
* 2.484
* 2.484
* 2.484
* 2.485
58.85
58.71
31.66
36.11
Pk
Pk
RMS
RMS
32.3
32.3
32.3
32.3
-21
-21
-21
-20.9
2.01
2.01
Corre
cted
Readi
ng
(dBuV
/m)
70.15
70.01
44.97
49.52
Aver
age
Limit
(dBu
V/m)
Margi
(dB)
Peak
Limit
(dBuV
/m)
PK
Margi
(dB)
Azi
mut
(De
gs)
Hei
ght
(cm
Po
lar
ity
54
54
-9.03
-4.48
74
74
-3.85
-3.99
98
98
98
98
202
202
202
202
* - indicates frequency in CFR47 Pt 15 Restricted Band
Pk - Peak detector
RMS - RMS detection
Page 36 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
8.2.2. HARMONICS AND SPURIOUS EMISSIONS
LOW CHANNEL HORIZONTAL
LOW CHANNEL VERTICAL
Page 37 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATA
DATE: SEPTEMBER 16, 2016
Marker
Freque
ncy
(GHz)
Meter
Readin
(dBuV)
Det
AF
T344
(dB/m
Amp/Cbl
/Fltr/Pad
(dB)
DC
Corr
(dB)
Correct
ed
Readin
(dBuV/
m)
Avg
Limit
(dBuV/m
Margin
(dB)
* 1.346
* 1.344
* 1.476
* 1.477
* 4.174
* 4.172
7.207
7.205
* 5.126
* 5.128
7.207
7.205
41.69
30.26
41.89
30.33
39.29
27.35
39.76
29.07
37.07
26.53
44.84
37.94
PK2
MAv1
PK2
MAv1
PK2
MAv1
PK2
MAv1
PK2
MAv1
PK2
MAv1
29.1
29.1
28.3
28.3
33.7
33.7
35.6
35.6
34.2
34.2
35.6
35.6
-22.1
-22.1
-22
-22
-28.5
-28.6
-26.4
-26.4
-27
-27
-26.4
-26.4
2.01
2.01
2.01
2.01
2.01
2.01
48.69
39.27
48.19
38.64
44.49
34.46
48.96
40.28
44.27
35.74
54.04
49.15
54
54
54
54
54
54
-14.73
-15.36
-19.54
-13.72
-18.26
-4.85
Pea
Limi
(dBu
V/m)
74
74
74
74
74
74
PK
Margin
(dB)
Azim
uth
(Deg
s)
Hei
ght
(cm)
Pola
rity
-25.31
-25.81
-29.51
-25.04
-29.73
-19.96
12
12
144
144
336
336
305
305
90
90
132
132
366
366
183
183
320
320
135
135
109
109
* - indicates frequency in CFR47 Pt 15 Restricted Band
PK2 - KDB558074 Method: Maximum Peak
MAv1 - KDB558074 Option 1 Maximum RMS Average
Page 38 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
MID CHANNEL HORIZONTAL
MID CHANNEL VERTICAL
Page 39 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
DATA
Marker
Frequency
(GHz)
Meter
Reading
(dBuV)
Det
AF T344
(dB/m)
Amp/Cbl/Fltr/
Pad (dB)
DC Corr (dB)
Corrected
Reading
(dBuV/m)
Avg Limit
(dBuV/m)
Margin
(dB)
Peak Limit
(dBuV/m)
PK Margin
(dB)
Azimuth
(Degs)
Height
(cm)
Polarity
* 3.733
* 3.734
5.555
5.554
* 7.319
* 7.319
* 7.321
* 7.319
* 3.845
* 3.848
6.333
6.334
38.88
28.53
38.01
27.9
39.66
30.22
47.99
41.5
38.72
28.14
36.62
26.87
PK2
MAv1
PK2
MAv1
PK2
MAv1
PK2
MAv1
PK2
MAv1
PK2
MAv1
33.4
33.4
34.6
34.6
35.5
35.5
35.6
35.5
33.4
33.4
35.4
35.4
-29.2
-29.2
-28.2
-28.2
-26.4
-26.5
-26.5
-26.5
-28.2
-28.2
-26.9
-26.9
2.01
2.01
2.01
2.01
2.01
2.01
43.08
34.74
44.41
36.31
48.76
41.23
57.09
52.51
43.92
35.35
45.12
37.38
54
54
54
54
-19.26
-12.77
-1.49
-18.65
74
74
74
74
-30.92
-25.24
-16.91
-30.08
269
269
312
312
148
148
87
87
272
272
128
128
100
100
136
136
341
341
158
158
201
201
266
266
* - indicates frequency in CFR47 Pt 15 Restricted Band
PK2 - KDB558074 Method: Maximum Peak
MAv1 - KDB558074 Option 1 Maximum RMS Average
Page 40 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
HIGH CHANNEL HORIZONTAL
HIGH CHANNEL VERTICAL
Page 41 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
DATA
Frequency
(GHz)
Meter
Reading
(dBuV)
Det
AF T344
(dB/m)
Amp/Cbl/Fl
tr/Pad (dB)
DC Corr
(dB)
Corrected
Reading
(dBuV/m)
Avg Limit
(dBuV/m)
Margin
(dB)
Peak
Limit
(dBuV/m)
PK
Margin
(dB)
Azimuth
(Degs)
Height
(cm)
Polarity
* 7.441
* 7.439
* 3.866
* 3.868
* 11.517
* 11.516
* 7.441
* 7.439
* 4.337
* 4.337
* 10.868
* 10.867
39.19
29.96
38.13
28.36
33.73
23.27
45.08
38.45
38.72
28.04
33.85
23.7
PK2
MAv1
PK2
MAv1
PK2
MAv1
PK2
MAv1
PK2
MAv1
PK2
MAv1
35.6
35.6
33.4
33.4
38.1
38.1
35.6
35.6
33.8
33.8
37.8
37.8
-25.9
-25.8
-28.2
-28.3
-21.1
-21.1
-25.9
-25.8
-28.8
-28.8
-21.5
-21.5
2.01
2.01
2.01
2.01
2.01
2.01
48.89
41.77
43.33
35.47
50.73
42.28
54.78
50.26
43.72
35.05
50.15
42.01
54
54
54
54
54
54
-12.23
-18.53
-11.72
-3.74
-18.95
-11.99
74
74
74
74
74
74
-25.11
-30.67
-23.27
-19.22
-30.28
-23.85
314
314
82
82
82
82
82
82
82
82
82
82
124
124
101
101
202
202
261
261
202
202
100
100
* - indicates frequency in CFR47 Pt 15 Restricted Band
PK2 - KDB558074 Method: Maximum Peak
MAv1 - KDB558074 Option 1 Maximum RMS Average
Page 42 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
8.3.
DATE: SEPTEMBER 16, 2016
WORST-CASE BELOW 1 GHz
SPURIOUS EMISSIONS 30 TO 1000 MHz (WORST-CASE CONFIGURATION)
HORIZONTAL PLOT
VERTICAL: PLOT
Page 43 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATA
DATE: SEPTEMBER 16, 2016
Marker
Frequency
(MHz)
Meter
Readin
(dBuV)
Det
AF T185
(dB/m)
Amp/Cbl
(dB)
Corrected
Reading
(dBuV/m)
QPk Limit
(dBuV/m)
Margin
(dB)
Azimuth
(Degs)
Height
(cm)
Polarity
196.8975
85.1225
198.1725
398.3
484.9
397.4
45.39
44.95
45.51
50.46
41.23
50.65
Pk
Pk
Pk
Pk
Pk
Pk
15.9
11.4
16.1
19.5
21.8
19.4
-30.5
-31.3
-30.5
-29.3
-29.1
-29.4
30.79
25.05
31.11
40.66
33.93
40.65
43.52
40
43.52
46.02
46.02
46.02
-12.73
-14.95
-12.41
-5.36
-12.09
-5.37
0-360
0-360
0-360
0-360
0-360
0-360
98
100
100
100
199
100
Pk - Peak detector
Page 44 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
8.4.
DATE: SEPTEMBER 16, 2016
WORST-CASE 18 to 26 GHz
SPURIOUS EMISSIONS 18 to 26 GHz (WORST-CASE CONFIGURATION)
HORIZONTAL PLOT
VERTICAL PLOT
Page 45 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
DATA
Marker
Frequency
(GHz)
Meter
Reading
(dBuV)
Det
AF T449
(dB/m)
Amp/Cbl (dB)
Dist Corr (dB)
Corrected
Reading
(dBuVolts)
Avg Limit
(dBuV/m)
Margin
(dB)
Peak Limit
(dBuV/m)
PK Margin
(dB)
18.68
22.352
23.832
19.168
20.48
24.256
38.09
38.53
39.11
38.24
38.68
38.98
Pk
Pk
Pk
Pk
Pk
Pk
32.4
33.5
33.9
32.7
32.9
33.8
-24.6
-24.7
-24.3
-24.7
-25.4
-24.2
-9.5
-9.5
-9.5
-9.5
-9.5
-9.5
36.39
37.83
39.21
36.74
36.68
39.08
54
54
54
54
54
54
-17.61
-16.17
-14.79
-17.26
-17.32
-14.92
74
74
74
74
74
74
-37.61
-36.17
-34.79
-37.26
-37.32
-34.92
Pk - Peak detector
Page 46 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
9. AC POWER LINE CONDUCTED EMISSIONS
LIMITS
FCC §15.207 (a)
Frequency of Emission (MHz)
0.15-0.5
0.5-5
5-30
*Decreases with the logarithm of the frequency.
Conducted Limit (dBμV)
Quasi-peak
Average
66 to 56 *
56 to 46 *
56
46
60
50
TEST PROCEDURE
The EUT is placed on a non-conducting table 40 cm from the vertical ground plane and 80 cm
above the horizontal ground plane. The EUT is configured in accordance with ANSI C63.10.
The receiver is set to a resolution bandwidth of 9 kHz. Peak detection is used unless otherwise
noted as quasi-peak or average.
Line conducted data is recorded for both NEUTRAL and HOT lines.
RESULTS
6 WORST EMISSIONS
Page 47 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
DATA
FCC15 CE Class A 150kHz-30MHz Stepping.TST 30915 24 Feb 2016
Rev 9.5 26 May 2015
Range 1: Line-L1 .15 - 30MHz
Marker
Frequency
(MHz)
Meter
Reading
(dBuV)
Det
LISN L1
LC Cables
1&3
Limiter
(dB)
Corrected
Reading
dBuV
CFR 47
Part 15
Class B QP
QP Margin
(dB)
CFR 47
Part 15
Class B Avg
Av(CISPR)
Margin
(dB)
10
11
12
.204
.204
2.49675
2.49675
16.99125
16.90125
21.66675
21.66675
23.1315
23.1315
26.49075
26.49075
-1.3
-2.91
-3.51
-5.19
13.15
7.11
5.69
4.88
7.31
6.39
7.79
7.02
Qp
Ca
Qp
Ca
Qp
Ca
Qp
Ca
Qp
Ca
Qp
Ca
.1
.1
.1
.1
.1
.1
.2
.2
.2
.2
.2
.2
.3
.3
10.1
10.1
10.1
10.1
10.3
10.3
10.4
10.4
10.4
10.4
10.5
10.5
8.8
7.19
6.69
5.01
23.65
17.61
16.29
15.48
18.01
17.09
18.69
17.92
63.45
56
60
60
60
60
-54.65
-49.31
-36.35
-43.71
-41.99
-41.31
53.45
46
50
50
50
50
-46.26
-40.99
-32.39
-34.52
-32.91
-32.08
Range 2: Line-L2 .15 - 30MHz
Marker
Frequency
(MHz)
Meter
Reading
(dBuV)
Det
LISN L2
LC Cables
2&3
Limiter
(dB)
Corrected
Reading
dBuV
CFR 47
Part 15
Class B QP
QP Margin
(dB)
CFR 47
Part 15
Class B Avg
Av(CISPR)
Margin
(dB)
13
14
15
16
17
18
19
20
21
22
23
24
.204
.204
6.55575
6.558
16.97325
17.08575
21.66675
21.66675
23.1315
23.1315
26.49075
26.49075
-3.44
-5.06
-1.58
-3.52
13.75
7.54
1.65
-.18
6.1
4.5
5.14
3.29
Qp
Ca
Qp
Ca
Qp
Ca
Qp
Ca
Qp
Ca
Qp
Ca
.1
.1
.1
.1
.1
.1
.2
.2
.2
.2
.2
.2
.3
.3
10.1
10.1
10.2
10.2
10.3
10.3
10.4
10.4
10.4
10.4
10.5
10.5
6.66
5.04
8.72
6.78
24.25
18.04
12.25
10.42
16.8
15.2
16.04
14.19
63.45
60
60
60
60
60
-56.79
-51.28
-35.75
-47.75
-43.2
-43.96
53.45
50
50
50
50
50
-48.41
-43.22
-31.96
-39.58
-34.8
-35.81
Qp - Quasi-Peak detector
Ca - CISPR average detection
FCC15 CE Class B 150kHz-30MHz Stepping.TST 30915 24 Feb 2016
Rev 9.5 26 May 2015
Page 48 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
LINE 1 RESULTS
Page 49 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
REPORT NO: 16U23799-E1V4
FCC ID: BCGA1844
DATE: SEPTEMBER 16, 2016
LINE 2 RESULTS
Page 50 of 56
UL VERIFICATION SERVICES INC.
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FORM NO: CCSUP4701I
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc .
Download: A1844 Wireless Device Test Report 1 Apple Inc.
Mirror Download [FCC.gov]A1844 Wireless Device Test Report 1 Apple Inc.
Document ID3137004
Application IDuwtN2LbQvom7LWVs0/jp1A==
Document Description16U23799-E1V4 FCC BLE Report
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize134.63kB (1682871 bits)
Date Submitted2016-09-16 00:00:00
Date Available2016-09-20 00:00:00
Creation Date2017-12-14 19:56:27
Producing SoftwareGPL Ghostscript 9.18
Document Lastmod2017-12-14 19:56:27
Document TitleTest Report 1
Document CreatorMicrosoft® Word 2010
Document Author: Mike Heckrotte

Source Exif Data [exif.tools]:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Encryption                      : Standard V4.4 (128-bit)
User Access                     : Print, Extract, Print high-res
Author                          : Mike Heckrotte
Create Date                     : 2016:09:16 16:20:19-07:00
Modify Date                     : 2016:09:16 16:47:16-07:00
Has XFA                         : No
Language                        : en-US
XMP Toolkit                     : Adobe XMP Core 5.2-c001 63.139439, 2010/09/27-13:37:26
Format                          : application/pdf
Creator                         : Mike Heckrotte
Title                           : 1
Creator Tool                    : Microsoft® Word 2010
Metadata Date                   : 2016:09:16 16:47:16-07:00
Producer                        : Microsoft® Word 2010
Document ID                     : uuid:79b2dc0c-3229-4768-88ff-6db59221ee17
Instance ID                     : uuid:96d02d00-9ef7-4c2a-8203-358772081a4d
Page Count                      : 50
