FCC ID BCR-AF8527
Selective Multiband Repeater
by Andrew Wireless Innovations Group
Grantee Code: BCR Product Code: AF8527
Latest application date: 2016-06-02
Device Images
FCC ID Device Details
| FCC ID | BCR-AF8527 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | BCR |
| Product Code | AF8527 |
| Applicant Business | Andrew Wireless Innovations Group 🇺🇸 |
| Related Domains |  commscope.com |
| Equipment Class | Selective Multiband Repeater |
| Test Firm | Bureau Veritas Consumer Products Services Germany |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 824-849 MHz | Class II permissive change or modification of presently authorized equipment | 2016-06-02 |
| 824-849 MHz | Original Equipment | 2008-12-02 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Internal Photos | Internal Photos | 2008-12-02 | PDF 398 KB |
| External Photos | External Photos | 2008-12-02 | PDF 225.9 KB |

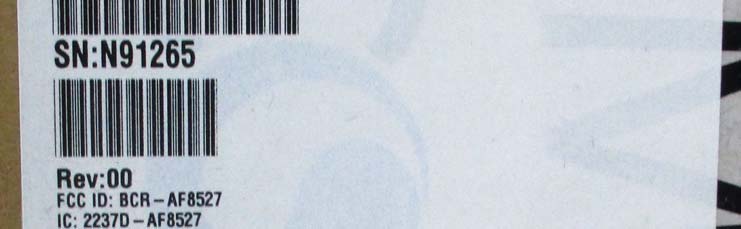

| Label and location | ID Label/Location Info | 2016-06-02 | PDF 649 KB |
| Label Information | ID Label/Location Info | 2008-12-02 | PDF 118.8 KB |

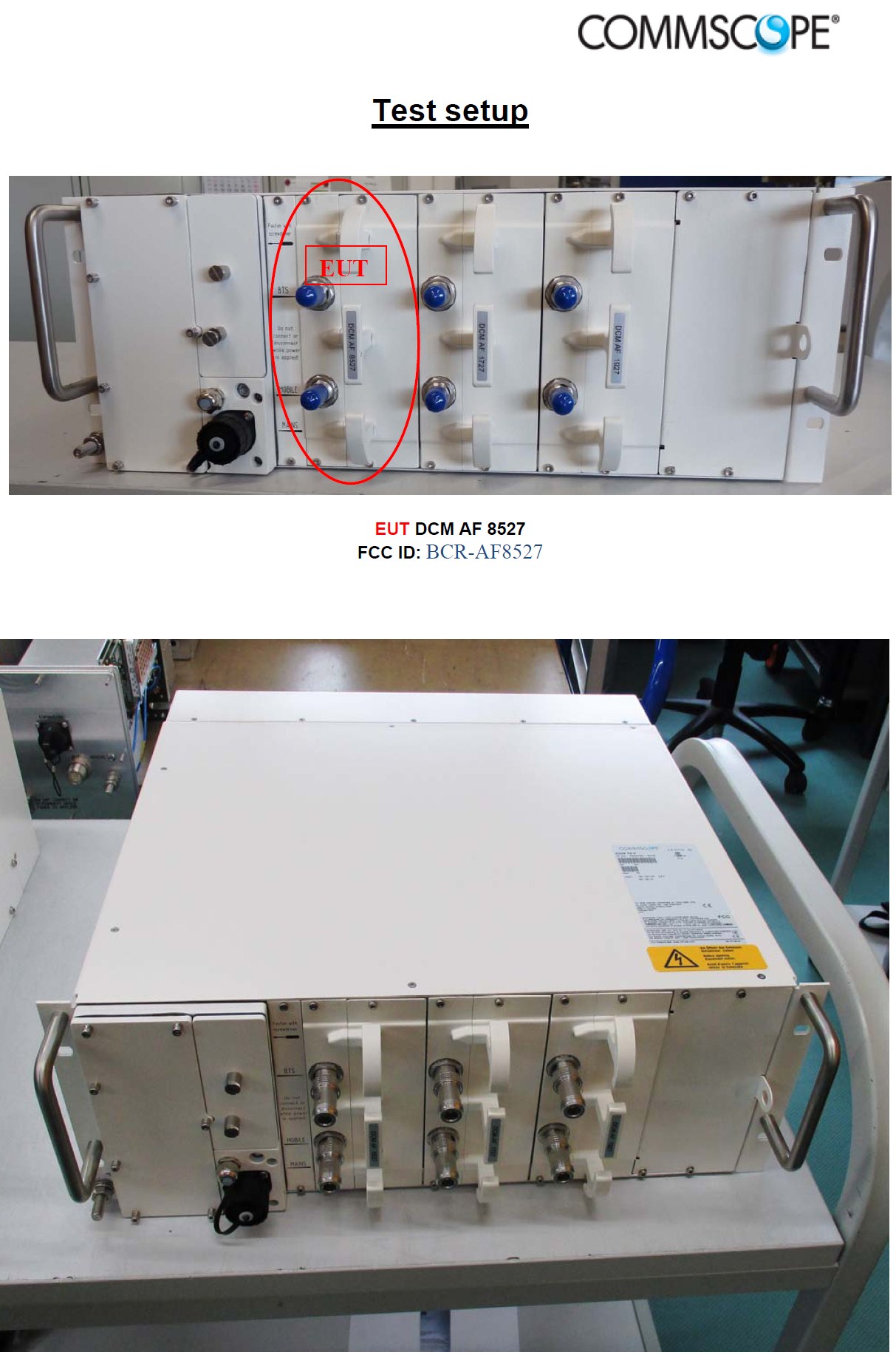

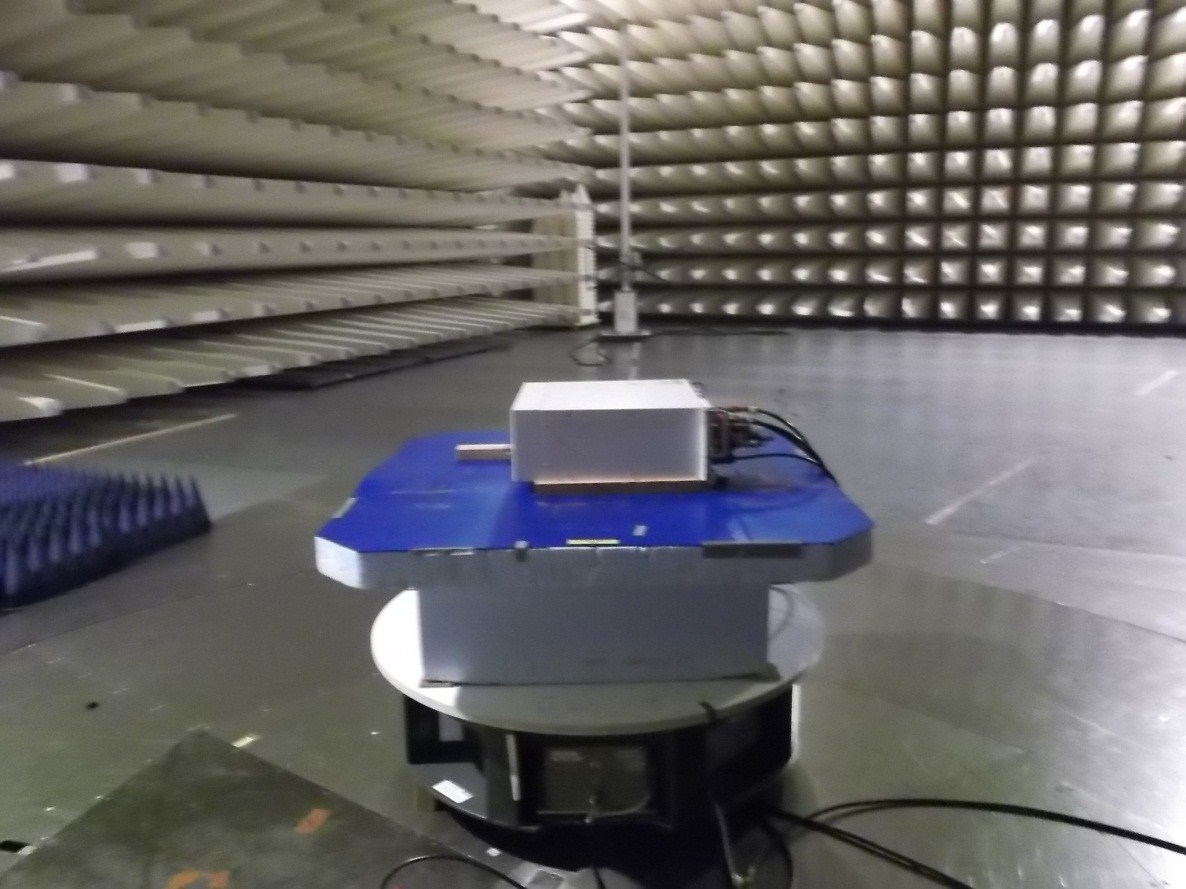

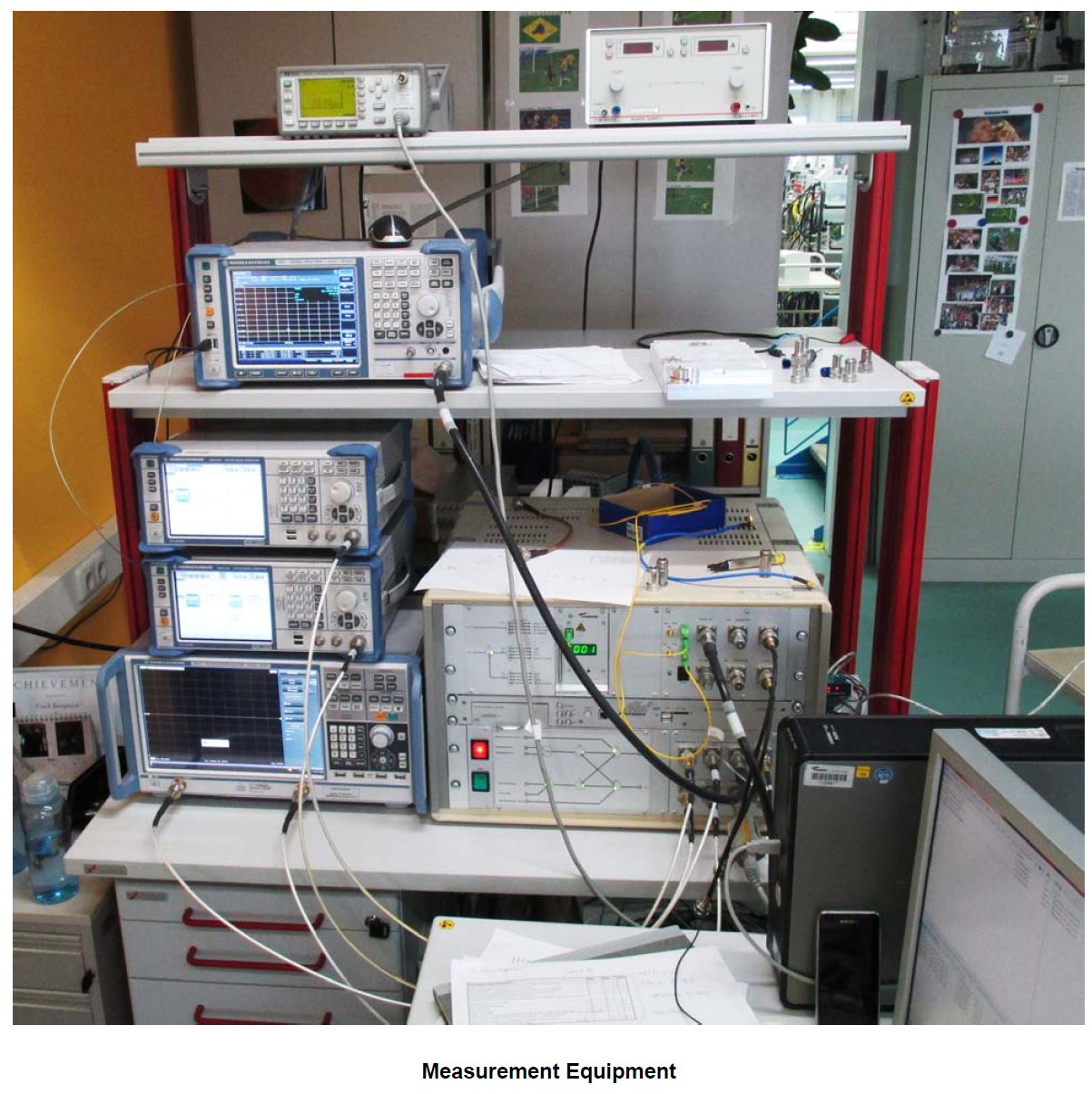

| test setup photos | Test Setup Photos | 2016-06-02 | PDF 1.1 MB |
| Test Setup PHotos | Test Setup Photos | 2008-12-02 | PDF 1.3 MB |
| Test report | Test Report | 2016-06-02 | PDF 3.1 MB |
| Test Report | Test Report | 2008-12-02 | PDF 1 MB |
| Attestation letter | Attestation Statements | 2016-06-02 | PDF 212.5 KB |
| Class II change letter | Cover Letter(s) | 2016-06-02 | PDF 318.3 KB |
| LTC request | Cover Letter(s) | 2016-06-02 | PDF 327 KB |
| PoA | Cover Letter(s) | 2016-06-02 | PDF 35.2 KB |
| Authorization Letter | Cover Letter(s) | 2008-12-02 | PDF 36.4 KB |
| Confidential Letter | Cover Letter(s) | 2008-12-02 | PDF 40.5 KB |
| Tune Up Procedure | Parts List/Tune Up Info | 2008-12-02 | PDF 16 KB |
| operational description Metadata only | Operational Description | PDF 19.8 KB |
Application Information
| Application ID | UcGNof7kcdmtRBqa1/19FQ== |
|---|---|
| Final Action Date | 2016-06-02 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0007784689 |
| Model | AF8527 |
| Frequency Range | 824-849 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | Selective Multiband Repeater |
| Responsible Party | Michael Shumate, Director, North American Operations, Michael.Shumate@Commscope.com , 919 329-8940 |
| Agent | Frank Frank Frank, Andrew Wireless Systems, Futter.Frank@commscope.com , +49909969 |
| Test Firm | Mario Lehmann, Bureau Veritas Consumer Products Services Germany, mario.lehmann@de.bureauveritas.com  , 49-40-74041-2702 |
| TCB Email | Khalek.Yassine@phoenix-testlab.de  |
| TCB Scope | B1: Commercial mobile radio services equipment in the following 47 CFR Parts 20, 22 (cellular), 24,25 (below 3 GHz) & 27 |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Class II Permissive Change to add the LTE Modulation G7D. Output power listed is max. composite output based on one carrier per path (rated).The antenna(s) used for this transmitter must be fixed-mounted on permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b)(3). |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| UcGNof7kcdmtRBqa1/19FQ== | 2016-06-02 | Class II permissive change or modification of presently authorized equipment |
| lP9TyrLFrQMwFJQBv4LswA== | 2008-12-02 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules |
|---|---|---|---|---|
| 824-849 MHz | 1 | Amp | NOTE 1 | 22H |
| 824-849 MHz | 1 | Amp | G7D | 22H |
| 824-849 MHz | 1 | Amp | GXW | 22H |
| 824-849 MHz | 1 | Amp | DXW | 22H |
| 824-849 MHz | 1 | Amp | G7W | 22H |
| 824-849 MHz | 1 | Amp | F3E | 22H |
| 824-849 MHz | 1 | Amp | F1D | 22H |
| 869-894 MHz | 0.5 | Amp | G7W | 22H |
| 869-894 MHz | 0.5 | Amp | F3E | 22H |
| 869-894 MHz | 0.5 | Amp | F1D | 22H |
| 869-894 MHz | 0.5 | Amp | G7D | 22H |
| 869-894 MHz | 0.5 | Amp | NOTE 1 | 22H |
| 869-894 MHz | 0.5 | Amp | F9W | 22H |
| 869-894 MHz | 0.5 | Amp | GXW | 22H |
| 869-894 MHz | 0.5 | Amp | DXW | 22H |
Grants
TCB Grant - Application UcGNof7kcdmtRBqa1/19FQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
PHOENIX TESTLAB GmbH Koenigswinkel 10 32825 Blomberg, Germany |
Date of Grant: 06/02/2016 Application Dated: 06/02/2016 |
| Andrew Wireless Innovations Group |
| 620 North Greenfield Parkway |
| Garner, NC 27529 |
| Attention: Michael Shumate , Director, North American Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCR-AF8527 |
| Name of Grantee: | Andrew Wireless Innovations Group |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | Selective Multiband Repeater |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.0 - 849.0 | 1.0 | Amp | F9W | |
| 22H | 824.0 - 849.0 | 1.0 | Amp | GXW | |
| 22H | 824.0 - 849.0 | 1.0 | Amp | DXW | |
| 22H | 824.0 - 849.0 | 1.0 | Amp | G7W | |
| 22H | 824.0 - 849.0 | 1.0 | Amp | F3E | |
| 22H | 824.0 - 849.0 | 1.0 | Amp | F1D | |
| 22H | 869.0 - 894.0 | 0.5 | Amp | F9W | |
| 22H | 869.0 - 894.0 | 0.5 | Amp | GXW | |
| 22H | 869.0 - 894.0 | 0.5 | Amp | DXW | |
| 22H | 869.0 - 894.0 | 0.5 | Amp | G7W | |
| 22H | 869.0 - 894.0 | 0.5 | Amp | F3E | |
| 22H | 869.0 - 894.0 | 0.5 | Amp | F1D | |
| 22H | 824.0 - 849.0 | 1.0 | Amp | G7D | |
| 22H | 869.0 - 894.0 | 0.5 | Amp | G7D |
| Class II Permissive Change to add the LTE Modulation G7D. Output power listed is max. composite output based on one carrier per path (rated).The antenna(s) used for this transmitter must be fixed-mounted on permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b)(3). |
EAS Grant - Application UcGNof7kcdmtRBqa1/19FQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Andrew Wireless Innovations Group 620 North Greenfield Parkway Garner, NC 27529 United States |
Date of Grant: 06/02/2016 Application Dated: 06/02/2016 |
| Attention: Michael Shumate , Director, North American Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCR-AF8527 |
| Name of Grantee: | Andrew Wireless Innovations Group |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | Selective Multiband Repeater |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.0 - 849.0 | 1.0 | Amp | F9W | |
| 22H | 824.0 - 849.0 | 1.0 | Amp | GXW | |
| 22H | 824.0 - 849.0 | 1.0 | Amp | DXW | |
| 22H | 824.0 - 849.0 | 1.0 | Amp | G7W | |
| 22H | 824.0 - 849.0 | 1.0 | Amp | F3E | |
| 22H | 824.0 - 849.0 | 1.0 | Amp | F1D | |
| 22H | 869.0 - 894.0 | 0.5 | Amp | F9W | |
| 22H | 869.0 - 894.0 | 0.5 | Amp | GXW | |
| 22H | 869.0 - 894.0 | 0.5 | Amp | DXW | |
| 22H | 869.0 - 894.0 | 0.5 | Amp | G7W | |
| 22H | 869.0 - 894.0 | 0.5 | Amp | F3E | |
| 22H | 869.0 - 894.0 | 0.5 | Amp | F1D | |
| 22H | 824.0 - 849.0 | 1.0 | Amp | G7D | |
| 22H | 869.0 - 894.0 | 0.5 | Amp | G7D |
| Class II Permissive Change to add the LTE Modulation G7D. Output power listed is max. composite output based on one carrier per path (rated).The antenna(s) used for this transmitter must be fixed-mounted on permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b)(3). |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 <BR>P.O. Box 370, Newberry, FL 32669 |
Date of Grant: 12/02/2008 Application Dated: 12/02/2008 |
| Andrew Wireless Innovations Group |
| 620 North Greenfield Parkway |
| Garner, NC 27529 |
| Attention: Michael Shumate , Director, North American Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCR-AF8527 |
| Name of Grantee: | Andrew Wireless Innovations Group |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | Selective Multiband Repeater |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.0 - 849.0 | 1.0 | Amp | NOTE 1 | |
| 22H | 869.0 - 894.0 | 0.5 | Amp | NOTE 1 |
| Power listed is conducted. The antenna(s) used for this transmitter must be fixed-mounted on permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b)(3). Note 1: F9W, GXW, DXW, G7W, F3E/F1D |
EAS Grant - Application lP9TyrLFrQMwFJQBv4LswA==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Andrew Wireless Innovations Group 620 North Greenfield Parkway Garner, NC 27529 United States |
Date of Grant: 12/02/2008 Application Dated: 12/02/2008 |
| Attention: Michael Shumate , Director, North American Operations |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | BCR-AF8527 |
| Name of Grantee: | Andrew Wireless Innovations Group |
| Equipment Class: | Licensed Non-Broadcast Station Transmitter |
| Notes: | Selective Multiband Repeater |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.0 - 849.0 | 1.0 | Amp | NOTE 1 | |
| 22H | 869.0 - 894.0 | 0.5 | Amp | NOTE 1 |
| Power listed is conducted. The antenna(s) used for this transmitter must be fixed-mounted on permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b)(3). Note 1: F9W, GXW, DXW, G7W, F3E/F1D |
