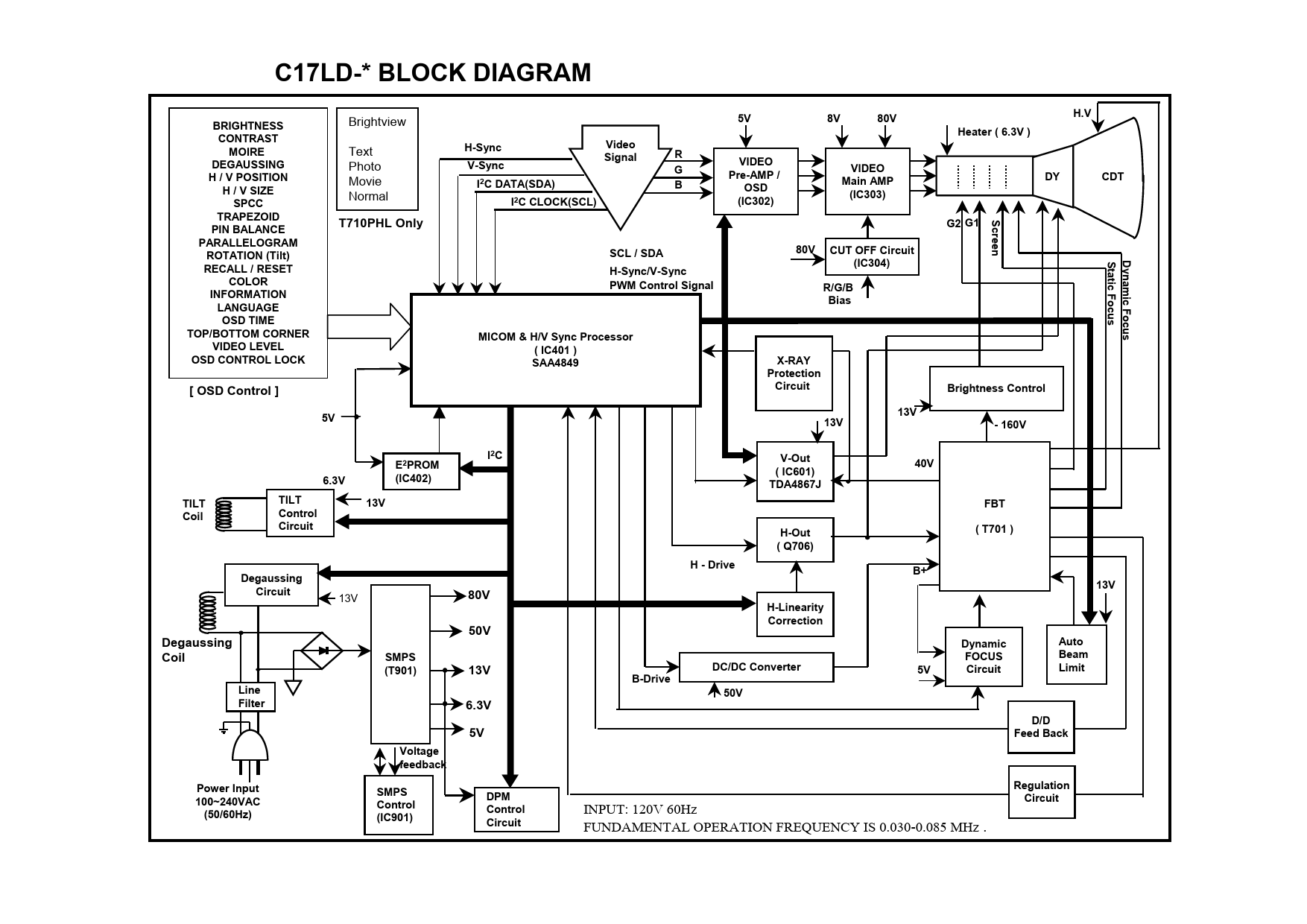

C17LD Color Monitor Block Diagram - FCC ID BEJC17LD

FCC ID BEJC17LD

BLOCK DIAGRAM

Color Monitor

by LG Electronics USA

Document preview loads when visible.

Document Details

FCC IDBEJC17LD
Document ID466458
Document TypeBlock Diagram
DescriptionBLOCK DIAGRAM
Document TitleMicrosoft PowerPoint - LG Block Dia.ppt
ApplicantLG Electronics USA
Equipment ClassColor Monitor
Product CodeC17LD
Application IDUip5mFhLy0SImKlueUUkIA==
Application PurposeOriginal Equipment
Application Date2004-09-07
FRN0020917688
Test FirmAudix Technology ( Shanghai ) Co., Ltd.
Certified ByPeter Byun General Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-09-08
Available2004-09-07
Created2004-09-07
Modified2004-09-07
Pages1
File TypeAdobe Acrobat PDF
File Size73851
File SHA-25697fe96beea92fc10ab1a90aaaa57f2d29ea5d8dcad4435ebdea64406b04f2b31
PDF Metadata AuthorCathrin
PDF Metadata CreatorADOBEPS4.DRV Version 4.50
PDF Metadata ProducerAcrobat Distiller 5.0.5 (Windows)
FCC.gov SourcesFCC.gov 466458
