FCC ID BEJLC7FD
Faceplate RADIO ASM-RECEIVER
by LG Electronics USA
Grantee Code: BEJ Product Code: LC7FD
Latest application date: 2016-11-11
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2016-11-11 |
| 5180-5240 MHz | Original Equipment | 2016-06-20 |
| 2412-2462 MHz | Original Equipment | 2016-06-20 |
| 2402-2480 MHz | Original Equipment | 2016-06-20 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Users Manual | Users Manual | 2016-12-15 | PDF 533.4 KB |
| Internal Photos | Internal Photos | 2016-12-15 | PDF 963.1 KB |
| External Photos | External Photos | 2016-12-15 | PDF 311.3 KB |

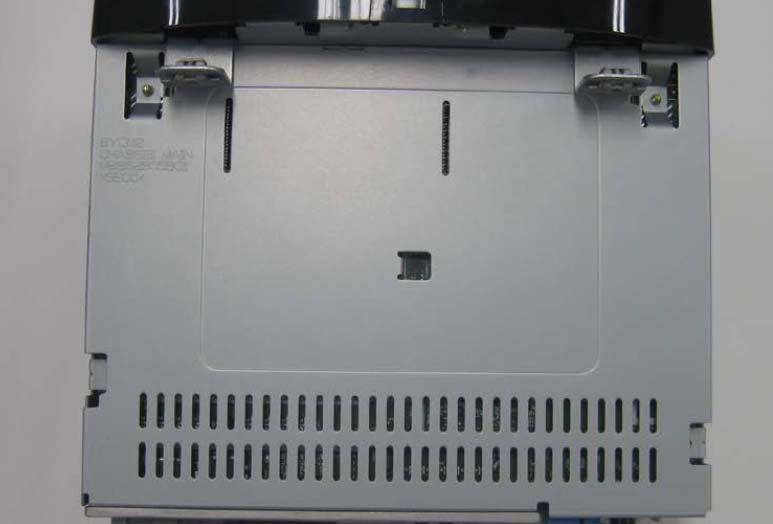

| ID Label and Location Info | ID Label/Location Info | 2016-06-20 | PDF 224 KB |
| Test Setup Photos | Test Setup Photos | 2017-05-05 | PDF 781 KB |
| Test Setup Photos | Test Setup Photos | 2016-12-15 | PDF 1.9 MB |
| RF Test Report - UNII | Test Report | 2016-11-11 | PDF 1.8 MB |
| Test Report - DSS | Test Report | 2016-06-20 | PDF 5.2 MB |
| Test Report - DTS | Test Report | 2016-06-20 | PDF 3.3 MB |
| Test Report - NII | Test Report | 2016-06-20 | PDF 2.6 MB |
| C2PC Application Letter | Cover Letter(s) | 2016-11-11 | PDF 36.4 KB |
| Confidential Request Letter | Cover Letter(s) | 2016-11-11 | PDF 22.7 KB |
| Confidential Request Letter | Cover Letter(s) | 2016-06-20 | PDF 94.6 KB |
| Declaration for non-US channel operation | Cover Letter(s) | 2016-06-20 | PDF 105.5 KB |
| RF Exposure Info | RF Exposure Info | 2016-06-20 | PDF 659.7 KB |
| Block Diagram Metadata only | Block Diagram | PDF 103.8 KB | |
| Schematics Metadata only | Schematics | PDF 1.4 MB | |
| OP - Antenna Spec Metadata only | Operational Description | PDF 72.6 KB | |
| OP - KDB 594280 Software Security documentation Metadata only | Operational Description | PDF 88 KB | |
| Operational Description Metadata only | Operational Description | PDF 577.5 KB | |
| Operational Description Metadata only | Operational Description | PDF 569.7 KB | |
| Operational Description - Antenna spec Metadata only | Operational Description | PDF 72.6 KB | |
| Operational Description - Software Security Metadata only | Operational Description | PDF 47.8 KB | |
| Part List Metadata only | Parts List/Tune Up Info | PDF 533.2 KB |
Application Information
| Application ID | NfR02SWFm3B3FzCaEVQahA== |
|---|---|
| Final Action Date | 2016-11-11 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0023476120 |
| Model | LC7FD |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | Faceplate RADIO ASM-RECEIVER |
| Responsible Party | Sung Soo Kim, Director, Regulatory and Environmental Affairs, sungsoo.kim@lge.com  , 201-266-2215 |
| Test Firm | Sang Lee, HCT Co., LTD, sjlee@HCT.co.kr  , 82-31-645-6420 |
| TCB Email | tcb@hctamerica.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 05/05/2017 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | C2PC Approval. Power listed is the peak conducted output power. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with transmitter operation conditions for satisfying RF exposure compliance requirements. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. This device operates with 20MHz channel bandwidth capabilities. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| NfR02SWFm3B3FzCaEVQahA== | 2016-11-11 | Class II permissive change or modification of presently authorized equipment |
| s3XaGsOffsqbJptKKK0a+A== | 2016-06-20 | Original Equipment |
| hbJGCW6Tperm02ID3WC/kA== | 2016-06-20 | Original Equipment |
| 9WC9kACgXiFUwpmifJLH1w== | 2016-06-20 | Original Equipment |
