FCC ID BEJLGSBWAC72
RF Module
by LG Electronics USA
Grantee Code: BEJ Product Code: LGSBWAC72
Latest application date: 2016-07-27
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2016-07-27 |
| 2402-2480 MHz | Original Equipment | 2016-07-27 |
| 5180-5240 MHz | Original Equipment | 2016-07-27 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2017-01-23 | PDF 1.2 MB |
| Internal Photos | Internal Photos | 2017-01-23 | PDF 346.8 KB |
| External Photos | External Photos | 2017-01-23 | PDF 224.7 KB |

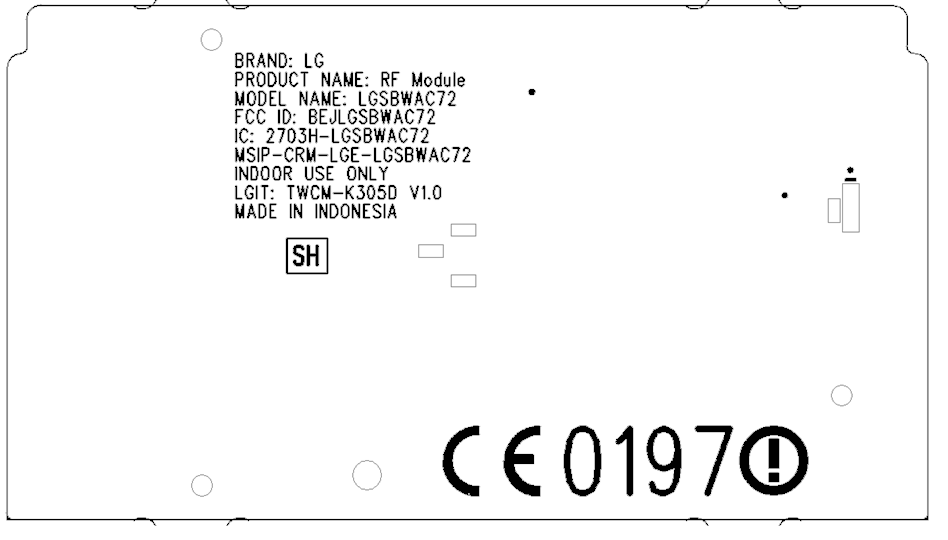

| Label | ID Label/Location Info | 2016-07-27 | PDF 88.1 KB |
| Test Setup Photos | Test Setup Photos | 2017-01-23 | PDF 581.4 KB |
| DFS Report | Test Report | 2016-07-27 | PDF 1 MB |
| Test Report 1 | Test Report | 2016-07-27 | PDF 2.4 MB |
| Test Report 1 | Test Report | 2016-07-27 | PDF 4.9 MB |
| Test Report 1 | Test Report | 2016-07-27 | PDF 3.9 MB |
| Test Report 2 | Test Report | 2016-07-27 | PDF 3.5 MB |
| Test Report 2 | Test Report | 2016-07-27 | PDF 5.8 MB |
| Test Report 2 | Test Report | 2016-07-27 | PDF 4.1 MB |
| Test Report 3 | Test Report | 2016-07-27 | PDF 5.2 MB |
| Test Report 3 | Test Report | 2016-07-27 | PDF 5 MB |
| Test Report 4 | Test Report | 2016-07-27 | PDF 2.6 MB |
| Test Report 4 | Test Report | 2016-07-27 | PDF 4.9 MB |
| Test Report 5 | Test Report | 2016-07-27 | PDF 5.3 MB |
| Test Report 6 | Test Report | 2016-07-27 | PDF 5.6 MB |
| Authorization Letter | Cover Letter(s) | 2016-07-27 | PDF 100.6 KB |
| Confidentiality Request Letter | Cover Letter(s) | 2016-07-27 | PDF 107.3 KB |
| Modular Approval Letter | Cover Letter(s) | 2016-07-27 | PDF 88.5 KB |
| Product Certification Representative Auth Letter | Cover Letter(s) | 2016-07-27 | PDF 101.6 KB |
| WIFI ch 12 -13 Declaration letter | Cover Letter(s) | 2016-07-27 | PDF 316.5 KB |
| SAR test exclusion considerations | RF Exposure Info | 2016-07-27 | PDF 85.2 KB |
| SAR test exclusion considerations | RF Exposure Info | 2016-07-27 | PDF 64.3 KB |
| SAR test exclusion considerations | RF Exposure Info | 2016-07-27 | PDF 63.3 KB |
| Block Diagram Metadata only | Block Diagram | PDF 46.8 KB | |
| Schematics Metadata only | Schematics | PDF 113.4 KB | |
| Operational Description Metadata only | Operational Description | PDF 168.8 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 109.8 KB |
Application Information
| Application ID | y0XfhS1DaGxh9AnVGxVPOg== |
|---|---|
| Final Action Date | 2016-07-27 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0023476120 |
| Model | LGSBWAC72 |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DTS - Digital Transmission System |
| Device Description | RF Module |
| Responsible Party | Sung Soo Kim, Director, Regulatory and Environmental Affairs, sungsoo.kim@lge.com  , 201-266-2215 |
| Test Firm | Changho Lee, DT&C; Co., Ltd., chlee@dtnc.net  , 82313212664 |
| TCB Email | tcb@siemic.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 01/23/2017 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Single Modular Approval |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Modular Approval. Power listed is the maximum combined Conducted output power. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. OEM integrators and installers must be provided with transmitter operating conditions for satisfying RF exposure compliance. This device is a 2X2 MIMO. |
