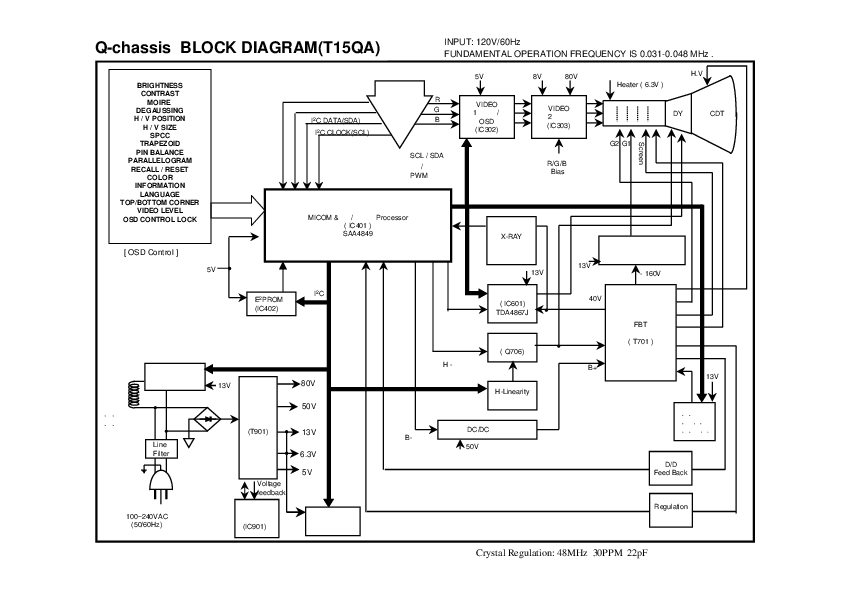

T15QA CRT MONITOR Block Diagram - FCC ID BEJT15QA

FCC ID BEJT15QA

BLOCK DIAGRAM

CRT MONITOR

by LG Electronics USA

Document preview loads when visible.

Document Details

FCC IDBEJT15QA
Document ID694393
Document TypeBlock Diagram
DescriptionBLOCK DIAGRAM
Document TitleMicrosoft PowerPoint - Block_Diagram_Q-chassis.ppt
ApplicantLG Electronics USA
Equipment ClassCRT MONITOR
Product CodeT15QA
Application IDrrjMNcXv7tj5ZSwmZiIsUA==
Application PurposeOriginal Equipment
Application Date2006-08-16
FRN0020917688
Test FirmAudix Technology ( Shanghai ) Co., Ltd.
Certified ByDANIEL KIM GENERAL MANAGER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2006-08-16
Available2006-08-16
Created2006-08-08
Modified2006-08-08
Pages1
File TypeAdobe Acrobat PDF
File Size16501
File SHA-256931225c22705fbff0911b5c7b1eea2dcc587600c85905697e5e4bf086d6a5bda
PDF Metadata AuthorSarah
PDF Metadata ProducerAcrobat Distiller 5.0.5 (Windows) Sarah
FCC.gov SourcesFCC.gov 694393
