HSU577 Video Cassette Recorder Operational... - FCC ID BGBHS-U577

FCC ID BGBHS-U577

Specification Sheet

Video Cassette Recorder

by Mitsubishi Electric Corp

Document preview loads when visible.

Document Details

FCC IDBGBHS-U577
Document ID121501
Document TypeOperational Description

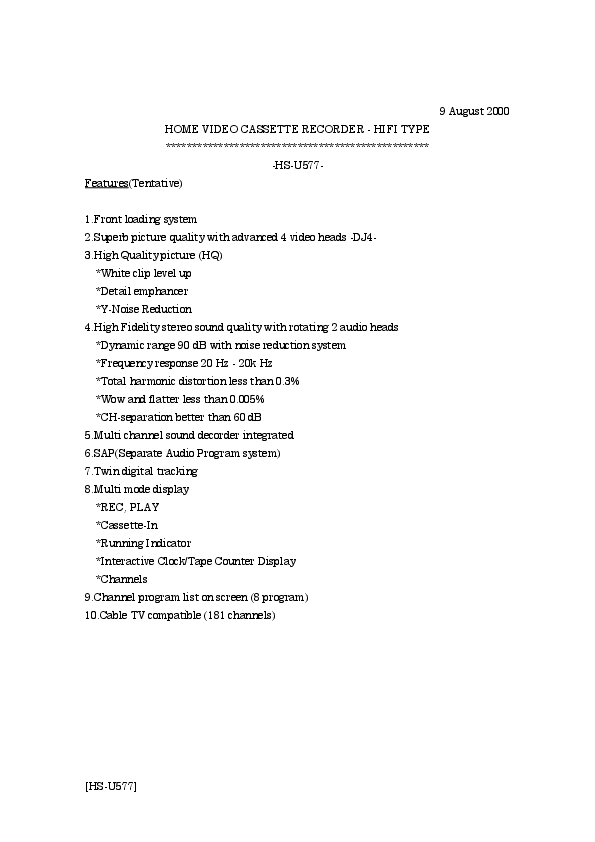

DescriptionSpecification Sheet
Document Titles_sheet_u577
ApplicantMitsubishi Electric Corp
Equipment ClassVideo Cassette Recorder
Product CodeHSU577
Application IDSr0YbmDvD+6uN88OxH2KGw==
Application PurposeOriginal Equipment
Application Date2000-11-08
Frequency Range61.25-65.75 MHz
FRN0009565698
Test FirmKansai Electronic Industry Dev. Ct.
Certified ByMasaaki Komatsu, General Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2000-10-18
Available2000-11-08
Pages5
File TypeAdobe Acrobat PDF
File Size43697
File SHA-256ee0723f150cc8c3f4b202c8f0e33933d3c8ed5eeb501fcde04362806bc149334
PDF Metadata Authorhirao
PDF Metadata ProducerAcrobat Distiller 3.0J (Windows 版) ADOBEPS4.DRV Version 4.11
FCC.gov SourcesFCC.gov 121501
