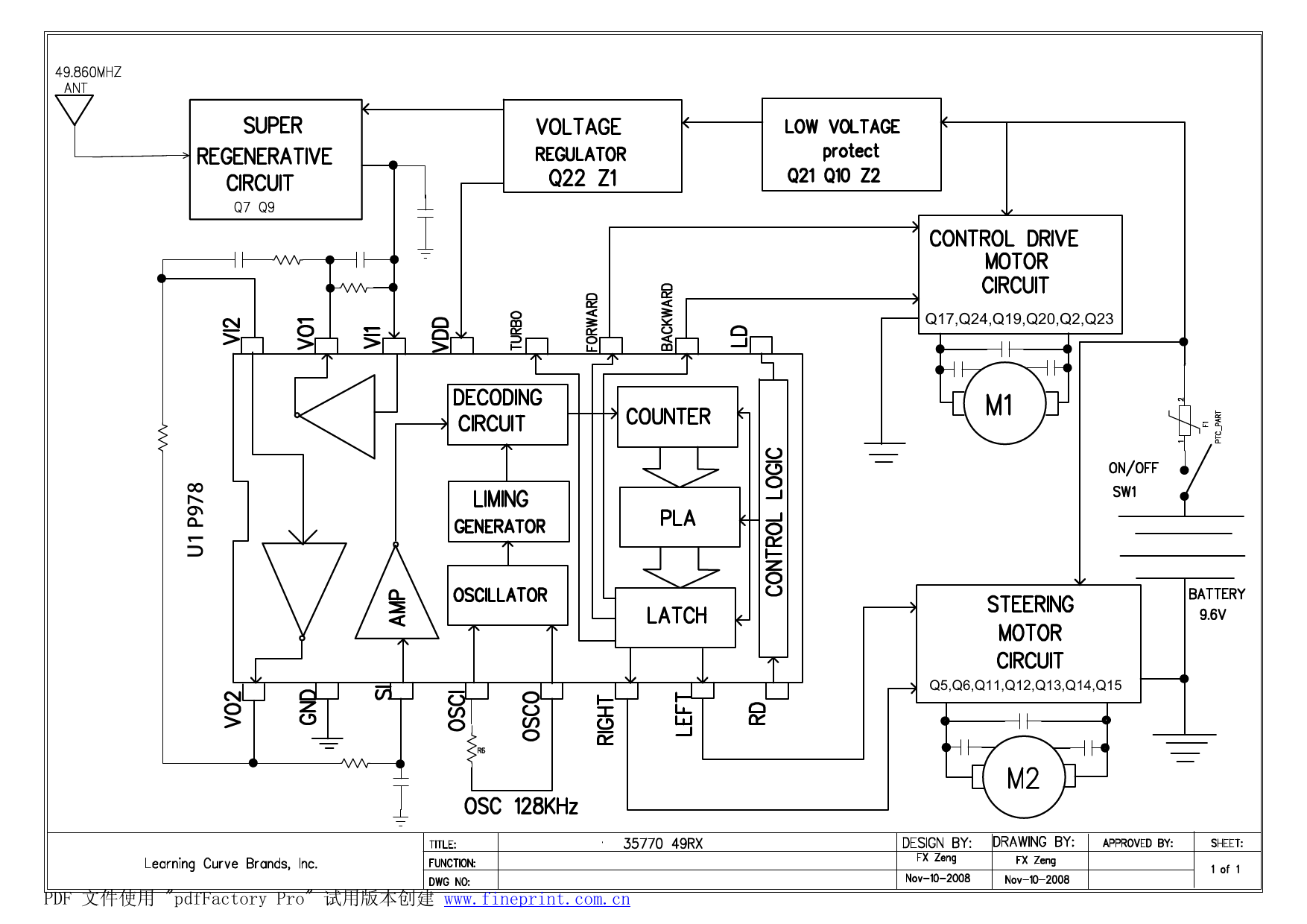

35770R49 8JD RC MT 620I GATOR Block Diagram - FCC ID BMW-35770-R49

FCC ID BMW-35770-R49

Block Diagram

8JD RC MT 620I GATOR

by TOMY International, Inc.

Document preview loads when visible.

Document Details

FCC IDBMW-35770-R49
Document ID1045850
Document TypeBlock Diagram
DescriptionBlock Diagram
Document Titletont hawk tx40MHZ
ApplicantTOMY International, Inc.
Equipment Class8JD RC MT 620I GATOR
Product Code35770R49
Application IDRdsRi64KD2oc9Mu/Oty+xw==
Application PurposeOriginal Equipment
Application Date2008-12-18
Frequency Range49.86 MHz
FRN0015520463
Test FirmIntertek Testing Services Shenzhen Ltd.
Certified BySHAWN XING ASSISTANT MANAGER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2008-12-18
Available2008-12-18
Created2008-12-17
Modified2008-12-17
Pages1
File TypeAdobe Acrobat PDF
File Size40142
File SHA-2568d0aebc8552062fef668013f6962b451ef21927f38643d5e9e45e8fc8048bcdc
PDF Metadata Authorelec30
PDF Metadata CreatorpdfFactory Pro www.fineprint.com.cn
PDF Metadata ProducerAcrobat Distiller 8.0.0 (Windows)
FCC.gov SourcesFCC.gov 1045850
