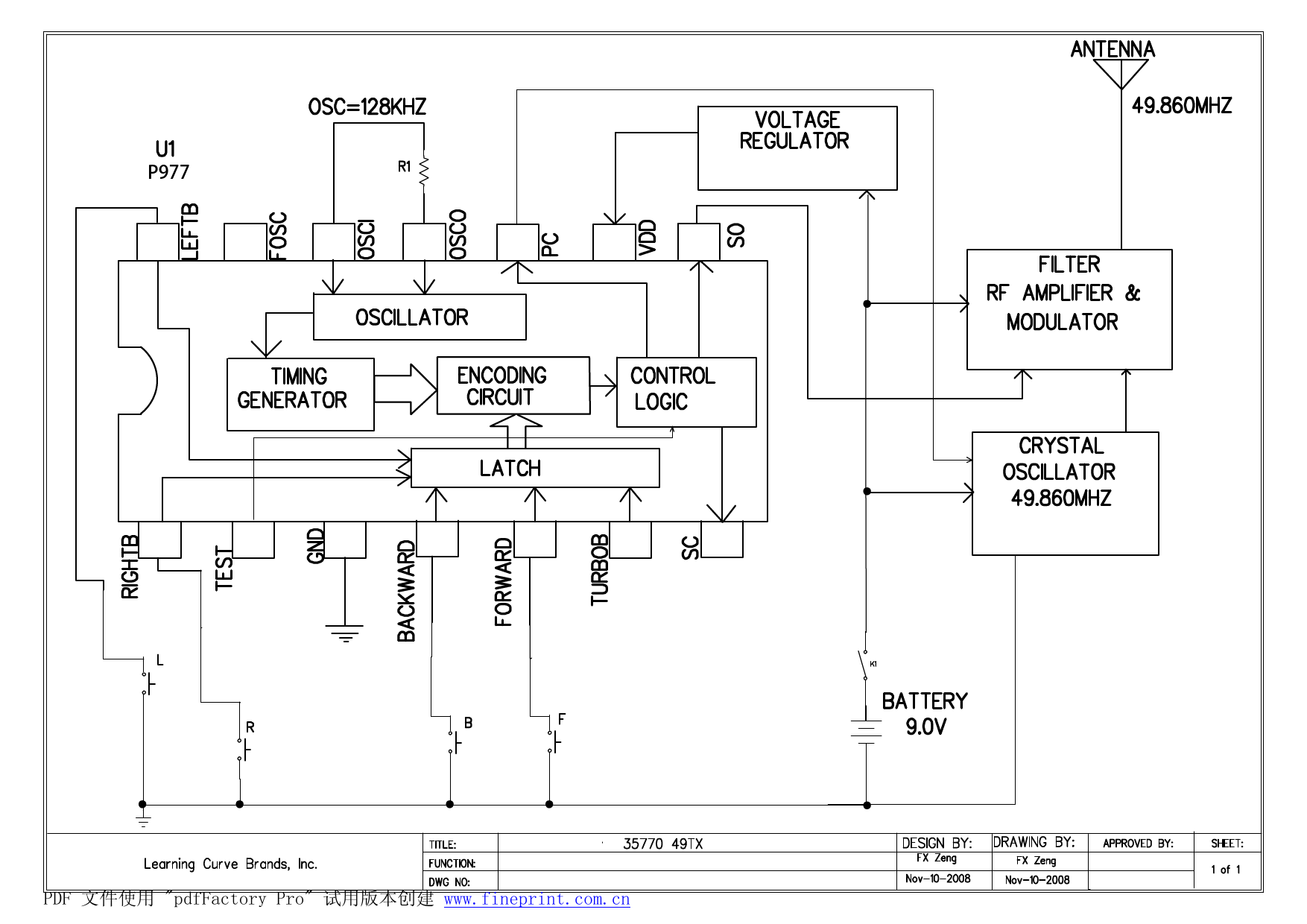

35770T49 8 JD RC MT 620I GATOR Block Diagram - FCC ID BMW-35770-T49

FCC ID BMW-35770-T49

Block Diagram

8 JD RC MT 620I GATOR

by TOMY International, Inc.

Document preview loads when visible.

Document Details

FCC IDBMW-35770-T49
Document ID1045838
Document TypeBlock Diagram
DescriptionBlock Diagram
Document Titletont hawk tx40MHZ
ApplicantTOMY International, Inc.
Equipment Class8 JD RC MT 620I GATOR
Product Code35770T49
Application IDKhgbGL0ZJwzigm3F8PLZkQ==
Application PurposeOriginal Equipment
Application Date2008-12-18
Frequency Range49.86 MHz
FRN0015520463
Test FirmIntertek Testing Services Shenzhen Ltd.
Certified BySHAWN XING ASSISTANT MANAGER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2008-12-18
Available2008-12-18
Created2008-12-10
Modified2008-12-10
Pages1
File TypeAdobe Acrobat PDF
File Size31730
File SHA-256c9947fed3db53dd0aa791ad497303e733f74156ec2c8e749e4e1b702afd80c48
PDF Metadata Authorelec30
PDF Metadata CreatorpdfFactory Pro www.fineprint.com.cn
PDF Metadata ProducerAcrobat Distiller 8.0.0 (Windows)
FCC.gov SourcesFCC.gov 1045838
