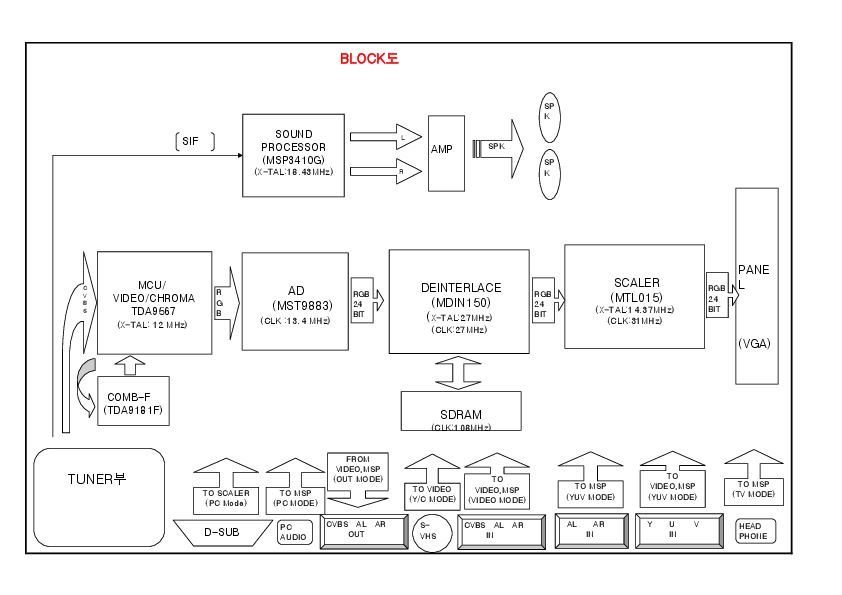

LT201CB 20.1" LCD TV Receiver Block Diagram - FCC ID BRFLT201CB

FCC ID BRFLT201CB

Block Diagram

20.1" LCD TV Receiver

by KTV Global Corporation

Document preview loads when visible.

Document Details

FCC IDBRFLT201CB
Document ID483412
Document TypeBlock Diagram
DescriptionBlock Diagram
Document Titleblock diagram-1.xls
ApplicantKTV Global Corporation
Equipment Class20.1" LCD TV Receiver
Product CodeLT201CB
Application IDS8WmvPrzD5eJLB8puK3cNg==
Application PurposeOriginal Equipment
Application Date2004-10-29
FRN0006657068
Test FirmONETECH Corp.
Certified ByY. K. Kwon Manager (Agent)
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2004-10-29
Available2004-10-29
Created2004-10-27
Modified2004-10-27
Pages1
File TypeAdobe Acrobat PDF
File Size44523
File SHA-2569f389dacdda5a2a98345eba8ad5cdeab1a9e966880d18ebc83854e8bf7aab4fe
PDF Metadata Authorschong
PDF Metadata ProducerAcrobat Distiller 6.0 (Windows) schong
