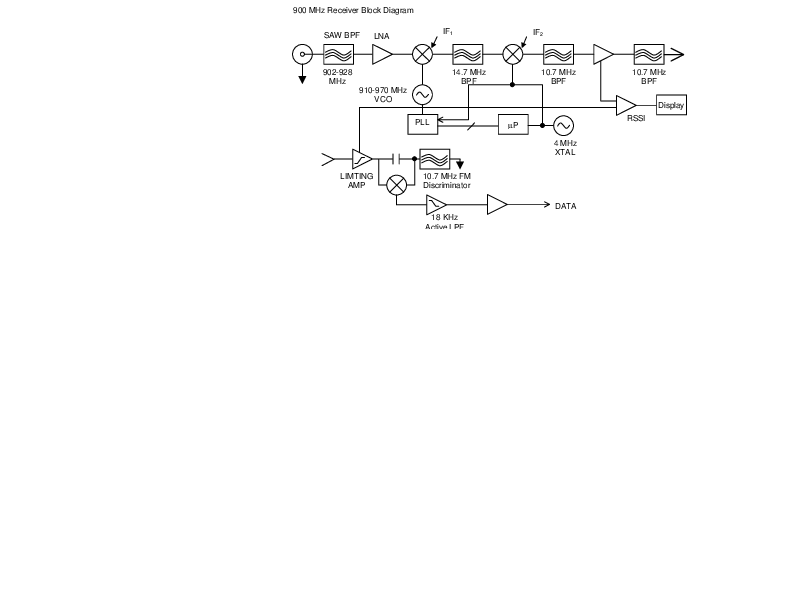

UMPHSRR UMPHSR-R Block Diagram - FCC ID BVCUMPHSR-R

FCC ID BVCUMPHSR-R

block diagram

UMPHSR-R

by Tyco Safety Products/Sensormatic

Document preview loads when visible.

Document Details

FCC IDBVCUMPHSR-R
Document ID32020
Document TypeBlock Diagram
Descriptionblock diagram
ApplicantTyco Safety Products/Sensormatic
Equipment ClassUMPHSR-R
Product CodeUMPHSRR
Application IDMM+xHZwjzw8vnN9tKRAY8w==
Application PurposeOriginal Equipment
Application Date1999-05-04
Frequency Range902-928 MHz
FRN0005052626
Test FirmElite Electronic Engineering Co.
Certified ByDonald J. Umbdenstock Project Leader, Compliance Engineering
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted1999-04-13
Available1999-05-04
Created2001-06-29
Modified2001-06-29
Pages1
File TypeAdobe Acrobat PDF
File Size8155
File SHA-256df0645a72149fe4d2e60b9e4de3f4943b519efbb4f3fdd298bf79bc580a39412
PDF Metadata ProducerAcrobat Distiller 4.0 for Windows
FCC.gov SourcesFCC.gov 32020
