30XT HANDHELD WIRELESS MICROPHONE Parts... - FCC ID BZB30XT
FCC ID BZB30XT
TUNE UP PROCEDURE 2
HANDHELD WIRELESS MICROPHONE
Document preview loads when visible.
Document Details
| FCC ID | BZB30XT |
|---|---|
| Document ID | 777300 |
| Document Type | Parts List/Tune Up Info |

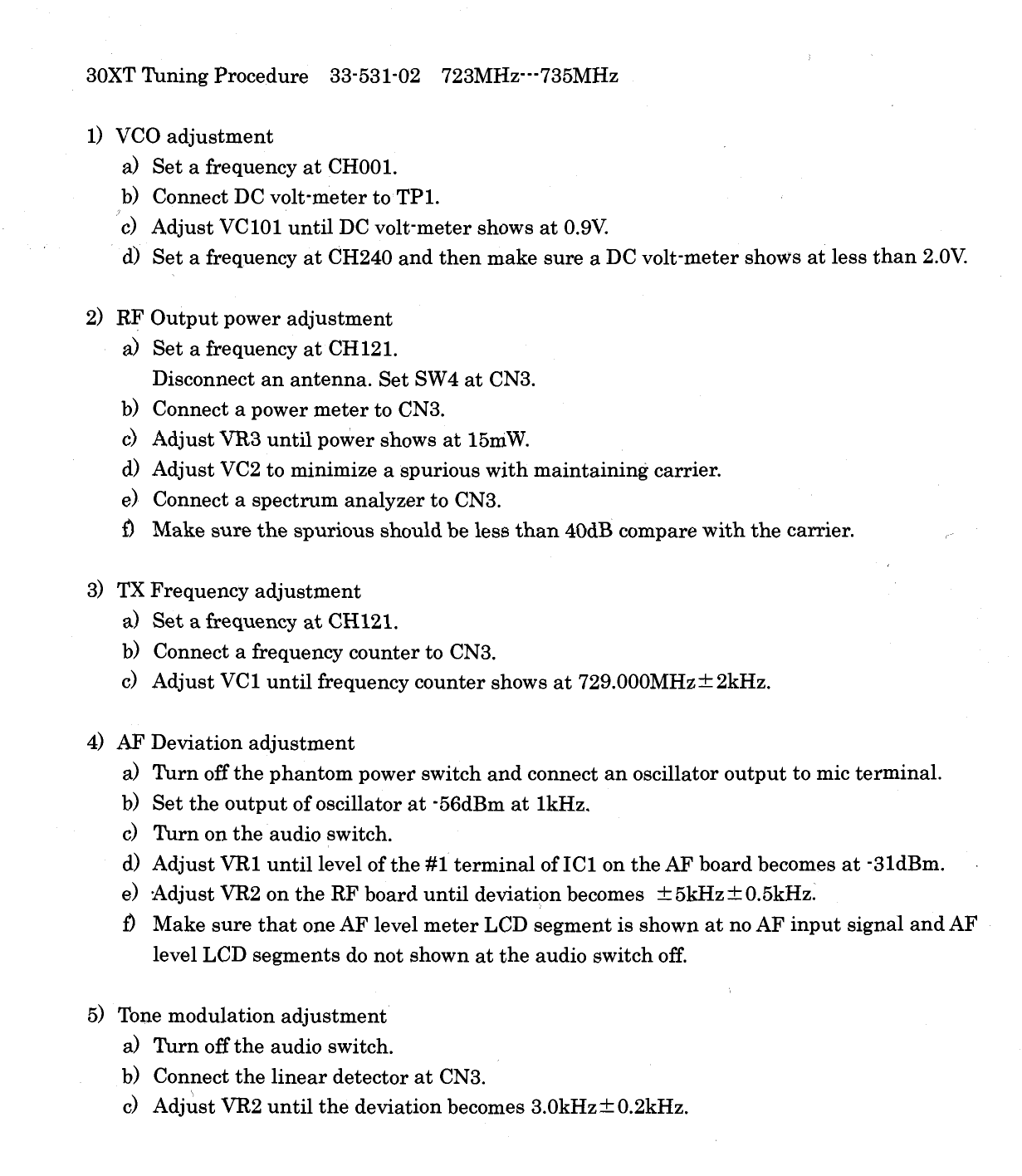

| Description | TUNE UP PROCEDURE 2 |
| Document Title | None |
| Applicant | Azden Corporation |
| Equipment Class | HANDHELD WIRELESS MICROPHONE |
| Product Code | 30XT |
| Application ID | j1IwWUfCF79eRQleNyldhg== |
| Application Purpose | Original Equipment |
| Application Date | 2007-04-05 |
| Frequency Range | 723-735 MHz |
| FRN | 0006335731 |
| Test Firm | Timco Engineering, Inc. |
| Certified By | NORMAN LEVENSTEIN |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2007-04-05 |
| Available | 2007-04-05 |
| Created | 2007-03-26 |
| Modified | 2007-03-26 |
| Pages | 2 |
| File Type | Adobe Acrobat PDF |
| File Size | 15686 |
| File SHA-256 | 8677e79ff9922a5b4dd6fba9380229dbd9de568614de15031ce641cfb6fada8e |
| PDF Metadata Author | None |
| PDF Metadata Creator | HP PrecisionScan Pro 3.0 |
| PDF Metadata Producer | Adobe Acrobat 6.0.2 Paper Capture |
| FCC.gov Sources | FCC.gov 777300 |
