FCC ID C3DWFAP01
WiFi Extender Product
by Winegard Company
Grantee Code: C3D Product Code: WFAP01
Latest application date: 2016-08-01
Device Images
FCC ID Device Details
| FCC ID | C3DWFAP01 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | C3D |
| Product Code | WFAP01 |
| Applicant Business | Winegard Company 🇺🇸 |
| Related Domains |  winegard.com |
| Equipment Class | WiFi Extender Product |
| Test Firm | Elite Electronic Engineering Inc. |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Original Equipment | 2016-08-01 |
| 2412-2462 MHz | Original Equipment | 2016-08-01 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Exhibit D Users Manual per 2 1033 b3 | Users Manual | 2016-08-01 | PDF 123.2 KB |

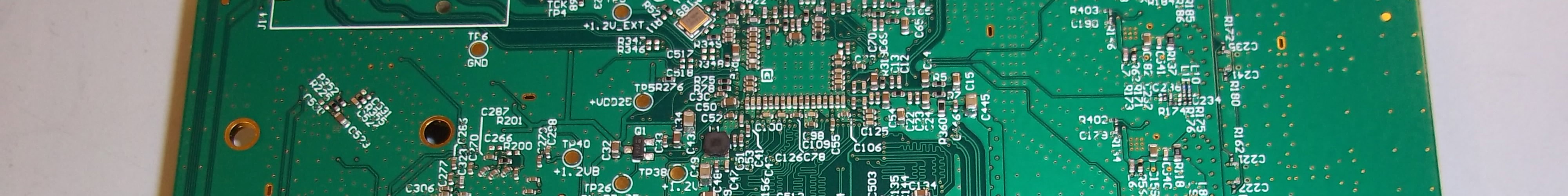

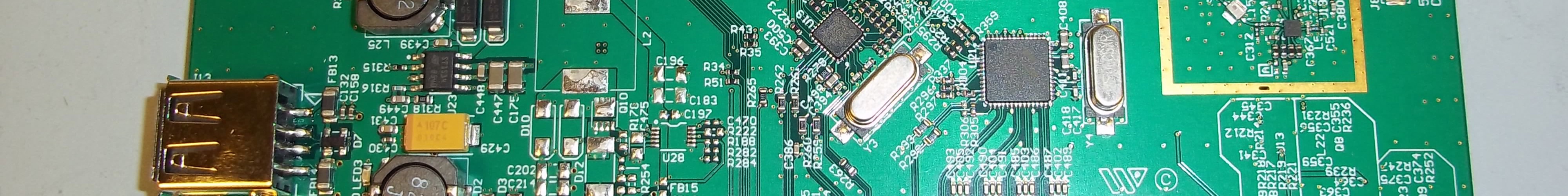

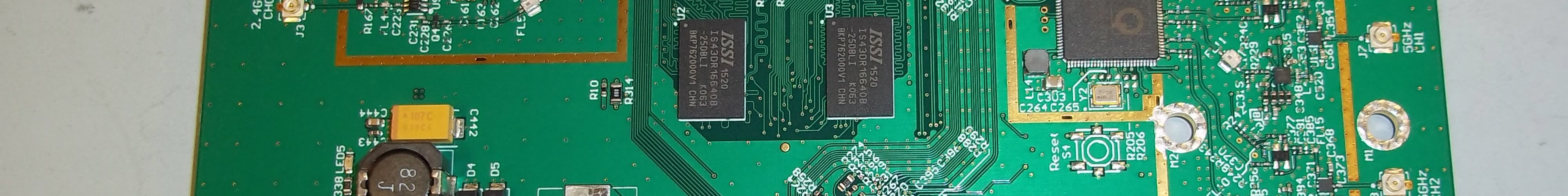

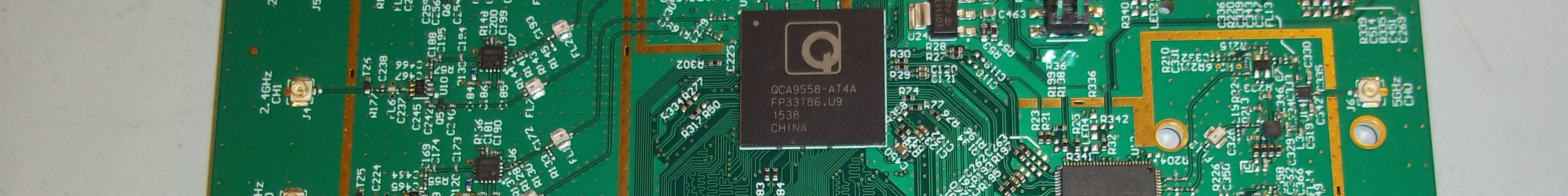

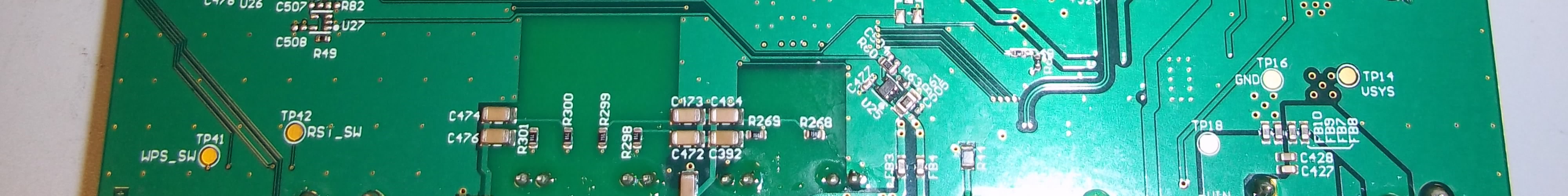

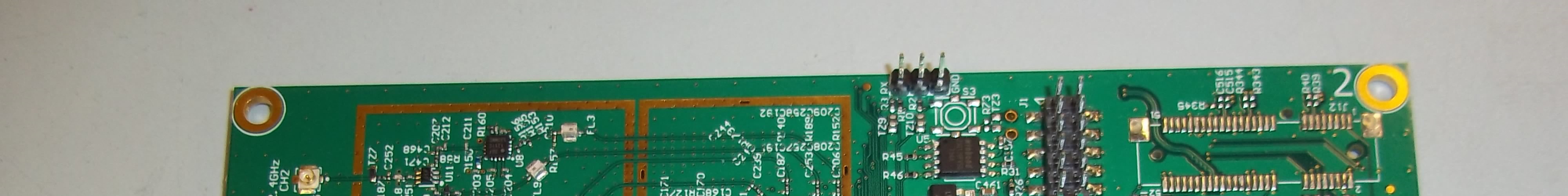

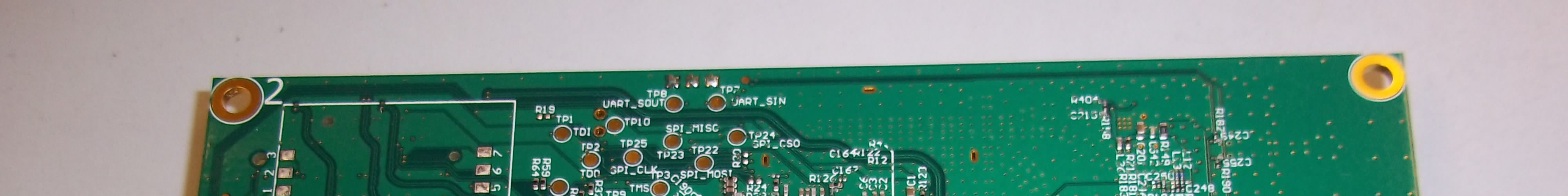

| Exhibit C Internal Photographs per 2 1033 b7 | Internal Photos | 2016-08-01 | PDF 4.1 MB |

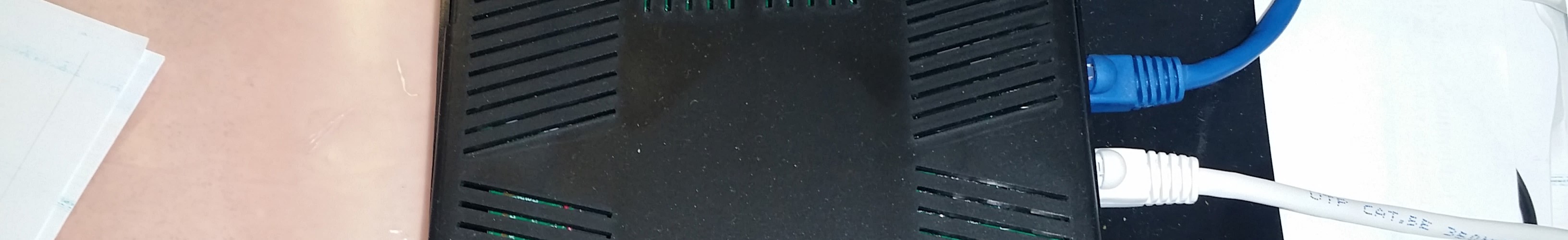

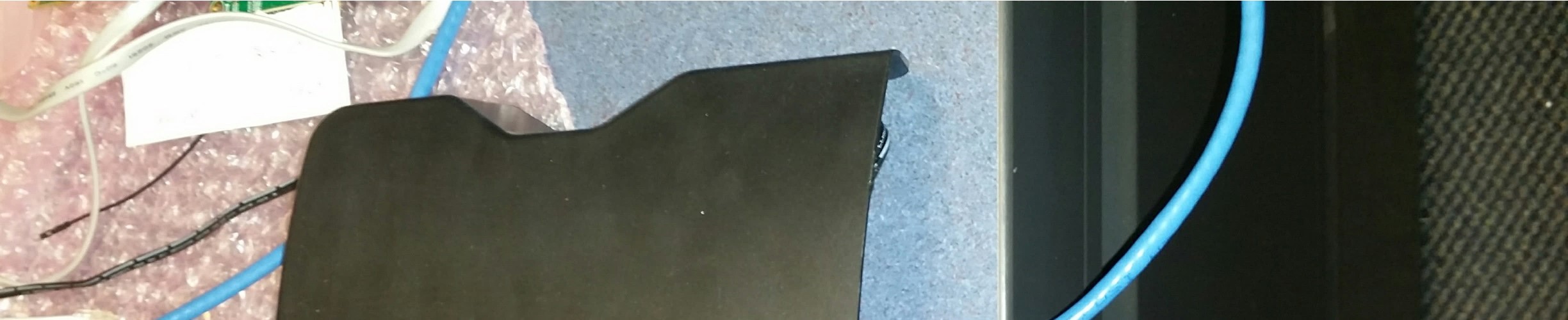

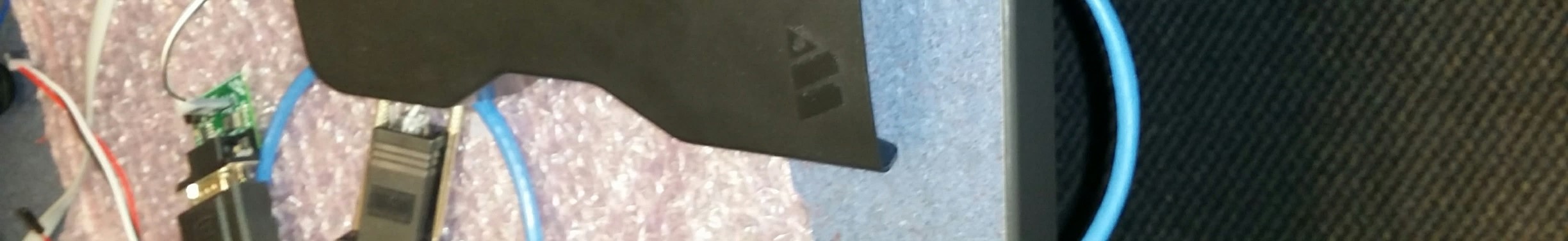

| Exhibit C External Photographs per 2 1033 b7 | External Photos | 2016-08-01 | PDF 1.2 MB |

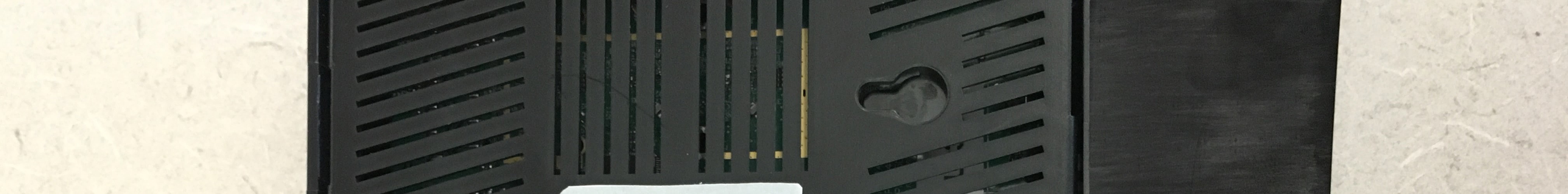

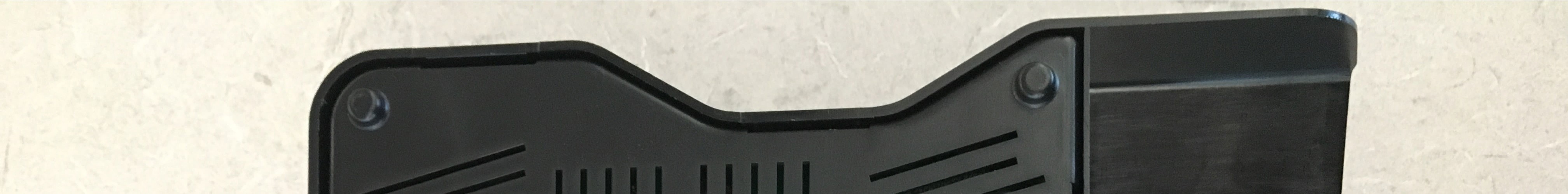

| Exhibit A ID Label and location per 2 1033 b7 | ID Label/Location Info | 2016-08-01 | PDF 1.6 MB |

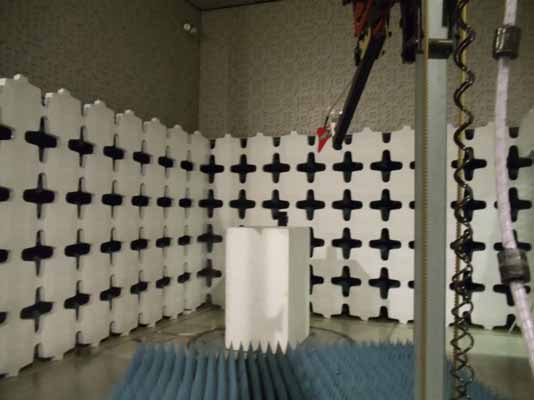

| Exhibit C RE Test Setup photographs | Test Setup Photos | 2016-08-01 | PDF 130.5 KB |
| Exhibit E Test Measurement Report per 2 1033 b6 | Test Report | 2016-08-01 | PDF 5.1 MB |
| Exhibit E Test Measurement Report per 2 1033 b6 | Test Report | 2016-08-01 | PDF 5 MB |
| Cover Letter Requesting Confidentiality | Cover Letter(s) | 2016-08-01 | PDF 97.5 KB |
| Misc RF Exposure Exhibits | RF Exposure Info | 2016-08-01 | PDF 45 KB |
| Exhibit B Block Diagram per 2 1033 b5 Metadata only | Block Diagram | PDF 1.3 MB | |
| Exhibit B Schematics per 2 1033 b5 Metadata only | Schematics | PDF 4.8 MB | |
| Exhibit B Operational Description per 2 1033 b4 Metadata only | Operational Description | PDF 1.3 MB | |
| WiFi Security Letter Metadata only | Operational Description | PDF 147.1 KB | |
| WiFi Software Security Letter Metadata only | Operational Description | PDF 147.1 KB |
Application Information
| Application ID | kpwO8MYtF58mMpN8W/Nc3Q== |
|---|---|
| Final Action Date | 2016-08-01 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0006533970 |
| Model | WFAP01 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | WiFi Extender Product |
| Responsible Party | Todd Wibben, Engineering Manager, twibb@winegard.com , 319-931-1597 |
| Technical Contact | Aaron Luttenegger, Winegard Company, alutt@winegard.com , 3197588891 |
| Non-Technical Contact | Aaron Luttenegger, Winegard Company, alutt@winegard.com , 3197588891 |
| Test Firm | Kevin Halpin, Elite Electronic Engineering Inc., khalpin@elitetest.com  , 630-495-9770 |
| TCB Email | decrowder@elitetest.com |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. The antenna(s) used for this transmitter must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Approved for used with antenna(s) as listed in this filing. |
