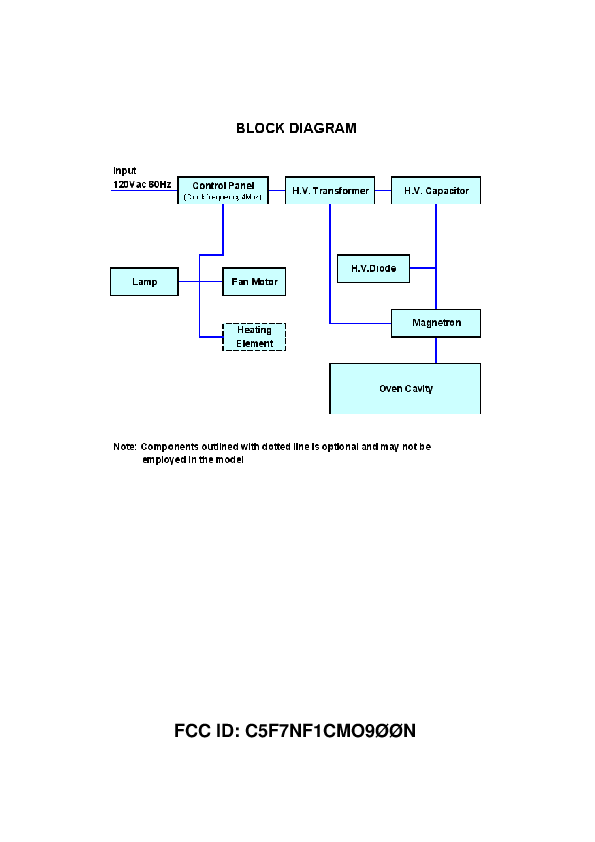

7NF1CMO900N Microwave Oven Block Diagram - FCC ID C5F7NF1CMO900N

FCC ID C5F7NF1CMO900N

Block Diagram

Microwave Oven

by WINIA Electronics Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDC5F7NF1CMO900N
Document ID2452805
Document TypeBlock Diagram
DescriptionBlock Diagram
Document TitleFCC_KOC-1C2R.xls
ApplicantWINIA Electronics Co., Ltd.
Equipment ClassMicrowave Oven
Product Code7NF1CMO900N
Application IDjb6pyHi4dEOZxeRzPFm4fg==
Application PurposeOriginal Equipment
Application Date2014-11-24
Frequency Range2400-2500 MHz
FRN0004371050
Test FirmNemko Korea Co., Ltd
Certified ByDongbu Daewoo Electronics Corporation Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2014-11-24
Available2014-11-24
Created2014-11-20
Modified2014-11-20
Pages1
File TypeAdobe Acrobat PDF
File Size15438
File SHA-2563ba8e30da531352a6340fef7e7ac9279fc9942c890d993ecf2fca37d0ffe3106
PDF Metadata AuthorJiho Yoon
PDF Metadata ProducerAcrobat Distiller 10.1.8 (Windows) Jiho Yoon
FCC.gov SourcesFCC.gov 2452805
