7NF6NMO6000 Microwave Oven Schematics - FCC ID C5F7NF6NMO6000

FCC ID C5F7NF6NMO6000

SCHEMATICS AND WIRING

Microwave Oven

by WINIA Electronics Co., Ltd.

Document preview loads when visible.

Document Details

FCC IDC5F7NF6NMO6000
Document ID517637
Document TypeSchematics

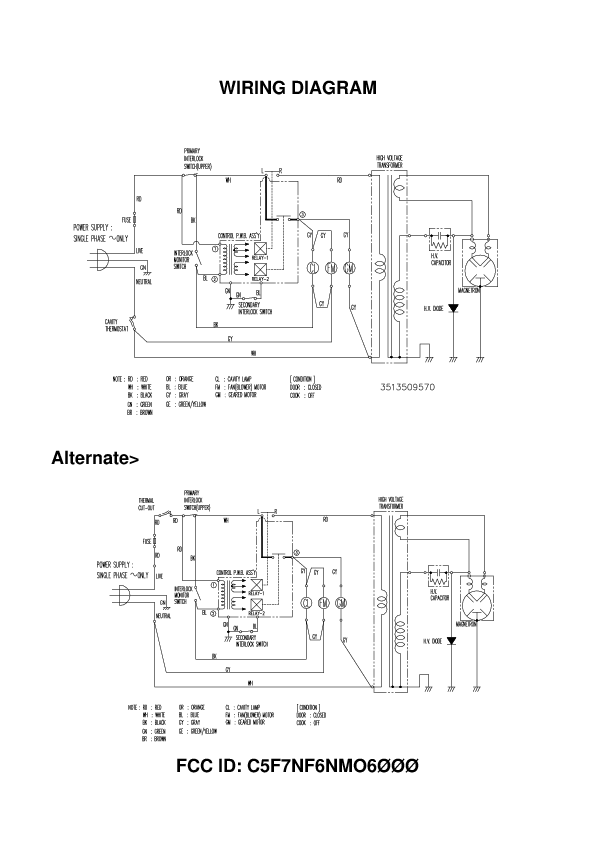

DescriptionSCHEMATICS AND WIRING
Document Title신청서류 KOR-6NMB1_RM328_
ApplicantWINIA Electronics Co., Ltd.
Equipment ClassMicrowave Oven
Product Code7NF6NMO6000
Application IDLpkOlkLoq1UJXhuwluHjeg==
Application PurposeClass II Permissive Change
Application Date2005-03-28
Frequency Range2450 MHz
FRN0004371050
Test FirmPKM Electronic GmbH
Certified BySeong O. Kim Manager of R&D; Center
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2005-02-22
Available2005-03-28
Created2005-02-22
Modified2005-02-22
Pages1
File TypeAdobe Acrobat PDF
File Size57432
File SHA-256026eef1ce4ea1bfa995e2c6bd11aeeae772f9df280b35be18d88fd9dfcdca2c7
PDF Metadata AuthorAdministrator
PDF Metadata ProducerAcrobat Distiller 6.0 (Windows) Administrator
FCC.gov SourcesFCC.gov 517637
