FCC ID CASTBDH5G
Base Station Transceiver
by Tait International Limited
Grantee Code: CAS Product Code: TBDH5G
Latest application date: 2019-12-03
Device Images
FCC ID Device Details
| FCC ID | CASTBDH5G |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | CAS |
| Product Code | TBDH5G |
| Applicant Business | Tait International Limited 🇳🇿 |
| Related Domains |  taitradio.com |
| Equipment Class | Base Station Transceiver |
| Test Firm | Tait International Limited |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 406.1-470 MHz | Class II permissive change or modification of presently authorized equipment | 2019-12-03 |
| 406.1-470 MHz | Original Equipment | 2016-06-08 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|

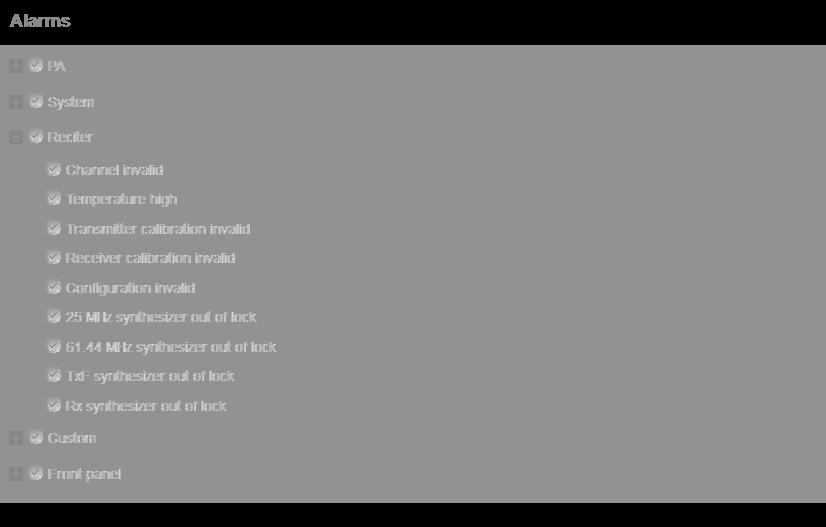

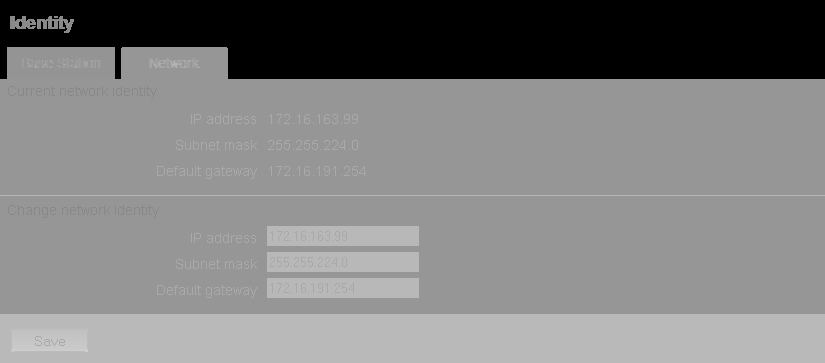

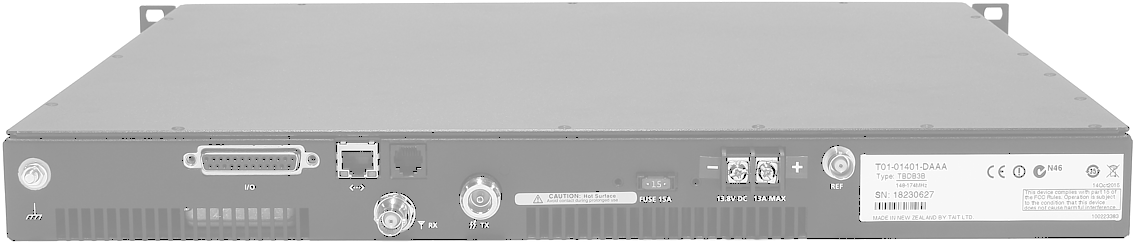

| Exhibit D Users Manual per 2 1033 c3 | Users Manual | 2016-06-08 | PDF 912 KB |

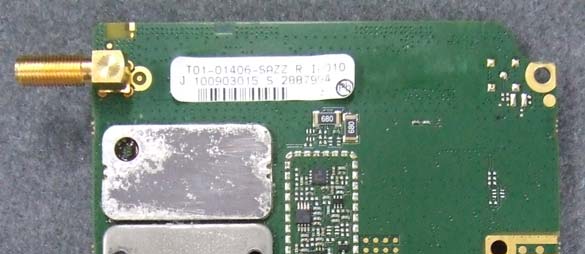

| Exhibit C Internal Photographs per 2 1033 c12 | Internal Photos | 2016-06-08 | PDF 1.4 MB |
| Exhibit C External Photographs per 2 1033 c12 | External Photos | 2016-06-08 | PDF 108.6 KB |
| Exhibit A ID Label and location per 2 1033 c2 and c11 | ID Label/Location Info | 2016-06-08 | PDF 86.9 KB |
| Test report Exhibit | Test Report | 2019-12-03 | PDF 632.2 KB |
| Exhibit E Test Measurement Report per 2 1033 c14 | Test Report | 2016-06-08 | PDF 2.2 MB |
| 90.203 Attestation | Attestation Statements | 2016-06-08 | PDF 20.5 KB |
| Cover Letter Detailing the reason for the filing. | Cover Letter(s) | 2019-12-03 | PDF 744.6 KB |
| Cover Letter Requesting Confidentiality | Cover Letter(s) | 2016-06-08 | PDF 18.6 KB |
| Cover Letter for Extended Frequency Range | Cover Letter(s) | 2016-06-08 | PDF 26.5 KB |
| Exhibit B Schematics per 2 1033 c10 Metadata only | Schematics | PDF 4.1 MB | |
| Exhibit B Operational Description per 2 1033 c 4 5 6 7 8 9 13 Metadata only | Operational Description | PDF 97.7 KB | |
| Misc Parts List Exhibits Metadata only | Parts List/Tune Up Info | PDF 613 KB | |
| Misc Tune Up Procedure Exhibits Metadata only | Parts List/Tune Up Info | PDF 44.7 KB |
Application Information
| Application ID | 5WymopgHjO8s1MFgySonRw== |
|---|---|
| Final Action Date | 2019-12-03 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0003768611 |
| Model | TBDH5G |
| Frequency Range | 406.1-470 MHz |
| Equipment Class | TNB - Licensed Non-Broadcast Station Transmitter |
| Device Description | Base Station Transceiver |
| Responsible Party | Brian Emmett, Standards and Regulatory Manager, brian.emmett@taitradio.com , 64 3 358 0403 |
| Technical Contact | Marcos Louzada, Tait International Limited, marcos.ouzada@taitradio.com , +6433570309 |
| Non-Technical Contact | Brain Emmett, Tait International Limited, brian.emmett@taitradio.com , +6433570403 |
| Test Firm | David Jackson, Tait International Limited, david.jackson@taitradio.com , 0064(3)357-0283 |
| TCB Email | reking@elitetest.com  |
| TCB Scope | B2: General Mobile Radio And Broadcast Services equipment in the following 47 CFR Parts 22 (non-cellular) 73, 74, 90, 95, 97, & 101 (all below 3 GHz) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. The antenna(s) used for this transmitter must be fixed-mounted on outdoor permanent structures. RF exposure compliance is addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3). Class 2 Permissive Change to add C4FM modulation. |
