FCC ID CASTPDHBB
Portable Transceiver
by Tait International Limited
Grantee Code: CAS Product Code: TPDHBB
Latest application date: 2016-04-25
Device Images
FCC ID Device Details
| FCC ID | CASTPDHBB |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | CAS |
| Product Code | TPDHBB |
| Applicant Business | Tait International Limited 🇳🇿 |
| Related Domains |  taitradio.com |
| Equipment Class | Portable Transceiver |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 406.1-470 MHz | Original Equipment | 2016-04-25 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Exhibit D Users Manual per 2 1033 c3 | Users Manual | 2016-04-25 | PDF 2.1 MB |

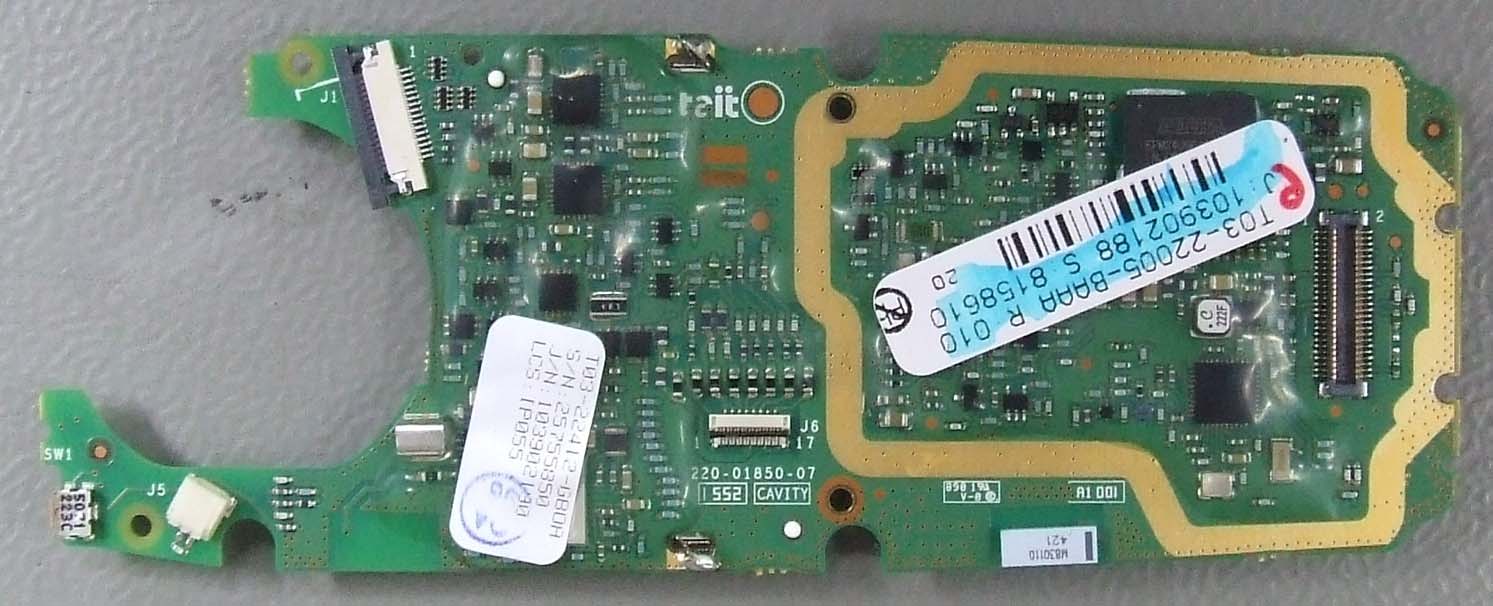

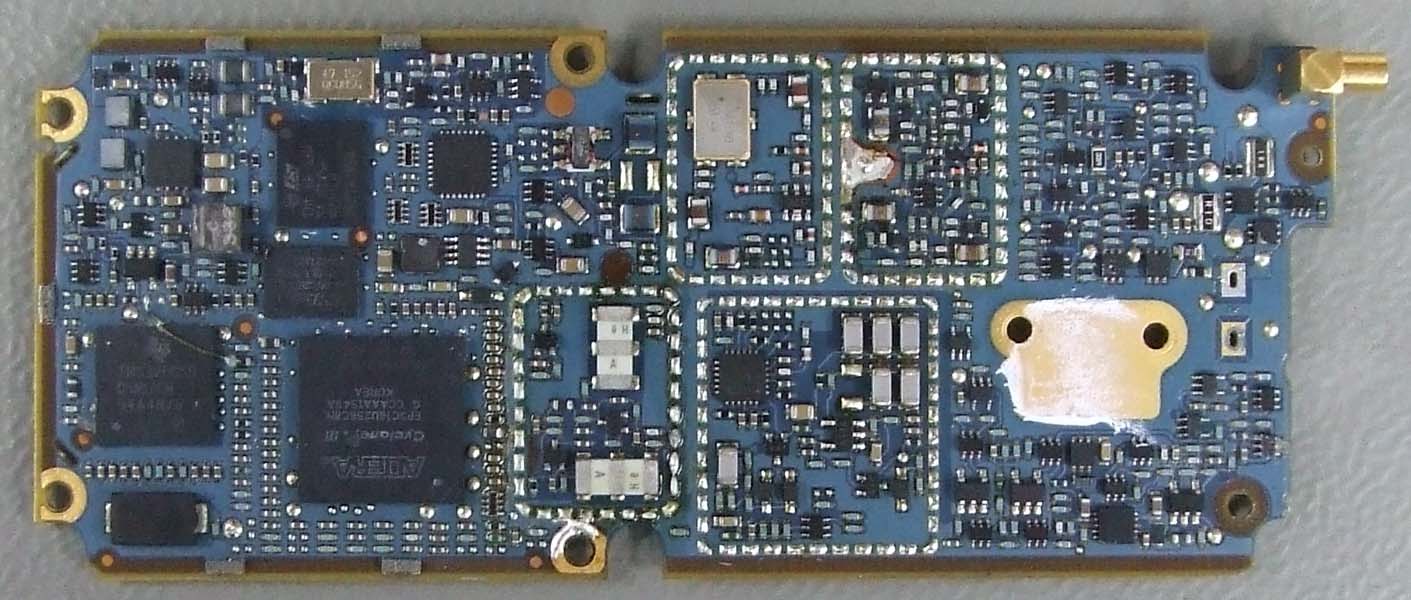

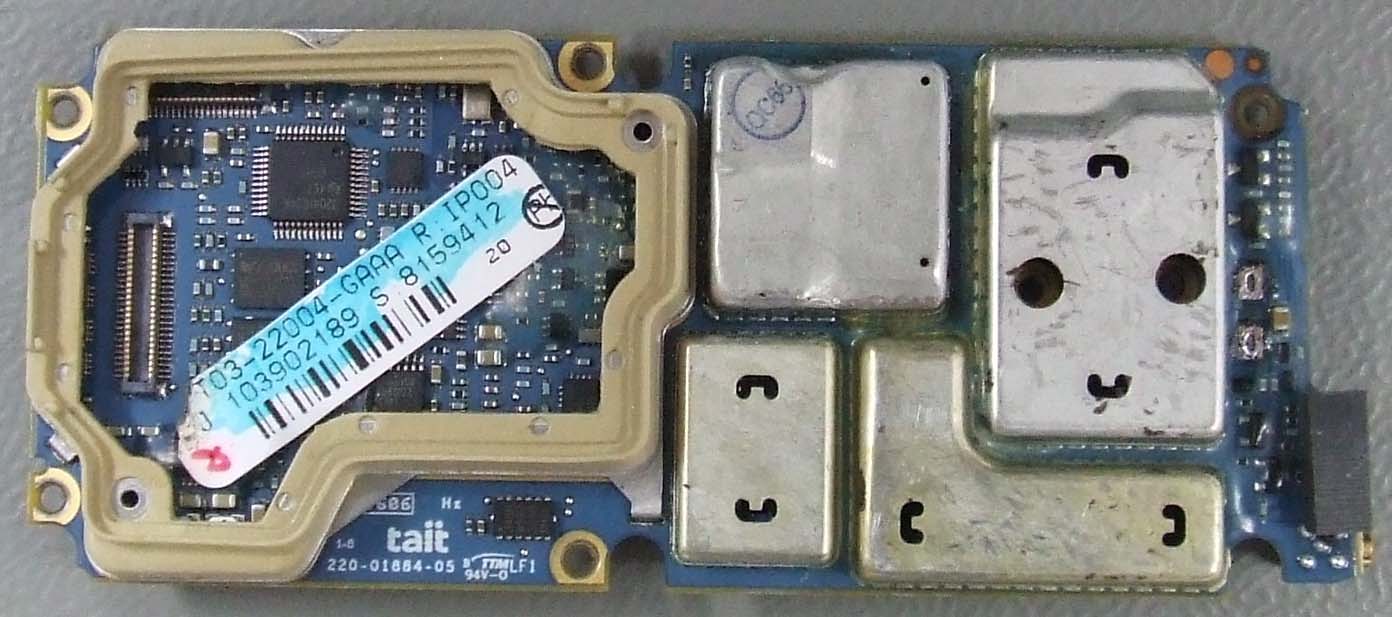

| Exhibit C Internal Photographs per 2 1033 c12 | Internal Photos | 2016-04-25 | PDF 1.3 MB |

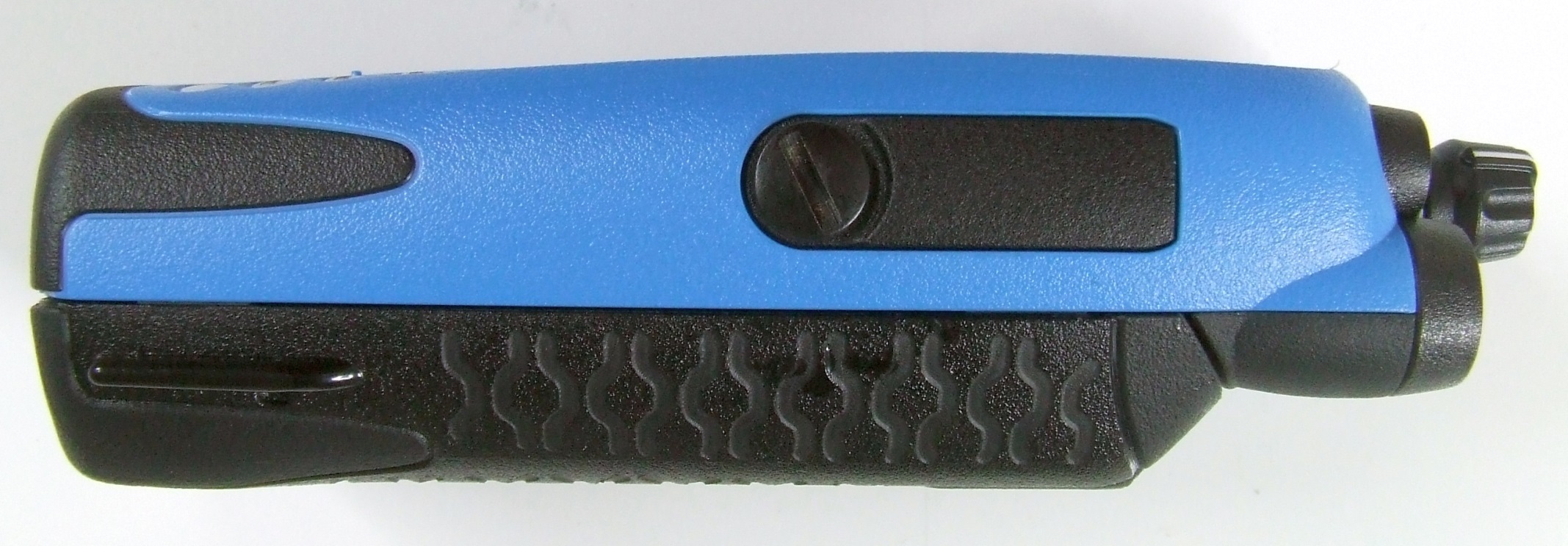

| Exhibit C External Photographs per 2 1033 c12 | External Photos | 2016-04-25 | PDF 2.2 MB |

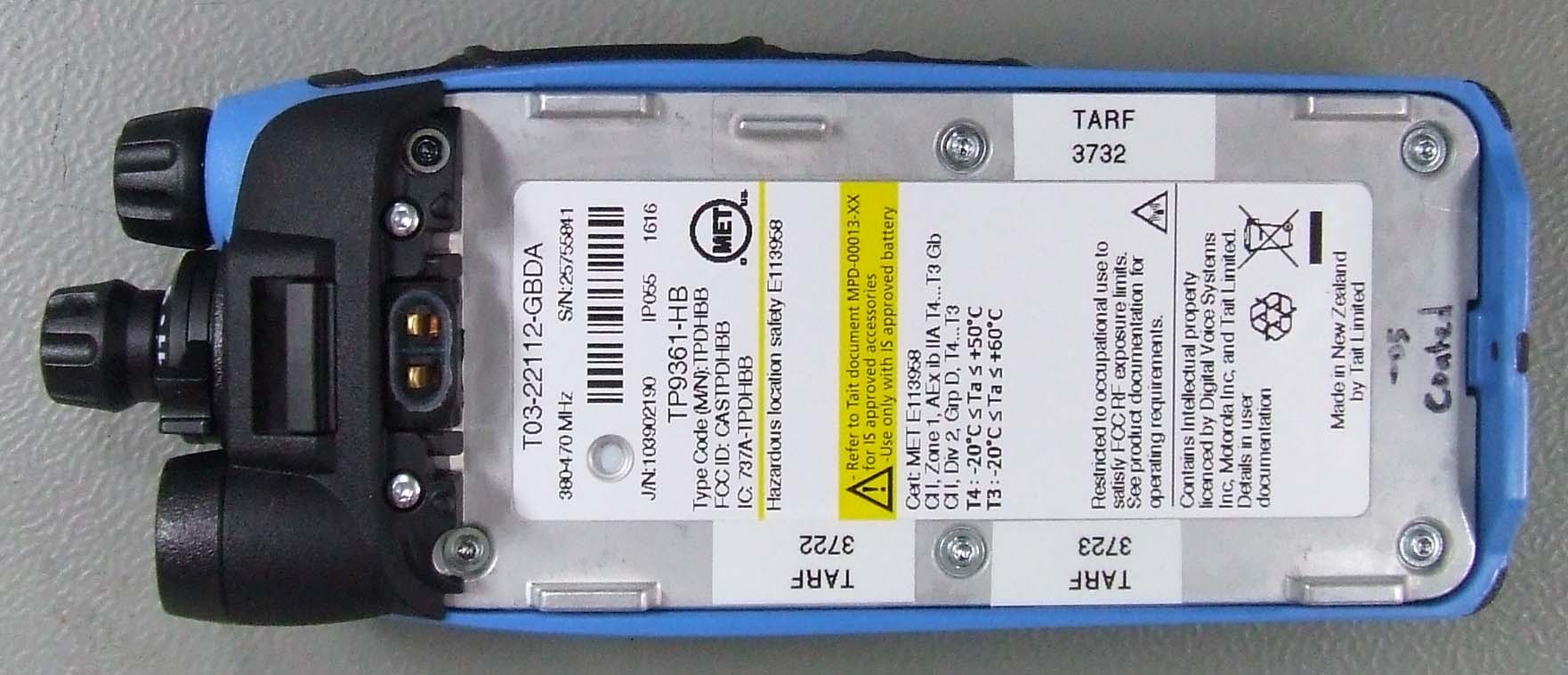

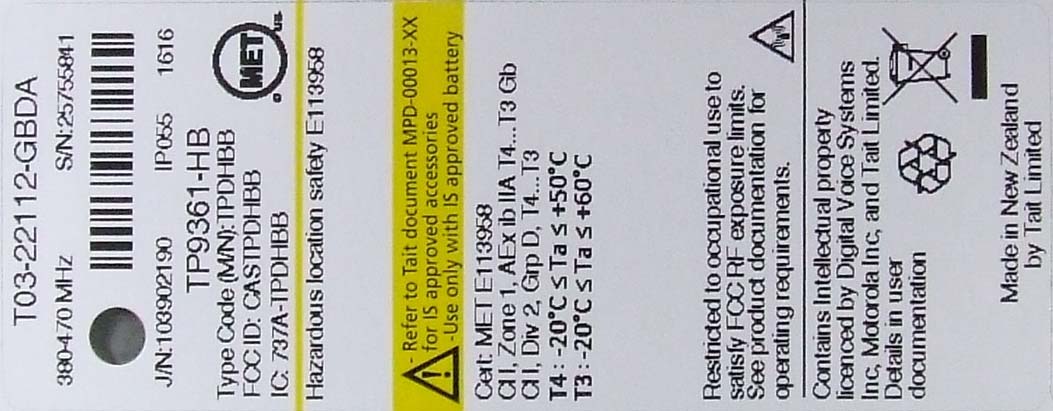

| Exhibit A ID Label and location per 2 1033 c2 and c11 | ID Label/Location Info | 2016-04-25 | PDF 228.8 KB |
| Exhibit E Test Measurement Report per 2 1033 c14 | Test Report | 2016-04-25 | PDF 2.4 MB |
| 90.203 Attestation | Attestation Statements | 2016-04-25 | PDF 20.5 KB |
| Cover Letter Requesting Confidentiality | Cover Letter(s) | 2016-04-25 | PDF 18.6 KB |
| Cover Letter for Extended Frequency Range | Cover Letter(s) | 2016-04-25 | PDF 29.3 KB |
| Misc RF Exposure Exhibits - SAR Report | RF Exposure Info | 2016-04-25 | PDF 2.8 MB |
| Exhibit B Schematics per 2 1033 c10 Metadata only | Schematics | PDF 511.2 KB | |
| Exhibit B Operational Description per 2 1033 c 4 5 6 7 8 9 13 Metadata only | Operational Description | PDF 2 MB | |
| Misc Parts List Exhibits Metadata only | Parts List/Tune Up Info | PDF 320.6 KB | |
| Misc Tune Up Procedure Exhibits Metadata only | Parts List/Tune Up Info | PDF 426.8 KB |
Application Information
| Application ID | 9+suNKjKxWAcgWg8q1hMeQ== |
|---|---|
| Final Action Date | 2016-04-25 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0003768611 |
| Model | TPDHBB |
| Frequency Range | 406.1-470 MHz |
| Equipment Class | TNF - Licensed Non-Broadcast Transmitter Held to Face |
| Device Description | Portable Transceiver |
| Responsible Party | Brian Emmett, Standards and Regulatory Manager, brian.emmett@taitradio.com , 64 3 358 0403 |
| TCB Email | decrowder@elitetest.com  |
| TCB Scope | B2: General Mobile Radio And Broadcast Services equipment in the following 47 CFR Parts 22 (non-cellular) 73, 74, 90, 95, 97, & 101 (all below 3 GHz) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is conducted. The antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter, except as described in this filing. This transmitter may operate with the antennas tested for this filing in push-to-talk held-near-face and body-worn configurations. Body-worn SAR compliance is limited to the specific belt-clip and audio accessory configurations tested for this filing. This device must be restricted to work related operations in an Occupational / Controlled RF exposure environment, not exceeding a maximum transmitting duty factor of 50%. All qualified end-users of this device must have the knowledge to control their exposure conditions and/or duration to comply with Occupational / Controlled SAR limit and requirements. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting occupational exposure requirements, and users must be provided with the training information. The highest reported SAR values for head, body-worn accessory, are 3.13 W/kg, 5.31 W/kg, respectively. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| 9+suNKjKxWAcgWg8q1hMeQ== | 2016-04-25 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 406.1-470 MHz | 4 | 0.5ppm | 11K0F3E | 22, 74, 9 | BF, EF |
| 406.1-470 MHz | 4 | 0.5ppm | 6K60F2D | 22, 74, 9 | BF, EF |
| 406.1-470 MHz | 4 | 0.5ppm | 7K80F2D | 22, 74, 9 | BF, EF |
| 406.1-470 MHz | 4 | 0.5ppm | 8K10F1E | 22, 74, 9 | BF, EF |
| 406.1-470 MHz | 4 | 0.5ppm | 8K10F1D | 22, 74, 9 | BF, EF |
| 406.1-470 MHz | 4 | 0.5ppm | 8K10F1W | 22, 74, 9 | BF, EF |
| 406.1-470 MHz | 4 | 0.5ppm | 7K60FXW | 22, 74, 9 | BF, EF |
| 406.1-470 MHz | 4 | 0.5ppm | 7K60FXD | 22, 74, 9 | BF, EF |
Grants
TCB Grant - Application 9+suNKjKxWAcgWg8q1hMeQ==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Elite Electronic Engineering, Inc. 1516 Centre Circle Downers Grove, IL 60515 |
Date of Grant: 04/25/2016 Application Dated: 04/25/2016 |
| Tait International Limited |
| 245 Wooldridge Road |
| HarewoodP.O. Box 1645, |
| Christchurch, 8051 New Zealand |
| Attention: Brian Emmett , Standards and Regulatory Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | CASTPDHBB |
| Name of Grantee: | Tait International Limited |
| Equipment Class: | Licensed Non-Broadcast Transmitter Held to Face |
| Notes: | Portable Transceiver |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| BF EF | 22, 74, 90 | 406.1 - 470.0 | 4.0 | 0.5 PM | 11K0F3E |
| BF EF | 22, 74, 90 | 406.1 - 470.0 | 4.0 | 0.5 PM | 6K60F2D |
| BF EF | 22, 74, 90 | 406.1 - 470.0 | 4.0 | 0.5 PM | 7K80F2D |
| BF EF | 22, 74, 90 | 406.1 - 470.0 | 4.0 | 0.5 PM | 8K10F1E |
| BF EF | 22, 74, 90 | 406.1 - 470.0 | 4.0 | 0.5 PM | 8K10F1D |
| BF EF | 22, 74, 90 | 406.1 - 470.0 | 4.0 | 0.5 PM | 8K10F1W |
| BF EF | 22, 74, 90 | 406.1 - 470.0 | 4.0 | 0.5 PM | 7K60FXW |
| BF EF | 22, 74, 90 | 406.1 - 470.0 | 4.0 | 0.5 PM | 7K60FXD |
| Output power listed is conducted. The antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter, except as described in this filing. This transmitter may operate with the antennas tested for this filing in push-to-talk held-near-face and body-worn configurations. Body-worn SAR compliance is limited to the specific belt-clip and audio accessory configurations tested for this filing. This device must be restricted to work related operations in an Occupational / Controlled RF exposure environment, not exceeding a maximum transmitting duty factor of 50%. All qualified end-users of this device must have the knowledge to control their exposure conditions and/or duration to comply with Occupational / Controlled SAR limit and requirements. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting occupational exposure requirements, and users must be provided with the training information. The highest reported SAR values for head, body-worn accessory, are 3.13 W/kg, 5.31 W/kg, respectively. |
| BF: | The output power is continuously variable from the value listed in this entry to 20%-25% of the value listed. |
| EF: | This device may contain functions that are not operational in U.S Territories except as noted in the filing. This grant has extended frequencies as noted in the filing and Section 2.927(b) applies to this authorization. |
EAS Grant - Application 9+suNKjKxWAcgWg8q1hMeQ==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Tait International Limited 245 Wooldridge Road HarewoodP.O. Box 1645, Christchurch, 8051 New Zealand |
Date of Grant: 04/25/2016 Application Dated: 04/25/2016 |
| Attention: Brian Emmett , Standards and Regulatory Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | CASTPDHBB |
| Name of Grantee: | Tait International Limited |
| Equipment Class: | Licensed Non-Broadcast Transmitter Held to Face |
| Notes: | Portable Transceiver |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| BF EF | 22, 74, 90 | 406.1 - 470.0 | 4.0 | 0.5 PM | 11K0F3E |
| BF EF | 22, 74, 90 | 406.1 - 470.0 | 4.0 | 0.5 PM | 6K60F2D |
| BF EF | 22, 74, 90 | 406.1 - 470.0 | 4.0 | 0.5 PM | 7K80F2D |
| BF EF | 22, 74, 90 | 406.1 - 470.0 | 4.0 | 0.5 PM | 8K10F1E |
| BF EF | 22, 74, 90 | 406.1 - 470.0 | 4.0 | 0.5 PM | 8K10F1D |
| BF EF | 22, 74, 90 | 406.1 - 470.0 | 4.0 | 0.5 PM | 8K10F1W |
| BF EF | 22, 74, 90 | 406.1 - 470.0 | 4.0 | 0.5 PM | 7K60FXW |
| BF EF | 22, 74, 90 | 406.1 - 470.0 | 4.0 | 0.5 PM | 7K60FXD |
| Output power listed is conducted. The antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter, except as described in this filing. This transmitter may operate with the antennas tested for this filing in push-to-talk held-near-face and body-worn configurations. Body-worn SAR compliance is limited to the specific belt-clip and audio accessory configurations tested for this filing. This device must be restricted to work related operations in an Occupational / Controlled RF exposure environment, not exceeding a maximum transmitting duty factor of 50%. All qualified end-users of this device must have the knowledge to control their exposure conditions and/or duration to comply with Occupational / Controlled SAR limit and requirements. A label, as described in this filing, must be displayed on the device to direct users to specific training information for meeting occupational exposure requirements, and users must be provided with the training information. The highest reported SAR values for head, body-worn accessory, are 3.13 W/kg, 5.31 W/kg, respectively. |
| BF: | The output power is continuously variable from the value listed in this entry to 20%-25% of the value listed. |
| EF: | This device may contain functions that are not operational in U.S Territories except as noted in the filing. This grant has extended frequencies as noted in the filing and Section 2.927(b) applies to this authorization. |
