FCC ID CASTPDL3A
Handheld Portable
by Tait International Limited
Grantee Code: CAS Product Code: TPDL3A
Latest application date: 2015-11-11
Device Images
FCC ID Device Details
| FCC ID | CASTPDL3A |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | CAS |
| Product Code | TPDL3A |
| Applicant Business | Tait International Limited 🇳🇿 |
| Related Domains |  taitradio.com |
| Equipment Class | Handheld Portable |
| Test Firm | Nemko Canada Inc. (Ottawa) |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 2402-2480 MHz | Original Equipment | 2015-11-11 |
| 896-901 MHz | Original Equipment | 2015-11-10 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Exhibit D Users Manual per 2 1033 b3 | Users Manual | 2015-11-11 | PDF 1.9 MB |
| Exhibit D Users Manual per 2 1033 c3 | Users Manual | 2015-11-10 | PDF 1.9 MB |

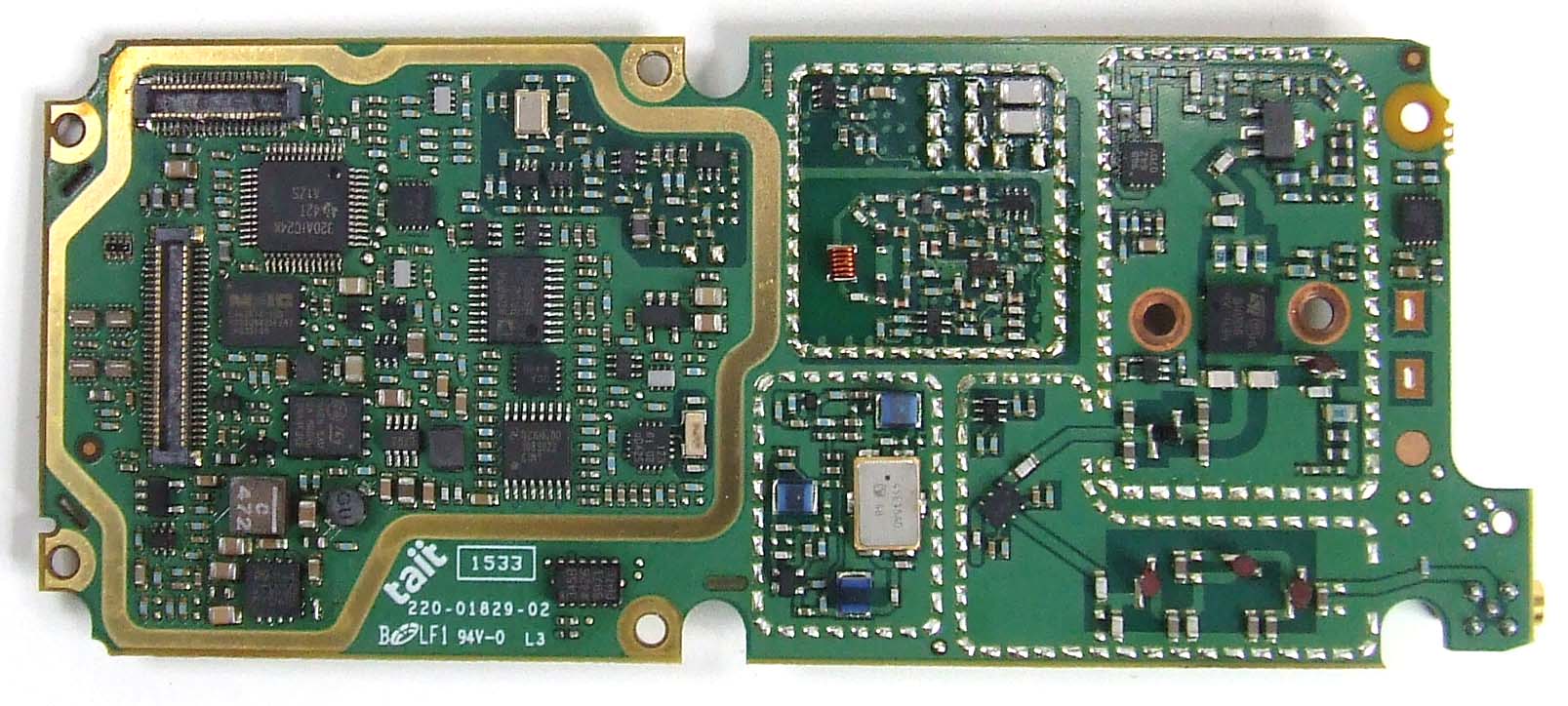

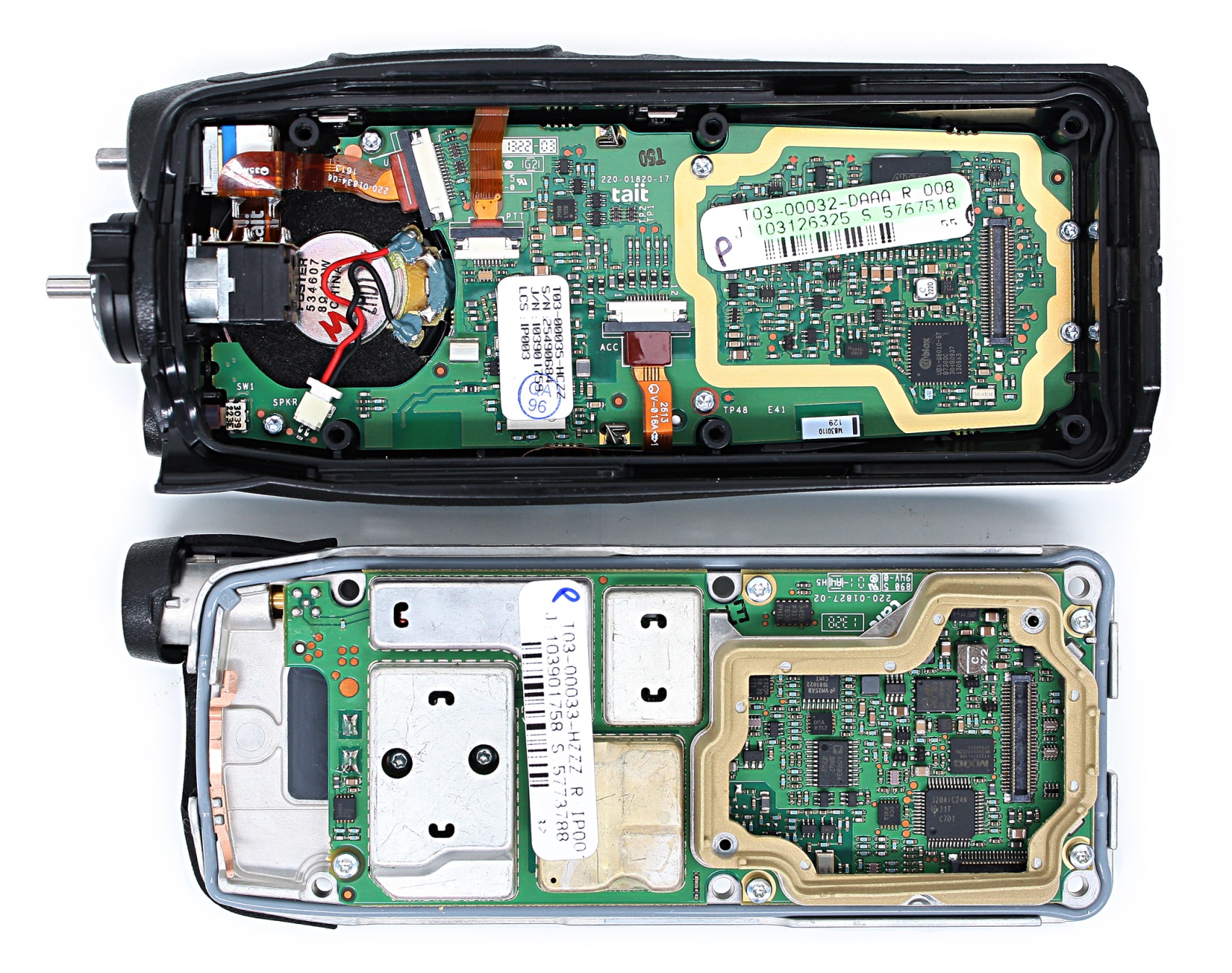

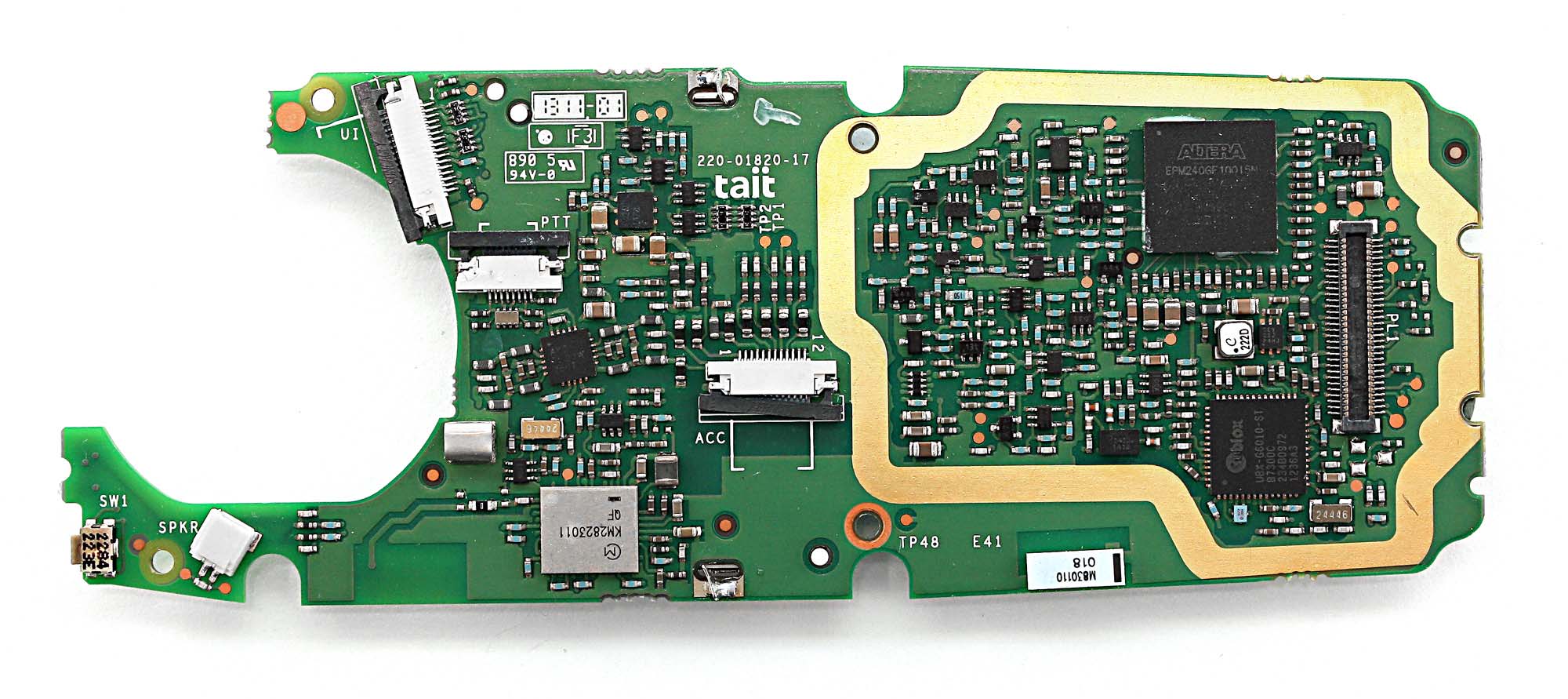

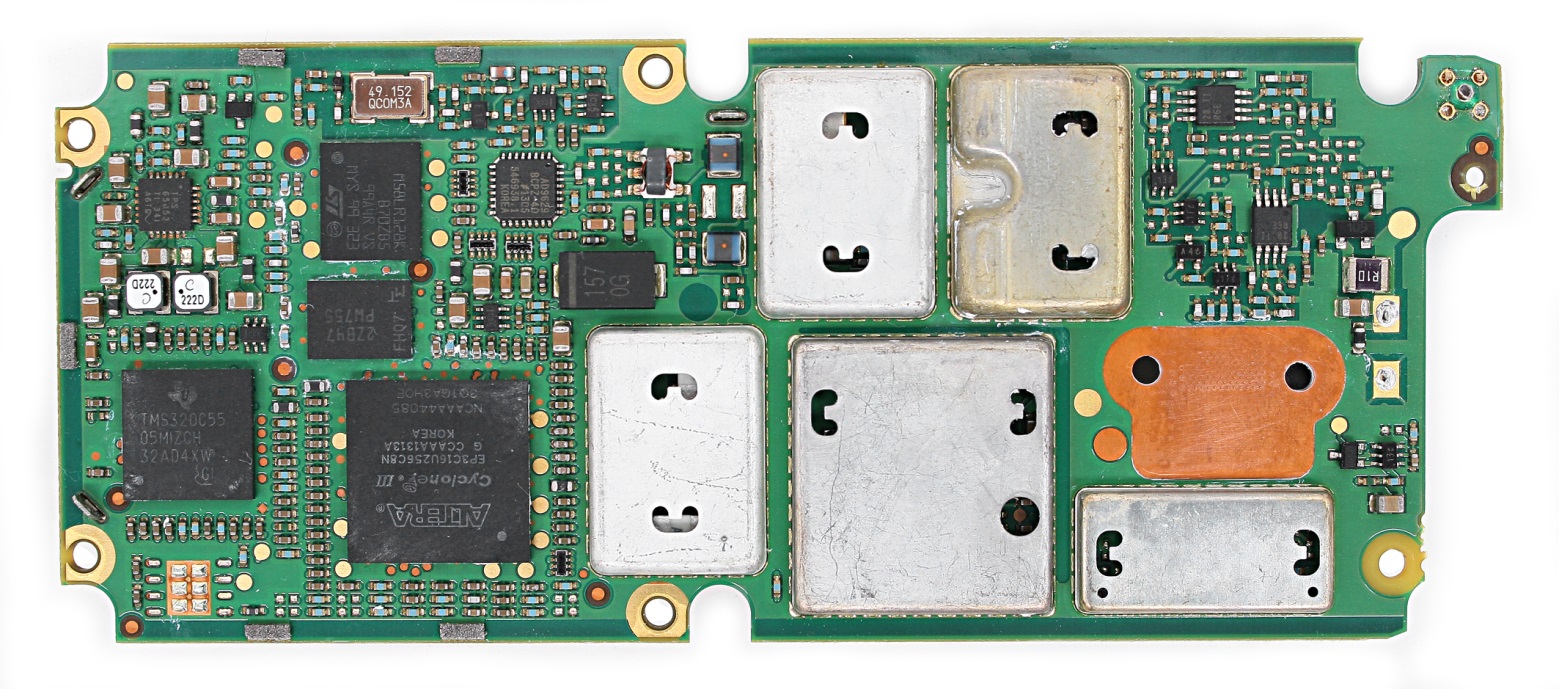

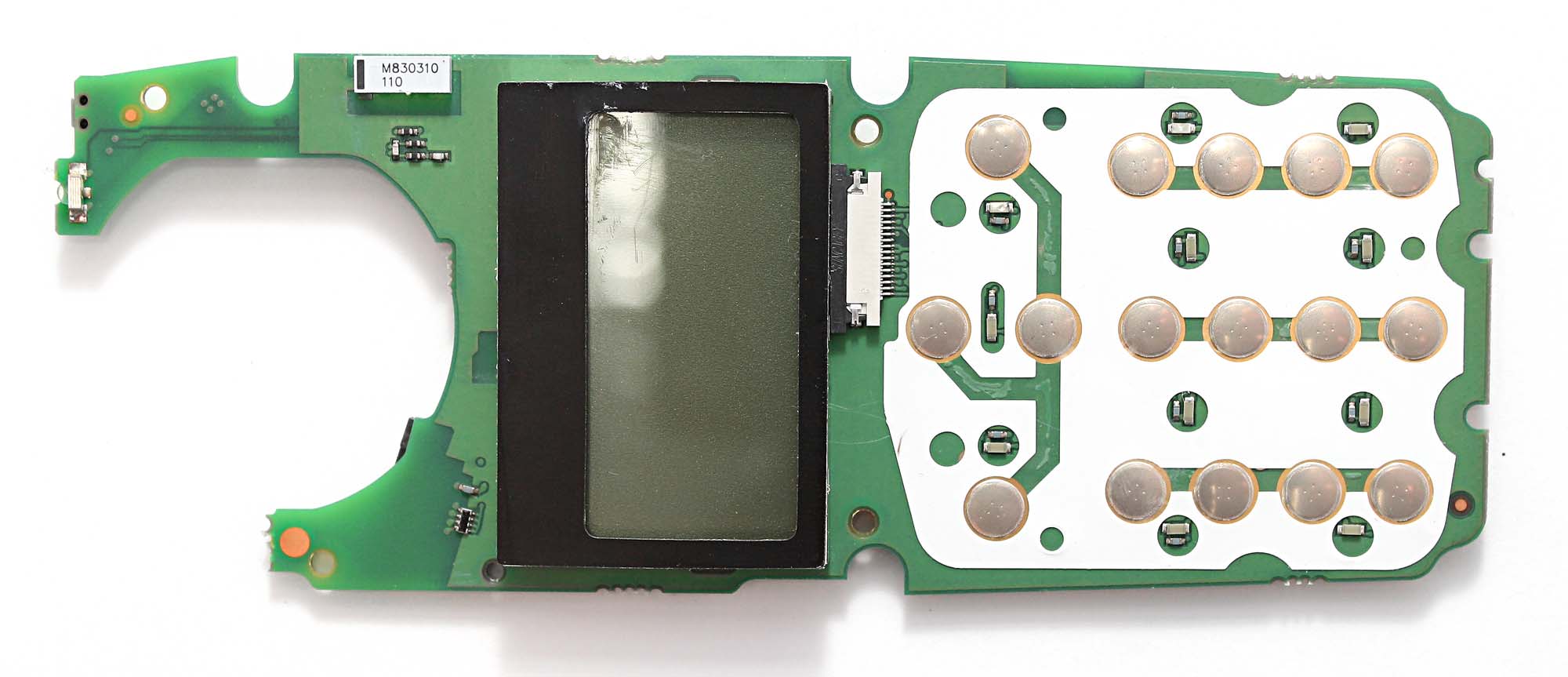

| Exhibit C Internal Photographs per 2 1033 b7 | Internal Photos | 2015-11-11 | PDF 2.4 MB |
| Exhibit C Internal Photographs per 2 1033 c12 | Internal Photos | 2015-11-10 | PDF 2.4 MB |

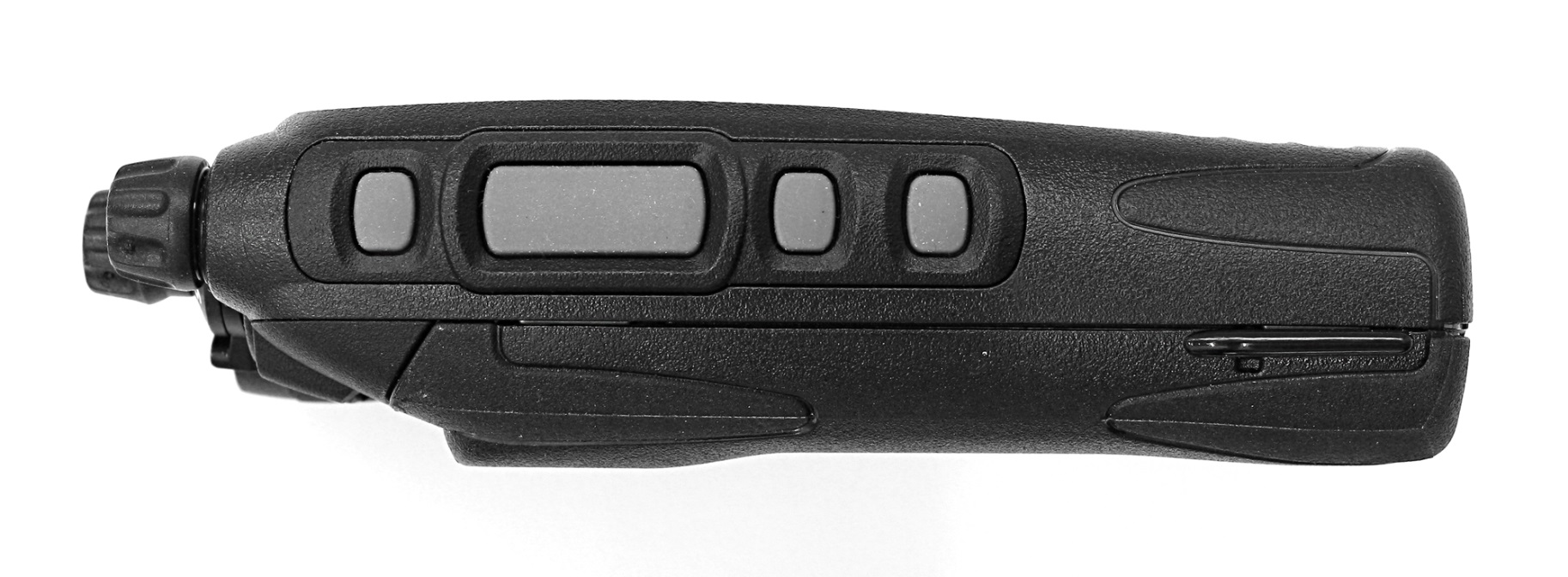

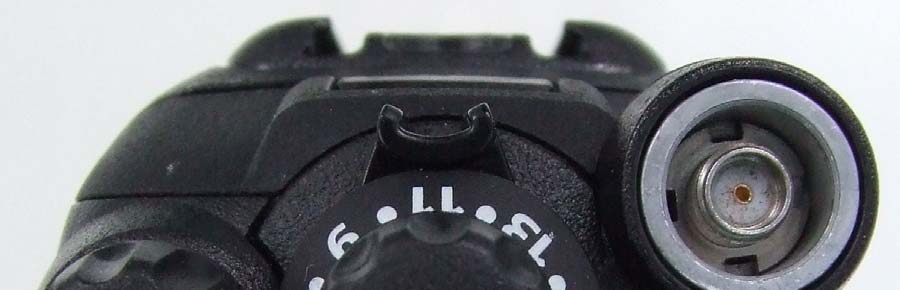

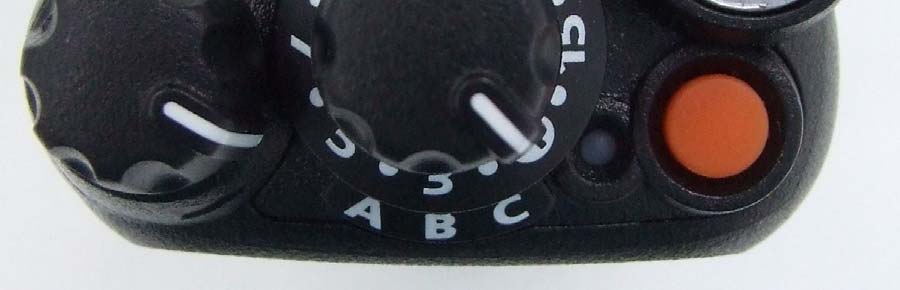

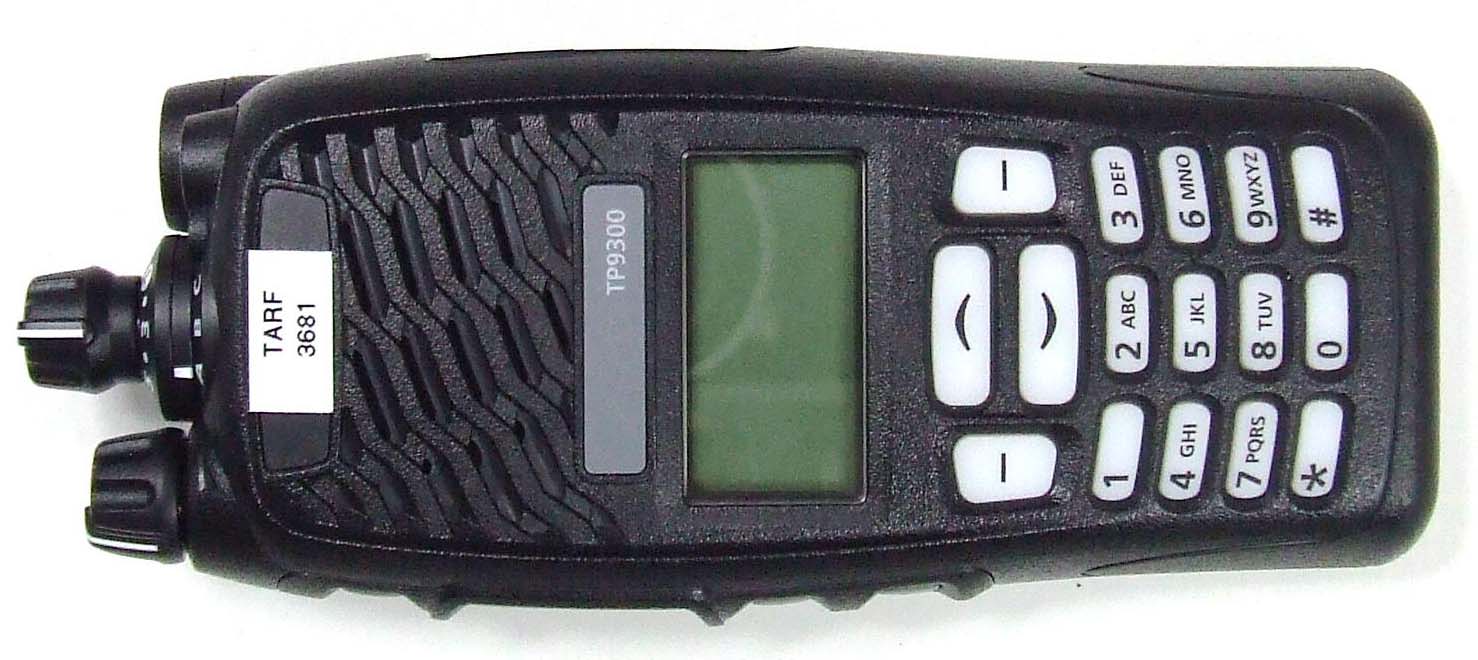

| Exhibit C External Photographs per 2 1033 b7 | External Photos | 2015-11-11 | PDF 1,001.6 KB |
| Exhibit C External Photographs per 2 1033 c12 | External Photos | 2015-11-10 | PDF 1,001.6 KB |
| Exhibit A ID Label and location per 2 1033 b7 | ID Label/Location Info | 2015-11-11 | PDF 159.1 KB |
| Exhibit A ID Label and location per 2 1033 c2 and c11 | ID Label/Location Info | 2015-11-10 | PDF 159.1 KB |

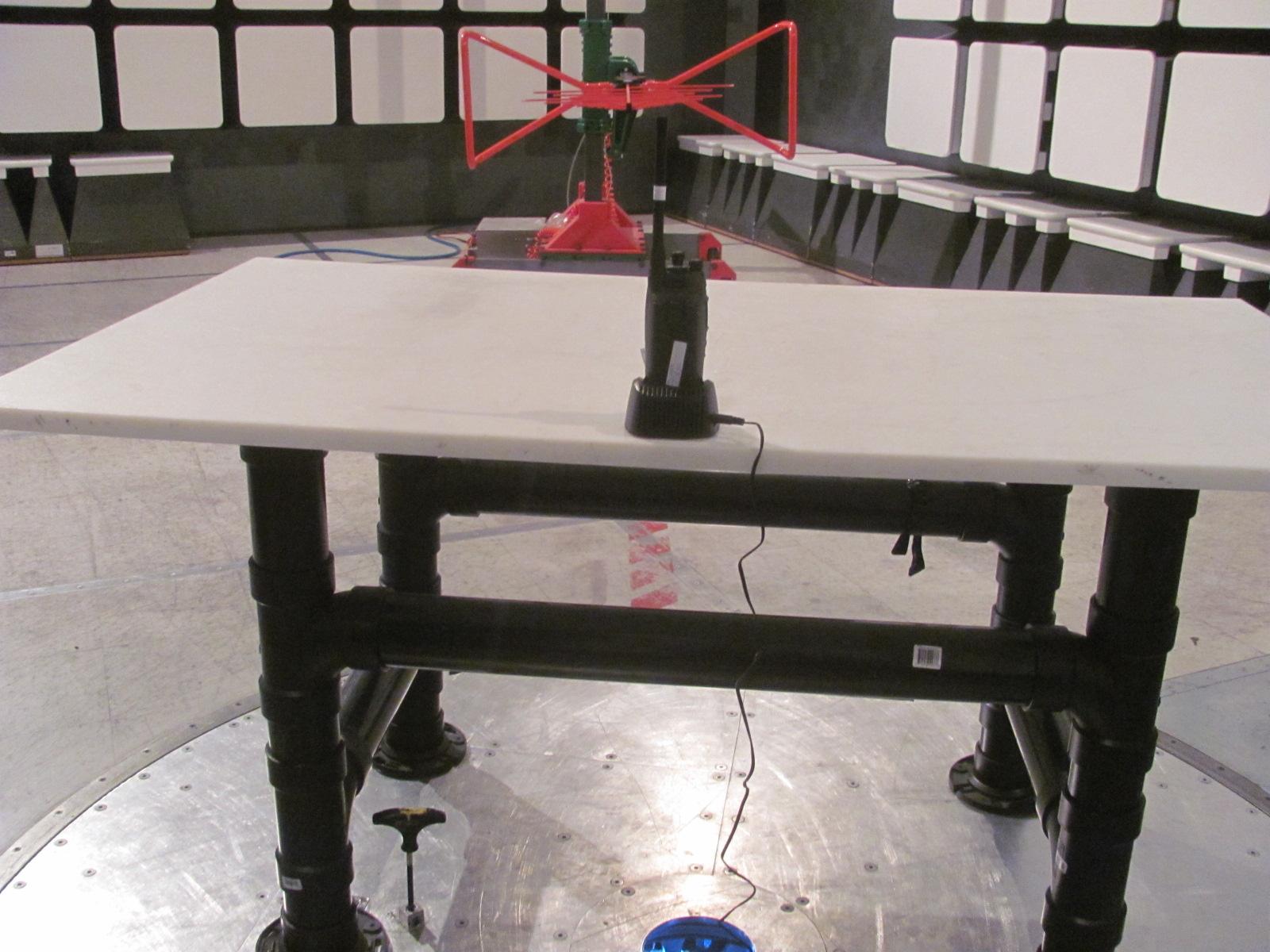

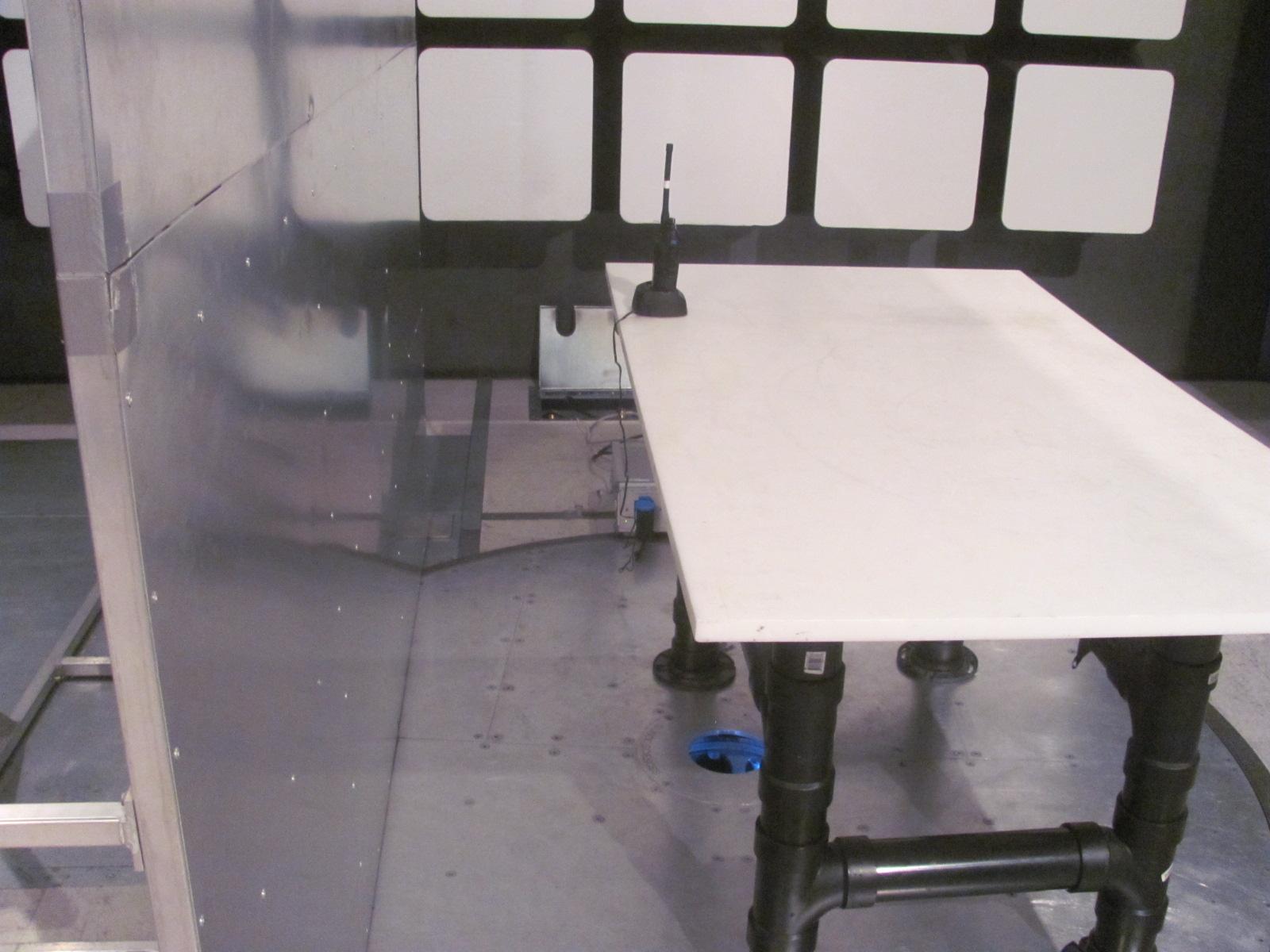

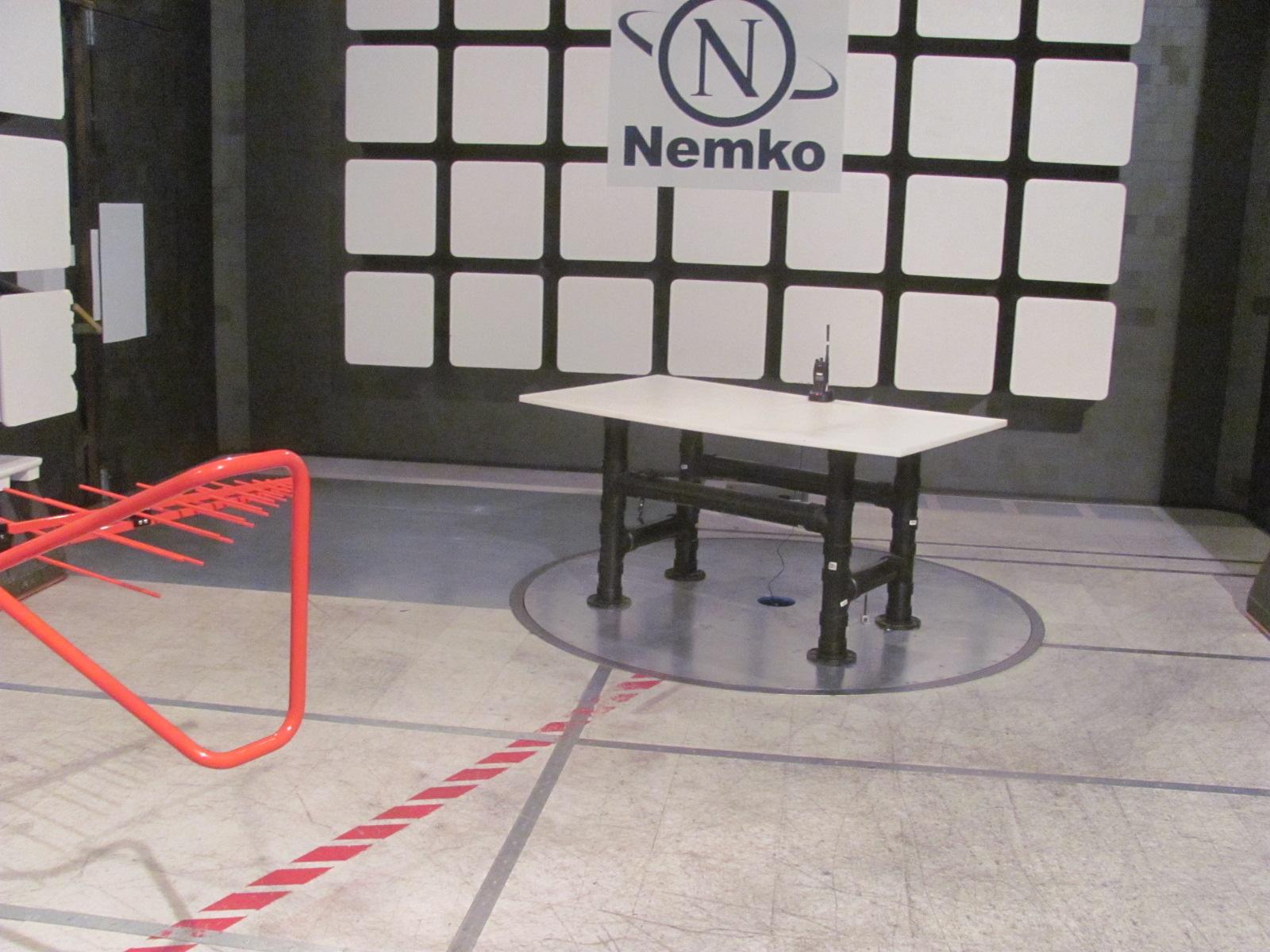

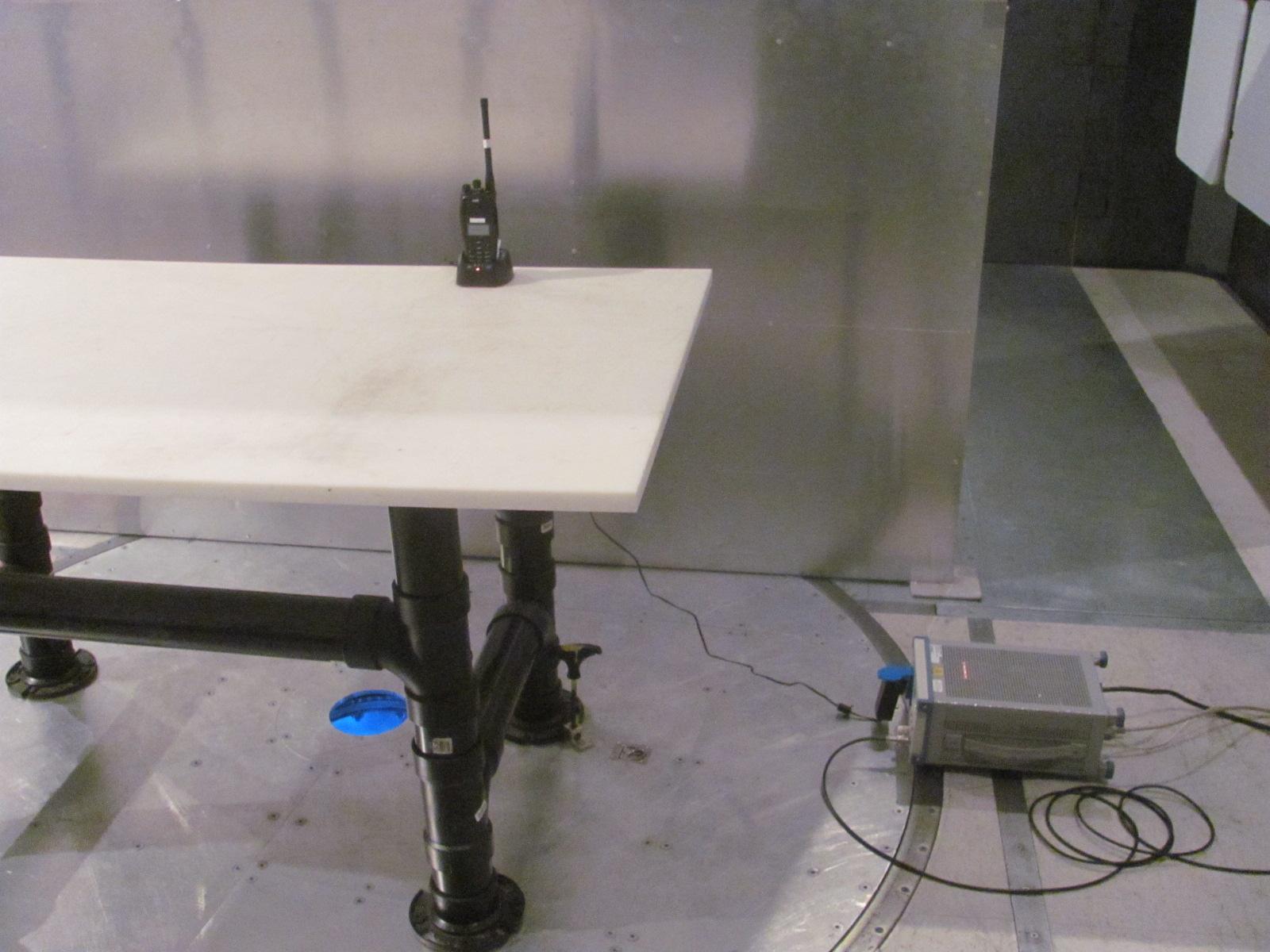

| Exhibit C RE Test Setup photographs | Test Setup Photos | 2015-11-11 | PDF 813.4 KB |
| Exhibit E Test Measurement Report per 2 1033 b6 | Test Report | 2015-11-11 | PDF 2.1 MB |
| Exhibit E Test Measurement Report per 2 1033 c14 | Test Report | 2015-11-10 | PDF 1.7 MB |
| WiFi Attestation Statement | Attestation Statements | 2015-11-11 | PDF 18 KB |
| 90.203 Attestation | Attestation Statements | 2015-11-10 | PDF 19.1 KB |
| Cover Letter Requesting Confidentiality | Cover Letter(s) | 2015-11-11 | PDF 18.5 KB |
| Cover Letter for Extended Frequency Range | Cover Letter(s) | 2015-11-10 | PDF 22.9 KB |
| WiFi Letter | Cover Letter(s) | 2015-11-10 | PDF 18 KB |
| Misc RF Exposure Exhibits - SAR Report | RF Exposure Info | 2015-11-10 | PDF 2.9 MB |
| Exhibit B Block Diagram per 2 1033 b5 Metadata only | Block Diagram | PDF 1.1 MB | |
| Exhibit B Schematics per 2 1033 b5 Metadata only | Schematics | PDF 586.3 KB | |
| Exhibit B Schematics per 2 1033 c10 Metadata only | Schematics | PDF 586.3 KB | |
| Exhibit B Operational Description per 2 1033 b4 Metadata only | Operational Description | PDF 603.7 KB | |
| Exhibit B Operational Description per 2 1033 c 4 5 6 7 8 9 13 Metadata only | Operational Description | PDF 2 MB | |
| Misc Parts List Exhibits Metadata only | Parts List/Tune Up Info | PDF 66 KB | |
| Misc Tune Up Procedure Exhibits Metadata only | Parts List/Tune Up Info | PDF 425.6 KB |
Application Information
| Application ID | Y4yVfJ/1YeDZli50s4YPUw== |
|---|---|
| Final Action Date | 2015-11-11 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0003768611 |
| Model | TPDL3A |
| Frequency Range | 2402-2480 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | Handheld Portable |
| Responsible Party | Brian Emmett, Standards and Regulatory Manager, brian.emmett@taitradio.com , 64 3 358 0403 |
| Test Firm | Charles Neal, Nemko Canada Inc. (Ottawa), charles.neal@nemko.com  , 613-737-9680 |
| TCB Email | decrowder@elitetest.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Output power listed is conducted. The antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter, except as described in this filing. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| Y4yVfJ/1YeDZli50s4YPUw== | 2015-11-11 | Original Equipment |
| 0v3eGEultc5zSXxnC979xQ== | 2015-11-10 | Original Equipment |
Equipment Authorization
| Frequency | Output | Tolerance | Emission | Rules | Grant Notes |
|---|---|---|---|---|---|
| 896-901 MHz | 3 | 1.5ppm | 6K60F2D | 9 | BH, EF |
| 896-901 MHz | 3 | 1.5ppm | 7K80F2D | 9 | BH, EF |
| 896-901 MHz | 3 | 1.5ppm | 8K10F1E | 9 | BH, EF |
| 896-901 MHz | 3 | 1.5ppm | 8K10F1D | 9 | BH, EF |
| 896-901 MHz | 3 | 1.5ppm | 8K10F1W | 9 | BH, EF |
| 896-901 MHz | 3 | 1.5ppm | 7K60FXW | 9 | BH, EF |
| 896-901 MHz | 3 | 1.5ppm | 7K60FXD | 9 | BH, EF |
| 935-940 MHz | 3 | 1.5ppm | 6K60F2D | 9 | BH, EF |
| 935-940 MHz | 3 | 1.5ppm | 7K80F2D | 9 | BH, EF |
| 935-940 MHz | 3 | 1.5ppm | 8K10F1E | 9 | BH, EF |
| 935-940 MHz | 3 | 1.5ppm | 8K10F1D | 9 | BH, EF |
| 935-940 MHz | 3 | 1.5ppm | 8K10F1W | 9 | BH, EF |
| 935-940 MHz | 3 | 1.5ppm | 7K60FXW | 9 | BH, EF |
| 935-940 MHz | 3 | 1.5ppm | 7K60FXD | 9 | BH, EF |
| 935-940 MHz | 3 | 1.5ppm | 11K0F3E | 9 | BH, EF |
| 2402-2480 MHz | 0.0004200 | 15C |
Grants
TCB Grant - Application Y4yVfJ/1YeDZli50s4YPUw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Elite Electronic Engineering, Inc. 1516 Centre Circle Downers Grove, IL 60515 |
Date of Grant: 11/11/2015 Application Dated: 11/11/2015 |
| Tait International Limited |
| 245 Wooldridge Road |
| HarewoodP.O. Box 1645, |
| Christchurch, 8051 New Zealand |
| Attention: Brian Emmett , Standards and Regulatory Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | CASTPDL3A |
| Name of Grantee: | Tait International Limited |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Handheld Portable |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.00042 |
| Output power listed is conducted. The antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter, except as described in this filing. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. |
EAS Grant - Application Y4yVfJ/1YeDZli50s4YPUw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Tait International Limited 245 Wooldridge Road HarewoodP.O. Box 1645, Christchurch, 8051 New Zealand |
Date of Grant: 11/11/2015 Application Dated: 11/11/2015 |
| Attention: Brian Emmett , Standards and Regulatory Manager |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | CASTPDL3A |
| Name of Grantee: | Tait International Limited |
| Equipment Class: | Part 15 Spread Spectrum Transmitter |
| Notes: | Handheld Portable |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 2402.0 - 2480.0 | 0.00042 |
| Output power listed is conducted. The antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter, except as described in this filing. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. |
