ACTLHL4 Universal Garage Door Opener Block... - FCC ID CB2ACTLHL4
FCC ID CB2ACTLHL4

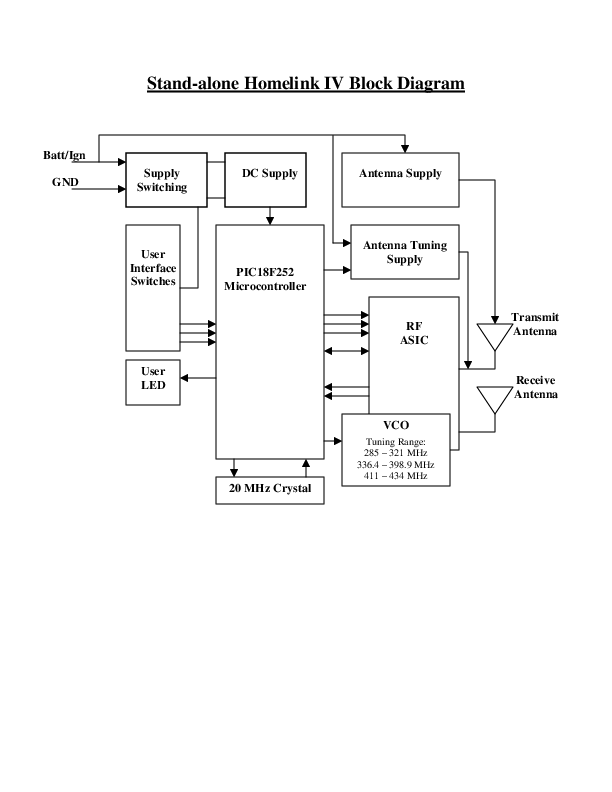

Homelink 4 Block diagram
Universal Garage Door Opener
Document preview loads when visible.
Document Details
| FCC ID | CB2ACTLHL4 |
|---|---|
| Document ID | 668941 |
| Document Type | Block Diagram |
| Description | Homelink 4 Block diagram |
| Document Title | Homelink IV Block Diagram |
| Applicant | Johnson Controls Interiors L.L.C. |
| Equipment Class | Universal Garage Door Opener |
| Product Code | ACTLHL4 |
| Application ID | 2gez68xFeHcxJH+6xb5zbw== |
| Application Purpose | Original Equipment |
| Application Date | 2006-07-18 |
| Frequency Range | 288-303.5 MHz |
| FRN | 0005935259 |
| Test Firm | Johnson Controls Interiors LLC |
| Certified By | Jeremy P. Bos Lead Engineer (EMC/RF) |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2006-06-15 |
| Available | 2006-07-18 |
| Created | 2005-11-11 |
| Modified | 2005-11-11 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 10814 |
| File SHA-256 | 3e877185f5bb4ed484dc4eded0e1c4f99af6089e9d03f01bba6f0dab982fba2c |
| PDF Metadata Author | abosje |
| PDF Metadata Producer | Acrobat Distiller 6.0.1 (Windows) abosje |
| FCC.gov Sources | FCC.gov 668941 |
