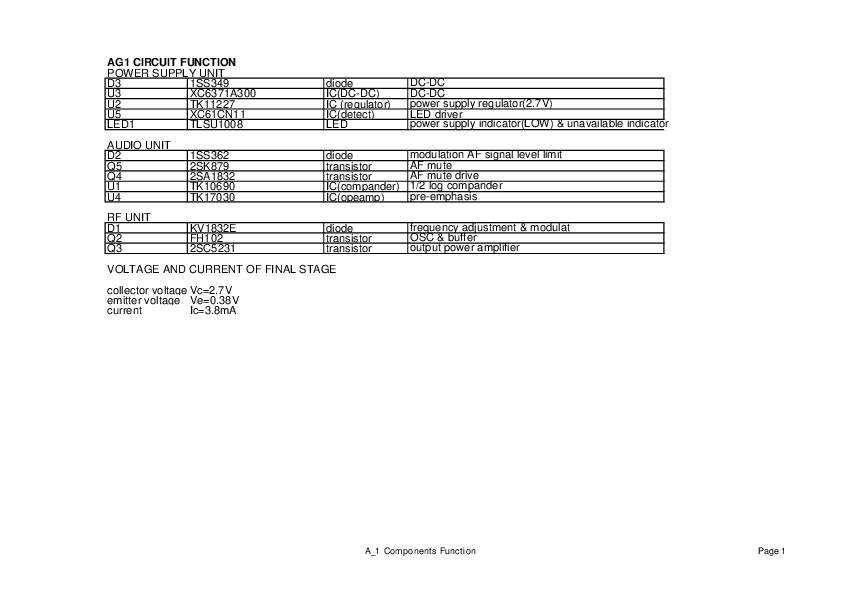

Exhibit B Section 2 1033 c 13 Operational and circuit descriptions
Airline UHF Wireless System
Document preview loads when visible.
Document Details
| FCC ID | CCRAG1M |
|---|---|
| Document ID | 137861 |
| Document Type | Operational Description |
| Description | Exhibit B Section 2 1033 c 13 Operational and circuit descriptions |
| Document Title | AG1FUNCTION.PDF |
| Applicant | Sam Ash Music Corporation |
| Equipment Class | Airline UHF Wireless System |
| Product Code | AG1M |
| Application ID | SiScVJdxeQ42G2UfPooNZA== |
| Application Purpose | Original Equipment |
| Application Date | 2001-02-23 |
| Frequency Range | 801.375-804.75 MHz |
| FRN | 0009055401 |
| Test Firm | Retlif Testing Laboratories |
| Certified By | Dan Albanese |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2001-02-23 |
| Available | 2001-02-23 |
| Created | 2001-02-23 |
| Modified | 2001-02-23 |
| Pages | 3 |
| File Type | Adobe Acrobat PDF |
| File Size | 12497 |
| File SHA-256 | 5fcce8bd68fe79f5e08b25d6131784bdf31632b3e9baeab3bedbe64526c66ffc |
| PDF Metadata Author | Unknown |
| PDF Metadata Producer | AG1FUNCTION.xls Acrobat PDFWriter 3.02 for Windows |
| FCC.gov Sources | FCC.gov 137861 |
