FW9T Wireless Flash for Camera Label Diagram - FCC ID CEXFW9T
FCC ID CEXFW9T
id

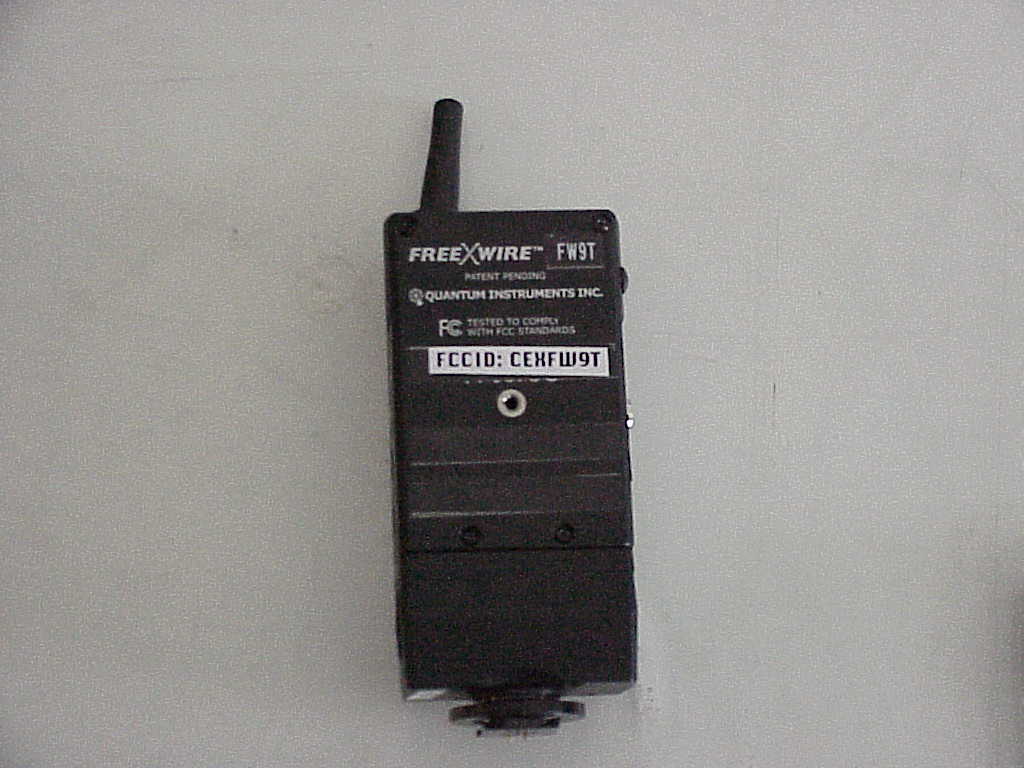

Wireless Flash for Camera
Document Details
| FCC ID | CEXFW9T |
|---|---|
| Document ID | 506298 |
| Document Type | ID Label/Location Info |
| Description | id |
| Applicant | Quantum Instruments Inc |
| Equipment Class | Wireless Flash for Camera |
| Product Code | FW9T |
| Application ID | jXXCUaRRIn8YPMqfVWRqJA== |
| Application Purpose | Original Equipment |
| Application Date | 2005-03-08 |
| Frequency Range | 433.9 MHz |
| FRN | 0012397873 |
| Test Firm | Green Mountain Electromagnetics |
| Certified By | Kyle Kowalczyk President |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | Yes |
| Submitted | 2005-01-14 |
| Available | 2005-03-08 |
| Pages | 0 |
| File Type | JPEG Image |
| File Size | 71452 |
| File SHA-256 | c5ccf9ef022c35a1479eabb033ab7e5a2d5b67998f45c48c15f1666c2bb20f67 |
| FCC.gov Sources | FCC.gov 506298 |
