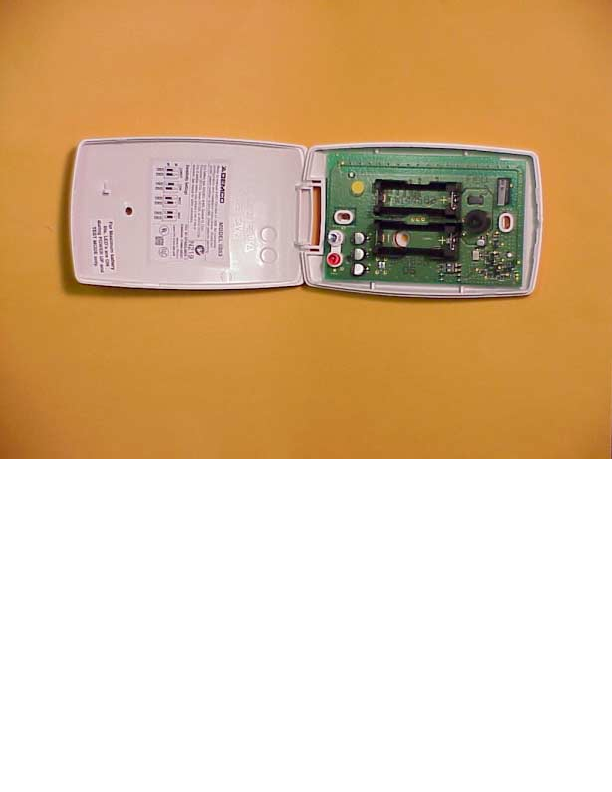

8DL58531 Glass Break Teardown Internal Photos - FCC ID CFS8DL5853-1

FCC ID CFS8DL5853-1

PCB in plastic

Glass Break

by Ademco Inc.

Document preview loads when visible.

Document Details

FCC IDCFS8DL5853-1
Document ID376085
Document TypeInternal Photos
DescriptionPCB in plastic
ApplicantAdemco Inc.
Equipment ClassGlass Break
Product Code8DL58531
Application IDM5Lboeq+bmh/CuDnrD7Gcg==
Application PurposeOriginal Equipment
Application Date2004-01-23
Frequency Range345 MHz
FRN0004071130
Test FirmAdemco
Certified ByKenneth L Addy
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-11-25
Available2004-01-23
Created2003-11-10
Modified2003-11-10
Pages1
File TypeAdobe Acrobat PDF
File Size20903
File SHA-2566abe31ceb1069e61f2aab147c98e10b8bc30fcb01311ce01d2f0620038949b4e
PDF Metadata ProducerAcrobat Distiller 4.05 for Windows
FCC.gov SourcesFCC.gov 376085
