8DL58832 remote security transceiver Block... - FCC ID CFS8DL5883-2
FCC ID CFS8DL5883-2

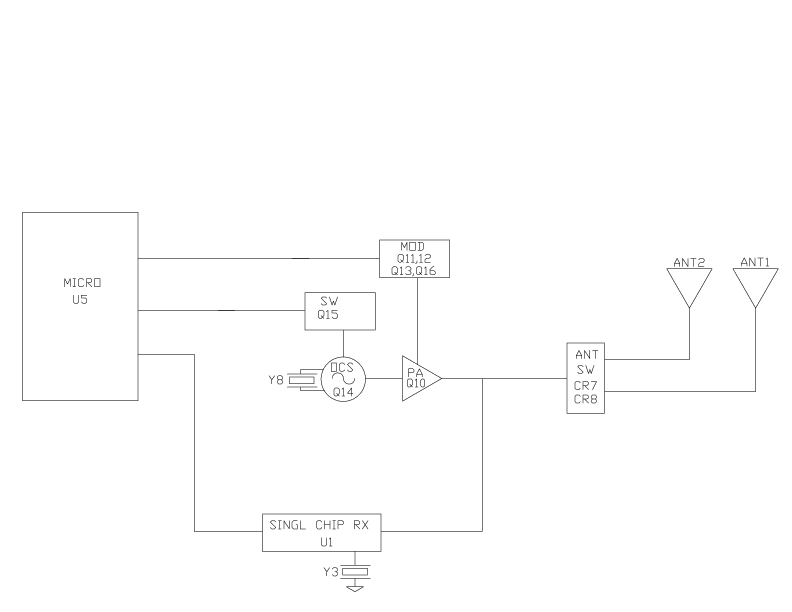

block diagram
remote security transceiver
by Ademco Inc.
Document preview loads when visible.
Document Details
| FCC ID | CFS8DL5883-2 |
|---|---|
| Document ID | 594872 |
| Document Type | Block Diagram |
| Description | block diagram |
| Document Title | AutoCAD Plot |
| Applicant | Ademco Inc. |
| Equipment Class | remote security transceiver |
| Product Code | 8DL58832 |
| Application ID | CnqvpUkz1dgxw+IUKe24fg== |
| Application Purpose | Original Equipment |
| Application Date | 2005-11-25 |
| Frequency Range | 345 MHz |
| FRN | 0004071130 |
| Test Firm | Honeywell International Inc. |
| Certified By | Kenneth L Addy Director |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2005-10-24 |
| Available | 2005-11-25 |
| Created | 2005-10-24 |
| Modified | 2005-10-24 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 11879 |
| File SHA-256 | 6ee4393c112e0dbab56b40e47da0b5c48fc080cfae71245f6cab396b750b6f4e |
| PDF Metadata Author | E650365 |
| PDF Metadata Producer | Acrobat Distiller 6.0 (Windows) E650365 |
| FCC.gov Sources | FCC.gov 594872 |
