8DLLYNXREN remote keypad Operational... - FCC ID CFS8DLLYNXREN

FCC ID CFS8DLLYNXREN

functional description

remote keypad

by Ademco Inc.

Document preview loads when visible.

Document Details

FCC IDCFS8DLLYNXREN
Document ID149469
Document TypeOperational Description

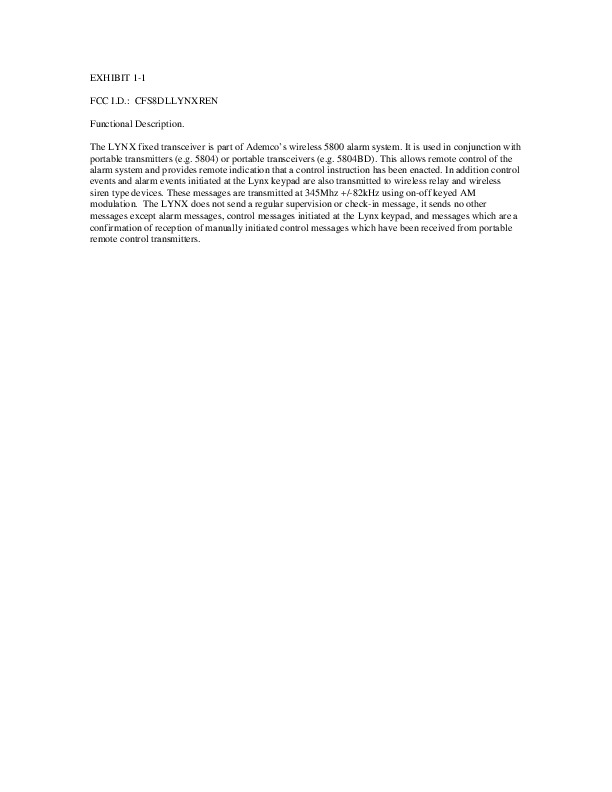

Descriptionfunctional description
ApplicantAdemco Inc.
Equipment Classremote keypad
Product Code8DLLYNXREN
Application IDkFa5obV9FPdZHNPvSNUZ8g==
Application PurposeOriginal Equipment
Application Date2001-06-27
Frequency Range345 MHz
FRN0004071130
Test FirmAdemco
Certified ByKenneth L Addy Director of Radio Engineering
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2001-05-12
Available2001-06-27
Created2001-05-10
Modified2001-05-10
Pages1
File TypeAdobe Acrobat PDF
File Size3940
File SHA-256b3faf872977f07459bbd0dc2de007fbb20f80223643129a77b85669df4172202
PDF Metadata ProducerAcrobat Distiller 4.05 for Windows
FCC.gov SourcesFCC.gov 149469
