FCC ID CGDUPASSTAR
UHF RFID reader
by Nedap N. V.
Grantee Code: CGD Product Code: UPASSTAR
Latest application date: 2016-03-02
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 902.7-927.2 MHz | Original Equipment | 2016-03-02 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| TempConfidential_14r01_Install manual T5481163-45.01-1.04 CGDUPASSTAR | Users Manual | 2016-08-30 | PDF 1.3 MB |
| TempConfidential_08_Photo Int CGDUPASSTAR | Internal Photos | 2016-08-30 | PDF 1.4 MB |
| TempConfidential_09_Photo Ext CGDUPASSTAR | External Photos | 2016-08-30 | PDF 556.8 KB |

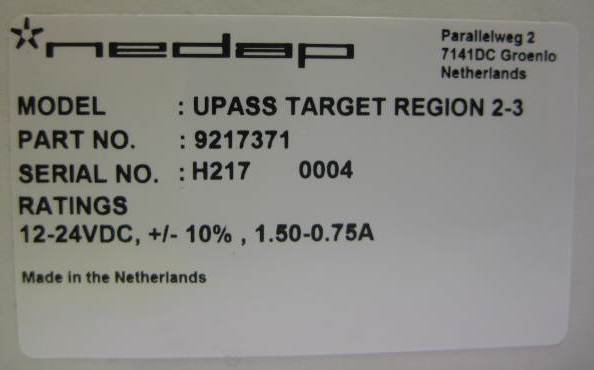

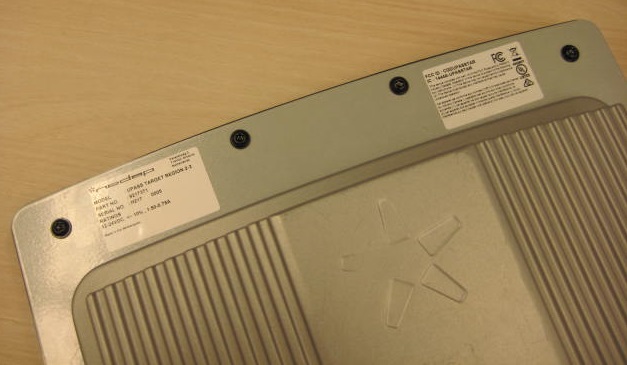

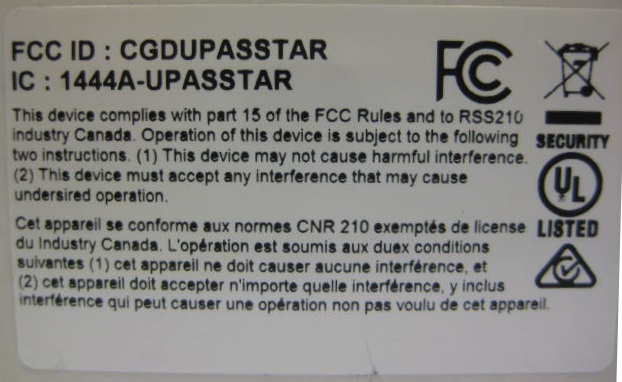

| 10_Label location_artwork CGDUPASSTAR | ID Label/Location Info | 2016-03-02 | PDF 256.3 KB |
| 13r01_15110906.p01_Rev01_Testsetup CGDUPASSTAR | Test Setup Photos | 2016-08-30 | PDF 882.4 KB |
| 12r02_15110906.fcc01_Rev01_report CGDUPASSTAR | Test Report | 2016-03-02 | PDF 2.2 MB |
| 01_Cover letter CGDUPASSTAR | Cover Letter(s) | 2016-03-02 | PDF 194.6 KB |
| 02r02_Request for Confidentiality CGDUPASSTAR | Cover Letter(s) | 2016-03-02 | PDF 804.2 KB |
| 16_RF_exposure_statement CGDUPASSTAR Metadata only | RF Exposure Info | 2016-03-02 | PDF 199.4 KB |
| 16r01_RF_exposure_statement CGDUPASSTAR | RF Exposure Info | 2016-03-02 | PDF 327.7 KB |
| Confidential_07_Blockdia T9217363-18.02_1.02 CGDUPASSTAR Metadata only | Block Diagram | PDF 980.1 KB | |
| Confidential_6a_T7841582-12.01_0.04 reader CGDUPASSTAR Metadata only | Schematics | PDF 3.5 MB | |
| Confidential_6b_T7841566-12.01_0.04 processor CGDUPASSTAR Metadata only | Schematics | PDF 2.7 MB | |
| Confidential_6c_T7841558-12.01_0.02 Antenna CGDUPASSTAR Metadata only | Schematics | PDF 1.2 MB | |
| Confidential_6d_Sch T7841531-12.01_0.07 connect CGDUPASSTAR Metadata only | Schematics | PDF 1.9 MB | |
| 04r02_Antenna Int_Ext CGDUPASSTAR Metadata only | Operational Description | PDF 203.9 KB | |
| 15_Datasheet CGDUPASSTAR Metadata only | Operational Description | PDF 158.8 KB | |
| 20r01_Indy R2000 Datasheet R2 20150730 CGDUPASSTAR Metadata only | Operational Description | PDF 2.2 MB | |
| Confidential_11r01_Operational description T9217363-18.01-1.03 CGDUPASSTAR Metadata only | Operational Description | PDF 1 MB | |
| Confidential_5a_BoM T7841582-11.02_0.04 reader CGDUPASSTAR Metadata only | Parts List/Tune Up Info | PDF 120.3 KB | |
| Confidential_5b_BoM T7841566-11.02_0.04 processor CGDUPASSTAR Metadata only | Parts List/Tune Up Info | PDF 114.6 KB | |
| Confidential_5c_BoM T7841558-11.02_0.03 Antenna CGDUPASSTAR Metadata only | Parts List/Tune Up Info | PDF 82.9 KB | |
| Confidential_5d_BoM T7841531-11.02_0.07 Connect CGDUPASSTAR Metadata only | Parts List/Tune Up Info | PDF 102.1 KB |
Application Information
| Application ID | Mtvnmkz+z2UgIxOVI0GgLw== |
|---|---|
| Final Action Date | 2016-03-02 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0007696149 |
| Model | UPASSTAR |
| Frequency Range | 902.7-927.2 MHz |
| Equipment Class | DSS - Part 15 Spread Spectrum Transmitter |
| Device Description | UHF RFID reader |
| Responsible Party | Reinold Hubers, Approbation Officer, reinold.hubers@nedap.com  , 0031544471111 |
| Technical Contact | Jacques Hulshof, N.V. Nederlandsche Apparatenfabriek Nedap, Jacques.Hulshof@nedap.com , 01131544471111 |
| Non-Technical Contact | Jacques Hulshof, N.V. Nederlandsche Apparatenfabriek Nedap, Jacques.Hulshof@nedap.com , 01131544471111 |
| Test Firm | Richard van der Meer, TUV Rheinland Nederland B.V., richard.vandermeer@nl.tuv.com  , 31-088-888-7888 |
| TCB Email | hotline@acbcert.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 08/30/2016 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power Output listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and not be co-located with any other transmitters except in accordance with FCC multi-transmitter product procedures. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. |
