1252EA Wireless Transmitter Label Diagram - FCC ID CGJ1252EA
FCC ID CGJ1252EA

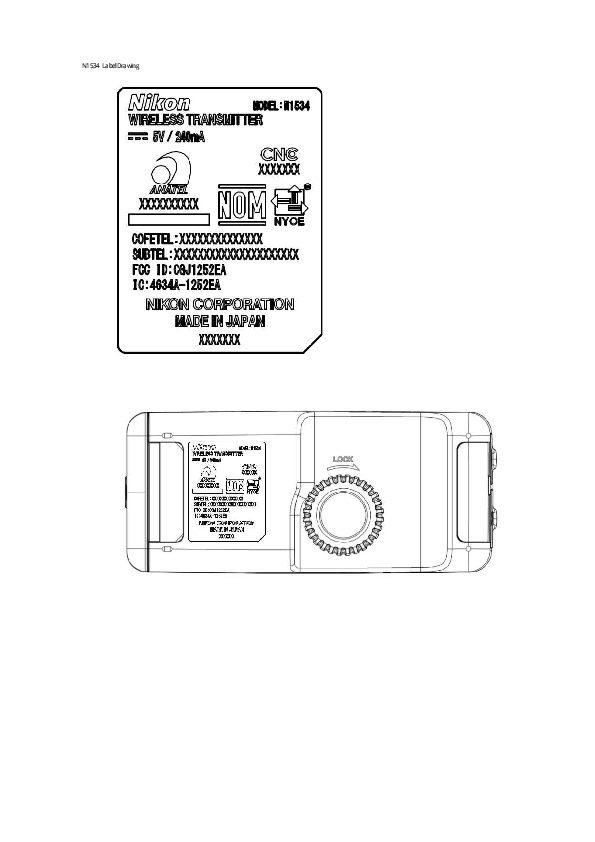

Label and Location
Wireless Transmitter
Document preview loads when visible.
Document Details
| FCC ID | CGJ1252EA |
|---|---|
| Document ID | 2920726 |
| Document Type | ID Label/Location Info |
| Description | Label and Location |
| Applicant | Nikon Corporation |
| Equipment Class | Wireless Transmitter |
| Product Code | 1252EA |
| Application ID | KlBBkBtHk1eKEJyuqb4QyA== |
| Application Purpose | Original Equipment |
| Application Date | 2016-03-06 |
| Frequency Range | 5180-5240 MHz |
| FRN | 0009243569 |
| Test Firm | UL Japan, Inc. Head office EMC Lab. |
| Certified By | Yoshihisa Maeda Project Engineer |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Short-Term Confidentiality Date | 05/10/2016 |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Submitted | 2016-03-06 |
| Available | 2016-03-06 |
| Created | 2015-12-01 |
| Modified | 2015-12-01 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 92234 |
| File SHA-256 | a03a738bf79851adffc30efabbb0c0028015b106eadeaaaf77c0809f5b466fc9 |
| PDF Metadata Producer | SkyPDF Pro Driver Version 2.54.0093.20 |
| FCC.gov Sources | FCC.gov 2920726, FCC.gov 2920694, FCC.gov 2920676 |
