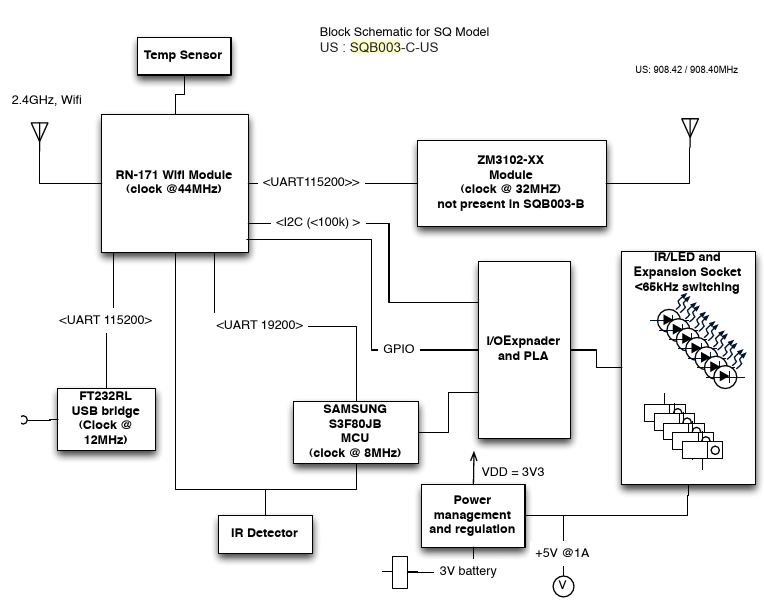

SQB003 SQ Home Controller Block Diagram - FCC ID CGO-SQB003

FCC ID CGO-SQB003

Block

SQ Home Controller

by Square Connect, Inc.

Document preview loads when visible.

Document Details

FCC IDCGO-SQB003
Document ID1657174
Document TypeBlock Diagram
DescriptionBlock
Document Titlesqb003-blockdiagram.graffle
ApplicantSquare Connect, Inc.
Equipment ClassSQ Home Controller
Product CodeSQB003
Application IDlnY2fp7OaAevPjU9b7PheA==
Application PurposeOriginal Equipment
Application Date2012-03-15
Frequency Range2412-2462 MHz
FRN0021555263
Test FirmShenzhen Anbotek Compliance Laboratory Limited
Certified ByMark Koop Manager, Teleconformity
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceYes
Composite PartNo
Submitted2012-03-15
Available2012-03-15
Created2012-02-16
Modified2012-03-12
Pages1
File TypeAdobe Acrobat PDF
File Size535066
File SHA-256c1d9d21ff251eb59bceb95bec7930e7e6f588db746c476072c8d11cbd7fae55e
PDF Metadata AuthorAdministrator
PDF Metadata CreatorOmniGraffle Professional 5.3.6
PDF Metadata ProducerMac OS X 10.6.8 Quartz PDFContext
FCC.gov SourcesFCC.gov 1657174
