T35 Auditory Assistance Transmitter Label Diagram - FCC ID CNMT35
FCC ID CNMT35

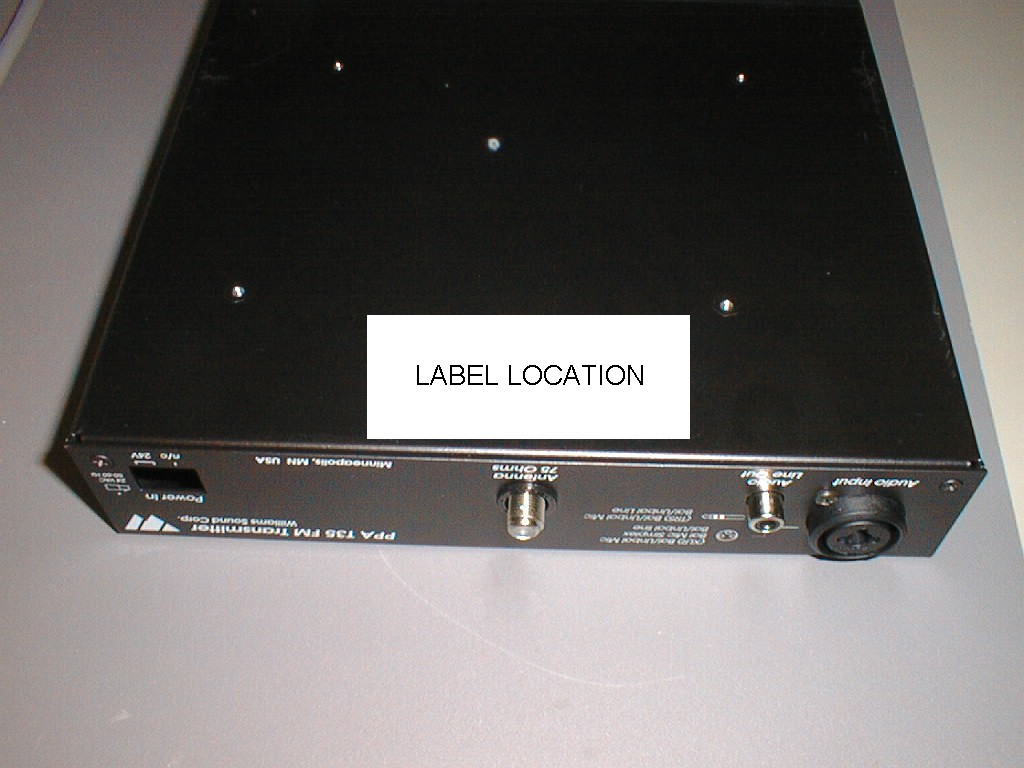

label location
Auditory Assistance Transmitter
Document Details
| FCC ID | CNMT35 |
|---|---|
| Document ID | 287556 |
| Document Type | ID Label/Location Info |
| Description | label location |
| Applicant | Williams Sound, LLC |
| Equipment Class | Auditory Assistance Transmitter |
| Product Code | T35 |
| Application ID | Ec3zsB+dz92owv4NKJ2Dcg== |
| Application Purpose | Original Equipment |
| Application Date | 2002-12-03 |
| Frequency Range | 72.025-75.975 MHz |
| FRN | 0008029316 |
| Test Firm | Timco Engineering, Inc. |
| Certified By | Richard B. Holmes |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2002-12-05 |
| Available | 2002-12-03 |
| Pages | 0 |
| File Type | JPEG Image |
| File Size | 119911 |
| File SHA-256 | 20b83d0a7f723ea9abb0ea37d6ba1f5151a5ec6aa8ce1de038e10c5a5d2db62b |
| FCC.gov Sources | FCC.gov 287556 |
