FCC ID DBZDBA
Wireless Microphone Transmitter
by Lectrosonics Inc
Grantee Code: DBZ Product Code: DBA
Latest application date: 2016-05-17
Device Images
FCC ID Device Details
| FCC ID | DBZDBA |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | DBZ |
| Product Code | DBA |
| Applicant Business | Lectrosonics Inc 🇺🇸 |
| Related Domains |  lectrosonics.com |
| Equipment Class | Wireless Microphone Transmitter |
| Test Firm | Compliance Testing, LLC |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 470.1-607.9 MHz | Original Equipment | 2016-05-17 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| Manual | Users Manual | 2016-05-17 | PDF 350 KB |
| Internal Photos | Internal Photos | 2016-07-03 | PDF 5.6 MB |

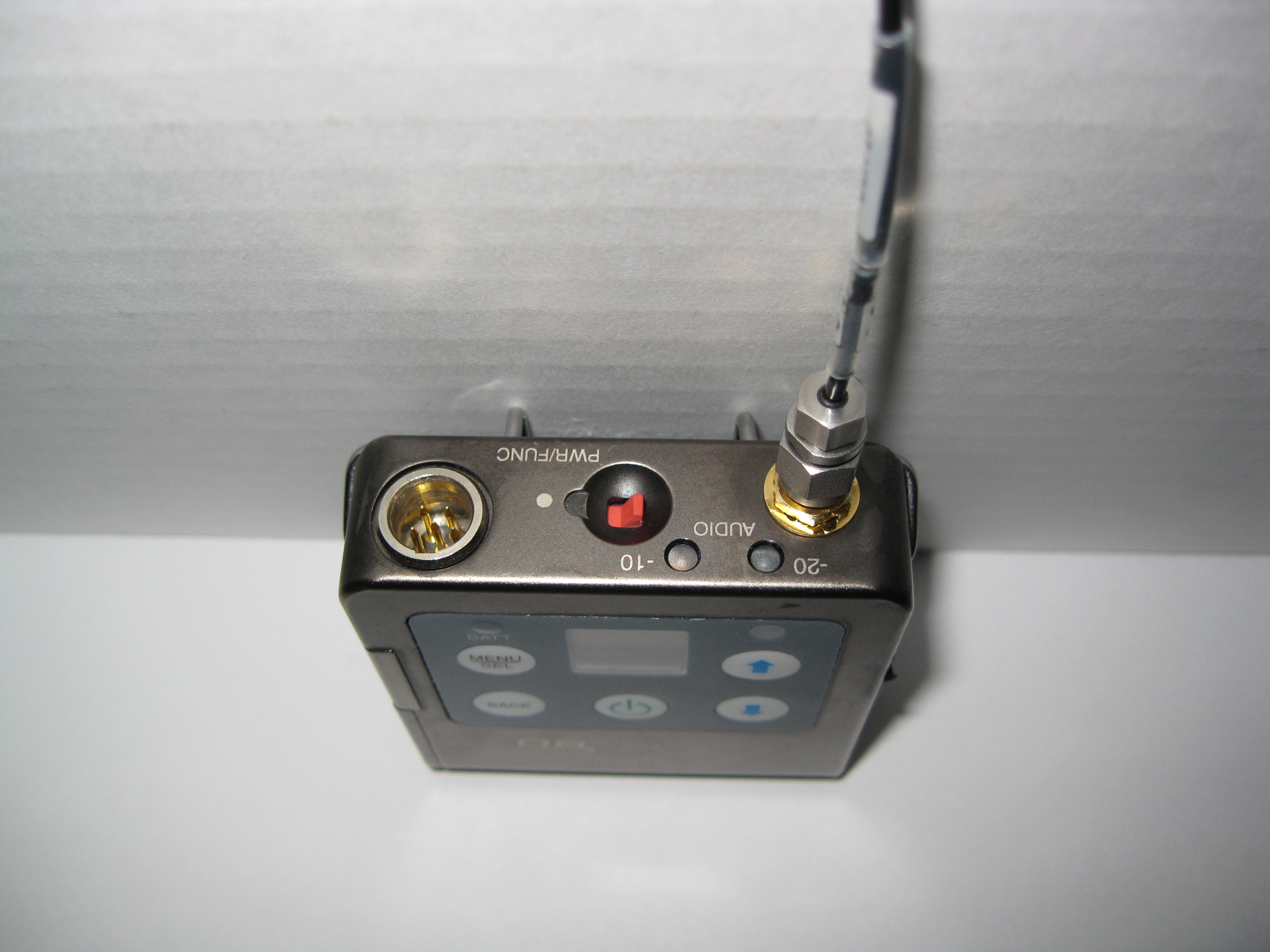

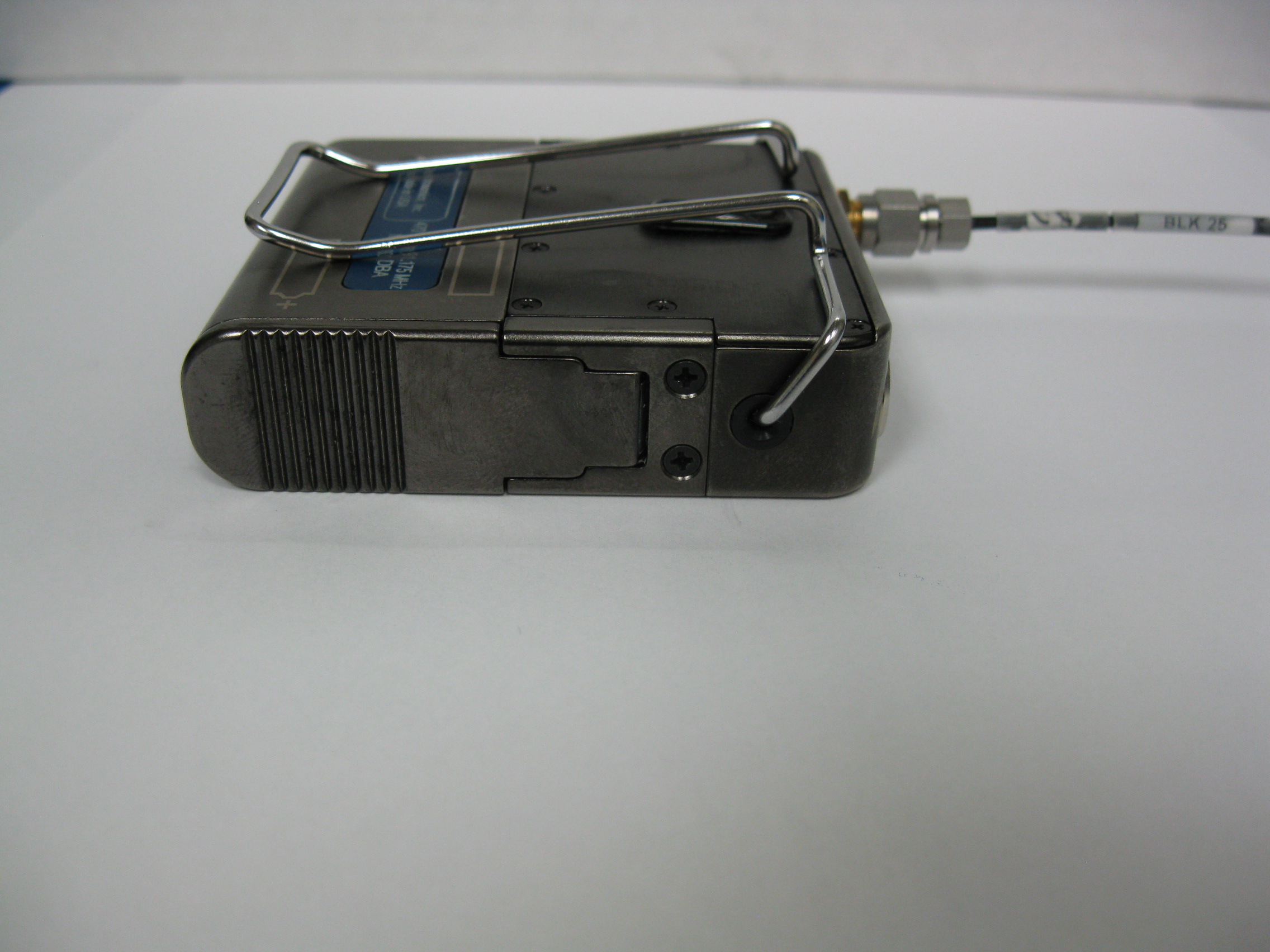

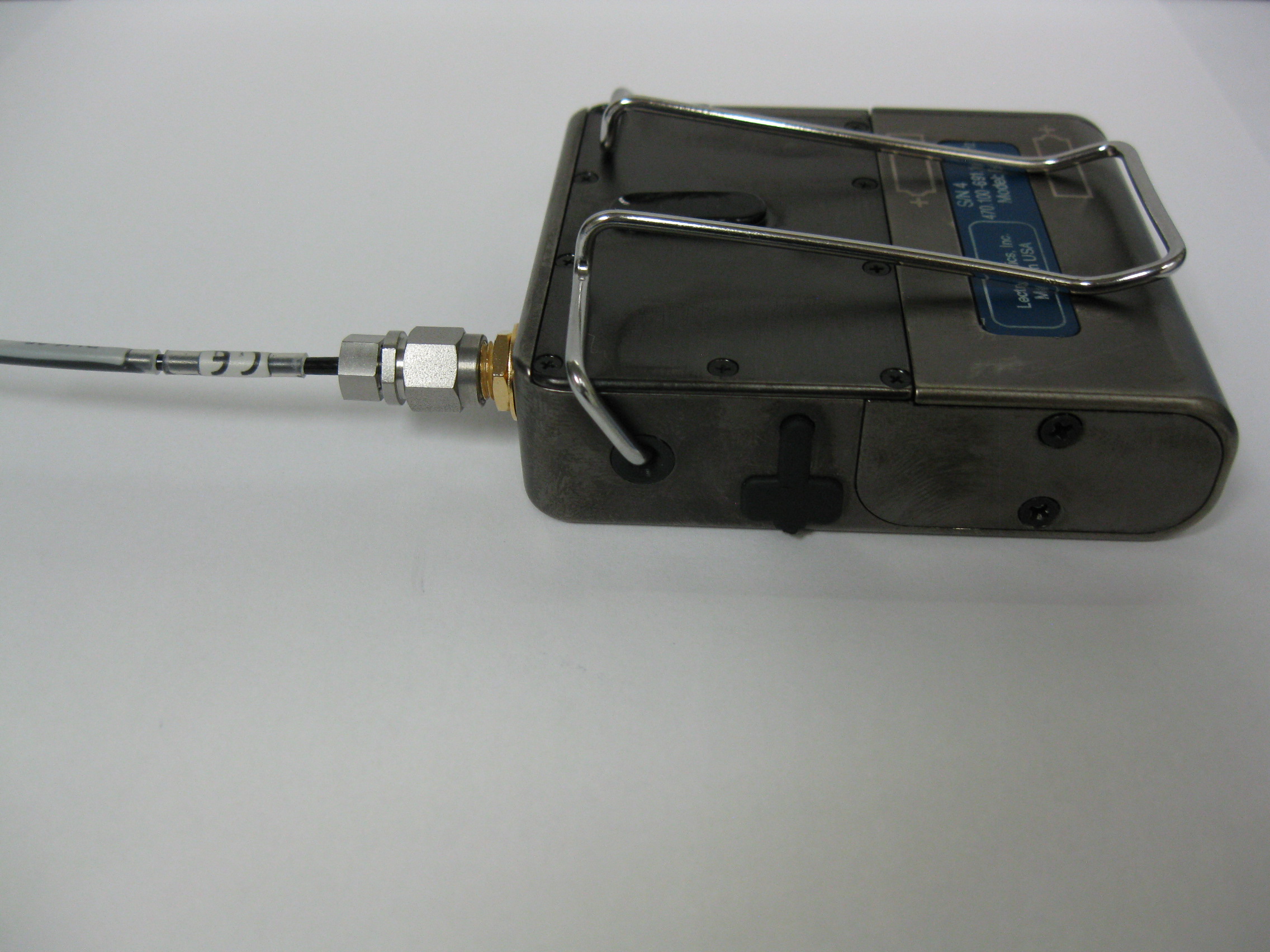

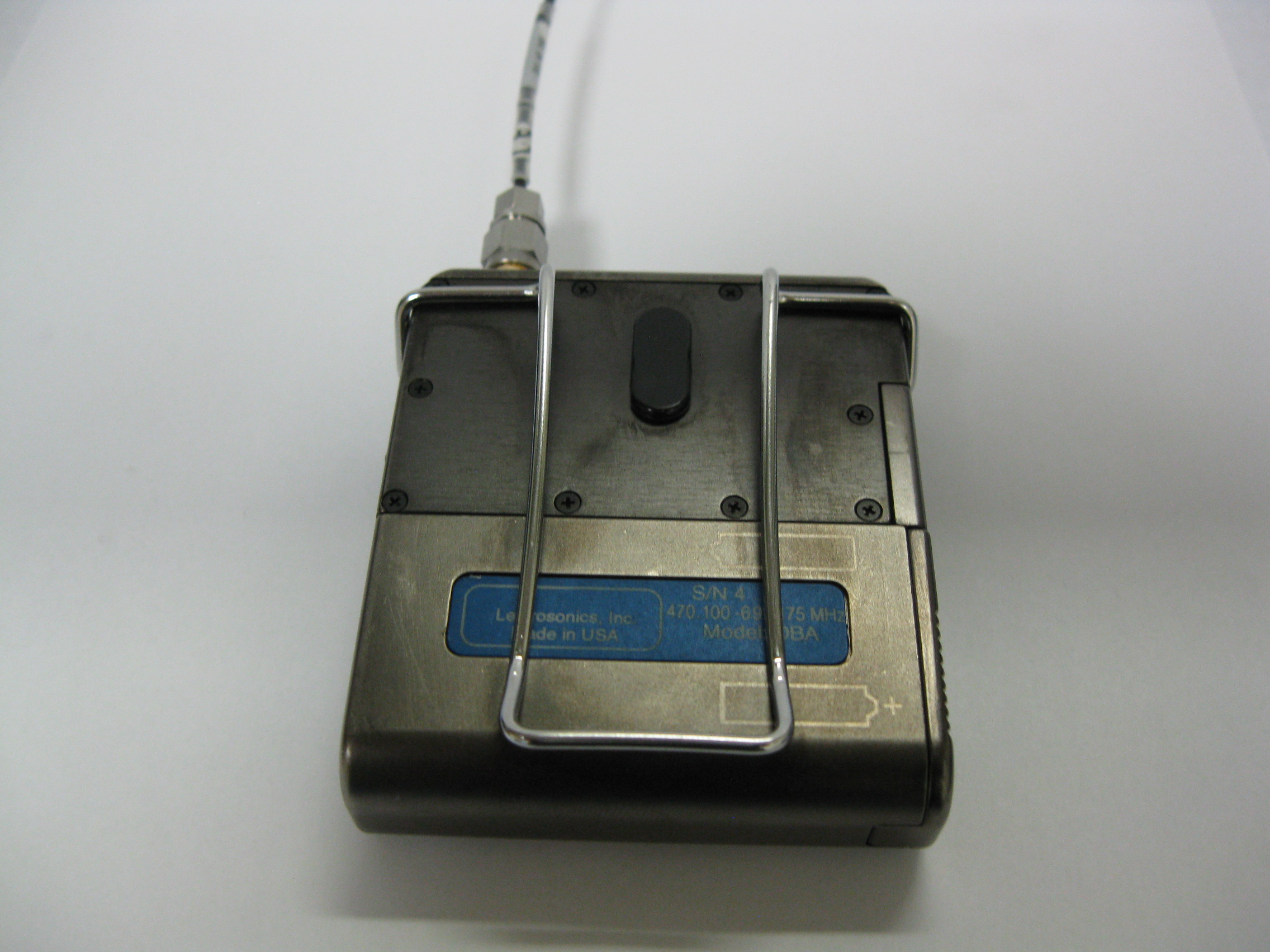

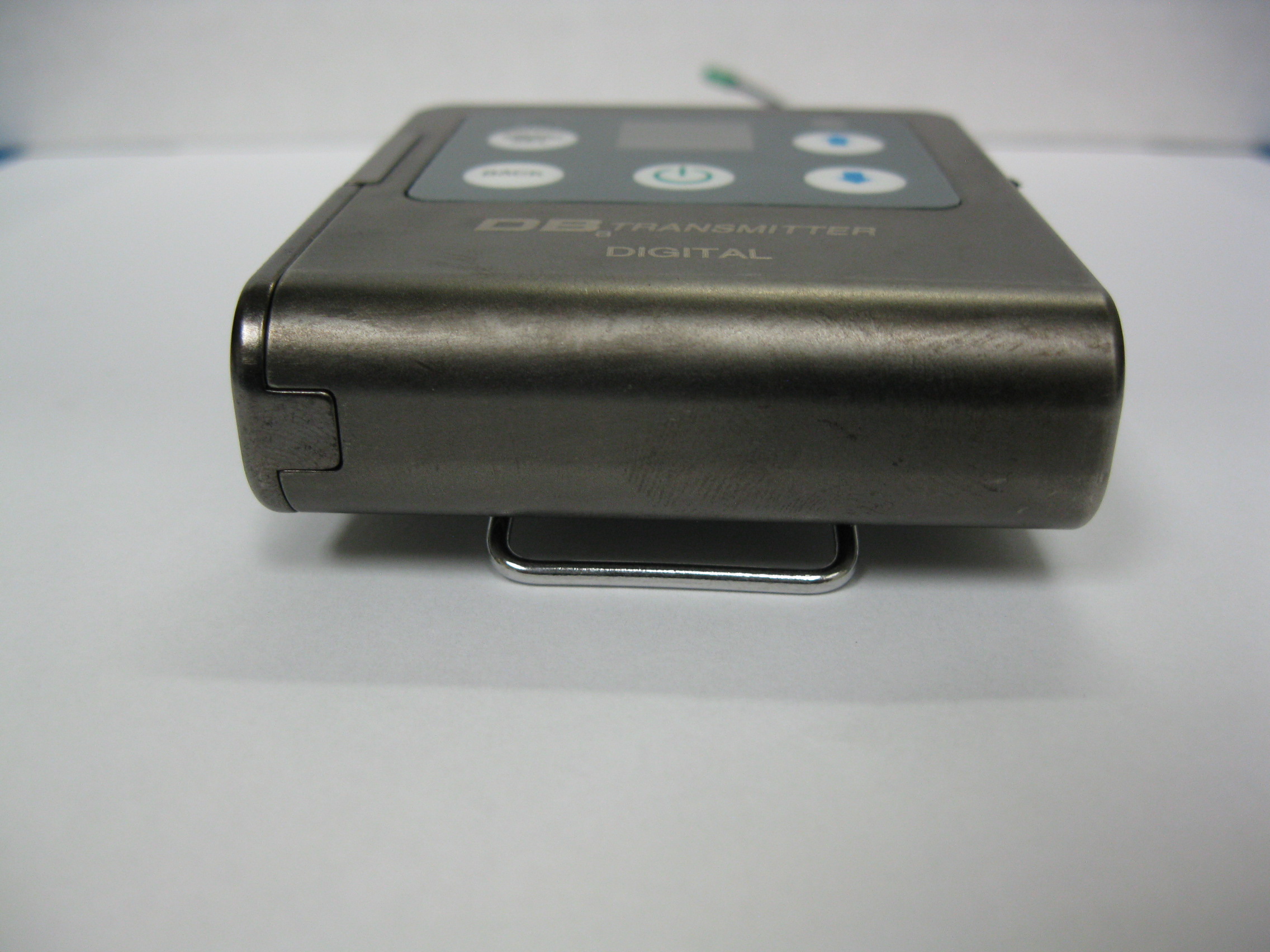

| External Photos | External Photos | 2016-05-17 | PDF 4.3 MB |
| Label_Label Location | ID Label/Location Info | 2016-05-17 | PDF 122.8 KB |
| SAR Test Setup Photos | Test Setup Photos | 2016-07-03 | PDF 167.5 KB |
| Annex A_Part 74H | Test Report | 2016-05-17 | PDF 320 KB |
| Annex B_Part 74H | Test Report | 2016-05-17 | PDF 174.3 KB |
| Annex C_Part 74H | Test Report | 2016-05-17 | PDF 334.8 KB |
| Annex D_Part 74 | Test Report | 2016-05-17 | PDF 222.9 KB |
| FCC Part 74 Test Report_Rev | Test Report | 2016-05-17 | PDF 368.2 KB |
| FCC Part 74H Test Report | Test Report | 2016-05-17 | PDF 371.9 KB |
| SAR Test Plots | Test Report | 2016-05-17 | PDF 818 KB |
| SAR Test Report | RF Exposure Info | 2016-05-17 | PDF 1,006.8 KB |
| SAR Test Report | Test Report | 2016-05-17 | PDF 1,006.8 KB |
| Agent Authorization Letter | Cover Letter(s) | 2016-05-17 | PDF 312.6 KB |
| Long Term Confidentiality Letter | Cover Letter(s) | 2016-05-17 | PDF 300.5 KB |
| Short Term Confidentiality Letter | Cover Letter(s) | 2016-05-17 | PDF 292.5 KB |
| ES3-3035 Calibration Certificate | RF Exposure Info | 2016-05-17 | PDF 804.2 KB |
| SAR Test Plots | RF Exposure Info | 2016-05-17 | PDF 818 KB |
| Block Diagram Metadata only | Block Diagram | PDF 593.4 KB | |
| Schematics Metadata only | Schematics | PDF 366.4 KB | |
| Alignment Procedure Metadata only | Parts List/Tune Up Info | PDF 159.7 KB | |
| BOM Metadata only | Parts List/Tune Up Info | PDF 17.9 KB |
Application Information
| Application ID | 0viYJI64uTKjJOd+L4UUEg== |
|---|---|
| Final Action Date | 2016-05-17 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0007067481 |
| Model | DBA |
| Frequency Range | 470.1-607.9 MHz |
| Equipment Class | TBT - Licensed Broadcast Transmitter Worn on Body |
| Device Description | Wireless Microphone Transmitter |
| Responsible Party | Robert Cunnings, Vice President, Engineering, cunnings@lectrosonics.com , 505-892-4501 |
| Agent | Amanda Amanda Amanda, Compliance Testing, LLC, 480-926-3100 |
| Test Firm | Michael Schafer, Compliance Testing, LLC, michaels@compliancetesting.com  , 480-926-3100 |
| TCB Email | amandar@compliancetesting.com |
| TCB Scope | B2: General Mobile Radio And Broadcast Services equipment in the following 47 CFR Parts 22 (non-cellular) 73, 74, 90, 95, 97, & 101 (all below 3 GHz) |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 07/03/2016 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. SAR compliance with accessories for portable use conditions have been evaluated as described in this filing. The highest reported SAR values for Body-worn configuration is 0.227 W/kg |
