FCC ID DBZHMAB1
Wireless Microphone Transmitter
by Lectrosonics Inc
Grantee Code: DBZ Product Code: HMAB1
Latest application date: 2016-03-22
Device Images
FCC ID Device Details
| FCC ID | DBZHMAB1 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | DBZ |
| Product Code | HMAB1 |
| Applicant Business | Lectrosonics Inc 🇺🇸 |
| Related Domains |  lectrosonics.com |
| Equipment Class | Wireless Microphone Transmitter |
| Test Firm | Bay Area Compliance Laboratories Corporation |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 537.6-608 MHz | Original Equipment | 2016-03-22 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-03-22 | PDF 3.3 MB |
| Int Photos | Internal Photos | 2016-09-18 | PDF 385.9 KB |

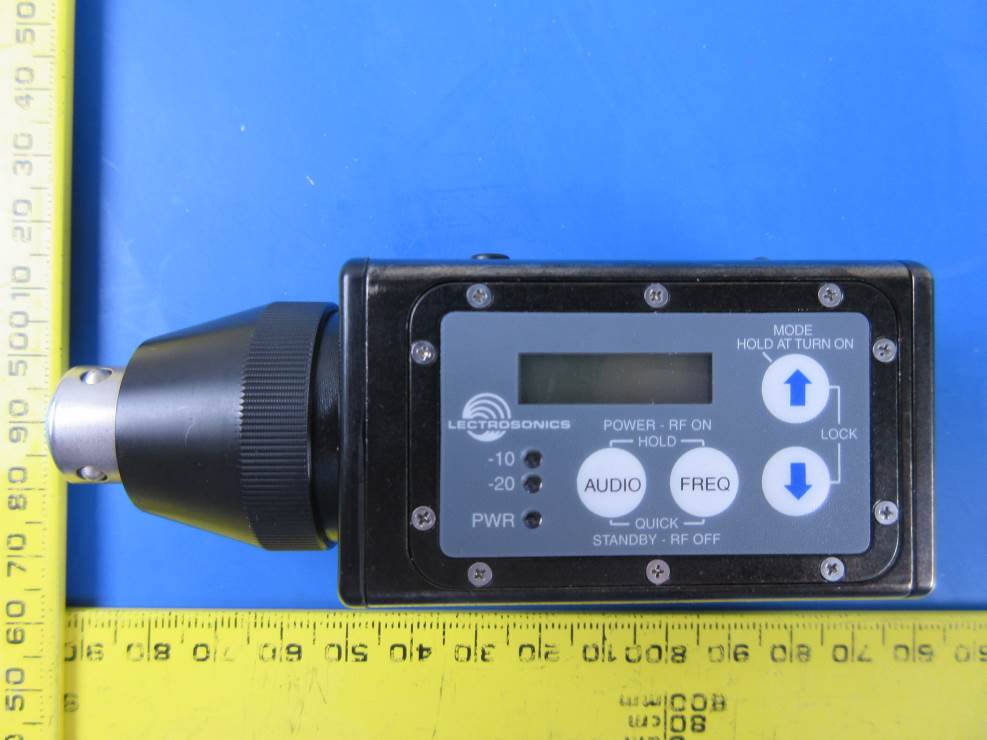

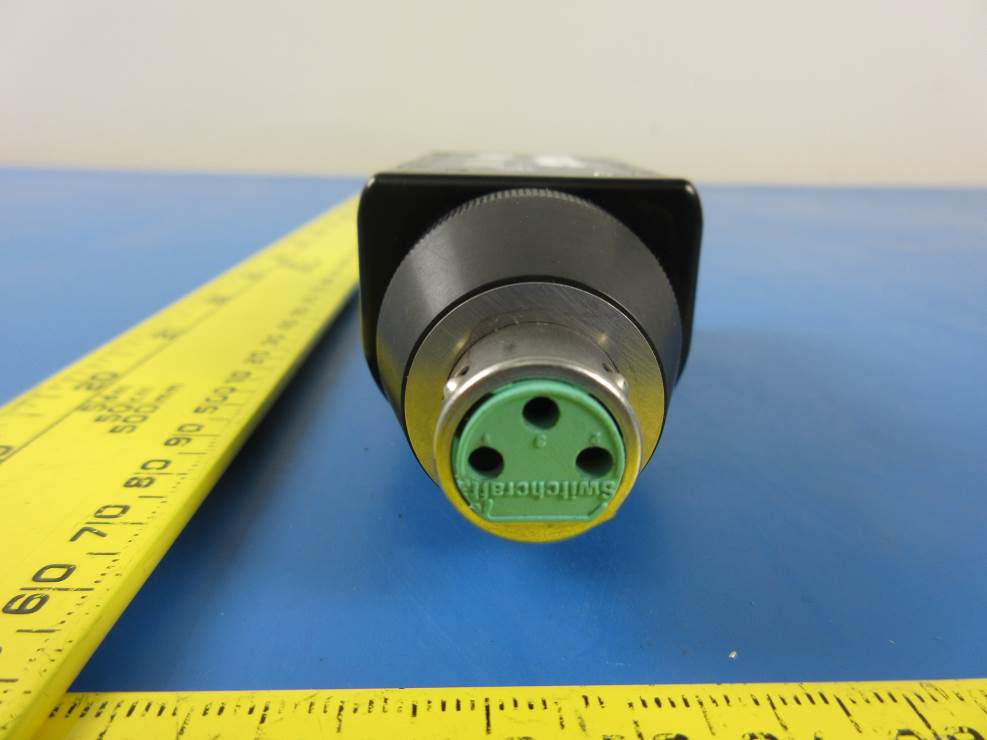

| Ext Photos | External Photos | 2016-03-22 | PDF 413.5 KB |
| FCC ID Label | ID Label/Location Info | 2016-03-22 | PDF 81.8 KB |
| Block Diagram | Block Diagram | 2016-03-22 | PDF 123.9 KB |
| SAR Setup Photos | Test Setup Photos | 2016-09-18 | PDF 141.1 KB |
| Setup Photos | Test Setup Photos | 2016-09-18 | PDF 317.2 KB |
| Test Report | Test Report | 2016-03-22 | PDF 399.8 KB |
| Attestation Letter | Attestation Statements | 2016-03-22 | PDF 65.6 KB |
| Confidentiality Letter | Cover Letter(s) | 2016-03-22 | PDF 322.4 KB |
| POA | Cover Letter(s) | 2016-03-22 | PDF 79.5 KB |
| SAR Report | RF Exposure Info | 2016-03-22 | PDF 4.1 MB |
| Schematics Metadata only | Schematics | PDF 267.9 KB | |
| Circuit Description Metadata only | Operational Description | PDF 27.5 KB | |
| SAR Evaluation KDB Metadata only | Operational Description | PDF 66.4 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 16 KB | |
| Tune up Procedure Metadata only | Parts List/Tune Up Info | PDF 97.2 KB |
Application Information
| Application ID | j78WSuYXc+SpHS6/07+4Fg== |
|---|---|
| Final Action Date | 2016-03-22 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0007067481 |
| Model | HMAB1 |
| Frequency Range | 537.6-608 MHz |
| Equipment Class | TBT - Licensed Broadcast Transmitter Worn on Body |
| Device Description | Wireless Microphone Transmitter |
| Responsible Party | Robert Cunnings, Vice President, Engineering, cunnings@lectrosonics.com , 505-892-4501 |
| Test Firm | Lisa Tang, Bay Area Compliance Laboratories Corporation, lisat@baclcorp.com  , 408-732-9162 |
| TCB Email | bacl.regulatory@baclcorp.com |
| TCB Scope | B2: General Mobile Radio And Broadcast Services equipment in the following 47 CFR Parts 22 (non-cellular) 73, 74, 90, 95, 97, & 101 (all below 3 GHz) |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 09/18/2016 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. SAR compliance with accessories for portable use conditions have been evaluated as described in this filing. The antenna(s) used for this transmitter must not transmit simultaneously with any other antenna or transmitter. The highest reported SAR values for Body-worn and Hand held conditions are 0.09 W/kg and 0.40 W/kg. |
