FCC ID DBZHMAC1
Wireless Microphone Transmitter
by Lectrosonics Inc
Grantee Code: DBZ Product Code: HMAC1
Latest application date: 2016-03-23
Device Images
FCC ID Device Details
| FCC ID | DBZHMAC1 |
|---|---|
| Mirrors | fcc.id | gov | fccid.ai |
| Grantee Code | DBZ |
| Product Code | HMAC1 |
| Applicant Business | Lectrosonics Inc 🇺🇸 |
| Related Domains |  lectrosonics.com |
| Equipment Class | Wireless Microphone Transmitter |
| Test Firm | Bay Area Compliance Laboratories Corporation |
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 614.4-691.175 MHz | Original Equipment | 2016-03-23 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual | Users Manual | 2016-03-23 | PDF 3.3 MB |
| Int Photos | Internal Photos | 2016-09-19 | PDF 328.1 KB |

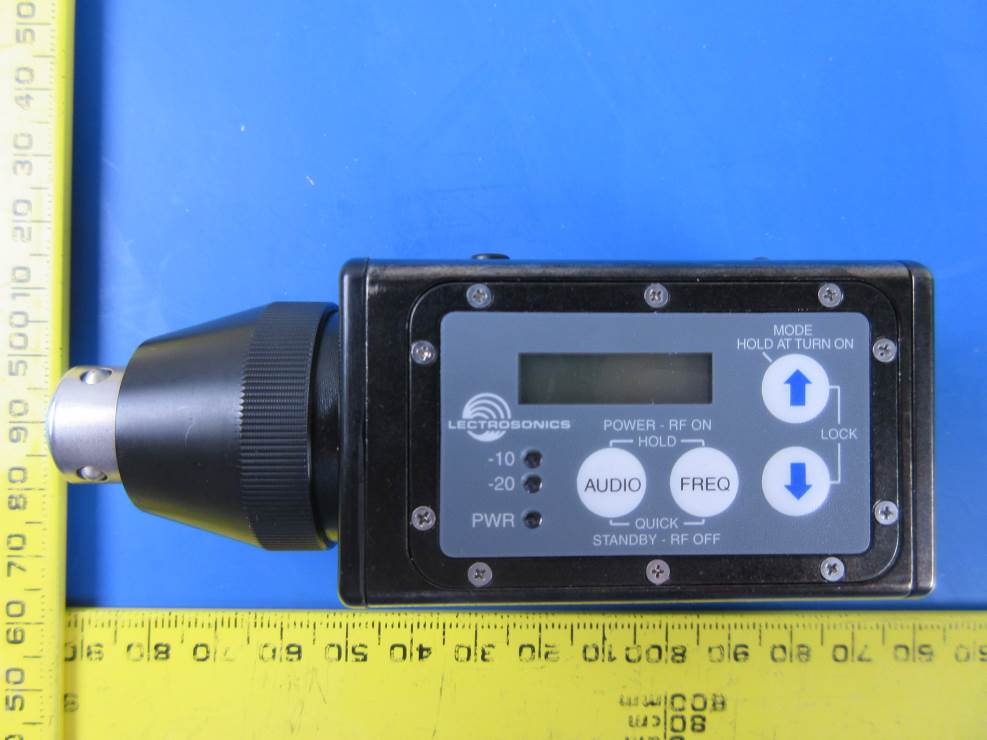

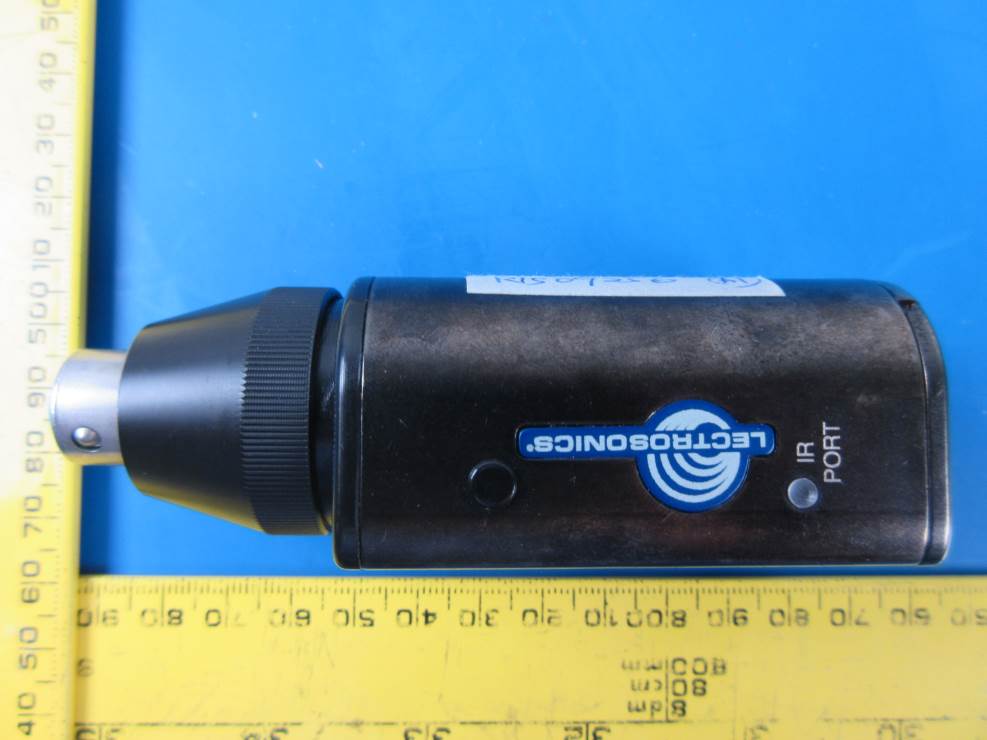

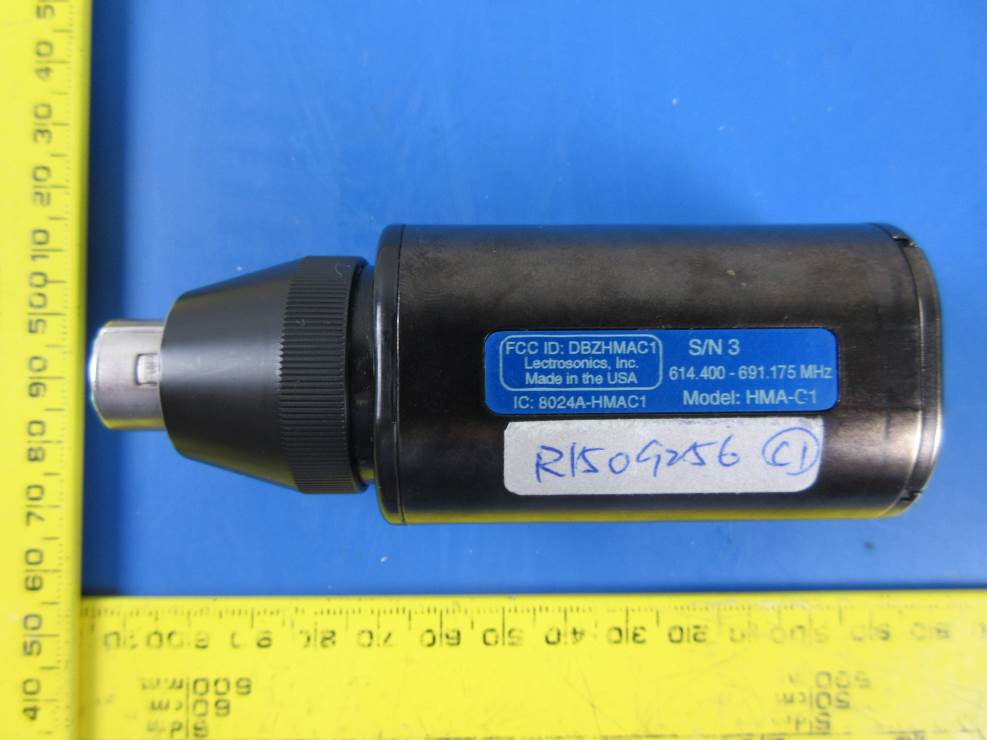

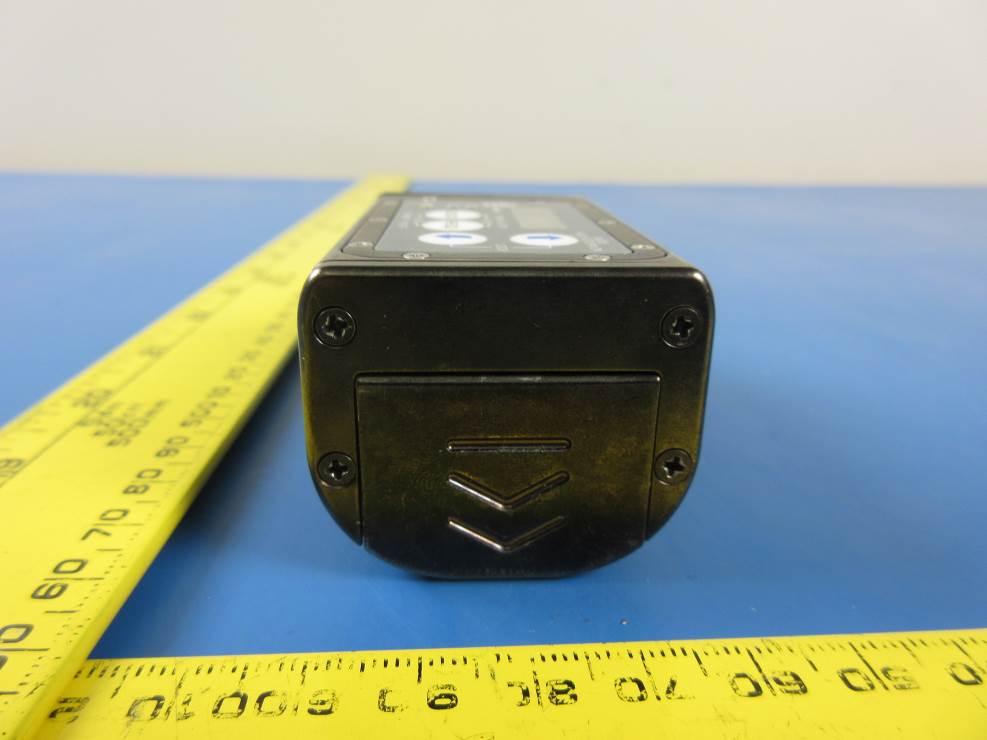

| Ext Photos | External Photos | 2016-03-23 | PDF 483.7 KB |
| FCC ID Label | ID Label/Location Info | 2016-03-23 | PDF 74.5 KB |
| Block Diagram | Block Diagram | 2016-03-23 | PDF 123.9 KB |

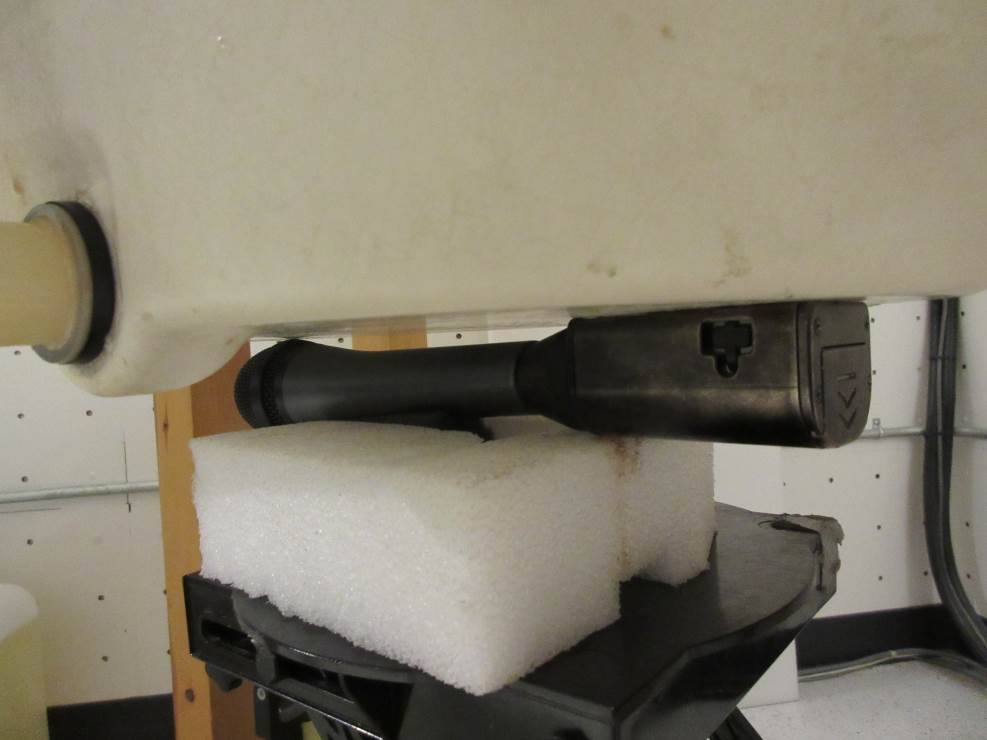

| SAR Setup Photos | Test Setup Photos | 2016-03-23 | PDF 141 KB |

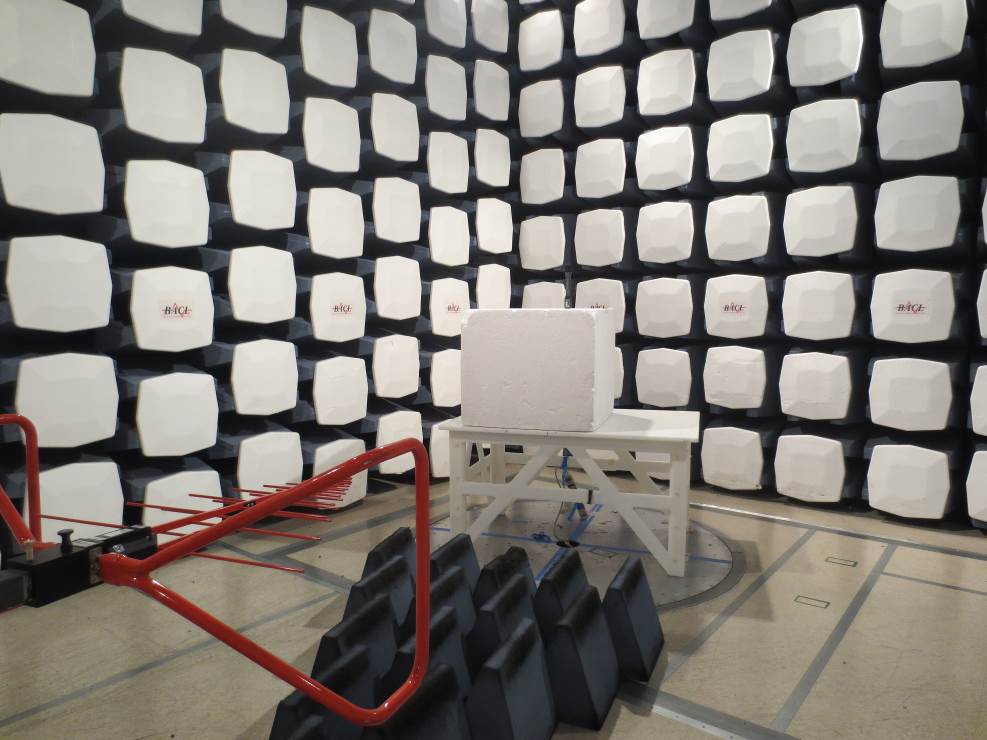

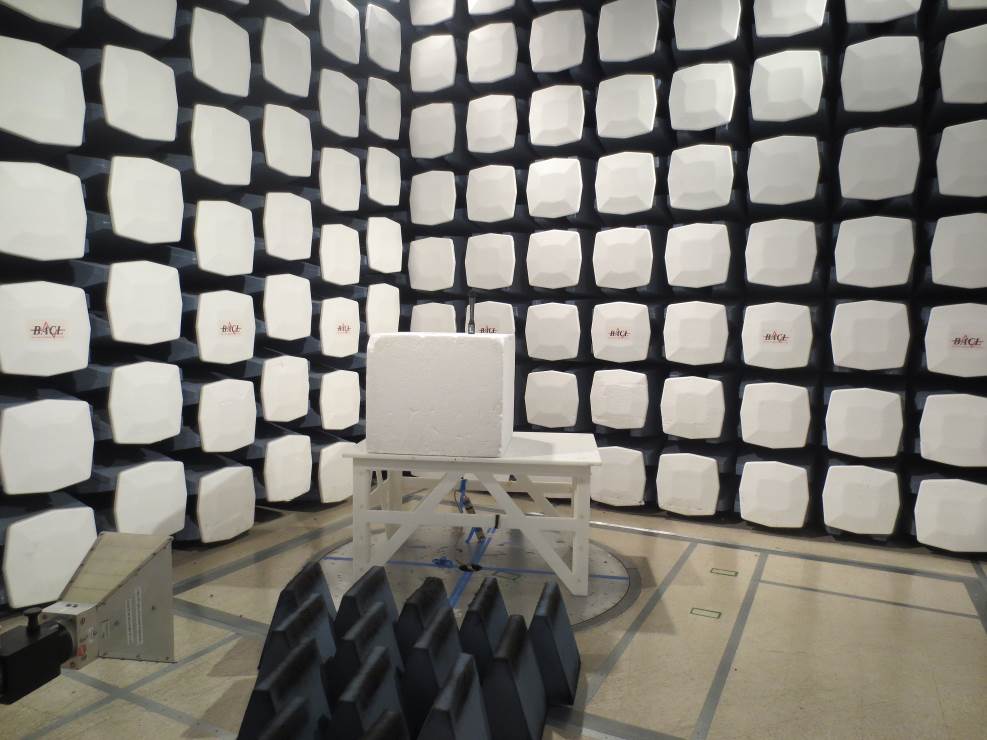

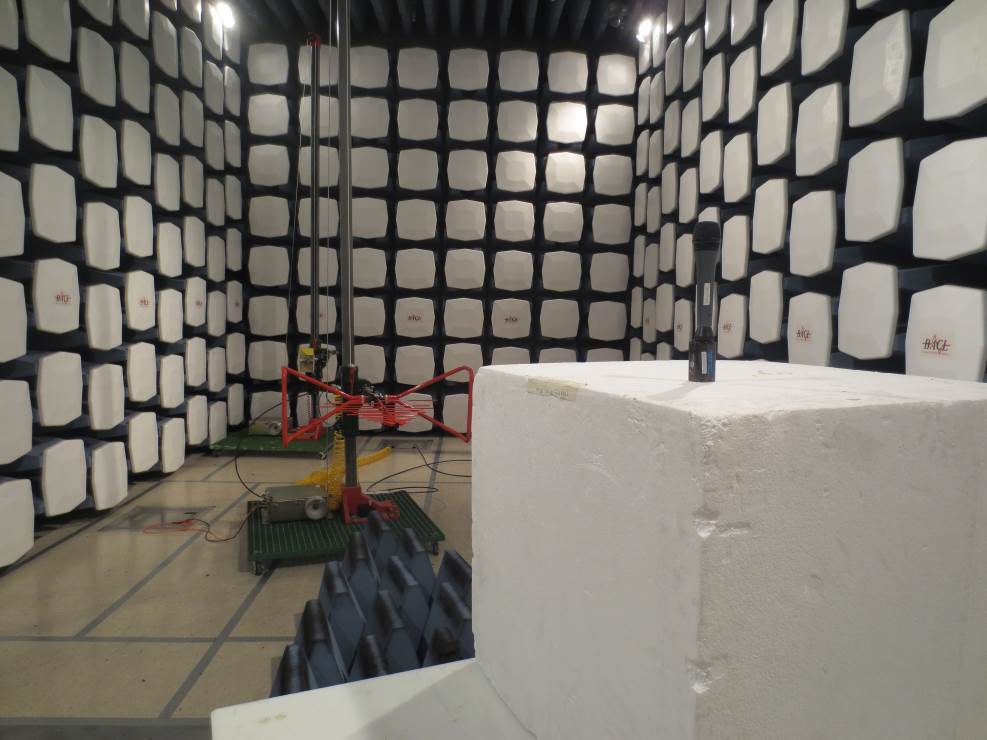

| Setup Photos | Test Setup Photos | 2016-03-23 | PDF 395 KB |
| Test Report | Test Report | 2016-03-23 | PDF 397.3 KB |
| Confidentiality Letter | Cover Letter(s) | 2016-03-23 | PDF 324.7 KB |
| POA | Cover Letter(s) | 2016-03-23 | PDF 79.5 KB |
| SAR Report | RF Exposure Info | 2016-03-23 | PDF 4.1 MB |
| Schematics Metadata only | Schematics | PDF 267.9 KB | |
| Circuit Description Metadata only | Operational Description | PDF 27.5 KB | |
| SAR Evaluation KDB Metadata only | Operational Description | PDF 66.4 KB | |
| Parts List Metadata only | Parts List/Tune Up Info | PDF 16 KB | |
| Tune up Procedure Metadata only | Parts List/Tune Up Info | PDF 97.2 KB |
Application Information
| Application ID | RXdAChnsx3Rmb0uNkeXJ4w== |
|---|---|
| Final Action Date | 2016-03-23 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0007067481 |
| Model | HMAC1 |
| Frequency Range | 614.4-691.175 MHz |
| Equipment Class | TBT - Licensed Broadcast Transmitter Worn on Body |
| Device Description | Wireless Microphone Transmitter |
| Responsible Party | Robert Cunnings, Vice President, Engineering, cunnings@lectrosonics.com , 505-892-4501 |
| Test Firm | Lisa Tang, Bay Area Compliance Laboratories Corporation, lisat@baclcorp.com  , 408-732-9162 |
| TCB Email | bacl.regulatory@baclcorp.com |
| TCB Scope | B2: General Mobile Radio And Broadcast Services equipment in the following 47 CFR Parts 22 (non-cellular) 73, 74, 90, 95, 97, & 101 (all below 3 GHz) |
| Short-Term Confidentiality | Yes |
| Short-Term Confidentiality Date | 09/19/2016 |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
| Grant Comments | Power listed is conducted. SAR compliance with accessories for portable use conditions have been evaluated as described in this filing. The antenna(s) used for this transmitter must not transmit simultaneously with any other antenna or transmitter. The highest reported SAR values for Body-worn and Hand held conditions are 0.08 W/kg and 0.45 W/kg. |
