M2C Active Antenna Combiner Label Diagram - FCC ID DBZM2C
FCC ID DBZM2C

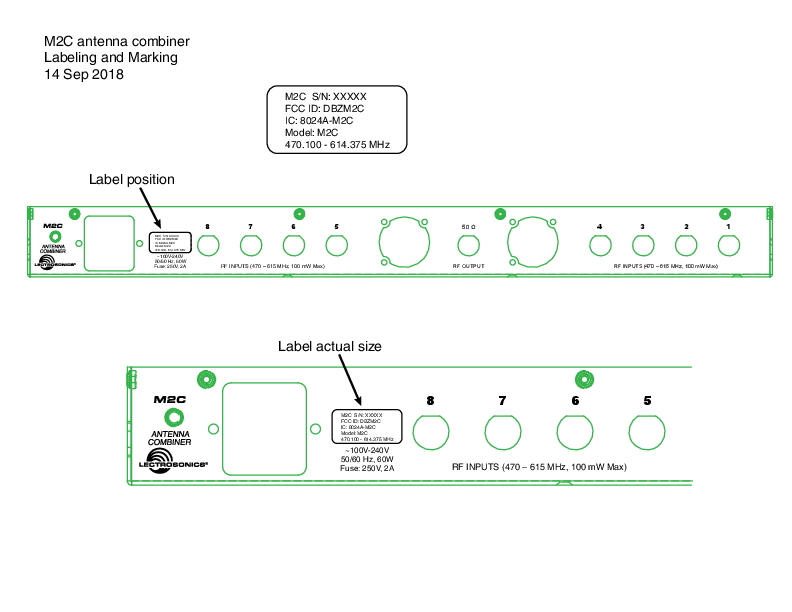

Product Label
Active Antenna Combiner
Document preview loads when visible.
Document Details
| FCC ID | DBZM2C |
|---|---|
| Document ID | 4020622 |
| Document Type | ID Label/Location Info |
| Description | Product Label |
| Document Title | M2C-Labeling |
| Applicant | Lectrosonics Inc |
| Equipment Class | Active Antenna Combiner |
| Product Code | M2C |
| Application ID | hkF0q3BRzrQttPaTSH2KiQ== |
| Application Purpose | Original Equipment |
| Application Date | 2018-09-27 |
| Frequency Range | 470.1-614.375 MHz |
| FRN | 0007067481 |
| Test Firm | Bureau Veritas Consumer Products Services, Inc. |
| Certified By | Robert Cunnings |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | No |
| Short-Term Confidentiality Date | 03/26/2019 |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | No |
| Composite Part | No |
| Submitted | 2018-09-27 |
| Available | 2018-09-27 |
| Created | 2018-09-14 |
| Modified | 2018-09-14 |
| Pages | 1 |
| File Type | Adobe Acrobat PDF |
| File Size | 233213 |
| File SHA-256 | 8aed5f7523182437dc66e2e1fa1b07fd689f7f9b7bac30d3f84e47aee7acba4c |
| PDF Metadata Producer | Adobe PDF library 15.00 Adobe Illustrator(R) 17.0 |
| FCC.gov Sources | FCC.gov 4020622 |
