FCC ID DGF-TSSDW4014V
3M Electronic Monitoring 1-Piece GPS Offender Tracking Device
by 3M Company
Grantee Code: DGF Product Code: TSSDW4014V
Latest application date: 2016-01-28
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 418 MHz | Original Equipment | 2016-01-28 |
| 824.7-848.31 MHz | Original Equipment | 2016-01-28 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User manual | Users Manual | 2016-01-28 | PDF 1.5 MB |
| Users manual | Users Manual | 2016-01-28 | PDF 1.5 MB |
| External photo | External Photos | 2016-01-28 | PDF 224.1 KB |
| External photos | External Photos | 2016-01-28 | PDF 224.1 KB |
| ID label and location info | ID Label/Location Info | 2016-01-28 | PDF 83.5 KB |

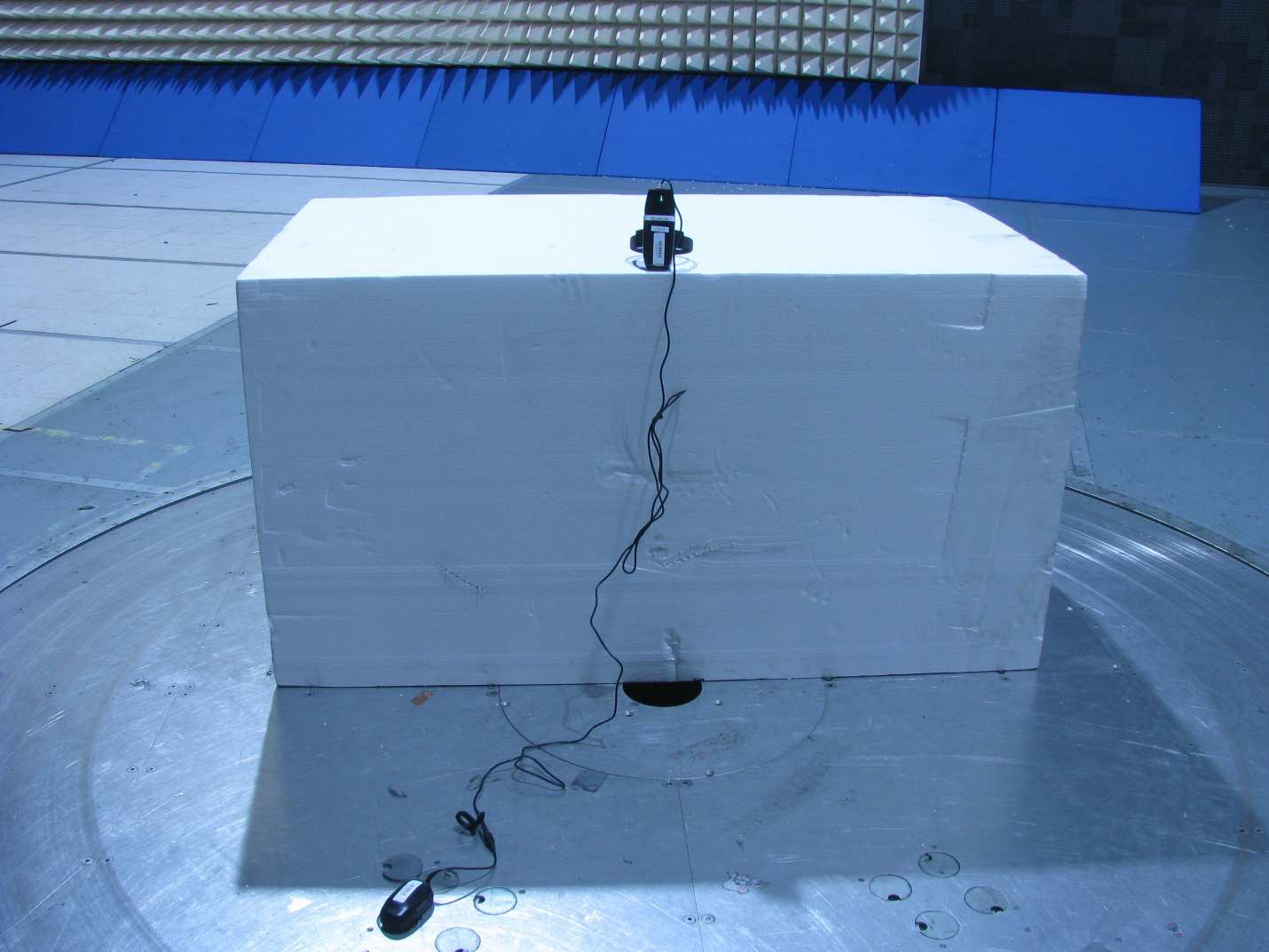

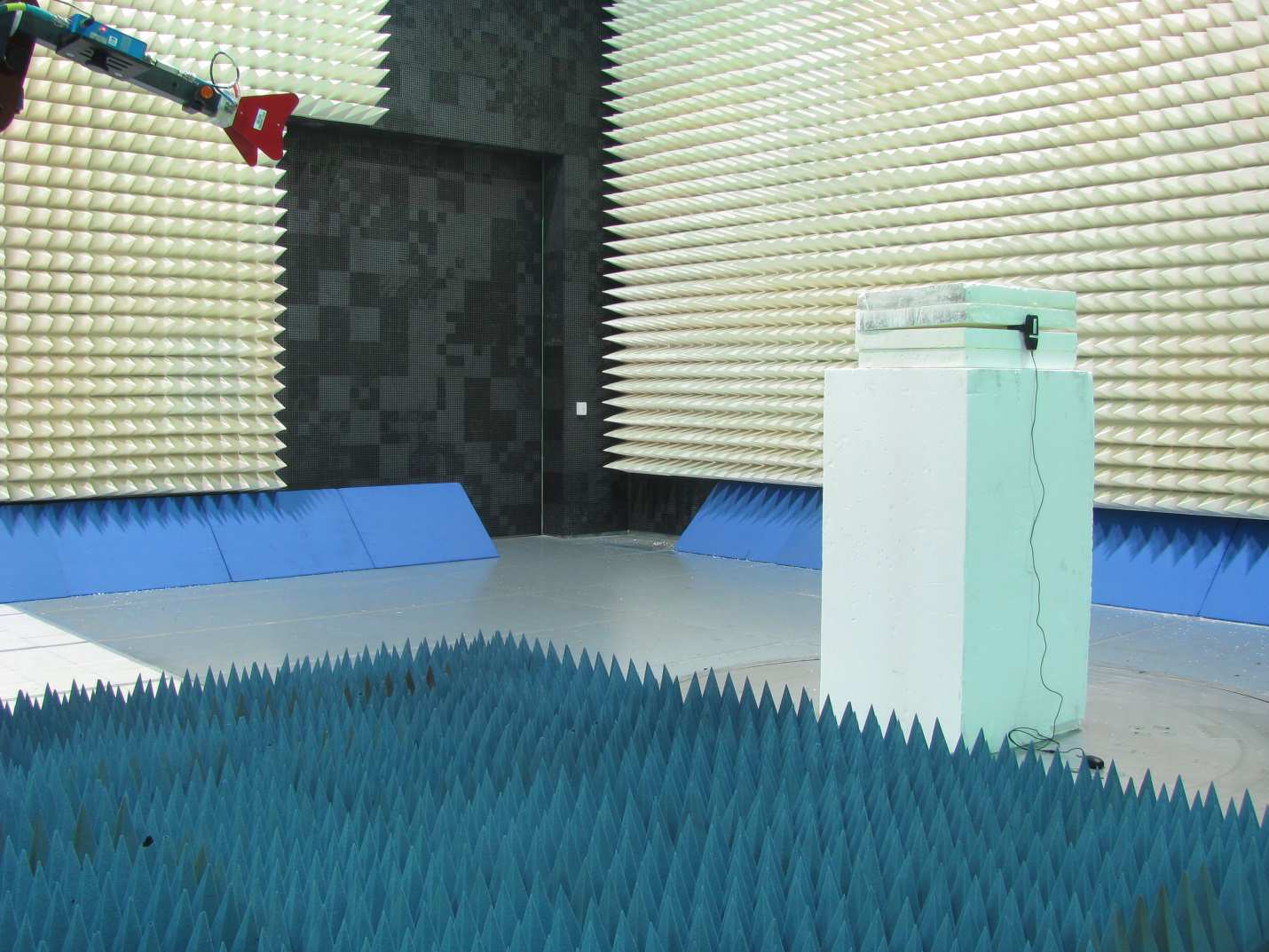

| Test setup photos | Test Setup Photos | 2016-01-28 | PDF 356 KB |
| SAR test report | RF Exposure Info | 2016-01-28 | PDF 1.7 MB |
| Test report 15.231 | Test Report | 2016-01-28 | PDF 974.8 KB |
| Test report Part 22/24 ,limited tests | Test Report | 2016-01-28 | PDF 126.8 KB |
| Test report Part 22/24/ original | Test Report | 2016-01-28 | PDF 1.3 MB |
| Confidentiality letter | Cover Letter(s) | 2016-01-28 | PDF 25.3 KB |
| Letter of agency | Cover Letter(s) | 2016-01-28 | PDF 21.2 KB |
| Letter of agensy | Cover Letter(s) | 2016-01-28 | PDF 21.2 KB |
| Request for confidentiality | Cover Letter(s) | 2016-01-28 | PDF 25.3 KB |
| Simultaneous transmission RF exposure calculation | RF Exposure Info | 2016-01-28 | PDF 35.5 KB |
| Internal photos Metadata only | Internal Photos | PDF 417.7 KB | |
| Block diagram Metadata only | Block Diagram | PDF 311.4 KB | |
| Block diagram of the module Metadata only | Block Diagram | PDF 144.4 KB | |
| Schematics Metadata only | Schematics | PDF 1,010.8 KB | |
| Operational description Metadata only | Operational Description | PDF 1.3 MB | |
| Operational description of the module Metadata only | Operational Description | PDF 803.3 KB | |
| Part list Metadata only | Parts List/Tune Up Info | PDF 71.9 KB | |
| Part list (module) Metadata only | Parts List/Tune Up Info | PDF 30.6 KB | |
| Tune up info Metadata only | Parts List/Tune Up Info | PDF 98.8 KB |
Application Information
| Application ID | ziVq44qrUq7Pw6+NaC5RPw== |
|---|---|
| Final Action Date | 2016-01-28 |
| Application Purpose | Original Equipment |
| Applicant FRN | 0005881040 |
| Model | TSSDW4014V |
| Frequency Range | 418 MHz |
| Equipment Class | DXT - Part 15 Low Power Transceiver, Rx Verified |
| Device Description | 3M Electronic Monitoring 1-Piece GPS Offender Tracking Device |
| Responsible Party | Yuriy Litvinov, Lead EMC Engineer, ylitvinov@mmm.com  , 651-778-6336 |
| Technical Contact | Stan Dupont, 3M Company, sdupont@mmm.com , 813 749 5454 |
| Test Firm | James Sudduth, Intertek Testing Services NA, james.sudduth@intertek.com  , 859-226-1037 |
| TCB Email | TCB_Admin@intertek.com |
| TCB Scope | A1: Low Power Transmitters below 1 GHz (except Spread Spectrum), Unintentional Radiators, EAS (Part 11) & Consumer ISM devices |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | No |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| ziVq44qrUq7Pw6+NaC5RPw== | 2016-01-28 | Original Equipment |
| AN/zlnyE+qMiP5voVrRl4w== | 2016-01-28 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application ziVq44qrUq7Pw6+NaC5RPw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Intertek Testing Services NA, Inc. 70 Codman Hill Road Boxborough, MA 01719 |
Date of Grant: 01/28/2016 Application Dated: 01/27/2016 |
| 3M Company |
| 3M Center |
| Saint Paul, MN 55144 |
| Attention: Yuriy Litvinov , Lead EMC Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | DGF-TSSDW4014V |
| Name of Grantee: | 3M Company |
| Equipment Class: | Part 15 Low Power Transceiver, Rx Verified |
| Notes: | 3M Electronic Monitoring 1-Piece GPS Offender Tracking Device |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 418.0 - 418.0 | ||||
| 15C | 433.92 - 433.92 |
EAS Grant - Application ziVq44qrUq7Pw6+NaC5RPw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
3M Company 3M Center Saint Paul, MN 55144 United States |
Date of Grant: 01/28/2016 Application Dated: 01/27/2016 |
| Attention: Yuriy Litvinov , Lead EMC Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | DGF-TSSDW4014V |
| Name of Grantee: | 3M Company |
| Equipment Class: | Part 15 Low Power Transceiver, Rx Verified |
| Notes: | 3M Electronic Monitoring 1-Piece GPS Offender Tracking Device |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 15C | 418.0 - 418.0 | ||||
| 15C | 433.92 - 433.92 |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Intertek Testing Services NA, Inc. 70 Codman Hill Road Boxborough, MA 01719 |
Date of Grant: 01/28/2016 Application Dated: 01/27/2016 |
| 3M Company |
| 3M Center |
| Saint Paul, MN 55144 |
| Attention: Yuriy Litvinov , Lead EMC Engineer |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | DGF-TSSDW4014V |
| Name of Grantee: | 3M Company |
| Equipment Class: | PCS Licensed Transmitter worn on body |
| Notes: | 3M Electronic Monitoring 1-Piece GPS Offender Tracking Device |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 22H | 824.7 - 848.31 | 0.292 | 2.5 PM | 1M28F9W | |
| 24E | 1851.25 - 1908.75 | 0.278 | 2.5 PM | 1M28F9W |
| Power listed is conducted. The antennas are internal permanent and not changeable. SAR compliance is limited to ankle-worn operation when used with a strap provided by the manufacturer as documented in this filing. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. End users must be informed of body-worn requirements for satisfying RF Exposure compliance. Highest reported SAR values for ankle-worn operation is: 0.62 W/kg. |
