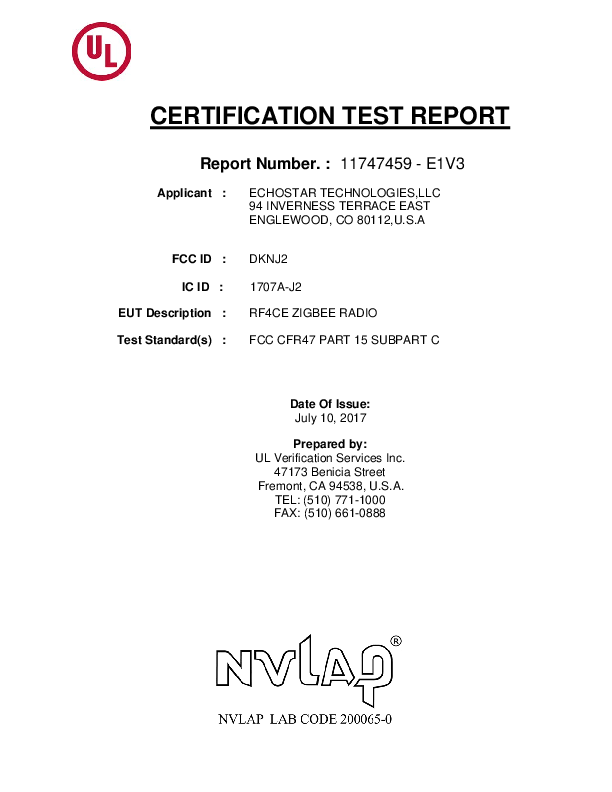

CERTIFICATION TEST REPORT
Report Number. : 11747459 - E1V3
Applicant :
FCC ID :
IC ID :
ECHOSTAR TECHNOLOGIES,LLC
94 INVERNESS TERRACE EAST
ENGLEWOOD, CO 80112,U.S.A
DKNJ2
1707A-J2
EUT Description :
RF4CE ZIGBEE RADIO
Test Standard(s) :
FCC CFR47 PART 15 SUBPART C
Date Of Issue:
July 10, 2017
Prepared by:
UL Verification Services Inc.
47173 Benicia Street
Fremont, CA 94538, U.S.A.
TEL: (510) 771-1000
FAX: (510) 661-0888
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
Revision History
Issue
Date
Revisions
Revised By
V1
06/23/17
Initial Issue
D. Coronia
V2
07/06/17
D. Coronia
V3
07/10/17
Updated Section 5.2, 5.5 9.1, 9.2, 10 & 11
Updated Section 5.2 & 8.4 and remove IC standard
reference
Rev.
E.Yu
Page 2 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
TABLE OF CONTENTS
1.
ATTESTATION OF TEST RESULTS .................................................................................... 5
2.
TEST METHODOLOGY ........................................................................................................ 6
3.
FACILITIES AND ACCREDITATION .................................................................................... 6
4.
CALIBRATION AND UNCERTAINTY .................................................................................. 6
5.
4.1.
MEASURING INSTRUMENT CALIBRATION ................................................................ 6
4.2.
SAMPLE CALCULATION ............................................................................................... 6
4.3.
MEASUREMENT UNCERTAINTY ................................................................................. 7
EQUIPMENT UNDER TEST ................................................................................................. 8
5.1.
DESCRIPTION OF EUT ................................................................................................. 8
5.2.
MAXIMUM OUTPUT POWER ........................................................................................ 8
5.3.
DESCRIPTION OF AVAILABLE ANTENNAS ................................................................ 8
5.4.
WORST-CASE CONFIGURATION AND MODE ............................................................ 8
5.5.
DESCRIPTION OF TEST SETUP .................................................................................. 9
6.
TEST AND MEASUREMENT EQUIPMENT ....................................................................... 11
7.
SUMMARY TABLE ............................................................................................................. 12
8.
ANTENNA PORT TEST RESULTS .................................................................................... 13
8.1.
ON TIME, DUTY CYCLE .............................................................................................. 13
8.2. 6 dB BANDWIDTH ....................................................................................................... 14
8.2.1. 6 dB BANDWIDTH PLOTS AND TABLE............................................................... 15
8.3. 99% BANDWIDTH ........................................................................................................ 16
8.3.1. 99% BANDWIDTH PLOTS AND TABLE ............................................................... 17
8.4. OUTPUT POWER ........................................................................................................ 18
8.4.1. OUTPUT POWER PLOTS .................................................................................... 19
8.5.
AVERAGE POWER ...................................................................................................... 20
8.6. POWER SPECTRAL DENSITY ................................................................................... 21
8.6.1. POWER SPECTRAL DENSITY PLOTS AND TABLE........................................... 22
8.7. CONDUCTED SPURIOUS EMISSIONS ...................................................................... 23
8.7.1. BANDEDGE AND SPURIOUS EMISSIONS PLOTS ............................................ 24
9.
RADIATED TEST RESULTS .............................................................................................. 25
9.1.
TRANSMITTER ABOVE 1 GHz ................................................................................... 26
9.2.
WORST-CASE BELOW 1 GHz .................................................................................... 40
9.3.
WORST-CASE BELOW 30 MHz .................................................................................. 42
9.4.
WORST-CASE 18 to 26 GHz ....................................................................................... 43
Page 3 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
10.
AC POWER LINE CONDUCTED EMISSIONS ............................................................... 45
11.
SETUP PHOTOS ............................................................................................................. 48
Page 4 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
1. ATTESTATION OF TEST RESULTS
COMPANY NAME:
Echostar Technologies LLC
EUT DESCRIPTION:
RF4CE ZIGBEE RADIO
MODEL:
JOEY 3.0 E97
SERIAL NUMBER:
RBEXSD00303D (Conducted),
RBEXSD00254D ( Radiated)
DATE TESTED:
JUNE 14- JULY 10, 2017
APPLICABLE STANDARDS
STANDARD
TEST RESULTS
CFR 47 Part 15 Subpart C
Pass
UL Verification Services Inc. tested the above equipment in accordance with the requirements
set forth in the above standards. All indications of Pass/Fail in this report are opinions
expressed by UL Verification Services Inc. based on interpretations and/or observations of test
results. Measurement Uncertainties were not taken into account and are published for
informational purposes only. The test results show that the equipment tested is capable of
demonstrating compliance with the requirements as documented in this report.
Note: The results documented in this report apply only to the tested sample, under the
conditions and modes of operation as described herein. This document may not be altered or
revised in any way unless done so by UL Verification Services Inc. and all revisions are duly
noted in the revision section. Any alteration of this document not carried out by UL Verification
Services Inc. will constitute fraud and shall nullify the document. This report must not be used
by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any
agency of the Federal Government, or any agency of any government.
Approved & Released For
UL Verification Services Inc. By:
Tested By:
DAN CORONIA
CONSUMER TECHNOLOGY DIVISION
WiSE PROJECT LEAD
UL VERIFICATION SERVICES INC
ROY ZHENG
CONSUMER TECHNOLOGY DIVISION
WiSE LAB ENGINEER
UL VERIFICATION SERVICES INC
Page 5 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
2. TEST METHODOLOGY
The tests documented in this report were performed in accordance with ANSI C63.10-2013,
FCC CFR 47 Part 2, and FCC CFR 47 Part 15.
3. FACILITIES AND ACCREDITATION
The test sites and measurement facilities used to collect data are located at 47173 and 47266
Benicia Street, Fremont, California, USA. Line conducted emissions are measured only at the
47173 address. The following table identifies which facilities were utilized for radiated emission
measurements documented in this report. Specific facilities are also identified in the test results
sections.
47173 Benicia Street
47266 Benicia Street
Chamber A(IC: 2324B-1)
Chamber D(IC: 22541-1)
Chamber B(IC: 2324B-2)
Chamber E(IC: 22541-2)
Chamber C(IC: 2324B-3)
Chamber F(IC: 22541-3)
Chamber G(IC: 22541-4)
Chamber H(IC: 22541-5)
The above test sites and facilities are covered under FCC Test Firm Registration # 208313.
UL Verification Services Inc. is accredited by NVLAP, Laboratory Code 200065-0.
Chambers A through C are covered under Industry Canada company address code 2324B with
site numbers 2324B -1 through 2324B-3, respectively. Chambers D through H are covered
under Industry Canada company address code 22541 with site numbers 22541 -1 through
22541-5, respectively.
4. CALIBRATION AND UNCERTAINTY
4.1.
MEASURING INSTRUMENT CALIBRATION
The measuring equipment utilized to perform the tests documented in this report has been
calibrated in accordance with the manufacturer's recommendations, and is traceable to
recognized national standards.
4.2.
SAMPLE CALCULATION
Where relevant, the following sample calculation is provided:
Field Strength (dBuV/m) = Measured Voltage (dBuV) + Antenna Factor (dB/m) +
Cable Loss (dB) – Preamp Gain (dB)
36.5 dBuV + 18.7 dB/m + 0.6 dB – 26.9 dB = 28.9 dBuV/m
Page 6 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
4.3.
DATE: 7/10/2017
FCC ID:DKNJ2
MEASUREMENT UNCERTAINTY
Where relevant, the following measurement uncertainty levels have been estimated for tests
performed on the apparatus:
Parameter
Uncertainty
Worst Case Conducted Disturbance, 9KHz to 0.15 MHz
3.84 dB
Worst Case Conducted Disturbance, 0.15 to 30 MHz
3.65 dB
Worst Case Radiated Disturbance, 9KHz to 30 MHz
3.15 dB
Worst Case Radiated Disturbance, 30 to 1000 MHz
5.36 dB
Worst Case Radiated Disturbance, 1000 to 18000 MHz
4.32 dB
Worst Case Radiated Disturbance, 18000 to 26000 MHz
4.45 dB
Worst Case Radiated Disturbance, 26000 to 40000 MHz
5.24 dB
Uncertainty figures are valid to a confidence level of 95%.
Page 7 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
5. EQUIPMENT UNDER TEST
5.1.
DESCRIPTION OF EUT
The EUT is a RF4CE Zigbee Radio.
5.2.
MAXIMUM OUTPUT POWER
The transmitter has a maximum peak conducted output power as follows:
Frequency
Range
(MHz)
2425-2475
5.3.
Mode
Output Power
(dBm)
Output Power
(mW)
ZIGBEE
6.46
4.43
DESCRIPTION OF AVAILABLE ANTENNAS
The radio utilizes an FPCB antenna, with a maximum gain of 0dBi.
5.4.
WORST-CASE CONFIGURATION AND MODE
Radiated emission and power line conducted emission were performed with the EUT set to
transmit on the channel with higher output power as worst-case scenario.
The EUT can only be investigated in orientations X, therefore, all final radiated testing was
performed with the EUT in X orientation.
Page 8 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
5.5.
DATE: 7/10/2017
FCC ID:DKNJ2
DESCRIPTION OF TEST SETUP
SUPPORT EQUIPMENT
Support Equipment List
Manufacturer
Model
Serial Number
Description
FCC ID
AC Adapter
Liteon
PB-1180-6ES1
ETC1620121353
N/A
Support Host
IR remote
Laptop
AC/DC Adapter
Echostar
JOEY 3.0 E97
RBEXSD00254D
N/A
N/A
N/A
N/A
N/A
Lenovo
Lenovo
T460
ADLX65NCC2A
PC0C3DUA
11S45N0263Z1ZS9946S904
DoC
DoC
I/O CABLES
Cable Port
No
I/O Cable List
# of identical Connector Cable Type Cable
Remarks
ports
Type
Length (m)
AC
DC
HDMI
Ethernet
USB
Audio
TNC
AC
AC
DC
HDMI
RJ45
USB
Audio
TNC
AC
Un‐Shielded1.2
Un‐Shielded1.5
Shielded
1.2
Un‐Shielded1.5
Un‐Shielded0.1
Shielded
0.5
Shielded
0.1
Un‐Shielded1.2
AC Ma i ns to AC/DC Ada pter
AC/DC Adapter to Laptop
Laptop to EUT
Laptop to EUT
USB Dongle
Audio cable
NA
AC Mains to EUT
TEST SETUP
EUT was controlled with IR remote to enable ZIGBEE communications.
Page 9 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
SETUP DIAGRAM FOR TESTS
Note:
5 USB Dongle termination
6 Audio 75 ohm audio cable termination
7 Antenna 50 ohm termination
Page 10 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
6. TEST AND MEASUREMENT EQUIPMENT
The following test and measurement equipment was utilized for the tests documented in this
report:
TEST EQUIPMENT LIST
Description
Manufacturer
Model
Asset
Cal Due
Sunol Sciences
JB3
408
11/10/17
Antenna, Active Loop 9kHz-30MHz
ETS-Lindgren
6502
T1683
02/17/18
Antenna, Horn 1-18GHz
ETS Lindgren
3117
712
01/30/18
Antenna, Broadband Hybrid
30MHz to 2000MHz
Amplifier, 1-18GHz
Amplifier, 10kHz-1GHz
Amplifier, 1-8 GHz
Spectrum Analyzer, PXA,
3Hz to 44GHz
Description
Radiated Software
Conducted Software
Antenna Port Software
Miteq
AFS42-00101800-25-S-42
931
08/26/17
Agilent (Keysight)
Technologies
8447D
T15
08/26/17
MITEQ
AMF-4D-01000800-30-29P
1156
02/15/18
Keysight
N9030A
905
01/11/18
Test Software List
Manufacturer
Model
UL
UL EMC
UL
UL EMC
UL
UL RF
Version
Ver 9.5, June 24, 2015
Ver 9.5, May 26, 2015
Ver 3.9.1, Dec 28, 2015
Page 11 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
7. SUMMARY TABLE
FCC Part
Section
15.247
(a)(2)
2.1051,
15.247 (d)
15.247
15.247
15.207 (a)
15.205,
15.209
Test Description
Occupied Bandwidth (6dB)
Band Edge / Conducted
Spurious Emission
TX conducted output power
PSD
AC Power Line conducted
emissions
Radiated Spurious Emission
Test Limit
Test
Condition
>500KHz
-20dBc
Test
Result
Pass
Conducted
<30dBm
<8dBm
Pass
Pass
Pass
Section 10
Pass
Radiated
< 54dBuV/m
Pass
Page 12 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
8. ANTENNA PORT TEST RESULTS
8.1.
ON TIME, DUTY CYCLE
LIMITS
None; for reporting purposes only
PROCEDURE
KDB 558074 Zero-Span Spectrum Analyzer Method
RESULTS
ON TIME AND DUTY CYCLE RESULTS
Mode
ON Time
Period
Duty Cycle
Duty
Cycle
(msec)
(msec)
(linear)
(%)
(dB)
(kHz)
1.00
1.00
1.00
100.00%
0.00
0.010
ZIGBEE
Duty Cycle
1/T
Correction Factor Minimum VBW
DUTY CYCLE PLOTS
NOTE: ‐‐
Page 13 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
8.2.
DATE: 7/10/2017
FCC ID:DKNJ2
6 dB BANDWIDTH
LIMITS
FCC §15.247 (a) (2)
The minimum 6 dB bandwidth shall be at least 500 kHz.
TEST PROCEDURE
The transmitter output is connected to a spectrum analyzer. The RBW is set to 100 kHz and the
VBW is set to 300 kHz. The sweep time is coupled.
RESULTS
Page 14 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
8.2.1. 6 dB BANDWIDTH PLOTS AND TABLE
TEST RESULT TABLE
Channel
Low
Middle
High
Frequency
(MHz)
2425
2450
2475
LOW CHANNEL
6 dB Bandwidth
(MHz)
1.596
1.656
1.434
MID CHANNEL
HIGH CHANNEL
Page 15 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
8.3.
DATE: 7/10/2017
FCC ID:DKNJ2
99% BANDWIDTH
LIMITS
None; for reporting purposes only.
TEST PROCEDURE
Refer to KDB558074 D01 DTS Meas Guidance v04: The transmitter output is connected to the
spectrum analyzer. The RBW is set to 1% to 3% of the 99 % bandwidth and to 1% of the span.
The VBW is set to 3 times the RBW. The sweep time is coupled. The spectrum analyzer internal
99% bandwidth function is utilized.
RESULTS
Page 16 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
8.3.1. 99% BANDWIDTH PLOTS AND TABLE
TEST RESULT TABLE
Channel
Low
Middle
High
Frequency
(MHz)
2425
2450
2475
LOW CHANNEL
99% Bandwidth
(MHz)
2.641
2.605
2.576
MID CHANNEL
HIGH CHANNEL
Page 17 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
8.4.
DATE: 7/10/2017
FCC ID:DKNJ2
OUTPUT POWER
LIMITS
FCC §15.247
The maximum antenna gain is less than or equal to 6 dBi, therefore the limit is 30 dBm.
TEST PROCEDURE
Peak power is measured using KDB558074 D01 DTS Meas Guidance v04 spectrum analyzer.
RESULTS
Page 18 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
8.4.1. OUTPUT POWER PLOTS
TEST RESULT TABLE
Channel
Low
Middle
High
LOW CHANNEL
Frequency
Output
Limit Margin
(MHz)
Power (dBm) (dBm)
(dB)
2425
6.461
30
-23.539
2450
6.264
30
-23.736
2475
6.079
30
-23.921
MID CHANNEL
HIGH CHANNEL
NOTE:
Page 19 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
8.5.
DATE: 7/10/2017
FCC ID:DKNJ2
AVERAGE POWER
LIMITS
None; for reporting purposes only.
TEST PROCEDURE
The transmitter output is connected to a power meter.
RESULTS
The cable assembly insertion loss of 10.5 dB (including 10 dB pad and 0.5 dB cable) was
entered as an offset in the power meter to allow for direct reading of power.
Channel
Low
Middle
High
Frequency
(MHz)
Average Power
(dBm)
2425
6.100
2450
5.980
2475
5.840
NOTE: ‐‐
Page 20 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
8.6.
DATE: 7/10/2017
FCC ID:DKNJ2
POWER SPECTRAL DENSITY
LIMITS
FCC §15.247
The power spectral density conducted from the transmitter to the antenna shall not be greater
than 8 dBm in any 3 kHz band during any time interval of continuous transmission.
TEST PROCEDURE
Power Spectral Density was performed utilizing the “Method PKPSD (Peak PSD)” under
KDB558074 D01 DTS Meas Guidance v04.
RESULTS
Page 21 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
8.6.1. POWER SPECTRAL DENSITY PLOTS AND TABLE
TEST RESULT TABLE
LOW CHANNEL
Frequency
(MHz)
PSD
(dBm)
Limit
(dBm)
Margin
(dB)
Middle
2425
2450
‐1.429
‐1.097
‐9.429
‐9.097
High
2475
‐1.167
‐9.167
Channel
Low
MID CHANNEL
HIGH CHANNEL
NOTE:
Page 22 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
8.7.
DATE: 7/10/2017
FCC ID:DKNJ2
CONDUCTED SPURIOUS EMISSIONS
LIMITS
FCC §15.247 (d)
Output power was measured based on the use of a peak measurement, therefore the required
attenuation is 20 dB.
TEST PROCEDURE
The transmitter output is connected to a spectrum analyzer. The resolution bandwidth is set to
100 kHz. The video bandwidth is set to 300 kHz.
The spectrum from 30 MHz to 26 GHz is investigated with the transmitter set to the lowest,
middle, and highest channels.
RESULTS
Page 23 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
8.7.1. BANDEDGE AND SPURIOUS EMISSIONS PLOTS
LOW CHANNEL BANDEDGE
HIGH CHANNEL BANDEDGE
MID CHANNEL REFERENCE
LOW CHANNEL SPURIOUS
MID CHANNEL SPURIOUS
HIGH CHANNEL SPURIOUS
NOTE:--
Page 24 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
9. RADIATED TEST RESULTS
LIMITS
FCC §15.205 and §15.209
IC RSS-GEN, Section 8.9 and 8.10.
Frequency Range
(MHz)
30 - 88
88 - 216
216 - 960
Above 960
Field Strength Limit
(uV/m) at 3 m
100
150
200
500
Field Strength Limit
(dBuV/m) at 3 m
40
43.5
46
54
TEST PROCEDURE
The EUT is placed on a non-conducting table 80 cm above the ground plane for below 1GHz
and 150cm for above 1GHz. The antenna to EUT distance is 3 meters. The EUT is configured in
accordance with ANSI C63.10. The EUT is set to transmit in a continuous mode.
For measurements below 1 GHz the resolution bandwidth is set to 100 kHz for peak detection
measurements or 120 kHz for quasi-peak detection measurements. Peak detection is used
unless otherwise noted as quasi-peak.
For measurements above 1 GHz the resolution bandwidth is set to 1 MHz, then the video
bandwidth is set to 1 MHz for peak and average measurements.
The spectrum from 30 MHz to 26 GHz is investigated with the transmitter set to the lowest,
middle, and highest channels in the 2.4 GHz band.
The frequency range of interest is monitored at a fixed antenna height and EUT azimuth. The
EUT is rotated through 360 degrees to maximize emissions received. The antenna is scanned
from 1 to 4 meters above the ground plane to further maximize the emission. Measurements are
made with the antenna polarized in both the vertical and the horizontal positions.
RESULTS
Page 25 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
9.1.
DATE: 7/10/2017
FCC ID:DKNJ2
TRANSMITTER ABOVE 1 GHz
RESTRICTED BANDEDGE (LOW CHANNEL)
HORIZONTAL PEAK PLOT
Page 26 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
HORIZONTAL AVERAGE PLOT
HORIZONTAL DATA
Frequency
(GHz)
Meter
Reading
(dBuV)
Det
AF T712 (dB/m)
Amp/Cbl/Fltr/Pa
d (dB)
Corrected
Reading
(dBuV/m)
Average Limit
(dBuV/m)
Margin
(dB)
Peak Limit
(dBuV/m)
PK Margin
(dB)
Azimuth
(Degs)
Height
(cm)
Polarity
* 2.39
* 2.385
* 2.39
* 2.378
37.02
37.88
26.46
26.81
Pk
Pk
RMS
RMS
31.9
31.8
31.9
31.9
‐20.8
‐20.9
‐20.8
‐20.9
48.12
48.98
37.56
37.81
‐
‐
54
54
‐
‐
‐16.44
‐16.19
74
74
‐
‐
‐25.88
‐25.02
‐
‐
356
356
356
356
400
400
400
400
* - indicates frequency in CFR47 Pt 15 / IC RSS-Restricted Band
Pk - Peak detector
RMS - RMS detection
Page 27 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
VERTICAL PEAK PLOT
Page 28 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
VERTICAL AVERAGE PLOT
VERTICAL DATA
Frequency
(GHz)
Meter
Reading
(dBuV)
Det
AF T712 (dB/m)
Amp/Cbl/Fltr/Pa
d (dB)
Corrected
Reading
(dBuV/m)
Average Limit
(dBuV/m)
Margin
(dB)
Peak Limit
(dBuV/m)
PK Margin
(dB)
Azimuth
(Degs)
Height
(cm)
Polarity
* 2.39
* 2.363
* 2.39
* 2.386
36.17
36.84
25.03
26.29
Pk
Pk
RMS
RMS
31.9
31.9
31.9
31.9
‐20.8
‐20.7
‐20.8
‐20.9
47.27
48.04
36.13
37.29
‐
‐
54
54
‐
‐
‐17.87
‐16.71
74
74
‐
‐
‐26.73
‐25.96
‐
‐
262
262
262
262
147
147
147
147
* - indicates frequency in CFR47 Pt 15 / IC RSS-Restricted Band
Pk - Peak detector
RMS - RMS detection
Page 29 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
AUTHORIZED BANDEDGE (HIGH CHANNEL)
HORIZONTAL PEAK PLOT
Page 30 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
HORIZONTAL AVERAGE PLOT
HORIZONTAL DATA
Frequency
(GHz)
* 2.484
* 2.484
* 2.484
* 2.484
Meter
Reading
(dBuV)
42.12
41.37
32.09
32.63
Det
AF T862
(dB/m)
Amp/Cbl/Fltr/Pad
(dB)
Pk
Pk
RMS
RMS
32.3
32.3
32.3
32.3
‐23.1
‐23.1
‐23.1
‐23.1
Corrected
Reading
(dBuV/m)
51.32
50.57
41.29
41.83
Average Limit
(dBuV/m)
Margin
(dB)
Peak Limit
(dBuV/m)
‐
‐
54
54
‐
‐
‐12.71
‐12.17
74
74
‐
‐
PK
Margin
(dB)
‐22.68
‐23.43
‐
‐
Azimuth
(Degs)
Height
(cm)
Polarity
254
254
254
254
126
126
126
126
* - indicates frequency in CFR47 Pt 15 / IC RSS-Restricted Band
Pk - Peak detector
RMS - RMS detection
Page 31 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
VERTICAL PEAK PLOT
Page 32 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
VERTICAL AVERAGE PLOT
VERTICAL DATA
Frequency
(GHz)
* 2.484
* 2.486
* 2.484
* 2.486
Meter
Reading
(dBuV)
40.96
38.78
30.82
29.8
Det
AF T862
(dB/m)
Amp/Cbl/Fltr/Pad
(dB)
Pk
Pk
RMS
RMS
32.3
32.3
32.3
32.3
‐23.1
‐23.1
‐23.1
‐23.1
Corrected
Reading
(dBuV/m)
50.16
47.98
40.02
39
Average Limit
(dBuV/m)
Margin
(dB)
Peak Limit
(dBuV/m)
‐
‐
54
54
‐
‐
‐13.98
‐15
74
74
‐
‐
PK
Margin
(dB)
‐23.84
‐26.02
‐
‐
Azimuth
(Degs)
Height
(cm)
Polarity
344
344
344
344
340
340
340
340
* - indicates frequency in CFR47 Pt 15 / IC RSS-Restricted Band
Pk - Peak detector
RMS - RMS detection
Page 33 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
HARMONICS AND SPURIOUS EMISSIONS
LOW CHANNEL HORIZONTAL
LOW CHANNEL VERTICAL
Note: Emission was scanned up to 26GHz; No emissions were detected above the noise floor
which was at least 20dB below the specification limit.
Page 34 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
LOW CHANNEL DATA
Trace Markers
Marker
Frequency
(GHz)
Meter
Reading
(dBuV)
Det
AF T862 (dB/m)
Amp/Cbl/Fltr/Pad (dB)
DC Corr (dB)
Corrected
Reading
(dBuV/m)
Avg Limit (dBuV/m)
Margin
(dB)
Peak Limit (dBuV/m)
PK Margin
(dB)
Azimuth
(Degs)
Height
(cm)
Polarity
* 1.328
37.36
Pk
29.5
‐23.5
43.36
‐
‐
74
‐30.64
0‐360
200
* 1.462
36.17
Pk
28.7
‐23.3
41.57
‐
‐
74
‐32.43
0‐360
101
* 4.799
34.62
Pk
34.2
‐27.6
41.22
‐
‐
74
‐32.78
0‐360
200
* 12.399
28.36
Pk
38.9
‐18.9
48.36
‐
‐
74
‐25.64
0‐360
200
5.999
35.29
Pk
35.3
‐26.5
44.09
‐
‐
‐
‐
0‐360
101
6.479
30.97
Pk
35.7
‐24.2
42.47
‐
‐
‐
‐
0‐360
101
* - indicates frequency in CFR47 Pt 15 / IC RSS-Restricted Band
Pk - Peak detector
Radiated Emissions
Frequency
(GHz)
Meter
Reading
(dBuV)
Det
AF T862
(dB/m)
Amp/Cbl/Fltr/
Pad (dB)
DC Corr (dB)
Corrected
Reading
(dBuV/m)
Avg Limit
(dBuV/m)
Margin
(dB)
Peak Limit
(dBuV/m)
PK Margin
(dB)
Azimuth
(Degs)
Height
(cm)
Polarity
* 1.327
* 1.328
* 1.463
* 1.462
* 4.8
* 4.8
* 12.398
* 12.399
6.48
41.79
25.35
43.08
25.34
39.47
30.37
33.79
21.32
38.87
36.26
PK2
MAv1
PK2
MAv1
PK2
MAv1
PK2
MAv1
PK2
PK2
29.5
29.5
28.7
28.7
34.2
34.2
38.9
38.9
35.3
35.7
‐23.5
‐23.5
‐23.3
‐23.3
‐27.6
‐27.6
‐18.9
‐18.9
‐26.5
‐24.2
47.79
31.35
48.48
30.74
46.07
36.97
53.79
41.32
47.67
47.76
‐
54
‐
54
‐
54
‐
54
‐
‐
‐
‐22.65
‐
‐23.26
‐
‐17.03
‐
‐12.68
‐
‐
74
‐
74
‐
74
‐
74
‐
‐
‐
‐26.21
‐
‐25.52
‐
‐27.93
‐
‐20.21
‐
‐
‐
98
98
110
110
164
164
234
234
252
34
173
173
187
187
201
201
201
201
102
115
* - indicates frequency in CFR47 Pt 15 / IC RSS-Restricted Band
PK2 - KDB558074 Method: Maximum Peak
MAv1 - KDB558074 Option 1 Maximum RMS Average
Page 35 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
MID CHANNEL HORIZONTAL
MID CHANNEL VERTICAL
Note: Emission was scanned up to 26GHz; No emissions were detected above the noise floor
which was at least 20dB below the specification limit.
Page 36 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
MID CHANNEL DATA
Trace Markers
Marker
Frequency
(GHz)
Meter
Reading
(dBuV)
Det
AF T862 (dB/m)
Amp/Cbl/Fltr/Pad (dB)
DC Corr (dB)
Corrected
Reading
(dBuV/m)
Avg Limit (dBuV/m)
Margin
(dB)
Peak Limit (dBuV/m)
PK Margin
(dB)
Azimuth
(Degs)
Height
(cm)
Polarity
* 1.057
34.74
Pk
* 1.299
35.12
Pk
27.2
‐24
37.94
‐
‐
74
‐36.06
0‐360
101
29.4
‐23.5
41.02
‐
‐
74
‐32.98
0‐360
200
* 4.8
34.31
37.8
Pk
34.2
‐27.6
40.91
‐
‐
74
‐33.09
0‐360
200
Pk
32.3
‐21.5
48.6
‐
‐
‐
‐
0‐360
101
6.479
35.78
Pk
35.3
‐26.5
44.58
‐
‐
‐
‐
0‐360
101
31.15
Pk
35.7
‐24.2
42.65
‐
‐
‐
‐
0‐360
200
* - indicates frequency in CFR47 Pt 15 / IC RSS-Restricted Band
Pk - Peak detector
Radiated Emissions
Frequency
(GHz)
Meter
Reading
(dBuV)
Det
AF T862
(dB/m)
Amp/Cbl/Fltr/
Pad (dB)
DC Corr (dB)
Corrected
Reading
(dBuV/m)
Avg Limit
(dBuV/m)
Margin
(dB)
Peak Limit
(dBuV/m)
PK Margin
(dB)
Azimuth
(Degs)
Height
(cm)
Polarity
* 1.057
* 1.057
* 1.299
* 1.299
* 4.8
* 4.8
6.48
43.57
27.45
48.03
24.07
40.36
31.42
37.61
38.38
37.15
PK2
MAv1
PK2
MAv1
PK2
MAv1
PK2
PK2
PK2
27.2
27.2
29.4
29.4
34.2
34.2
32.3
35.3
35.7
‐24
‐24
‐23.5
‐23.5
‐27.6
‐27.6
‐21.5
‐26.5
‐24.2
46.77
30.65
53.93
29.97
46.96
38.02
48.41
47.18
48.65
‐
54
‐
54
‐
54
‐
‐
‐
‐
‐23.35
‐
‐24.03
‐
‐15.98
‐
‐
‐
74
‐
74
‐
74
‐
‐
‐
‐
‐27.23
‐
‐20.07
‐
‐27.04
‐
‐
‐
‐
62
62
192
192
295
295
87
124
107
309
309
192
192
235
235
369
103
206
* - indicates frequency in CFR47 Pt 15 / IC RSS-Restricted Band
PK2 - KDB558074 Method: Maximum Peak
MAv1 - KDB558074 Option 1 Maximum RMS Average
Page 37 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
HIGH CHANNEL HORIZONTAL
HIGH CHANNEL VERTICAL
Note: Emission was scanned up to 26GHz; No emissions were detected above the noise floor
which was at least 20dB below the specification limit.
Page 38 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
HIGH CHANNEL DATA
Trace Markers
Marker
Frequency
(GHz)
Meter
Reading
(dBuV)
Det
AF T862 (dB/m)
Amp/Cbl/Fltr/Pad (dB)
DC Corr (dB)
Corrected
Reading
(dBuV/m)
* 1.059
36.64
Pk
27.2
* 1.309
36.7
Pk
29.4
* 1.701
36.09
Pk
29
‐23.3
* 4.799
33.27
Pk
34.2
‐27.6
39.87
5.76
32.96
Pk
35
‐26
41.96
5.999
34.81
Pk
35.3
‐26.5
43.61
6.48
31.35
Pk
35.7
‐24.2
42.85
Avg Limit (dBuV/m)
Margin
(dB)
Peak Limit (dBuV/m)
PK Margin
(dB)
‐24
39.84
‐
‐23.6
42.5
‐
41.79
‐
‐
‐
‐
‐
‐
Azimuth
(Degs)
Height
(cm)
Polarity
‐
74
‐34.16
0‐360
101
‐
74
‐31.5
0‐360
200
74
‐32.21
0‐360
200
‐
74
‐34.13
0‐360
200
‐
‐
‐
0‐360
200
‐
‐
‐
0‐360
199
‐
‐
‐
0‐360
200
* - indicates frequency in CFR47 Pt 15 / IC RSS-Restricted Band
Pk - Peak detector
Radiated Emissions
Frequency
(GHz)
Meter
Reading
(dBuV)
Det
AF T862
(dB/m)
Amp/Cbl/Fltr/
Pad (dB)
DC Corr (dB)
Corrected
Reading
(dBuV/m)
Avg Limit
(dBuV/m)
Margin
(dB)
Peak Limit
(dBuV/m)
PK Margin
(dB)
Azimuth
(Degs)
Height
(cm)
Polarity
* 1.06
* 1.059
* 1.309
* 1.309
* 1.701
* 1.701
* 4.8
* 4.8
5.759
6.48
45.08
26.27
36.11
24.12
37.45
24.65
39.14
29.17
35.59
40.4
36.72
PK2
MAv1
PK2
MAv1
PK2
MAv1
PK2
MAv1
PK2
PK2
PK2
27.2
27.2
29.4
29.4
29
29
34.2
34.2
35
35.3
35.7
‐24
‐24
‐23.6
‐23.6
‐23.3
‐23.3
‐27.6
‐27.6
‐26
‐26.5
‐24.2
48.28
29.47
41.91
29.92
43.15
30.35
45.74
35.77
44.59
49.2
48.22
‐
54
‐
54
‐
54
‐
54
‐
‐
‐
‐
‐24.53
‐
‐24.08
‐
‐23.65
‐
‐18.23
‐
‐
‐
74
‐
74
‐
74
‐
74
‐
‐
‐
‐
‐25.72
‐
‐32.09
‐
‐30.85
‐
‐28.26
‐
‐
‐
‐
97
97
223
223
298
298
161
286
109
101
101
239
239
389
389
175
175
201
245
201
* - indicates frequency in CFR47 Pt 15 / IC RSS-Restricted Band
PK2 - KDB558074 Method: Maximum Peak
MAv1 - KDB558074 Option 1 Maximum RMS Average
Page 39 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
9.2.
DATE: 7/10/2017
FCC ID:DKNJ2
WORST-CASE BELOW 1 GHz
SPURIOUS EMISSIONS 30 TO 1000 MHz (WORST-CASE CONFIGURATION)
HORIZONTAL PLOT
VERTICAL PLOT
Page 40 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
BELOW 1 GHz TABLE
Radiated Emissions
Marker
Frequency
(MHz)
Meter
Reading
(dBuV)
Det
AF T130 (dB/m)
Amp/Cbl (dB/m)
Corrected
Reading
(dBuV/m)
QPk Limit (dBuV/m)
Margin
(dB)
Azimuth
(Degs)
Height
(cm)
Polarity
* 335.295
56.1175
65.5097
107.3927
209.9743
554.9739
41
50.62
52.49
45.26
50.97
36.49
Qp
Qp
Qp
Qp
Qp
Qp
18
11.2
12.4
16.1
14.5
22.4
‐29.2
‐30.9
‐30.8
‐30.5
‐29.9
‐28.6
29.8
30.92
34.09
30.86
35.57
30.29
46.02
40
40
43.52
43.52
46.02
‐16.22
‐9.08
‐5.91
‐12.66
‐7.95
‐15.73
335
191
222
181
31
29
102
133
115
100
102
124
* - indicates frequency in CFR47 Pt 15 / IC RSS-Restricted Band
Pk - Peak detector
Qp - Quasi-Peak detector
Page 41 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
9.3.
DATE: 7/10/2017
FCC ID:DKNJ2
WORST-CASE BELOW 30 MHz
SPURIOUS EMISSIONS BELOW 30 MHz (WORST-CASE CONFIGURATION)
HORIZONTAL AND VERTICAL PLOTS
NOTE: KDB 937606 OATS and Chamber Correlation Justification
Based on FCC 15.31 (f) (2): measurements may be performed at a distance closer than
that specified in the regulations; however, an attempt should be made to avoid making
measurements in the near field.
OATs and chamber correlation testing had been performed and chamber measured test
result is the worst case test result.
Trace Markers
Marker
Frequency
(MHz)
.01643
.02263
Meter
Reading
(dBuV)
43.03
43.19
Det
Pk
Pk
Loop
Antenna
(dB/m)
16.8
15
Cbl
(dB)
.1
.1
Dist
Corr
300m
‐80
‐80
Corrected
Reading
(dBuVolts)
‐20.07
‐21.71
Peak
Limit
(dBuV/m)
63.27
60.49
Margin
(dB)
Avg Limit
(dBuV/m)
Margin
(dB)
Azimuth
(Degs)
‐83.34
‐82.2
43.27
40.49
‐63.34
‐62.2
0‐360
0‐360
Pk - Peak detector
Marker
Frequency
(MHz)
18.12349
18.26026
25.41862
25.6759
Meter
Reading
(dBuV)
17.09
19.26
24.25
17.63
Det
Pk
Pk
Pk
Pk
Loop
Antenna
(dB/m)
9.9
9.9
8.8
8.8
Cbl
(dB)
.6
.6
.7
.7
Dist
Corr
30m
‐40
‐40
‐40
‐40
Corrected
Reading
(dBuVolts)
‐12.41
‐10.24
‐6.25
‐12.87
QP Limit
(dBuV/m)
Margin
(dB)
29.5
29.5
29.5
29.5
‐41.91
‐39.74
‐35.75
‐42.37
Peak
Limit
(dBuV/m)
‐
‐
‐
‐
Margin
(dB)
Avg Limit
(dBuV/m)
Margin
(dB)
Azimuth
(Degs)
‐
‐
‐
‐
‐
‐
‐
‐
‐
‐
‐
‐
0‐360
0‐360
0‐360
0‐360
Pk - Peak detector
Page 42 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
9.4.
DATE: 7/10/2017
FCC ID:DKNJ2
WORST-CASE 18 to 26 GHz
SPURIOUS EMISSIONS 18 TO 26 GHz (WORST-CASE CONFIGURATION, HORIZONTAL &
VERTICAL)
HORIZONTAL PLOT
VERTICAL PLOT
Page 43 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
Trace Markers
Marker
Frequency
(GHz)
Meter
Reading
(dBuV)
Det
T449 AF
(dB/m)
Amp/Cbl (dB)
Dist Corr
(dB)
Corrected
Reading
(dBuVolts)
Avg Limit
(dBuV/m)
Margin
(dB)
Peak Limit
(dBuV/m)
PK Margin
(dB)
18.366
21.331
25.121
18.826
20.125
23.982
41.13
41.77
45.3
41.6
41.4
44.57
Pk
Pk
Pk
Pk
Pk
Pk
32.3
33.1
34.3
32.4
32.8
33.9
‐25.1
‐25.2
‐24.6
‐25
‐25.2
‐24.3
‐9.5
‐9.5
‐9.5
‐9.5
‐9.5
‐9.5
38.83
40.17
45.5
39.5
39.5
44.67
54
54
54
54
54
54
‐15.17
‐13.83
‐8.5
‐14.5
‐14.5
‐9.33
74
74
74
74
74
74
‐35.17
‐33.83
‐28.5
‐34.5
‐34.5
‐29.33
Pk - Peak detector
Page 44 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
10.
DATE: 7/10/2017
FCC ID:DKNJ2
AC POWER LINE CONDUCTED EMISSIONS
LIMITS
FCC §15.207 (a)
RSS-Gen 8.8
Frequency of Emission (MHz)
0.15 – 0.5
0.5 - 5
5 - 30
Conducted Limit (dBuV)
Quasi-peak
Average
66 to 56
56 to 46
56
46
60
50
TEST PROCEDURE
The EUT is placed on a non-conducting table 40 cm from the vertical ground plane and 80 cm
above the horizontal ground plane. The EUT is configured in accordance with ANSI C63.10.
The receiver is set to a resolution bandwidth of 9 kHz. Peak detection is used unless otherwise
noted as quasi-peak or average.
Line conducted data is recorded for both NEUTRAL and HOT lines.
RESULTS
Page 45 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
6 WORST EMISSIONS
LINE 1 PLOT
LINE 2 PLOT
Page 46 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
REPORT NO: 11747459-E1V3
MODEL: JOEY 3.0 E97
DATE: 7/10/2017
FCC ID:DKNJ2
LINE 1 and 2 RESULT
Trace Markers
Range 1: Line‐L1 .15 ‐ 30MHz
Marker
Frequency
(MHz)
Meter
Reading
(dBuV)
Det
LISN L1
LC Cables
C1&C3
Limiter
(dB)
Corrected
Reading
dBuV
CFR 47
Part 15
Class B QP
QP Margin
(dB)
CFR 47
Part 15
Class B Avg
Av(CISPR)
Margin
(dB)
10
11
12
.15675
.159
.3705
.36825
.3885
.393
1.599
1.6215
4.047
4.056
18.447
18.447
35.09
25.56
35.93
32.54
34.4
29.56
21.66
13.27
19.87
9.24
20.96
14.46
Qp
Ca
Qp
Ca
Qp
Ca
Qp
Ca
Qp
Ca
Qp
Ca
.1
.1
.1
.1
.1
.1
.1
.1
.1
.1
.1
.1
.3
.3
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.3
10.3
45.39
35.86
46.13
42.74
44.6
39.76
31.86
23.47
30.07
19.44
31.56
25.06
65.63
‐
58.49
‐
58.1
‐
56
‐
56
‐
60
‐
‐20.24
‐
‐12.36
‐
‐13.5
‐
‐24.14
‐
‐25.93
‐
‐28.44
‐
‐
55.52
‐
48.54
‐
48
‐
46
‐
46
‐
50
‐
‐19.66
‐
‐5.8
‐
‐8.24
‐
‐22.53
‐
‐26.56
‐
‐24.94
Qp - Quasi-Peak detector
Ca - CISPR average detection
Range 2: Line‐L2 .15 ‐ 30MHz
Marker
Frequency
(MHz)
Meter
Reading
(dBuV)
Det
LISN L2
LC Cables
C2&C3
Limiter
(dB)
Corrected
Reading
dBuV
CFR 47
Part 15
Class B QP
QP Margin
(dB)
CFR 47
Part 15
Class B Avg
Av(CISPR)
Margin
(dB)
13
14
15
16
17
18
19
20
21
22
23
24
.16575
.17025
.36375
.36262
.38625
.39075
1.61925
1.6215
3.88725
3.8895
16.953
16.95975
34.34
26.26
33.84
29.92
32.96
27.65
22.41
13.45
19.96
9.04
21.43
15.14
Qp
Ca
Qp
Ca
Qp
Ca
Qp
Ca
Qp
Ca
Qp
Ca
.1
.1
.1
.1
.1
.1
.1
.1
.1
.2
.2
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.1
10.3
10.3
44.44
36.46
44.04
40.12
43.16
37.85
32.61
23.65
30.16
19.24
31.93
25.64
65.17
‐
58.64
‐
58.14
‐
56
‐
56
‐
60
‐
‐20.73
‐
‐14.6
‐
‐14.98
‐
‐23.39
‐
‐25.84
‐
‐28.07
‐
‐
54.95
‐
48.67
‐
48.05
‐
46
‐
46
‐
50
‐
‐18.49
‐
‐8.55
‐
‐10.2
‐
‐22.35
‐
‐26.76
‐
‐24.36
Qp - Quasi-Peak detector
Ca - CISPR average detection
Page 47 of 49
UL VERIFICATION SERVICES INC.
FORM NO: CCSUP4701I
47173 BENICIA STREET, FREMONT, CA 94538, USA
TEL: (510) 771-1000
FAX: (510) 661-0888
This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc.
Download: J2 RF4CE Zigbee Radio Test Report Report Echostar Technologies LLC
Mirror Download [FCC.gov]J2 RF4CE Zigbee Radio Test Report Report Echostar Technologies LLC
Document ID3458599
Application IDL0WFnPgKSLY80S4pAWVKpA==
Document DescriptionReport
Short Term ConfidentialNo
Permanent ConfidentialNo
SupercedeNo
Document TypeTest Report
Display FormatAdobe Acrobat PDF - pdf
Filesize334.15kB (4176918 bits)
Date Submitted2017-07-10 00:00:00
Date Available2017-07-10 00:00:00
Creation Date2017-07-10 13:38:06
Producing SoftwareAcrobat Distiller 10.1.2 (Windows)
Document Lastmod2017-07-10 13:40:19
Document TitleReport
Document CreatorPScript5.dll Version 5.2.2
Document Author: 12701

Source Exif Data:
File Type                       : PDF
File Type Extension             : pdf
MIME Type                       : application/pdf
PDF Version                     : 1.6
Linearized                      : No
Author                          : 12701
Create Date                     : 2017:07:10 13:38:06-07:00
Modify Date                     : 2017:07:10 13:40:19-07:00
XMP Toolkit                     : Adobe XMP Core 5.2-c001 63.139439, 2010/09/27-13:37:26
Creator Tool                    : PScript5.dll Version 5.2.2
Metadata Date                   : 2017:07:10 13:40:19-07:00
Format                          : application/pdf
Title                           : Microsoft Word - 11747459 -E1V3 FCC Report ZIGBEE.docx
Creator                         : 12701
Producer                        : Acrobat Distiller 10.1.2 (Windows)
Document ID                     : uuid:3a8a09e9-4920-48f4-95c8-6607804c9aaa
Instance ID                     : uuid:7336bed5-3cf2-442c-a594-ca7b6d6e2b0d
Page Count                      : 47
EXIF Metadata provided by EXIF.tools

Facebook Twitter Google+ RSS © FCCID.io 2017
