TPRO7200 Tag Pad Network Test Setup Photos - FCC ID DO4TPRO7200

FCC ID DO4TPRO7200

EMI Test Setup Photo

Tag Pad Network

by Checkpoint Systems Inc

Document preview loads when visible.

Document Details

FCC IDDO4TPRO7200
Document ID142376
Document TypeTest Setup Photos

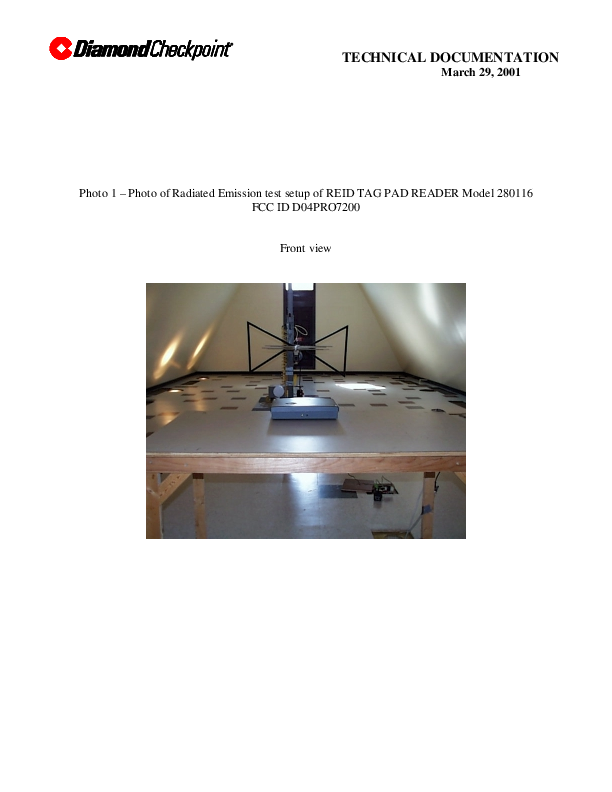

DescriptionEMI Test Setup Photo
ApplicantCheckpoint Systems Inc
Equipment ClassTag Pad Network
Product CodeTPRO7200
Application IDoKdWkMCtXhycBXb+mC0rtg==
Application PurposeOriginal Equipment
Application Date2001-05-08
Frequency Range13.56 MHz
FRN0004326823
Test FirmUnisys Corporation
Certified ByM ignogna Anthony Engineering Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2001-03-29
Available2001-05-08
Created2001-03-29
Modified2001-03-29
Pages4
File TypeMicrosoft Word
File Size499201
File SHA-256ad9f8fccfbe1d3f0b6aa97b038f257da65ff6c813f66b481d54bcce8b959dfc7
PDF Metadata ProducerAcrobat Distiller 4.0 for Windows
FCC.gov SourcesFCC.gov 142376
