1060R Receiver for remote fan controller Test... - FCC ID DRW1060R

FCC ID DRW1060R

radiated emission setup2

Receiver for remote fan controller

by Eagletron Telecommunications Ltd

radiated emission setup2

Document Details

FCC IDDRW1060R
Document ID151525
Document TypeTest Setup Photos

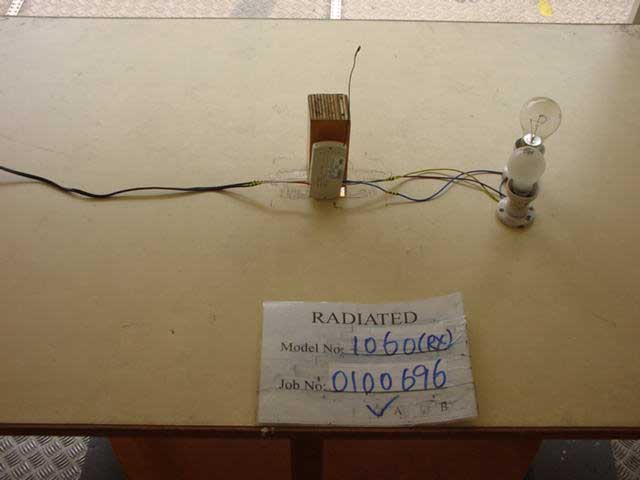

Descriptionradiated emission setup2
ApplicantEagletron Telecommunications Ltd
Equipment ClassReceiver for remote fan controller
Product Code1060R
Application IDMTMYs/4DdKwCcwFlYbNNbg==
Application PurposeOriginal Equipment
Application Date2001-04-11
Frequency Range310 MHz
FRN0003786449
Test FirmIntertek Testing Services Hong Kong
Certified ByWilson Loke Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartYes
Submitted2001-05-24
Available2001-04-11
Pages0
File TypeJPEG Image
File Size25591
File SHA-2565fc6a93c5c5b8c4fc4d4e8f47866b844faca98f8dffb5c752549b6ed9ea80bd7
FCC.gov SourcesFCC.gov 151525
