WT3720 Teardown Internal Photos - FCC ID DYDWT3720

FCC ID DYDWT3720

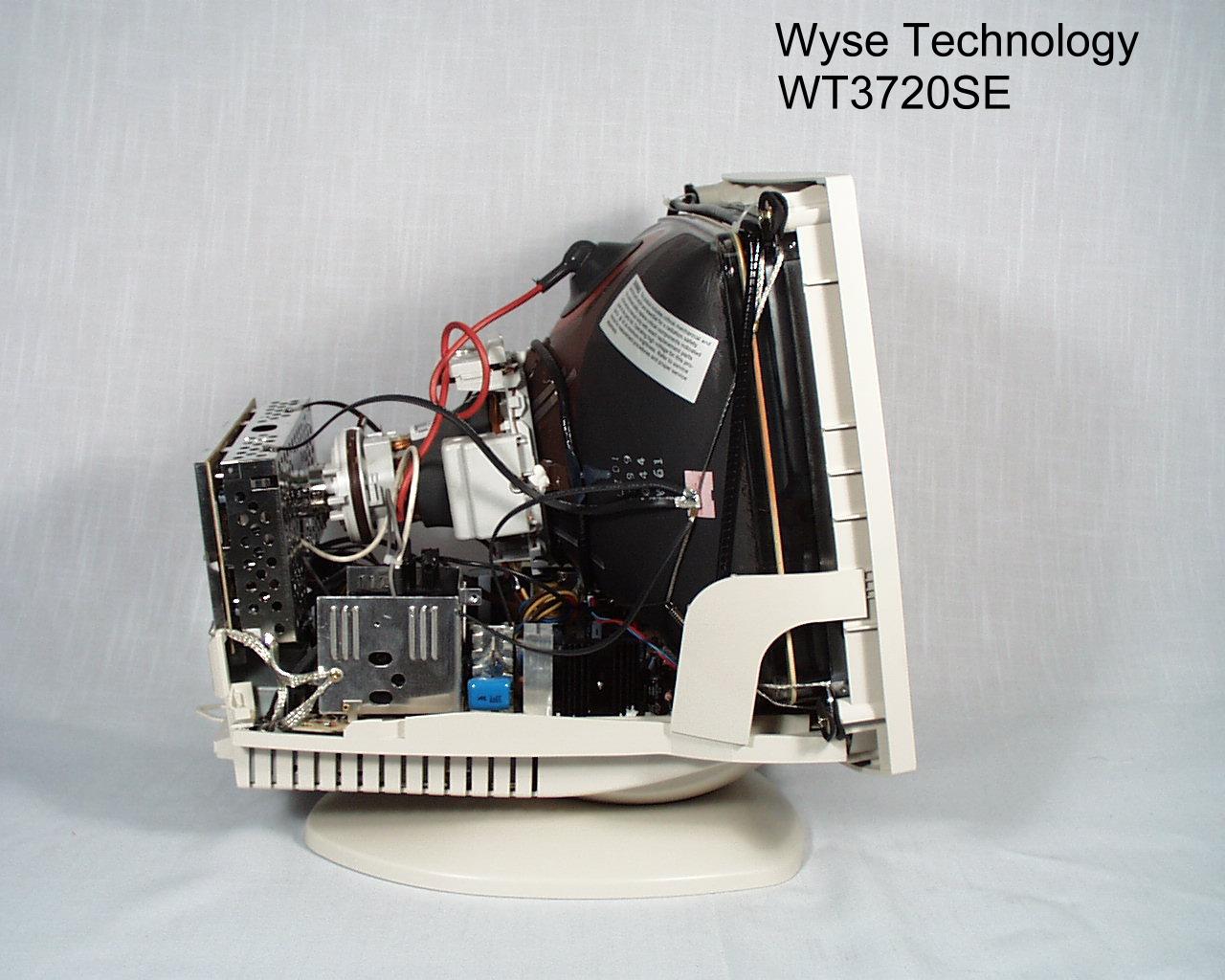

Internal view with CRT

WT3720

by Wyse Technology

Internal view with CRT

Document Details

FCC IDDYDWT3720
Document ID69310
Document TypeInternal Photos
DescriptionInternal view with CRT
ApplicantWyse Technology
Equipment ClassWT3720
Product CodeWT3720
Application IDJ+z9Z0vzwrmq8IVXHVKQng==
Application PurposeOriginal Equipment
Application Date1999-12-28
FRN0000375627
Certified ByMasood Abrishamcar Regulatory Engineering Manager
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted1999-11-11
Available1999-12-28
Pages0
File TypeJPEG Image
File Size156401
File SHA-256fd2b3b8eaf4126e0d073420123378a2bf3cdbe25d744761cdb349e8bbf27e004
FCC.gov SourcesFCC.gov 69310
