FCC ID E2K-APL280B5
Wireless Network Security Appliance
by Dell Inc.
Grantee Code: E2K Product Code: APL280B5
Latest application date: 2016-03-17
Device Images
FCC ID Device Details
Operating Frequencies
| Frequency Range | Application Purpose | Final Action Date |
|---|---|---|
| 5180-5240 MHz | Class II permissive change or modification of presently authorized equipment | 2016-03-17 |
| 5180-5240 MHz | Original Equipment | 2015-06-24 |
| 2412-2462 MHz | Original Equipment | 2015-06-24 |
Exhibits
| Document | Type | Available | File |
|---|---|---|---|
| User Manual (Statements) rev.pdf | Users Manual | 2015-07-07 | PDF 1 MB |
| User Manual.pdf | Users Manual | 2015-07-07 | PDF 623.2 KB |
| Internal Photos.pdf | Internal Photos | 2015-07-07 | PDF 3.6 MB |
| External Photos.pdf | External Photos | 2015-07-07 | PDF 3.5 MB |
| Label (TZ300 W).pdf | ID Label/Location Info | 2015-06-24 | PDF 281.5 KB |
| Label (TZ400 W).pdf | ID Label/Location Info | 2015-06-24 | PDF 282 KB |
| Label Location_TZ300W.pdf | ID Label/Location Info | 2015-06-24 | PDF 28.9 KB |
| Label Location_TZ400W.pdf | ID Label/Location Info | 2015-06-24 | PDF 27.9 KB |

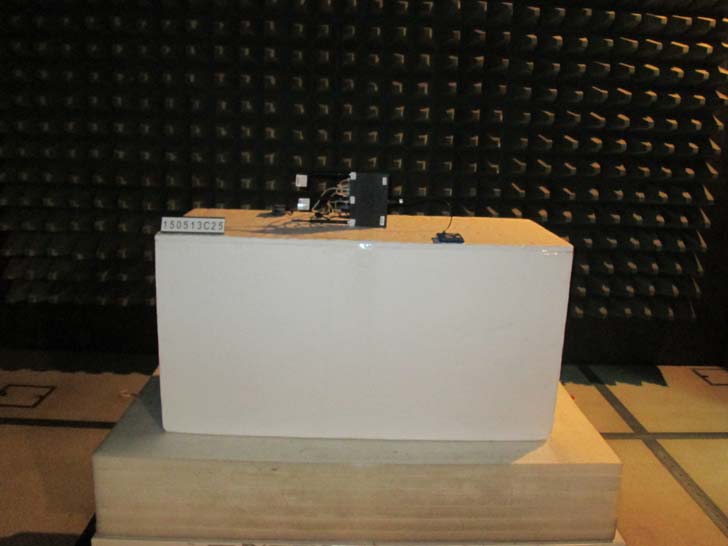

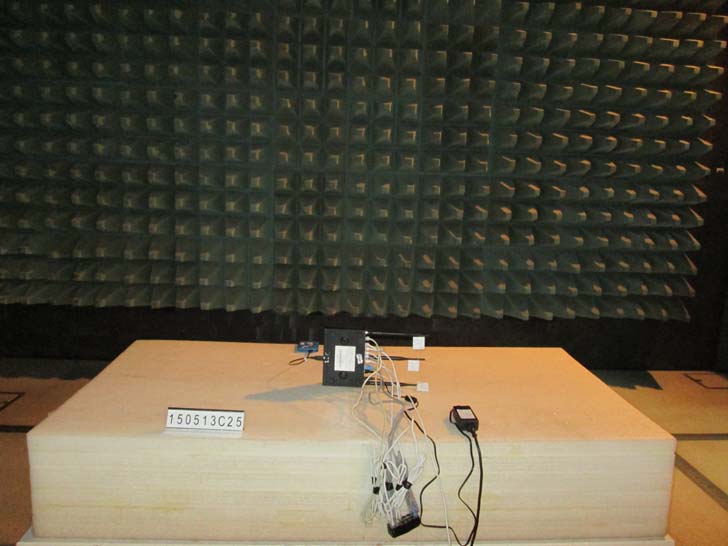

| Test Setup Photos DTS | Test Setup Photos | 2016-03-17 | PDF 500.2 KB |
| Test Setup Photos.pdf | Test Setup Photos | 2015-07-07 | PDF 436.7 KB |
| Test Report DFS | Test Report | 2016-03-17 | PDF 3.1 MB |
| Test Report NII | Test Report | 2016-03-17 | PDF 524.5 KB |
| Test Report (DTS).pdf | Test Report | 2015-06-24 | PDF 2.9 MB |
| Test Report (NII) rev.pdf | Test Report | 2015-06-24 | PDF 586.5 KB |
| Attestation DFS Master Declaration | Attestation Statements | 2016-03-17 | PDF 139.6 KB |
| Attestation - Channel and Mode Declaration.pdf | Attestation Statements | 2015-06-24 | PDF 113.4 KB |
| Agent Authorization Letter | Cover Letter(s) | 2016-03-17 | PDF 126.3 KB |
| Confidentiality Letter | Cover Letter(s) | 2016-03-17 | PDF 126.5 KB |
| Contact Authorization | Cover Letter(s) | 2016-03-17 | PDF 39.6 KB |
| Description of Change | Cover Letter(s) | 2016-03-17 | PDF 26 KB |
| Cover Letter - Agent Authorization.pdf | Cover Letter(s) | 2015-06-24 | PDF 114.2 KB |
| Cover Letter - Confidentiality Request - Long Term.pdf | Cover Letter(s) | 2015-06-24 | PDF 111.4 KB |
| Cover Letter - Confidentiality Request - Short Term.pdf | Cover Letter(s) | 2015-06-24 | PDF 113.9 KB |
| Cover Letter - Contact Authorization rev.pdf | Cover Letter(s) | 2015-06-24 | PDF 39.6 KB |
| RF Exposure | RF Exposure Info | 2016-03-17 | PDF 57.3 KB |
| RF Exposure Information (MPE).pdf | RF Exposure Info | 2015-06-24 | PDF 63.7 KB |
| Block Diagram (TZ300W).pdf Metadata only | Block Diagram | PDF 367.2 KB | |
| Block Diagram (TZ400W).pdf Metadata only | Block Diagram | PDF 377.8 KB | |
| Blockdiagram (Module).pdf Metadata only | Block Diagram | PDF 78.4 KB | |
| Schematics (Module).pdf Metadata only | Schematics | PDF 113.2 KB | |
| Schematics (TZ300W).PDF Metadata only | Schematics | PDF 342.9 KB | |
| Schematics (TZ400W).PDF Metadata only | Schematics | PDF 342.2 KB | |
| Operational Description Software Security Metadata only | Operational Description | PDF 270.3 KB | |
| Operational Description.pdf Metadata only | Operational Description | PDF 40.4 KB | |
| Software Operating Description.pdf Metadata only | Operational Description | PDF 261.6 KB |
Application Information
| Application ID | RFMwGQdZoD5Y2A7vf3QiAw== |
|---|---|
| Final Action Date | 2016-03-17 |
| Application Purpose | Class II permissive change or modification of presently authorized equipment |
| Applicant FRN | 0008359580 |
| Model | APL280B5 |
| Frequency Range | 5180-5240 MHz |
| Equipment Class | NII - Unlicensed National Information Infrastructure TX |
| Device Description | Wireless Network Security Appliance |
| Responsible Party | Don A Bobo, Distinguished Member of Technical Staff, don_bobo@dell.com  , 512-728-5508 |
| Test Firm | Richard Chen, Bureau Veritas CPS (H.K.) Ltd., Taoyuan Branch, richard.chen@bureauveritas.com  , +886-(0)3-260-0884 |
| TCB Email | tei@timcoengr.com  |
| TCB Scope | A4: UNII devices & low power transmitters using spread spectrum techniques |
| Short-Term Confidentiality | No |
| Long-Term Confidentiality | Yes |
| Grant Deferral | No |
| Modular Equipment | Does not apply |
| Composite Device | Yes |
| Composite Part | No |
| Cognitive Radio | No |
| Authorization Waiver | No |
| Authorization Waiver Approved | No |
| Section 5301 Certification | Yes |
| Related OET Knowledge DataBase Inquiry | Yes |
| Grant Comments | Power listed is the maximum combined conducted output power. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 23 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. This device has 20 MHz, 40 MHz and 80 MHz bandwidth mode. (Date of Grant: 06/24/2015) Class II Permissive Change: This Class II Permissive Change is to add the DFS bands. |
Applications
| Application ID | Date | Purpose |
|---|---|---|
| RFMwGQdZoD5Y2A7vf3QiAw== | 2016-03-17 | Class II permissive change or modification of presently authorized equipment |
| md8GGkhH+0blkzfwuutZNw== | 2015-06-24 | Original Equipment |
| IaT/qH5GjN1O8PLu6sqHxw== | 2015-06-24 | Original Equipment |
Equipment Authorization
Grants
TCB Grant - Application RFMwGQdZoD5Y2A7vf3QiAw==
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 |
Date of Grant: 03/17/2016 Application Dated: 01/29/2016 |
| Dell Inc. |
| One Dell Way |
| Round Rock, TX 78682 |
| Attention: Don Bobo , Distinguished Member of Technical Staff |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | E2K-APL280B5 |
| Name of Grantee: | Dell Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wireless Network Security Appliance |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 28 38 CC MO | 15E | 5260.0 - 5320.0 | 0.226 | ||
| 28 38 CC MO | 15E | 5500.0 - 5700.0 | 0.187 | ||
| 28 38 CC MO | 15E | 5180.0 - 5240.0 | 0.236 | ||
| 28 38 CC MO | 15E | 5745.0 - 5825.0 | 0.094 |
| Power listed is the maximum combined conducted output power. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 23 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. This device has 20 MHz, 40 MHz and 80 MHz bandwidth mode. (Date of Grant: 06/24/2015) Class II Permissive Change: This Class II Permissive Change is to add the DFS bands. |
| 28: | An AC adapter incorporating a ferrite core at the connector end of its DC line must be provided with every unit sold. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application RFMwGQdZoD5Y2A7vf3QiAw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Dell Inc. One Dell Way Round Rock, TX 78682 United States |
Date of Grant: 03/17/2016 Application Dated: 01/29/2016 |
| Attention: Don Bobo , Distinguished Member of Technical Staff |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | E2K-APL280B5 |
| Name of Grantee: | Dell Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wireless Network Security Appliance |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 28 38 CC MO | 15E | 5260.0 - 5320.0 | 0.226 | ||
| 28 38 CC MO | 15E | 5500.0 - 5700.0 | 0.187 | ||
| 28 38 CC MO | 15E | 5180.0 - 5240.0 | 0.236 | ||
| 28 38 CC MO | 15E | 5745.0 - 5825.0 | 0.094 |
| Power listed is the maximum combined conducted output power. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 23 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. This device has 20 MHz, 40 MHz and 80 MHz bandwidth mode. (Date of Grant: 06/24/2015) Class II Permissive Change: This Class II Permissive Change is to add the DFS bands. |
| 28: | An AC adapter incorporating a ferrite core at the connector end of its DC line must be provided with every unit sold. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. One Distribution Center Circle Suite #1 Littleton, MA 01460 |
Date of Grant: 06/24/2015 Application Dated: 06/24/2015 |
| Dell Inc. |
| One Dell Way |
| Round Rock, TX 78682 |
| Attention: Don Bobo , Distinguished Member of Technical Staff |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | E2K-APL280B5 |
| Name of Grantee: | Dell Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wireless Network Security Appliance |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 28 38 CC MO | 15E | 5180.0 - 5240.0 | 0.236 | ||
| 28 38 CC MO | 15E | 5745.0 - 5825.0 | 0.094 |
| Power listed is the maximum combined conducted output power. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 23 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. This device has 20 MHz, 40 MHz and 80 MHz bandwidth mode. |
| 28: | An AC adapter incorporating a ferrite core at the connector end of its DC line must be provided with every unit sold. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application md8GGkhH+0blkzfwuutZNw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Dell Inc. One Dell Way Round Rock, TX 78682 United States |
Date of Grant: 06/24/2015 Application Dated: 06/24/2015 |
| Attention: Don Bobo , Distinguished Member of Technical Staff |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | E2K-APL280B5 |
| Name of Grantee: | Dell Inc. |
| Equipment Class: | Unlicensed National Information Infrastructure TX |
| Notes: | Wireless Network Security Appliance |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 28 38 CC MO | 15E | 5180.0 - 5240.0 | 0.236 | ||
| 28 38 CC MO | 15E | 5745.0 - 5825.0 | 0.094 |
| Power listed is the maximum combined conducted output power. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 23 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. This device has 20 MHz, 40 MHz and 80 MHz bandwidth mode. |
| 28: | An AC adapter incorporating a ferrite core at the connector end of its DC line must be provided with every unit sold. |
| 38: | This device has shown compliance, in all grant-listed U-NII sub-bands, with the new rules for U-NII devices adopted under Docket No. 13-49 and may be marketed, manufactured or imported after the June 1, 2016 transition deadline. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| TCB | GRANT OF EQUIPMENT AUTHORIZATION |
TCB |
| Certification | ||
| Issued Under the Authority of the | ||
| Federal Communications Commission | ||
| By: |
|
Bureau Veritas Consumer Products Services, Inc. One Distribution Center Circle Suite #1 Littleton, MA 01460 |
Date of Grant: 06/24/2015 Application Dated: 06/24/2015 |
| Dell Inc. |
| One Dell Way |
| Round Rock, TX 78682 |
| Attention: Don Bobo , Distinguished Member of Technical Staff |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | E2K-APL280B5 |
| Name of Grantee: | Dell Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | Wireless Network Security Appliance |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 28 CC MO | 15C | 2412.0 - 2462.0 | 0.951 |
| Power listed is the maximum combined conducted output power. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 23 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. This device has 20 MHz and 40 MHz bandwidth mode. |
| 28: | An AC adapter incorporating a ferrite core at the connector end of its DC line must be provided with every unit sold. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
EAS Grant - Application IaT/qH5GjN1O8PLu6sqHxw==
| COPY |
FEDERAL COMMUNICATIONS COMMISSION WASHINGTON, D.C. 20554 GRANT OF EQUIPMENT AUTHORIZATION |
COPY |
| Certification |
|
Dell Inc. One Dell Way Round Rock, TX 78682 United States |
Date of Grant: 06/24/2015 Application Dated: 06/24/2015 |
| Attention: Don Bobo , Distinguished Member of Technical Staff |
| NOT TRANSFERABLE |
| EQUIPMENT AUTHORIZATION is hereby issued to the named GRANTEE, and is VALID ONLY for the equipment identified hereon for use under the Commission's Rules and Regulations listed below. |
| FCC IDENTIFIER: | E2K-APL280B5 |
| Name of Grantee: | Dell Inc. |
| Equipment Class: | Digital Transmission System |
| Notes: | Wireless Network Security Appliance |
| Modular Type: | Does not apply |
| Grant Notes | FCC Rule Parts | Frequency Range (MHZ) | Output Watts | Frequency Tolerance | Emission Designator |
| 28 CC MO | 15C | 2412.0 - 2462.0 | 0.951 |
| Power listed is the maximum combined conducted output power. End-users and responsible parties must be provided with operating and installation instructions to ensure RF exposure compliance. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 23 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except the collocation as described in this filing or in accordance with FCC multi-transmitter product guidelines. This device has 20 MHz and 40 MHz bandwidth mode. |
| 28: | An AC adapter incorporating a ferrite core at the connector end of its DC line must be provided with every unit sold. |
| CC: | This device is certified pursuant to two different Part 15 rules sections. |
| MO: | This Multiple Input Multiple Output (MIMO) device was evaluated for multiple transmitted signals as indicated in the filing. |
| Mail To: |
