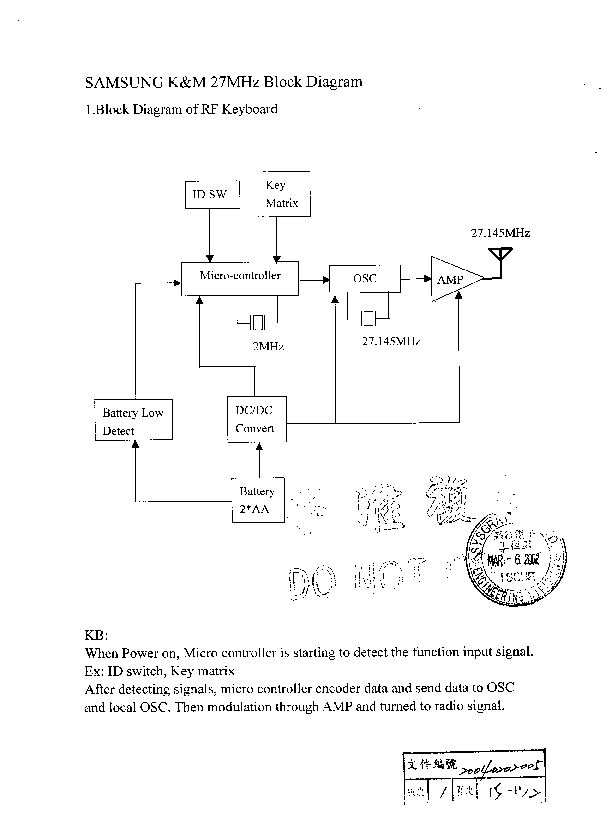

SDR4000K Wireless Keyboard Block Diagram - FCC ID E2XSDR4000K

FCC ID E2XSDR4000K

Block diagram

Wireless Keyboard

by Samsung Electro Mechanics

Document preview loads when visible.

Document Details

FCC IDE2XSDR4000K
Document ID239144
Document TypeBlock Diagram
DescriptionBlock diagram
ApplicantSamsung Electro Mechanics
Equipment ClassWireless Keyboard
Product CodeSDR4000K
Application IDf8qxkdvryDYd/p5XhHQZmw==
Application PurposeOriginal Equipment
Application Date2002-04-25
Frequency Range27.145 MHz
FRN0023166085
Test FirmNemko Canada Inc.
Certified ByJunhwan Lim
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2002-04-25
Available2002-04-25
Created2002-04-09
Modified2002-04-09
Pages1
File TypeAdobe Acrobat PDF
File Size29262
File SHA-2567c74d1be46493adbe8be83cb04b2dff4a484d2693f888d2d42aabb28ef3b6565
PDF Metadata ProducerAcrobat 5.0 Scan Plug-in for Windows Acrobat 5.0 Scan Plug-in for Windows
FCC.gov SourcesFCC.gov 239144
