5JS0033 MULTICARRIER GSM PCS AMPLIFIER... - FCC ID E675JS0033

FCC ID E675JS0033

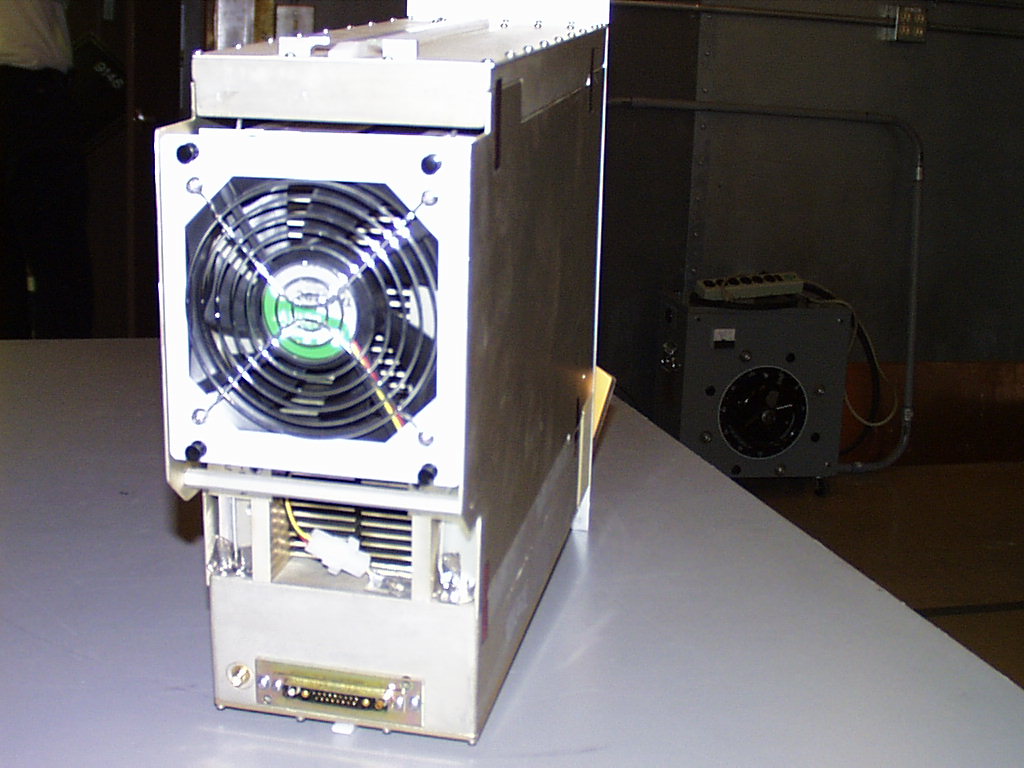

AMPLIFIER MODULE ALONE BACK AND SIDE

MULTICARRIER GSM PCS AMPLIFIER SYSTEM MODEL MPA9600-25

by Powerwave Technologies Inc

AMPLIFIER MODULE ALONE BACK AND SIDE

Document Details

FCC IDE675JS0033
Document ID28241
Document TypeExternal Photos
DescriptionAMPLIFIER MODULE ALONE BACK AND SIDE
ApplicantPowerwave Technologies Inc
Equipment ClassMULTICARRIER GSM PCS AMPLIFIER SYSTEM MODEL MPA9600-25
Product Code5JS0033
Application IDLRCOm+Eh27y4c5cAjAx/3Q==
Application PurposeOriginal Equipment
Application Date1999-05-06
Frequency Range1970-1990 MHz
FRN0006343024
Test FirmTUV America
Certified ByMARY WASHINGTON EMC ENGINEER
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted1999-03-18
Available1999-05-06
Pages0
File TypeJPEG Image
File Size127401
File SHA-256ca17e3c789bc82d9727c8fa6df4a102b9352c0472fe0683eda5fb6a8d60583c5
FCC.gov SourcesFCC.gov 28241
