TLAFLA Alphanumeric VHF Radio Paging... - FCC ID E86TLA-FLA

FCC ID E86TLA-FLA

Radiated Emissions Rear

Alphanumeric VHF Radio Paging Receiver

by Multitone Electronics PLC

Radiated Emissions Rear

Document Details

FCC IDE86TLA-FLA
Document ID290785
Document TypeTest Setup Photos

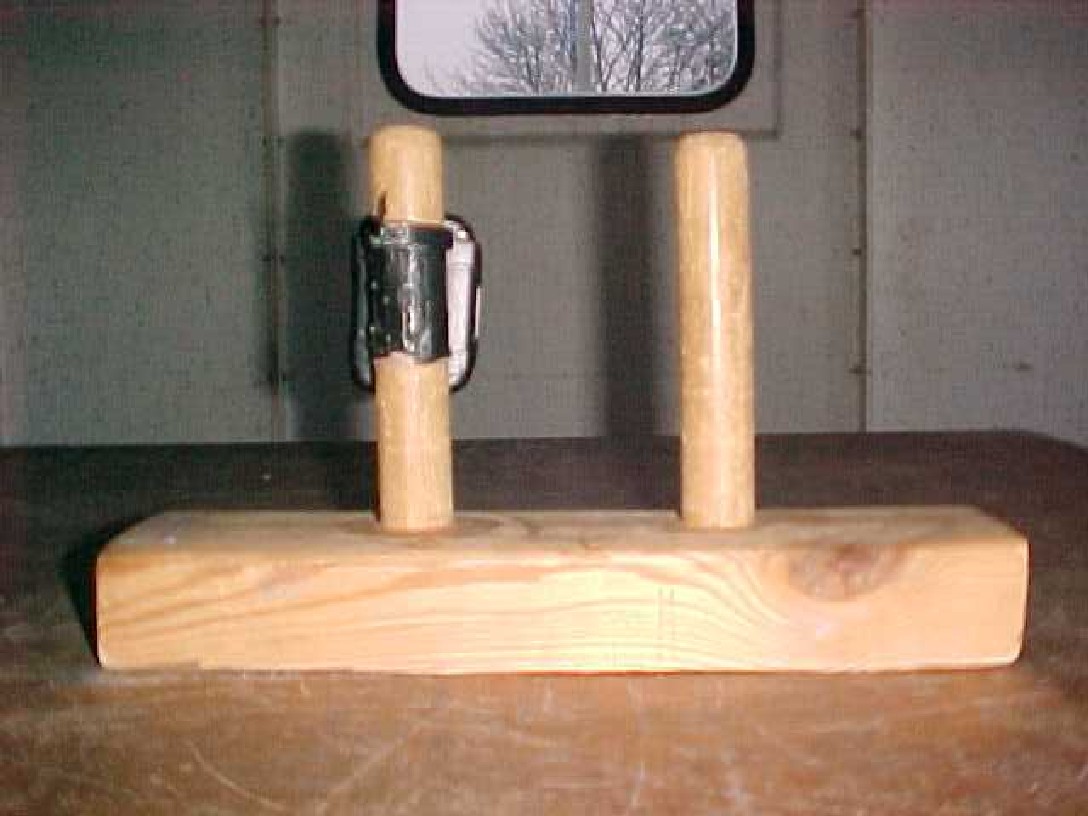

DescriptionRadiated Emissions Rear
ApplicantMultitone Electronics PLC
Equipment ClassAlphanumeric VHF Radio Paging Receiver
Product CodeTLAFLA
Application IDN3Pnzq88T9Fp12bGGO/jwg==
Application PurposeOriginal Equipment
Application Date2002-12-19
Frequency Range138-174.1 MHz
FRN0005044342
Test FirmRFI Global Services Ltd.
Certified ByB. Merchant Principal Approvals Engineer
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2002-12-19
Available2002-12-19
Pages0
File TypeJPEG Image
File Size137565
File SHA-256e07569accfd4fc3bc2c2dc27533e125cbad82efdcb61760bf5deec2a5bfbde51
FCC.gov SourcesFCC.gov 290785
