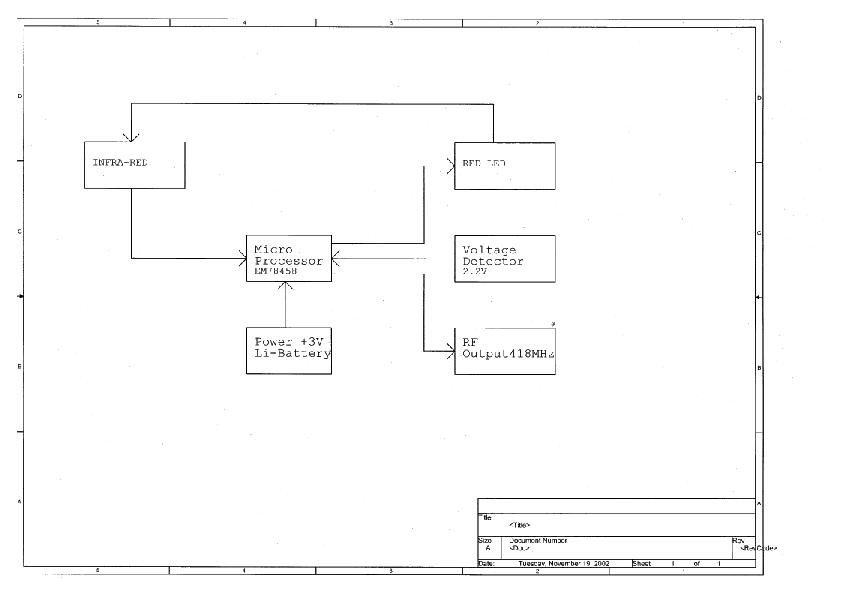

WTDI Wrist Transmitter Block Diagram - FCC ID EEBWTDI

FCC ID EEBWTDI

block diagram

Wrist Transmitter

by Digital Products of Delaware, Inc.

Document preview loads when visible.

Document Details

FCC IDEEBWTDI
Document ID296970
Document TypeBlock Diagram
Descriptionblock diagram
Document Titlescan.XDW
ApplicantDigital Products of Delaware, Inc.
Equipment ClassWrist Transmitter
Product CodeWTDI
Application IDuhysgsLxKCc9YFo4GEDfbw==
Application PurposeOriginal Equipment
Application Date2003-01-16
Frequency Range417.9-418.1 MHz
FRN0008223026
Test FirmTraining Research Co., Ltd.
Certified ByDavid Bower
Short-Term ConfidentialityNo
Long-Term ConfidentialityNo
Grant DeferralNo
Modular EquipmentDoes not apply
Composite DeviceNo
Composite PartNo
Submitted2003-01-20
Available2003-01-16
Created2003-01-09
Modified2003-01-09
Pages1
File TypeAdobe Acrobat PDF
File Size22880
File SHA-25635e454d8beffc962cc8d13741d046166ac9ff44501b9038092a7e8eaa962ff83
PDF Metadata AuthorWeng
PDF Metadata ProducerAcrobat PDFWriter 5.0 for Windows Weng
FCC.gov SourcesFCC.gov 296970
